323
Maintenance
This chapter discusses basic maintenance.
Before Performing Maintenance
Inspection and Maintenance ............ 324Safety When Performing Maintenance..... 325Parts and Fluids Used in Maintenance
Service ........................................... 326
Maintenance Minder™.................... 327
Maintenance Under the HoodMaintenance Items Under the Hood ..... 335Opening the Hood ........................... 336
Recommended Engine Oil ................ 337
Oil Check ......................................... 338
Adding Engine Oil ............................ 339Changing the Engine Oil and Oil Filter ..... 340
Engine Coolant ................................ 342
Transmission Fluid ............................ 344
Brake Fluid ....................................... 345
Power Steering Fluid Check.............. 346
Refilling Window Washer Fluid......... 346
Replacing Light Bulbs....................... 347Checking and Maintaining Wiper Blades
.... 358
Checking and Maintaining Tires
Checking Tires ................................. 362Tire and Loading Information Label ...... 363Tire Labeling .................................... 363DOT Tire Quality Grading (U.S. Vehicles)....... 365Wear Indicators................................ 367Tire Service Life ................................ 367
Tire and Wheel Replacement ........... 368
Tire Rotation .................................... 369
Winter Tires ..................................... 370
Battery............................................... 371
Remote Transmitter Care................. 372
Remote Control and Wireless
Headphone Care
*........................... 374
Heating and Cooling System
*/Climate
Control System
* Maintenance....... 376
Cleaning
Interior Care .................................... 377
Exterior Care.................................... 379
* Not available on all models

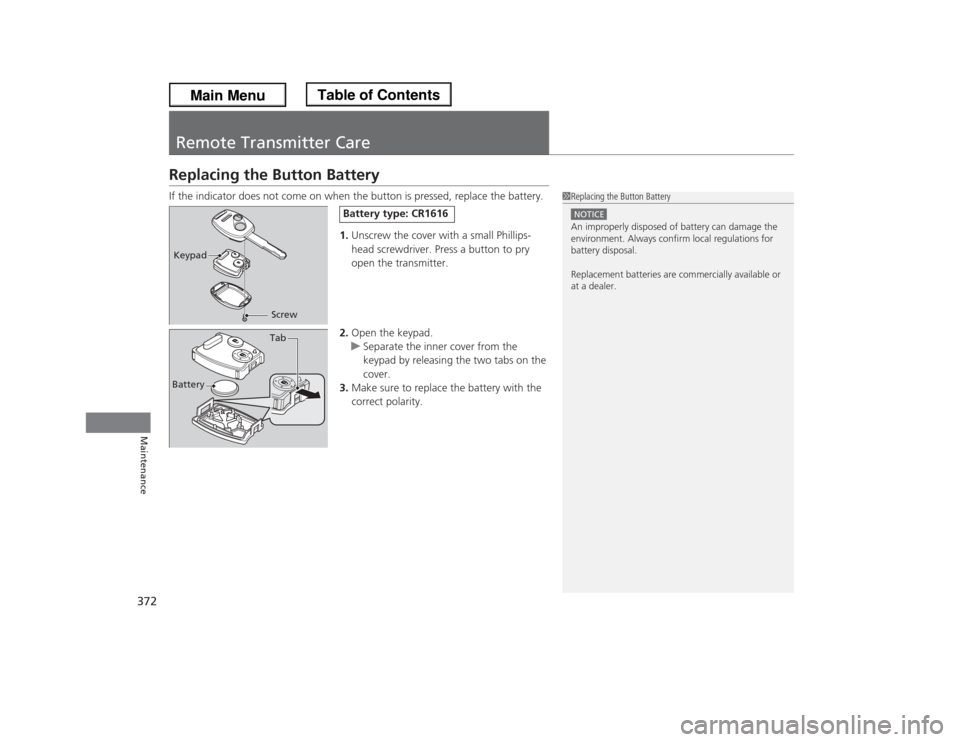

372Maintenance
Remote Transmitter CareReplacing the Button BatteryIf the indicator does not come on when the button is pressed, replace the battery.
1.Unscrew the cover with a small Phillips-
head screwdriver. Press a button to pry
open the transmitter.
2.Open the keypad.
uSeparate the inner cover from the
keypad by releasing the two tabs on the
cover.
3.Make sure to replace the battery with the
correct polarity.
1Replacing the Button BatteryNOTICEAn improperly disposed of battery can damage the
environment. Always confirm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
Keypad
Screw
Battery type: CR1616
Battery
Tab

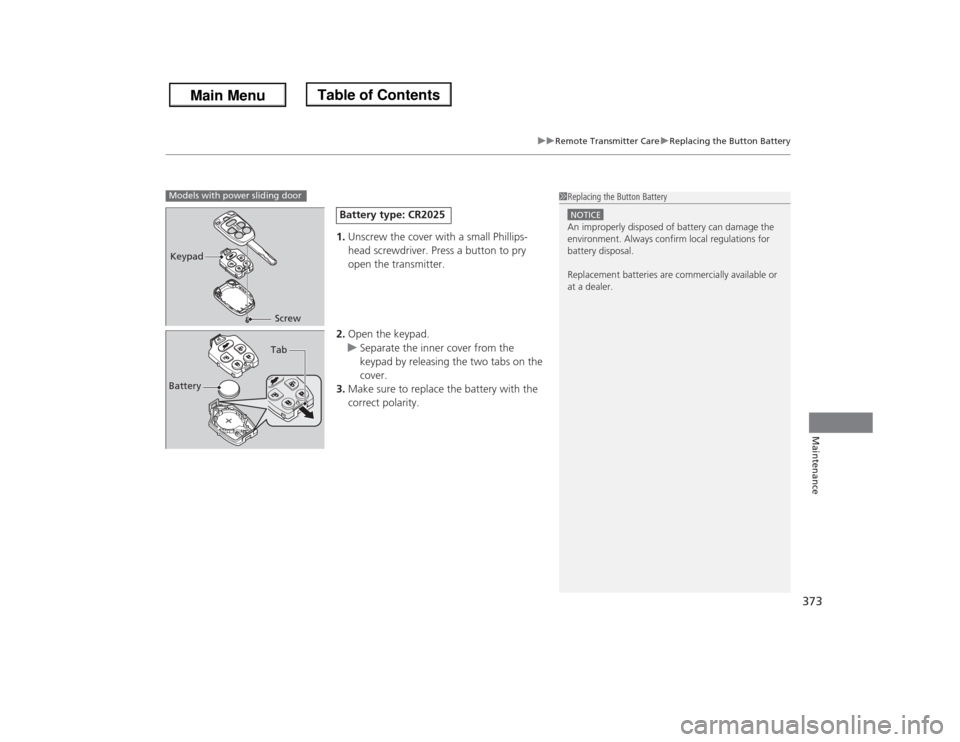

373
uuRemote Transmitter CareuReplacing the Button Battery
Maintenance
1.Unscrew the cover with a small Phillips-
head screwdriver. Press a button to pry
open the transmitter.
2.Open the keypad.
uSeparate the inner cover from the
keypad by releasing the two tabs on the
cover.
3.Make sure to replace the battery with the
correct polarity.
1Replacing the Button BatteryNOTICEAn improperly disposed of battery can damage the
environment. Always confirm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
Models with power sliding doorKeypad
Screw
Battery type: CR2025
BatteryTab

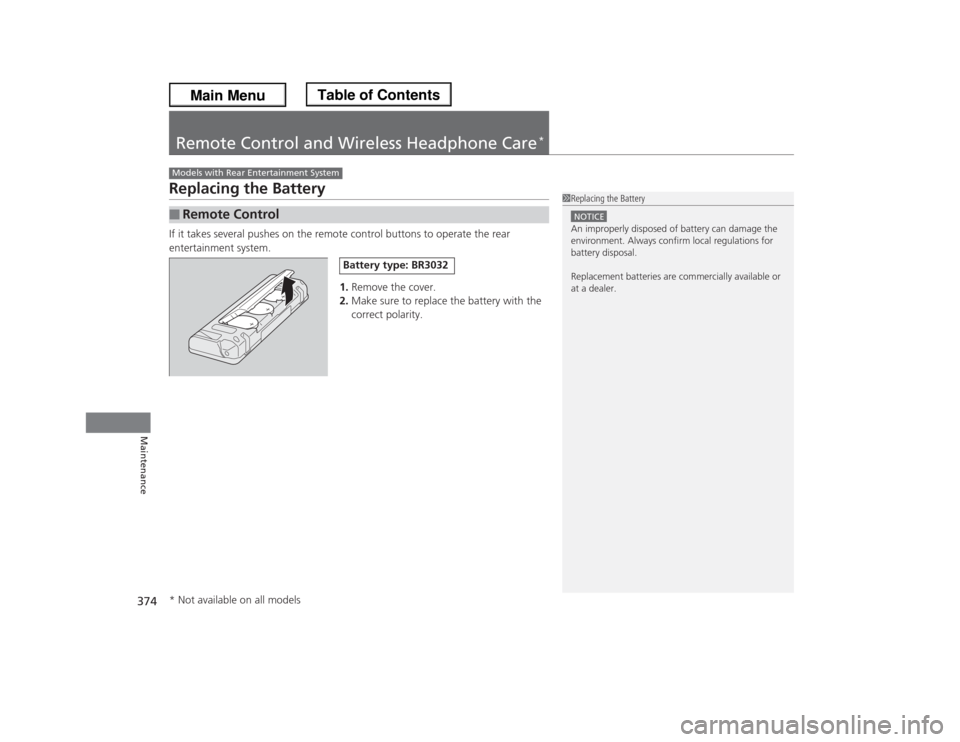

374Maintenance
Remote Control and Wireless Headphone Care
*
Replacing the BatteryIf it takes several pushes on the remote control buttons to operate the rear
entertainment system.
1.Remove the cover.
2.Make sure to replace the battery with the
correct polarity.■
Remote ControlModels with Rear Entertainment System
1Replacing the BatteryNOTICEAn improperly disposed of battery can damage the
environment. Always confirm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
Battery type: BR3032
* Not available on all models

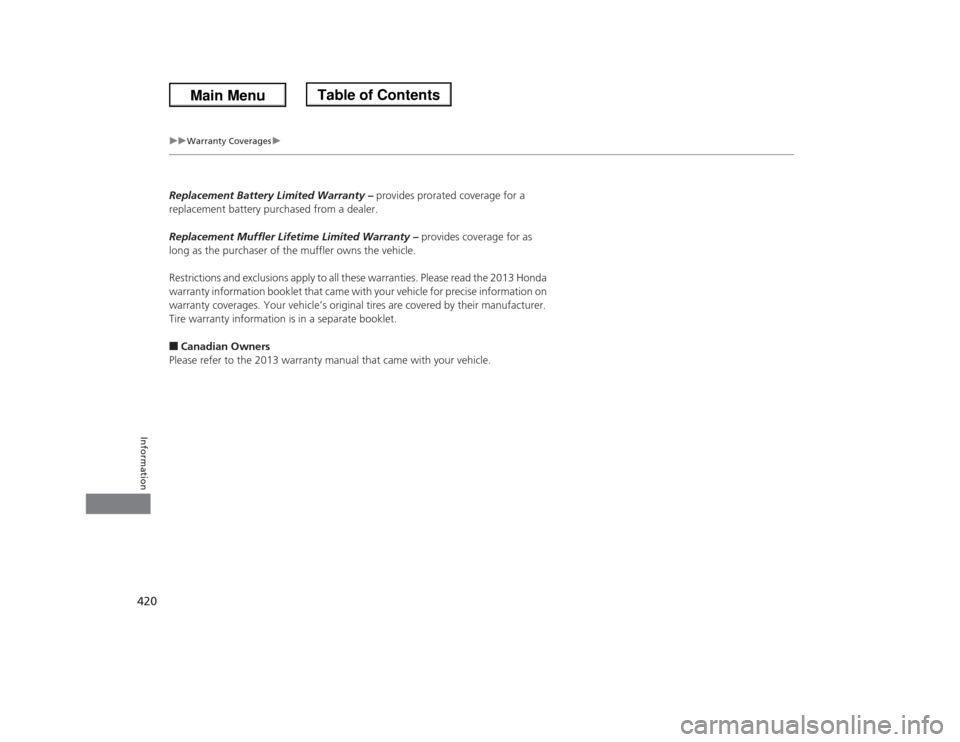

420
uuWarranty Coveragesu
Information
Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from a dealer.
Replacement Muffler Lifetime Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.
Restrictions and exclusions apply to all these warranties. Please read the 2013 Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.■Canadian Owners
Please refer to the 2013 warranty manual that came with your vehicle.

426Index
Blind Spot Information (BSI) System........ 306
Bluetooth® Audio..................................... 225
Bluetooth® HandsFreeLink®..................... 254
Booster Seats (For Children)....................... 67
Brake System............................................. 308
Anti-lock Brake System (ABS) ................... 310
Brake Assist System ................................. 311
Fluid ........................................................ 345
Foot Brake ............................................... 309
Indicator ............................................ 72, 400
Parking Brake .......................................... 308
Brightness Control (Instrument Panel).... 146
BSI (Blind Spot Information) System........ 306
Bulb Replacement..................................... 347
Back-Up/Taillight...................................... 355
Brake/Rear Side Marker/Taillight and Rear Turn
Signal Lights .......................................... 353
Fog Lights ................................................ 351
Front Turn Signal/Parking/
Side Marker Lights ................................. 352
Headlights ............................................... 347
High-Mount Brake Light .......................... 357
Rear License Plate Light............................ 356
Bulb Specifications.................................... 412CCarbon Monoxide Gas................................ 68
Cargo Hooks.............................................. 177
Carrying Cargo.................................. 281, 283
CD Library.................................................. 211CD Player................................................... 207
Center Pocket........................................... 172
Certification Label.................................... 414
Changing Bulbs........................................ 347
Charging System Indicator................. 73, 398
Child Safety................................................. 54
Childproof Door Locks............................. 114
Child Seat.................................................... 54
Booster Seats ............................................ 67
Child Seat for Infants................................. 56
Child Seat for Small Children ..................... 57
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 62
Larger Children ......................................... 66
Rear-facing Child Seat ............................... 56
Selecting a Child Seat ................................ 58
Using a Tether ........................................... 64
Childproof Door Locks............................. 114
Cleaning the Exterior............................... 379
Cleaning the Interior................................ 377
Climate Control System............................ 186
Changing the Mode ................................ 186
Defrosting the Windshield
and Windows ........................................ 187
Dust and Pollen Filter............................... 376
Recirculation/Fresh Air Mode ................... 186
Sensors ................................................... 191
Using Automatic Climate Control ............ 186
Clock.......................................................... 108
Coat Hooks............................................... 177
Compact Spare Tire.......................... 383, 413Controls.................................................... 107
Coolant (Engine)...................................... 342
Adding to the Radiator ........................... 343
Adding to the Reserve Tank .................... 342
Overheating ............................................ 396
Temperature Gauge .................................. 86
Creeping (Automatic Transmission)........ 294
Cruise Control.......................................... 297
Indicator ................................................... 81
Cup Holders.............................................. 173
Customer Service Information................ 422
Customized Features............................... 101
DDaytime Running Lights.......................... 143
Dead Battery............................................ 393
Defrosting the Windshield
and Windows................................. 184, 187
Devices that Emit Radio Waves............... 415
Dimming
Headlights .............................................. 141
Rearview Mirror ...................................... 151
Dipstick (Engine Oil)................................ 338
Directional Signals (Turn Signal)............. 141
Display/Information Button...................... 98
Door Mirrors............................................. 152
Doors........................................................ 109
Auto Door Locking.................................. 115
Auto Door Unlocking .............................. 115
Door and Tailgate Open Indicator ....... 29, 77

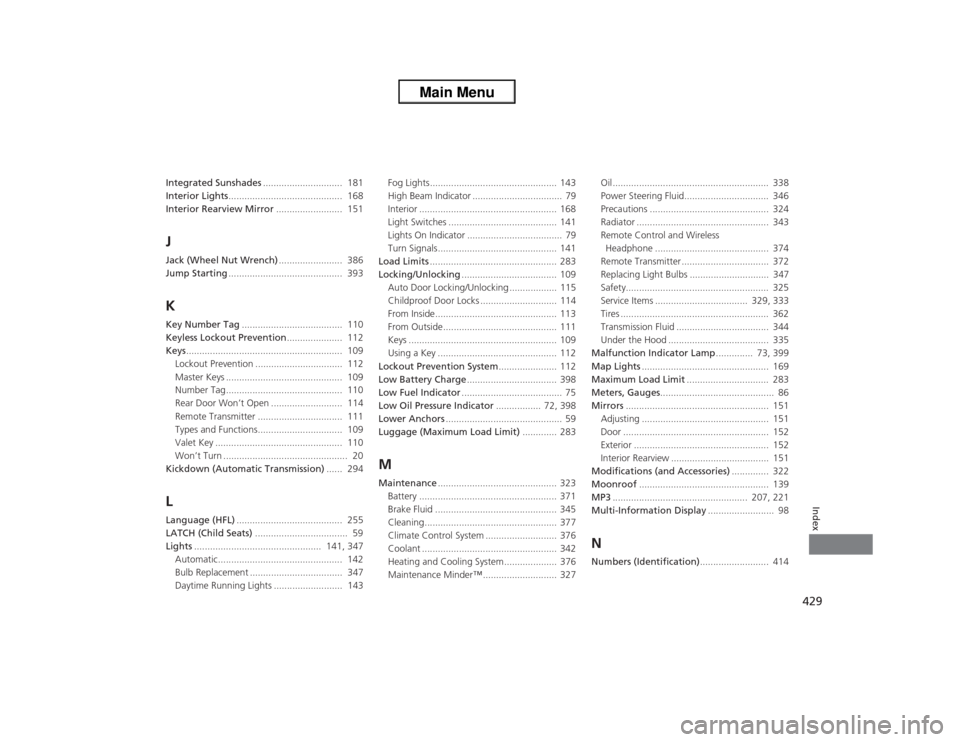

429Index
Integrated Sunshades.............................. 181
Interior Lights........................................... 168
Interior Rearview Mirror......................... 151JJack (Wheel Nut Wrench)........................ 386
Jump Starting........................................... 393KKey Number Tag...................................... 110
Keyless Lockout Prevention..................... 112
Keys........................................................... 109
Lockout Prevention ................................. 112
Master Keys ............................................ 109
Number Tag............................................ 110
Rear Door Won’t Open ........................... 114
Remote Transmitter ................................ 111
Types and Functions................................ 109
Valet Key ................................................ 110
Won’t Turn ............................................... 20
Kickdown (Automatic Transmission)...... 294LLanguage (HFL)........................................ 255
LATCH (Child Seats)................................... 59
Lights................................................ 141, 347
Automatic............................................... 142
Bulb Replacement ................................... 347
Daytime Running Lights .......................... 143Fog Lights................................................ 143
High Beam Indicator .................................. 79
Interior .................................................... 168
Light Switches ......................................... 141
Lights On Indicator .................................... 79
Turn Signals............................................. 141
Load Limits................................................ 283
Locking/Unlocking.................................... 109
Auto Door Locking/Unlocking .................. 115
Childproof Door Locks ............................. 114
From Inside.............................................. 113
From Outside........................................... 111
Keys ........................................................ 109
Using a Key ............................................. 112
Lockout Prevention System...................... 112
Low Battery Charge.................................. 398
Low Fuel Indicator...................................... 75
Low Oil Pressure Indicator................. 72, 398
Lower Anchors............................................ 59
Luggage (Maximum Load Limit)............. 283
MMaintenance............................................. 323
Battery .................................................... 371
Brake Fluid .............................................. 345
Cleaning.................................................. 377
Climate Control System ........................... 376
Coolant ................................................... 342
Heating and Cooling System.................... 376
Maintenance Minder™............................ 327Oil ........................................................... 338
Power Steering Fluid................................ 346
Precautions ............................................. 324
Radiator .................................................. 343
Remote Control and Wireless
Headphone ........................................... 374
Remote Transmitter ................................. 372
Replacing Light Bulbs .............................. 347
Safety...................................................... 325
Service Items ................................... 329, 333
Tires ........................................................ 362
Transmission Fluid ................................... 344
Under the Hood ...................................... 335
Malfunction Indicator Lamp.............. 73, 399
Map Lights................................................ 169
Maximum Load Limit............................... 283
Meters, Gauges........................................... 86
Mirrors...................................................... 151
Adjusting ................................................ 151
Door ....................................................... 152
Exterior ................................................... 152
Interior Rearview ..................................... 151
Modifications (and Accessories).............. 322
Moonroof................................................. 139
MP3................................................... 207, 221
Multi-Information Display......................... 98
NNumbers (Identification).......................... 414

430Index
OOdometer.............................................. 87, 99
Oil (Engine)............................................... 337
Adding .................................................... 339
Checking ................................................. 338
Displaying Oil Life ............................ 327, 331
Low Oil Pressure Indicator .................. 72, 398
Recommended Engine Oil ........................ 337
Viscosity .................................................. 337
Opening/Closing
Hood ....................................................... 336
Moonroof ................................................ 139
Power Windows ...................................... 136
Sliding Door............................................. 125
Tailgate ................................................... 119
Outside Temperature Display............ 89, 100
Overheating.............................................. 396PPanic Mode............................................... 135
Parking...................................................... 312
Parking Brake............................................ 308
Parking Brake and Brake System
Indicator............................................ 72, 400
Parking Sensor System.............................. 313
Passenger Airbag Off Indicator................. 51
Passing Indicators..................................... 141
Power Sliding Door................................... 127
Power Tailgate.......................................... 121
Power Windows........................................ 136Precautions While Driving....................... 293
Rain ........................................................ 293
Pregnant Women....................................... 37
Puncture (Tire).......................................... 383
RRadiator.................................................... 343
Radio (AM/FM)......................................... 200
Radio Data System (RDS)......................... 203
Range.............................................. 88, 92, 99
RDS (Radio Data System)......................... 203
Readiness Codes (Emissions Testing)....... 417
Rear Defogger/Heated Door Mirror
Button..................................................... 147
Rear Entertainment System..................... 236
Rear Seats (Folding Down).............. 161, 165
Rearview Camera..................................... 317
Rearview Mirror....................................... 151
Refueling.................................................. 318
Fuel Gauge................................................ 86
Gasoline .......................................... 318, 412
Low Fuel Indicator ..................................... 75
Regulations............................... 303, 365, 415
Remote Transmitter................................. 111
Removable Center Console...................... 170
Removing a Second Row Outer Seat...... 162
Removing the Second Row
Center Seat............................................. 164
Replacement
Battery ............................................ 372, 374Bulbs ...................................................... 347
Fuses ...................... 403, 404, 405, 406, 407
Tires........................................................ 368
Wiper Blade Rubber ................................ 358
Reporting Safety Defects......................... 416
Resetting a Trip Meter......................... 88, 99
SSafe Driving................................................ 25
Safety Check............................................... 29
Safety Labels.............................................. 69
Safety Message.......................................... 23
Seat Belts.................................................... 30
Adjusting the Shoulder Anchor ........... 34, 35
Automatic Seat Belt Tensioners ................. 32
Checking .................................................. 38
Fastening .................................................. 33
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 62
Pregnant Women...................................... 37
Reminder .................................................. 31
Warning Indicator ............................... 31, 75
Seat Heaters............................................. 180
Seats.......................................................... 153
Adjusting ................................................ 153
Front Seats.............................................. 153
Rear Seats ............................................... 161
Seat Heaters ........................................... 180
