2013 HONDA INSIGHT bluetooth

Navigation.................................................................................................................\f8
Bluetooth
®HandsFreeLink®(HFL)........................................................................2\f
Bluetooth
®Audio ......................................................................................................25
iPod
®or USB Flash Drive .....................................................................................26
Rearview Camera ................................................................................................... 27
Owner Link ..............................................................................................................28
Safety Reminder ......................................................................................................28
Fuel Recommendation........................................................................................... 29
Auto Door Locks .....................................................................................................2
Fuel Fill Door .............................................................................................................3
Instrument Panel Indicators ...................................................................................4
Multi\bInformation Display (MID) ...........................................................................6
Eco Assist
TM................................................................................................................
8
Paddle Shifting......................................................................................................... \f2
Tire Pressure Monitoring System (TPMS) ........................................................\f3
Voice Recognition ................................................................................................... \f4
T E C H N O L O G Y R E F E R E N C E G U I D E
The Technology Reference Guide is designed to help you get
acquainted with your new Honda and provide basic
instructions on some of its technology and convenience
features. This guide covers the Insight EX with Navigation.
This guide is not intended to be a substitute \2for the
Owner’s Manual. For more detailed information on vehicle
controls and operation, please refer to the respective
sections in the Owner’s Manual.
ECO
ASSIST
TMp. 8
BLUETOOTH®
HANDSFREELINK®
INSTRUMENT PANELp. 4
MIDp. \f
NAVIGATION p.\b8
13 Insight EX NAV TRG_A\ATG_NEW STYLE 8/7/2\A012 1\f43 PM Page \A2
p.2\b

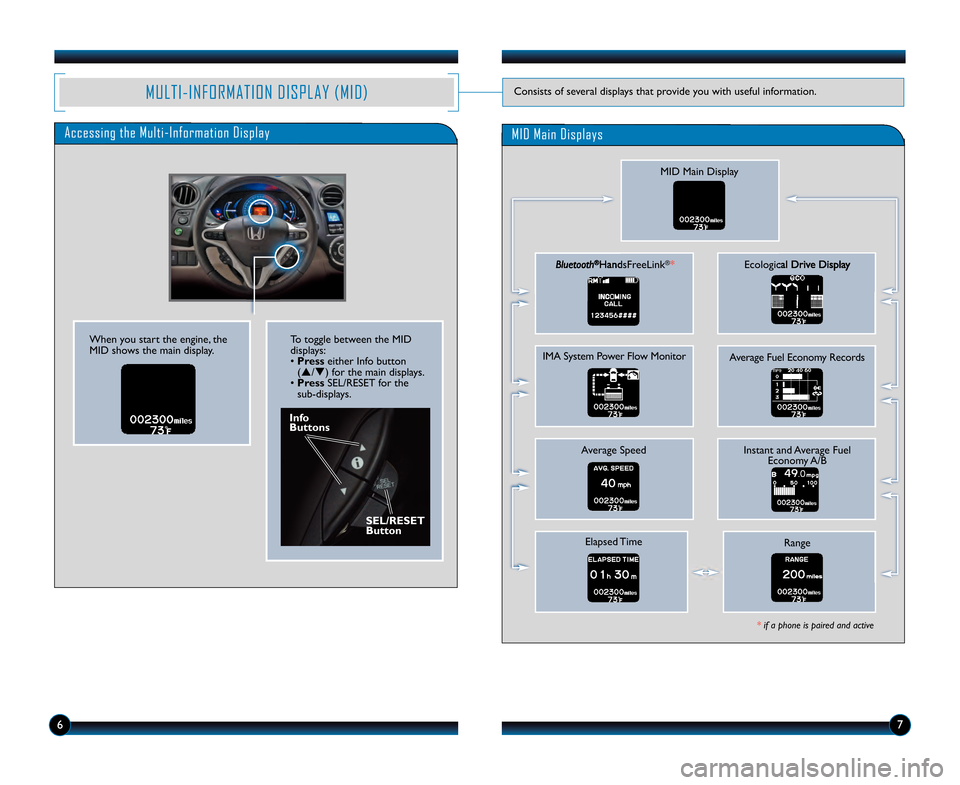

Accessing the MultiInformation Display
MID Main Display
Bluetooth®HandsFreeLink®*
IMA System Power Flow Monitor
Average Speed
Elapsed Time
Ecological Drive Display
Average Fuel Economy Records
Instant and Average FuelEconomy A/B
Range
* if a phone is paired and active
MID Main Displays
When you start the engine, the
MID shows the main display.
67
MULTIINFORMATION DISPLAY (MID)Consists of several displays that provide you with useful information.
To toggle between the MID
displays:
•Press either Info button
(p/q) for the main displays.
• Press SEL/RESET for the
sub\bdisplays.
SEL/RESET
\futton
Info
\futtons
13 Insight EX NAV TRG_A\ATG_NEW STYLE 8/7/2\A012 1\f44 PM Page \A5

FM Traffic
Press and release the Talk button before you say a command.
Displaying Traffic Information
Say“Display traffic” to view highway flow data.
Note:Traffic flow and incident icons are
only displayed on map scales of \f miles
(8 km) or less.
Heavy traffic
Moderate traffic
Traffic
Flow
data
Traffic
Flow
data Incident
icon
Incident
icon
Incident
Traffic Icons
Construction
Road closed
Weather
Provides continuously updated information, including traffic speed, incidents, and
construction in major metro areas. Works in cities where a clear FM traffic signal
is available.
\f. Say “Display traffic list” to view
a list of incidents on your route.
3. Say “Avoid,” and the incident
list returns.
4. Say “Reroute” to set the new
route.
Traffic ReroutingWhen a destination is already set, you can create a detour to avoid traffic
incidents or congestion.
202\f
2. Say the number of the incident
you want to avoid. When the
incident appears, say “Traffic
detail.”
BLUETOOTH® HANDSFREELINK®( H F L )
Place and receive phone calls through your vehicle’s audio system. Visit
handsfreelink.honda.com to check if your phone is compatible.
To reduce the potential for driver distraction, certain manual and touch
screen functions may be inoperable or grayed out while the vehicle is
moving. Voice commands are always available.
PickUp button: Answer an incoming call, or
go directly to the Phone screen.
Ta l k b u t t o n : Give HFL commands.
Back button: Cancel a command and return
to the previous screen.
HangUp: End a call or decline a call.
How to Use HFL
Press and release the Talk button before you say a command.
1.Press the PickUp button to
go to the Phone screen. A
prompt appears. Say“Yes.”
2. Make sure your phone is in discovery mode, and say“OK.” If your phone does not appear:
Say
“Find Another Phone” and
search for a HandsFreeLink
device from your phone.
Connect to HFL.
3. HFL searches for your phone.
Say the number next to the
phone when it appears on the list. 4. HFL gives you a fourdigit code.
Enter it on your phone when
prompted. The phone is now
paired.
Pairing Your Phone
Use this pairing method when no phone has ever been paired to the system. You
can pair your compatible phone only when the vehicle is stopped.
13 Insight EX NAV TRG_A\ATG_NEW STYLE 8/7/2\A012 1\f44 PM Page \A12

2425
Press and release the Talk button before you say a command.
2.Say “Phonebook.”
1.Press the PickUp button
to go to the Phone screen. 3.
Scroll through the list to find
the name and number you want
to call. Say“Dial,” orpress the
PickUp button to call.
4. The call is connected and heard through the vehicle speakers.
Using the Phonebook
When your phone is paired, its entire phonebook is automatically imported to
the system.
Using Speed Dial
Press and release the Talk button before you say a command.
3. The call is connected and heardthrough the vehicle speakers.
\f. Press
the Pick\bUp button
to go to the Phone screen. If an entry has a stored voice
tag, say
“Dial by voice tag,”
followed by the voice tag name
and “Dial” from any screen.
2. Say “Speed Dial \b” (or “Speed
Dial 2”) and the number next
to the entry. For example,
“One.” Say“Call,” or press the
Pick\bUp button to call.
Playing BluetoothAudio
BLUETOOTH®AUDIO
Play stored or streaming audio from your compatible phone through your vehicle’s audio
system. Visit handsfreelink.honda.com to check if this feature is available on your phone.
\f. Make sure your phone is on and
paired to Bluetooth®HandsFreeLink®
(see page \b1).
3. Press “play” on your phone; sound is
redirected to the audio system. Make
sure the volume on your phone is
properly adjusted.
4. Press(9) (:) or (+) (\b)to change
tracks.
2. Press CD/AUX until Bluetooth Audio
mode appears.
Notes:
• You may need to enable additional Bluetooth settings on your phone for
playback.
• The play/pause function and remote audio controls may not be supported on all phones.
• Only operate your phone when your vehicle is stopped.
Store up to \f5 numbers for quick calling. See your Navigation Manual for
instructions on storing voice tags.
