2013 HONDA INSIGHT display

Your vehicle’s on board diagnostic
system will detect a loose or missing
fuel fill cap as an evaporative system
leak. The first time a leak
is detected a ‘‘TIGHTEN FUEL
CAP’’ message appears on the multi-
information display.Turn the engine of f , and conf irm the
f uel f ill cap is installed. If it is, loosen
it, then retighten it until it clicks at
least once. The message should go
off after several days of normal
driving once you tighten or replace
thefuelfillcap.Toscrolltoanother
message, press the INFO button.
The ‘‘TIGHTEN FUEL CAP’’
message will appear each time you
restart the engine until the system
turns the message off.
Screw the fuel fill cap back on
until it clicks at least once. If you
do not properly tighten the cap,
you will see a ‘‘TIGHTEN FUEL
CAP’’ message on the multi-
inf ormation display. If the system
still detects an evaporative system
leak af ter retightening the cap, the
malf unction indicator lamp may
come on (see
page).
Push the f uel f ill door closed until
it latches.
6. 5.
365
CONT INUED
Tighten Fuel Cap Message
Service Station Procedures
247
12/07/13 17:08:26 31TM8630_252
Bef ore DrivingTOC
2013 Insight

µµ
µ
µµ µ
Aggressive driving (hard
acceleration and braking)
Excessive idling, accelerating and
braking in stop-and-go traf f ic
Cold engine operation (engines
are more efficient
when warmed up)
Driving with a heavy load or the
air conditioner running
Improperly inf lated tires
The f ollowing f actors can lower your
vehicle’s f uel economy:
A properly maintained vehicle
maximizes f uel economy. Poor
maintenance can signif icantly reduce
f uel economy. Always maintain your
vehicle according to the maintenance
messages displayed on the multi- inf ormation display (see
onpage).
For example: Rapid
acceleration, abrupt cornering,
and hard braking increase fuel
consumption.
Aerodynamic drag has a big ef f ect
on f uel economy at speeds above
45 mph (75 km/h). Reduce your
speed and you reduce the drag.
Trailers, car top carriers, roof
racks and bike racks are also big
contributors to increased drag.
An underinf lated tire increases
‘‘rolling resistance,’’ which reduces
f uel economy.
It puts a heavier
load on the engine, increasing fuel
consumption.
In
particular, a build-up of snow or
mud on your vehicle’s underside adds weight and rolling
resistance. Frequent cleaning
helps your fuel economy. Idling
results in 0 miles per gallon (0 kms
per liter).
Use the ECON mode as much as
possible.
307
Fuel Economy Factors
Use the recommended viscosi
ty motor oil, displaying
the API Certif ication Seal
(see page ).
Improving Fuel Economy Owner’s
Maintenance Checks Drive moderately
Observe the speed limit
Maintain proper tire inf lation
A void carrying excess weight in
your vehicle
K eep your vehicle clean A void excessive idling
311
Vehicle Maint enance Drive Ef f icient ly
Fuel Economy
252
12/07/13 17:09:10 31TM8630_257
Bef ore DrivingTOC
2013 Insight

Make sure all windows, mirrors,
and outside lights are clean and
unobstructed. Remove f rost, snow,
or ice.Check that any items you may be
carrying are stored properly or
f astened down securely.
Check the seat adjustment (see
page
).
Check the adjustment of the
inside and outside mirrors (see
page ).
Check the steering wheel
adjustment (see page).
Make sure the doors are securely
closed and locked. Fasten your seat belt. Check that
your passengers have f astened
their seat belts (see
page).
Youshoulddothefollowingchecks
and adjustments bef ore you drive
your vehicle.
Visually check the tires. If a tire
looks low, use a gauge to check its
pressure (see page).
Check that the hood and hatch are
f ully closed. When you start the engine, check
the gauges and indicators in the
instrument panel, and the
messages on the multi-inf ormation
display (see pages
,and
).
1.
2.
3.
8. 7. 6.9.
4.
5.
61 7217
10.
141
147
128 89
338
Preparing to Drive
262
12/07/13 17:10:27 31TM8630_267
Bef ore DrivingTOC
2013 Insight

The multi-inf ormation display (see
page).
Your vehicle’s f uel economy may
improve more with the ECON mode
on (see
page ).
The driver f eedback inf ormation is
shownintwolocations: The ambient meter, located
behind the speedometer (see
page ).
The system monitors your driving
style, and can display how it impacts
your vehicle’s f uel economy. You can
then make adjustments to your
driving style to maximize f uel
economy. (For additional
inf ormation on f uel economy, see
page
.)
Eco Assist System is a driver
f eedback system designed to help
you develop and maintain a f uel
ef f icient driving style.
7275 127
251
Eco A ssist System
264
ECON BUTTON ECON MODE INDICATOR
Ambient Meter
Eco-drive Result
Eco Drive Bar
12/07/13 17:10:41 31TM8630_269
Bef ore DrivingTOC
2013 Insight

TheEcoDriveBarontheecological
drive display appears on the multi-
inf ormation display while you drive.During acceleration, the bar
extends to the right of the
center line.
If the bar extends into the
Inef f icient Driving Zones, your
current driving style is not
conducive to good f uel economy. If the bar stays within the Efficient
Driving Zones, your current
driving style is conducive to good
f uel economy. During deceleration, the bar
extends to the left of the
center line.
It is recommended to drive in the D
position f or better f uel ef f iciency.
CONT INUED
Eco Drive Bar
Driving Style
Slow, steady
acceleration -
maximizes f uel
economy
Slow deceleration -
maximizes f uel
economy
Moderate
acceleration
Moderate
deceleration
Aggressive/
Inconsistent
acceleration - lowers
fuel economy
Aggressive
deceleration - lowers
fuel economy
Eco Drive BarEco Drive Bar Examples
Eco A ssist System
265
Acceleration
Monitor
Inefficient Driving Zone
Center Position
Deceleration
Monitor
Inefficient Braking Zone Efficient Zones
ECO ELEMENTS Eco
Drive
Bar
12/07/23 10:21:17 31TM8630_270
Bef ore DrivingTOC
2013 Insight

µ
CONT INUED
A point system is used so you can
monitor your driving style and the
impact on f uel economy. Points are:Accumulatedwhenyourdriving
style is f uel ef f icient
Deducted when your style is not
f uel ef f icient
Your current
trip is represented on the ecological
drive display, starting without any
leaves on the plants. Leaves then
accumulate during the current trip,
as long as you maintain an economic
driving style.
Eco Assist scoring is displayed on
the multi-information display in the
following ways:

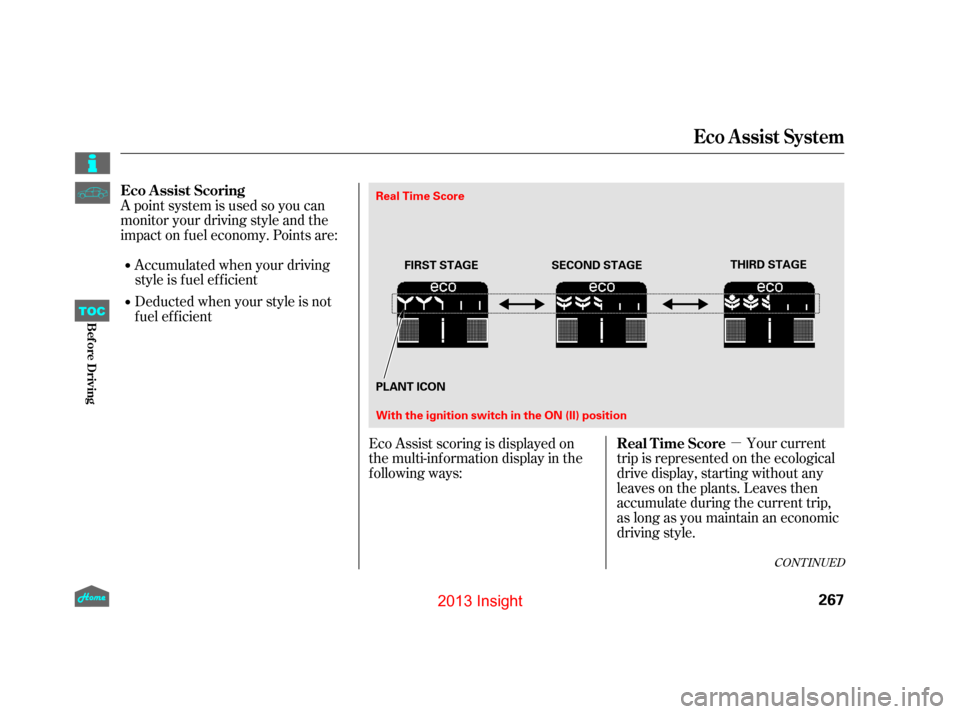

Eco Assist Scoring
Real Time Score
Eco A ssist System
267
FIRST STAGETHIRD STAGE
PLANT ICON SECOND STAGE
Real Time Score
With the ignition switch in the ON (II) position
12/07/13 17:11:10 31TM8630_272
Bef ore DrivingTOC
2013 Insight

µ
µ The score
f rom your just completed trip is
represented on the Eco Score screen
by the ‘‘plant’’ icons.
Cumulative, or
lif etime trips, which build up over
time, represented by a bar graph at
the bottom of the Eco Score display.
Each time you turn the ignition
switch to the LOCK (0) position, the
Eco Score displays f or a f ew seconds
to show your current stage and
lif etime points. Drive Cycle Score
Lif etime Points
Eco A ssist System
268
STAGE-UP
RECOGNITION
ICON
When turning off the ignition switch TROPHY
STAGE-DOWN RECOGNITION ICON
Drive Cycle Score/Lifetime Points
DRIVE CYCLE
SCORE
LIFETIME
POINTS
12/07/13 17:11:16 31TM8630_273
Bef ore DrivingTOC
2013 Insight

There are three Eco stages, with
five plants per stage. As you
accumulate a specified number of
leaves, you advance from one stage
to the next. The plant grows
leaves from left to right, or
loses them from right to left. A
trophy icon appears once you
have reached the maximum third
stage score.Idle duration ECON button usage
Vehicle speed
Braking and accelerating
The scoring system f or points is
based on:
Stages/Displays and Icons
Def inition
CONT INUED
A total of two leaves can be put on each plant icon.
A total of four leaves can be added to each plant icon.
A circular shaped icon, which represents a blossom, can be
added on top of each plant icon with four leaves.
An icon appears once you have reached the maximum score for
each stage and are moving up to the next stage. These icons
appear briefly when the ignition switch is turned off.
Oncethe3rdstagemaximumscoreisreached,thesystem
continues to monitor your driving. If you maintain a fuel
efficient driving style, your score remains at the highest stage.
If you drive less efficiently, points will be deducted and you
maydrop(stagedown)tothepreviousstage.
Real time scores must accumulate over time to result in a stage change. In order to build lifetime
points and advance to the next stage, you need to keep your efficient driving style every time you
make a trip. It can take several months to move from one stage to the next. Individual results will
vary.
Eco A ssist System
269
First Stage
Second Stage Third Stage
Maximum Score Icons Second
Stage
First
Stage Third
Stage
