2013 HONDA CROSSTOUR tailgate

515
Handling the UnexpectedThis chapter explains how to h andle unexpected troubles.
Tools
Types of Tools .................................. 516
If a Tire Goes Flat Changing a Flat Tire ......................... 517
Engine Does Not Start Checking the Engine ........................ 525
If the Smart Entry Remote Battery is
Weak ..........................................526
Emergency Engine Stop ................... 527
Jump Starting .................................... 528
Shift Lever Does Not Move .............. 531Overheating
How to Handle Overheating............. 532
Indicator, Coming On/Blinking If the Low Oil Pressure Indicator Comes
On................................................ 534
If the Charging System Indicator Comes On ................................................. 534
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 535
If the Brake System Indicator (Red) Comes
On ................................................... 536
If the EPS System Indicator Comes On... 536 If the Low Tire Pressure Indicator Comes
On ................................................. 537
If the TPMS Indicator Comes On ...... 537
Fuses
Fuse Locations ................................. 538
Inspecting and Changing Fuses ........ 541
Emergency Towing ........................... 542
When You Cannot Unlock the Fuel Fill Door ................................................. 543
When You Cannot Open the Tailgate .. 544
Main Menu

543
Handling the Unexpected

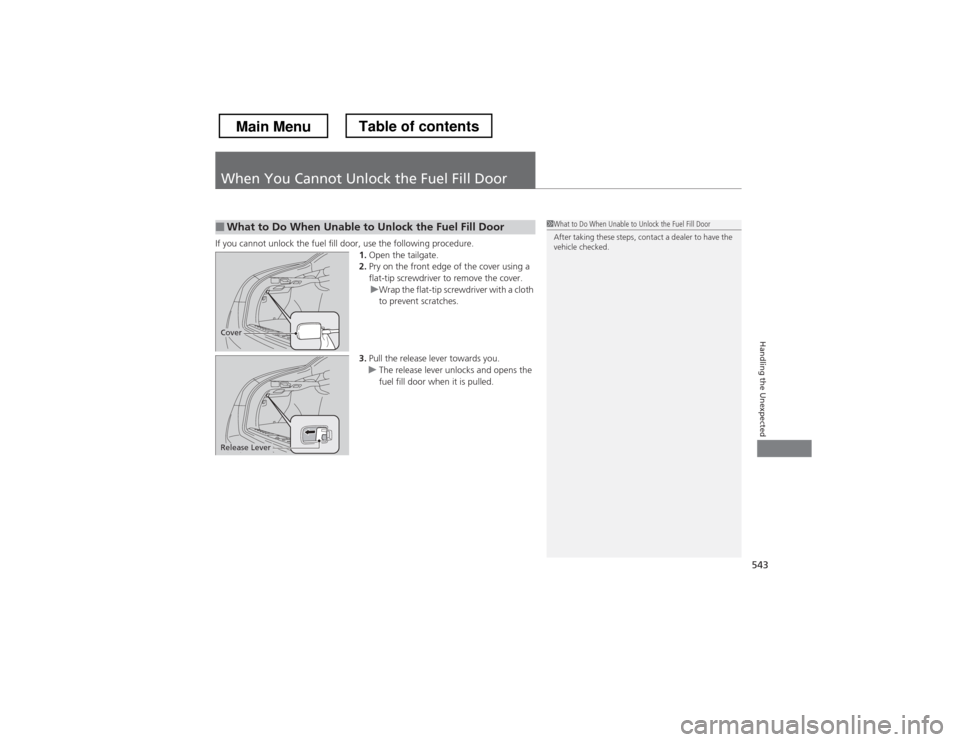

When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the tailgate.
2. Pry on the front edge of the cover using a
flat-tip screwdriver to remove the cover.
uWrap the flat-tip screwdriver with a cloth
to prevent scratches.
3. Pull the release lever towards you.
uThe release lever unlocks and opens the
fuel fill door when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, contact a dealer to have the
vehicle checked.
Cover
Release Lever
Main MenuTable of contents

544
Handling the Unexpected

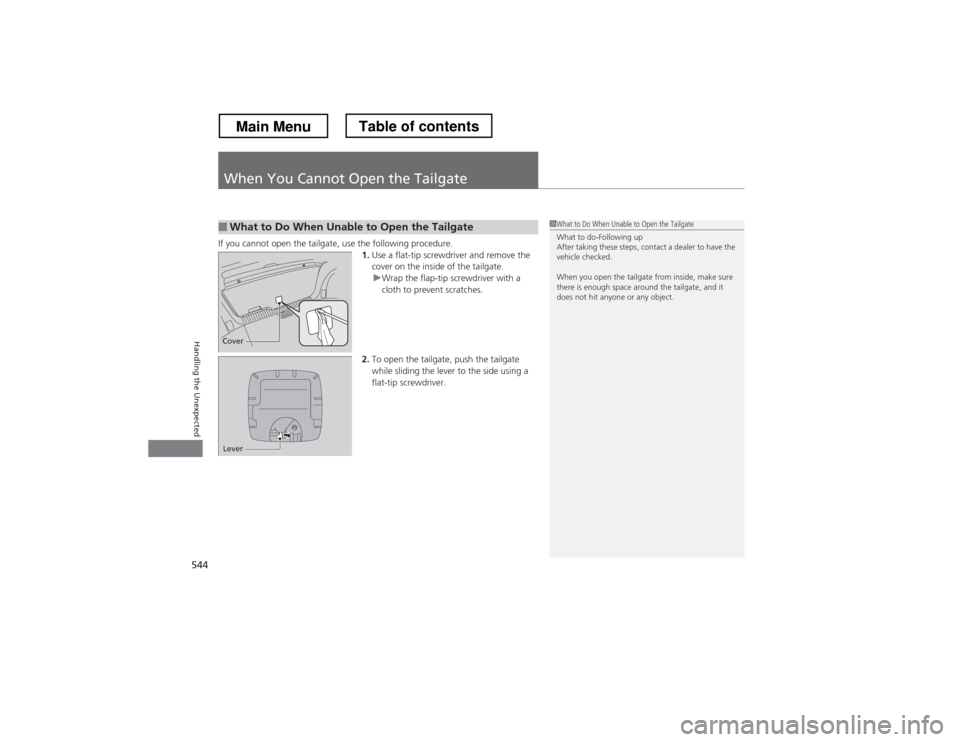

When You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure.1.Use a flat-tip screwdriver and remove the
cover on the inside of the tailgate.
uWrap the flap-tip screwdriver with a
cloth to prevent scratches.
2. To open the tailgate, push the tailgate
while sliding the lever to the side using a
flat-tip screwdriver.
■What to Do When Unab le to Open the Tailgate1What to Do When Unable to Open the Tailgate
What to do-Following up
After taking these steps, contact a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
Main MenuTable of contents

567
Index
N
Numbers (Identification)......................... 550
O
Odometer ................................................... 84
Oil (Engine) .............................................. 472
Adding ................................................... 475
Checking ................................................ 473
Displaying Oil Life ................................... 465
Low Oil Pressure Indicator ................. 70, 534
Recommended Engine Oil ....................... 472
Viscosity.................................................. 472
Opening/Closing
Hood ...................................................... 471
Moonroof ............................................... 113
Power Windows...................................... 110
Tailgate................................................... 105
Outside Temperature ................................ 86
Adjusting .................................................. 86
Overheating ............................................. 532
P
Paddle Shifters (Sequential Shift Mode) ..................................................... 430
Pandora ®.......................................... 208, 261
Panic Mode ............................................... 109
Parking ..................................................... 453
Parking Brake ........................................... 449 Parking Brake and Brake System
Indicator ............................................ 70, 536
Passenger Airbag Off Indicator ................. 51
Passing Indicators ..................................... 119
Power Windows ........................................ 110
Precautions While Driving ....................... 424
Rain......................................................... 424
Pregnant Women ....................................... 37
Puncture (Tire) .......................................... 517
R
Radiator .................................................... 479
Radio (AM/FM) .......................... 171, 193, 232
Radio (XM ®) ...................................... 197, 236
Radio Data System (RDS) .......... 172, 195, 234
RDS (Radio Data System) .......... 172, 195, 234
Readiness Codes (Emissions Testing) ....... 553
Rear Defogger/Heated Door Mirror Button ..................................................... 126
Rear Seats (Folding Down) ....................... 139
Rearview Mirror ........................................ 130
Refueling ................................................... 456
Fuel Gauge ................................................ 83
Gasoline .................................. 456, 546, 548
Low Fuel Indicator ..................................... 72
Regulations ............................... 447, 500, 551
Remote Transmitter ................................... 94
Replacement Battery .................................................... 507
Bulbs ....................................................... 484 Front Wiper Blade Rubber ....................... 493
Fuses ............................................... 538, 539
Rear Wiper Blade Rubber......................... 495
Tires ........................................................ 503
Reporting Safety Defects ......................... 552
Resetting a Trip Meter ............................... 85
S
Safe Driving ................................................ 27
Safety Check ............................................... 31
Safety Labels ............................................... 67
Safety Message ........................................... 25
Seat Belts .................................................... 32
Adjusting the Shoulder Anchor.................. 36
Automatic Seat Belt Tensioners ................. 34
Checking................................................... 38
Fastening .................................................. 35
Installing a Child Seat with a Lap/ Shoulder Seat Belt ................................... 61
Pregnant Women ...................................... 37
Reminder .................................................. 33
Warning Indicator ............................... 33, 71
Seat Heaters .............................................. 153
Seats .......................................................... 133
Adjusting ................................................ 133
Driver’s Seat Lumbar Support .................. 133
Front Seats .............................................. 133
Rear Seats ............................................... 139
Seat Heaters ............................................ 153
Main Menu

568
Index
Security System......................................... 107
Immobilizer System Indicator ..................... 80
Security System Alarm Indicator ................. 80
Select Lever ................................. 18, 426, 428
Operation .................................. 18, 427, 429
Releasing ................................................. 531
Won’t Move ............................................ 531
Select/Reset Knob ....................................... 84
Selecting a Child Seat ................................. 58
Selector Knob (Audio) ...................... 169, 182
Sequential Shift Mode .............................. 430
Setting the Clock ........................................ 88
Shift Lever ................................... 18, 426, 428
Shift Lever Position Indicator ........... 427, 429
Shifting (Transmission) ..................... 426, 428
Shoulder Anchor ......................................... 36
Side Airbags ................................................ 46
Cutoff System............................................ 48
Off Indicator .............................................. 48
Side Curtain Airbags ................................... 49
Smart Entry with Push Button Start System ........................................................ 96
Snow Tires ................................................. 505
Spare Tire .................................. 517, 547, 549
Spark Plugs ........................................ 546, 548
Specifications ............................................ 546
Specified Fuel ............................ 456, 546, 548
Speedometer ............................................... 83
SRS Airbags (Airbags) ................................. 42
Starting the Engine .......................... 420, 422
Does Not Start ......................................... 525 Engine Switch Buzzer .............................. 114
Jump Starting .......................................... 528
Steering Wheel ......................................... 129
Adjusting ................................................ 129
Stopping ................................................... 453
Summer Tires ............................................ 505
Sunglasses Holder ..................................... 152
Supplemental Restraint System (SRS) ........ 42
Switches (Around the Steering
Wheel) ............................................. 2, 3, 114
Synchronized Mode ................................. 161
T
Tachometer ................................................. 83
Tailgate ..................................................... 105
Unable to Open....................................... 544
Temperature Gauge ................................... 83
Temperature Sensor ................................. 162
Time (Setting) ............................................. 88
Tire Pressure Monitoring System
(TPMS) ..................................................... 446
Indicator............................................ 75, 537
Tires ........................................................... 497
Air Pressure ............................. 498, 547, 549
Checking and Maintaining ...................... 497
Inspection ............................................... 497
Labeling .................................................. 498
Puncture (Flat Tire) .................................. 517
Regulations ............................................. 500
Rotation .................................................. 504 Spare Tire ............................... 517, 547, 549
Summer .................................................. 505
Tire Chains.............................................. 505
Wear Indicators....................................... 502
Winter .................................................... 505
Tools ......................................................... 516
Towing a Trailer ....................................... 415
Equipment and Accessories ..................... 416
Load Limits ............................................. 415
Towing Your Vehicle ............................... 419
Emergency .............................................. 542
TPMS (Tire Pressure Monitoring System) .................................................... 446
Indicator ........................................... 75, 537
Transmission ..................................... 426, 428
Automatic....................................... 426, 428
Fluid ....................................................... 480
Number .................................................. 550
Shift Lever Position Indicator ........... 427, 429
Trip Meter .................................................. 85
Troubleshooting ...................................... 515
Blown Fuse ..................................... 538, 539
Brake Pedal Vibrates ................................. 22
Buzzer Sounds When Opening Door ......... 23
Emergency Towing ................................. 542
Engine Won’t Start ................................. 525
Noise When Braking ................................. 23
Overheating ............................................ 532
Puncture/Flat Tire .................................... 517
Rear Door Won’t Open ..................... 22, 100
Select Lever Won’t Move ........................ 531
Main Menu
