uuWhen DrivinguAuto Idle Stop
192
Driving
The vehicle stops with the shift lever in (D and the brake pedal depressed.
■ Auto Idle Stop does not activate when:
• The low temperature indicator is on.
• The IMA battery charge is low.
• The bars of the ASST/CHRG indicators do not move when accelerating or
decelerating.
• The transmission fluid temperature is low.
• The vehicle comes to a stop again before the vehicle speed reaches 9 mph
(15 km/h) after the engine starts.
• Stopped on a steep incline.
• The shift lever is in a position other than
(D or (N .
• Airflow from the climate control system increases. (Except when in ECON mode)
uIf you have selected the fan speed manually:
The display shows more than five vertical bars.
• Shift mode is in the L mode.
• is on (the indicator is on).
■ Auto Idle Stop may not activate when:
• The climate control system is in use, and there is a significant difference between
the set temperature and the actual interior temperature. (Except when in ECON mode).
• When humidity in the interior is high.
• The vehicle is stopped by braking suddenly.
■Auto Idle Stop Activates When:1Auto Idle Stop Activates When:
The Auto Idle Stop may also activate when the brake
pedal is depressed, and the vehicle slows down to a
speed below 6 mph (10 km/h).
Main MenuTable of Contents

193
uuWhen DrivinguAuto Idle Stop
Driving
The brake pedal is released. ■The engine restarts even if the brake pedal is depressed when:
• The shift position is changed to
(R .
• Shift mode set in the L mode.
• The accelerator pedal is depressed.
• The pressure to the brake pedal is reduced and the vehicle starts moving while
stopped on an incline.
• The IMA battery charge becomes low.
• The low temperature indicator comes on.
• The climate control system is in use, and the difference between the set
temperature and actual interior temperature becomes significant.
• The climate control system is being used to dehumidify the interior.
• The pressure on the brake pedal is repeatedly applied and released slightly.
• The (windshield defogger) button is pressed.
■The Engine Automatically Restarts When:
Main MenuTable of Contents

194
uuWhen DrivinguAuto Idle Stop
Driving
Auto Idle Stop
To help maximize fuel economy, the engine automatically stops when the vehicle
comes to a stop, depending on environmental and vehicle operating conditions. The
AUTO STOP indicator blinks at this time. The engine then restarts once the vehicle
is about to move again when you depress the clutch pedal fully, and the indicator
goes off.
If the driver’s door is opened while the
indicator is blinking, a buzzer sounds to notify
you that the Auto Idle Stop function is in operation.
Manual transmission models
1Auto Idle Stop
If the Auto Idle Stop operating time lasts long enough
to lower the 12 volt battery charge or the IMA battery charge, the engine may not restart automatically.
Manually turn off the engine when you leave your
vehicle.
The duration of Auto Idle Stop operation:• Increases in the ECON mode, compared to normal
or sport mode, with climate control in use.
• Decreases if you operate the wipers and climate
control simultaneously.
AUTO STOP
Indicator
Main MenuTable of Contents

Continued195
uuWhen DrivinguAuto Idle Stop
Driving
Stopping with the brake, the clutch pedal is fully depressed, and the shift lever is in
(N.
uTo restart the engine automatically, depress the clutch pedal.
■ Auto Idle Stop does not activate when:
• The low temperature indicator is on.
• The IMA battery charge is low.
• The bars of the ASST/CHRG indicators do not move when accelerating or
decelerating.
• The vehicle comes to a stop again before the vehicle speed reaches 9 mph
(15 km/h) after the engine starts.
• The shift lever is in
(R .
• Airflow from the climate control system increases. (Except when in ECON mode)
uIf you have selected the fan speed manually:
The display shows more than five vertical bars.
• is on (the indicator is on).
■ Auto Idle Stop may not activate when:
• The climate control system is in use, and there is a significant difference between
the set temperature and the actual interior temperature. (Except when in ECON
mode).
• When humidity in the interior is high.
• The vehicle is stopped by braking suddenly.
■Auto Idle Stop Activates When:1Auto Idle Stop Activates When:
The brake pedal is depressed, the vehicle slows down
to a speed below 19 mph (30 km/h), and the clutch
pedal is fully pressed.
The engine may not stop or restart automatically if
you fail to fully depress the clutch pedal.
Keeping the proper driving positions makes it easier
for you to depress the clutch pedal fully.
2 Adjusting the Seats P. 121
Main MenuTable of Contents

uuWhen DrivinguAuto Idle Stop
196
Driving
The clutch pedal is fully depressed, and the shift lever is moved to a position other
than
(N .
■ The engine automatically resta rts when the clutch pedal is fully depressed
even if the shift lever is in
(N when:
• The low temperature indicator comes on.
• The accelerator pedal is pressed.
• The IMA battery charge becomes low.
• The climate control system is in use, and the difference between the set
temperature and actual interior temperature becomes significant.
• The climate control system is being used to dehumidify the interior.
The engine automatically restarts when the pressure on the brake pedal is
repeatedly applied and released slightly during a stop. This applies even if the clutch
pedal is not fully depressed.
Fully depress the clutch pedal.
uThe engine automatically restarts.
■The Engine Automatically Restarts When:
■When the Auto Idle Stop Indicator Starts Blinking Rapidly1When the Auto Idle Stop Indicator Starts Blinking Rapidly
The indicator starts blinking rapidly under the
following conditions: • The (windshield defogger) button is pressed.
• When the climate control system is in use and
moisture builds up inside the vehicle.
• When the climate control system is in use and the
difference between the set temperature and the
actual temperature inside the vehicle becomes
significant.
Main MenuTable of Contents

197
uuWhen Drivingu3-Mode Drive System
Driving
3-Mode Drive System
Driving mode is in NORMAL when you turn the ignition switch to ON
(w.
To change driving modes, press the de sired mode button. The corresponding mode
indicator comes on in the instrument panel, and the mode icon appears briefly on the multi-information display.13-Mode Drive System
To keep the system in the ECON mode the next time
the ignition switch is turned to ON
(w , change the
customized setting on the multi-information display.
2 Customized Features P. 90
The ECON mode helps you improve your fuel
economy by changing the engine, transmission,
climate control system, cruise control, and IMA
system performances.
While in the ECON mode, the climate control system
has greater temperature fluctuations.
■ Select a driving mode
and press the button.
SPORT Mode Button
■The selected driving mode
indicator comes on.
NORMAL
Mode Button
ECON Mode Button
Main MenuTable of Contents

198
uuWhen DrivinguPlus Sport System
Driving

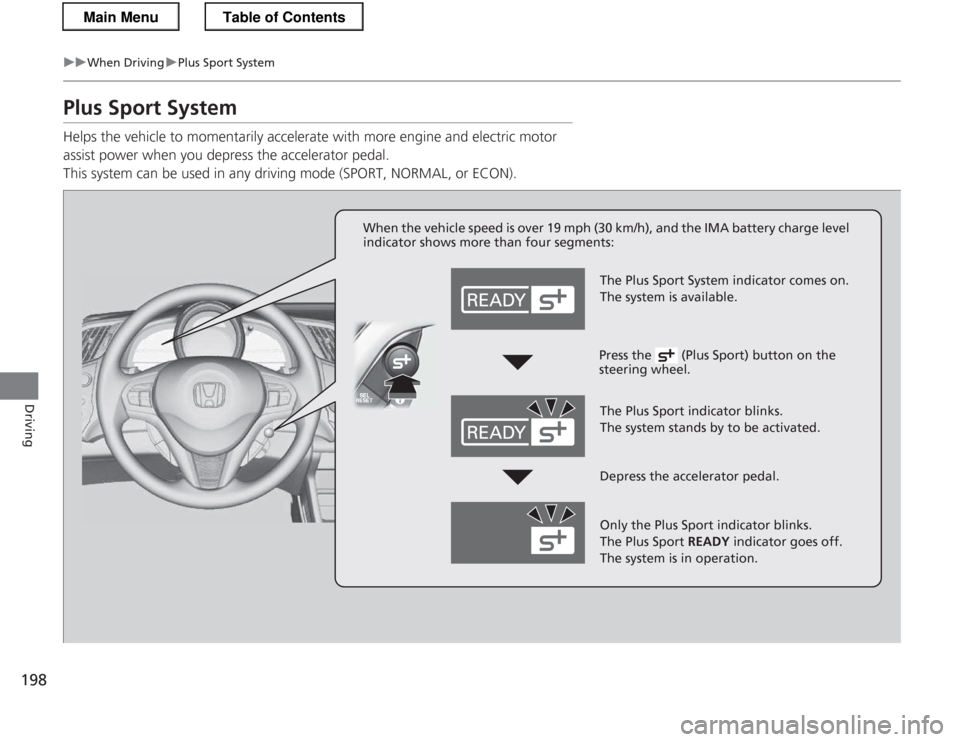

Plus Sport System
Helps the vehicle to momentarily accelerate with more engine and electric motor
assist power when you depress the accelerator pedal.
This system can be used in any driving mode (SPORT, NORMAL, or ECON).
When the vehicle speed is over 19 mph (30 km/h), and the IMA battery charge level
indicator shows more than four segments:
The Plus Sport System indicator comes on.
The system is available.
The Plus Sport indicator blinks.
The system stands by to be activated.
Only the Plus Sport indicator blinks.
The Plus Sport READY indicator goes off.
The system is in operation.
Press the (Plus Sport) button on the steering wheel.
Depress the accelerator pedal.
Main MenuTable of Contents

200
uuWhen DrivinguCruise Control
Driving

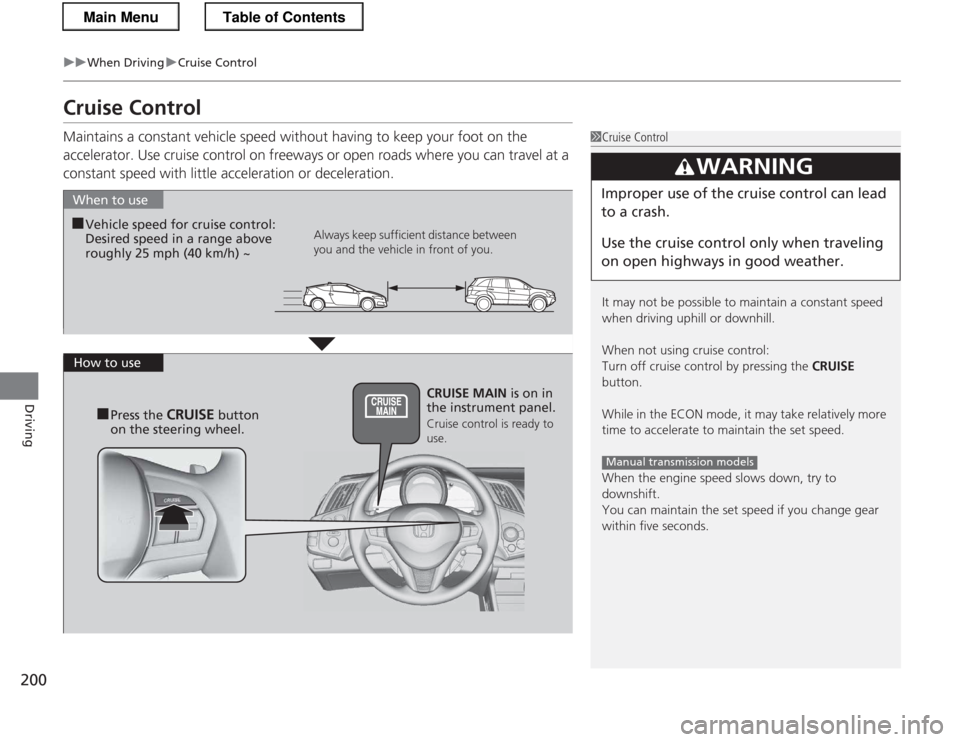

Cruise Control
Maintains a constant vehicle speed without having to keep your foot on the
accelerator. Use cruise control on freeways or open roads where you can travel at a
constant speed with little acceleration or deceleration.
1Cruise Control
It may not be possible to maintain a constant speed
when driving uphill or downhill.
When not using cruise control:
Turn off cruise control by pressing the CRUISE
button.
While in the ECON mode, it may take relatively more
time to accelera te to maintain the set speed.
When the engine speed slows down, try to downshift.
You can maintain the set speed if you change gear within five seconds.
3WARNING
Improper use of the cruise control can lead
to a crash.
Use the cruise control only when traveling
on open highways in good weather.
Manual transmission models
■ Press the CRUISE button
on the steering wheel. CRUISE MAIN
is on in
the instrument panel.
Cruise control is ready to
use.
How to use
■ Vehicle speed for cruise control:
Desired speed in a range above
roughly 25 mph (40 km/h) ~ Always keep sufficient distance between
you and the vehicle in front of you.
When to use
