2013 HONDA CR-Z display

19
Quick Reference Guide
Driving (P171)
Manual Transmission (P188)
Automatic Transmission (CVT)
(P183) ● Shift to
(P and depress the brake pedal when
starting the engine.
● Shifting 7-Speed Manual Shift Mode
(P185)
● Allows you to manually shift the transmission up or down without
removing your hands from the steering wheel.
●Pulling a paddle shifter changes the
mode from automatic transmission (CVT)
to 7-speed manual shift mode. The M
indicator and the selected speed number
are displayed in the shift indicator.
● Pulling a paddle shifter temporarily
changes the mode from automatic
transmission (CVT) to 7-speed manual
shift mode. The selected speed number is
displayed in the shift indicator.
L (Low) Mode (P187)
● Use Low to get more power when
climbing steep hills.
● Pull the
(+ and (- paddle shifters at the
same time until the shift indicator display changes to L.
SPORT Mode
NORMAL Mode/ECON Mode
(
M Indicator
Shift Indicator
Shift Down
(-
Paddle Shifter Shift Up (+

Paddle Shifter
Ignition Switch
Release
ButtonShift Lever
Park
Turn off or start the engine.
Transmission is locked.
Reverse
Neutral
Transmission is not locked.
Drive
Normal driving.
7-speed manual shift mode can be used.
L mode is available.
Depress the brake pedal
and press the release button to move out of
(P.
Move the shift lever
without pressing the
release button.
Press the release button to
move the shift lever.
Main Menu

50
uuAirbagsuAirbag System Indicators
Safe Driving
Airbag System Indicators
If a problem occurs in the airbag system, the SRS indicator will come on and a
message appears on the multi-information display.■When the ignition switch is turned to ON
(w
The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.
If the indicator comes on at any other time, or does not come on at all, have the
system checked by a dealer as soon as possible. If you don't, your airbags and seat
belt tensioners may not work properly when they are needed.
■SRS (Supplemental Restraint System) Indicator1SRS (Supplemental Restraint System) Indicator
3WARNING
Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.
Have your vehicle checked by a dealer as
soon as possible if the SRS indicator alerts
you to a possible problem.
READY
Main MenuTable of Contents

65

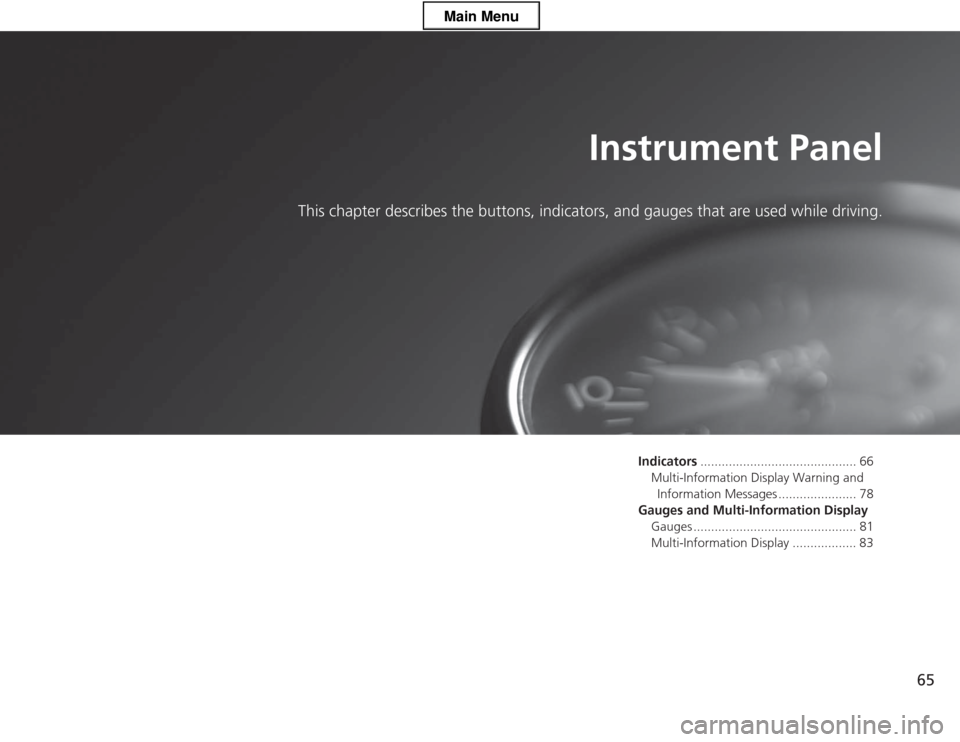

Instrument Panel
This chapter describes the bu ttons, indicators, and gauges that are used while driving.
Indicators............................................ 66
Multi-Information Display Warning and Information Messages ...................... 78
Gauges and Multi-Information Display Gauges .............................................. 81
Multi-Information Display .................. 83
Main Menu

72
uuIndicatorsu
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
High
Temperature
Indicator
●Comes on for a few seconds when
you turn the ignition switch to ON
(w .
● Blinks when the engine coolant temperature goes up, and stays
on if the temperature continues to rise.
● Blinks while driving - Drive slowly to
prevent overheating.
● Stays on while driving - Immediately
stop in a safe place and allow the engine to cool. 2Overheating P. 290
IMA System
Indicator
● Comes on for a few seconds when
you turn the ignition switch to ON
(w .
● Comes on if there is a problem
with the IMA system.
● Remains on or does not come on at all - Avoid high speed driving and have
the vehicle checked by a dealer as soon as possible. 2If the IMA Indicator Comes On
P. 296
System Message
Indicator
● Comes on for a few seconds when
you turn the ignition switch to ON
(w , then goes off.
● Comes on along with a beep
when a problem is detected. A
system message on the multi-information display appears at the
same time.
● While the indicator is on, press the
(information) button to see the
message again.
● Refer to the Indicators information in this
chapter when a system message appears
on the multi-information display. Take
the appropriate action for the message.
● The multi-information display does not
return to the normal screen unless the
warning is canceled, or the button is pressed.
—
Main MenuTable of Contents

76
uuIndicatorsu
Instrument Panel
*1:The driving mode message on the multi-information display appears for a few seconds when you press the appropriate mode button.
IndicatorNameOn/BlinkingExplanationMessage
Shift Up
Indicator*
●
Comes on briefly when you turn
the ignition switch to ON
(w .
● Comes on when shifting up is
recommended.
2 Shift Up/Down Indicators P. 189—
Shift Down
Indicator*
●
Comes on briefly when you turn
the ignition switch to ON
(w .
● Comes on when shifting down is
recommended.
SPORT Mode
Indicator *1
●
Comes on for a few seconds when
you turn the ignition switch to ON
(w .
● Comes on when you press the
SPORT mode button.23-Mode Drive System P. 197
NORMAL
Mode
Indicator *1
●
Comes on for a few seconds when
you turn the ignition switch to ON
(w .
● Comes on when you press the
NORMAL mode button.23-Mode Drive System P. 197
ECON Mode
Indicator*1
●
Comes on for a few seconds when
you turn the ignition switch to ON
(w .
● Comes on when you press the
ECON mode button.23-Mode Drive System P. 197
* Not available on all models
Main MenuTable of Contents

78
uuIndicatorsuMulti-Information Display Warning and Information Messages
Instrument Panel
Multi-Information Display Warning and Information Messages
The following messages appear only on the multi-information display. Pres s the (information) button to see the message again
with the system message indicator on.
MessageConditionExplanation
● Appears when the fuel fill cap is loose or is not installed.
2 Tighten Fuel Cap Message P. 294
●
Appears if there is a problem with the DRL system.●Have your vehicle checked by a dealer.
2Daytime Running Lights P. 113
●
Appears when the washer fluid is low.●Refill washer fluid.
2Refilling Window Washer Fluid P. 241
●
Appears when the scheduled maintenance is due
soon.
● Consequently, SERVICE DUE NOW and SERVICE
PAST DUE follow.
2Maintenance Minder Messages on the Multi-
Information Display P. 225
●
Appears when you open the driver’s door while the
ignition key is in ACCESSORY
(q .
●
Turn the ignition switch to LOCK (0 , then remove the
key.
Canadian models
Main MenuTable of Contents

79
uuIndicatorsuMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the ignition key is turned to
ACCESSORY
(q from ON (w. (The driver’s door is
closed.)—
● Appears when you open the driver’s door while the
ignition key is in LOCK
(0 .
●
Remove the key from the ignition switch.
●
Appears when the IMA battery is significantly low.●Drive continuously or, if necessary, allow the vehicle to
idle in an open area until the message disappears.
●Appears while you are customizing the settings for the
following reasons:
The shift lever is moved out of
(P .
The parking brake is released.2 How to customize P. 90
Automatic transmiss ion (CVT) models
Manual transmission models
Main MenuTable of Contents

80
uuIndicatorsuMulti-Information Display Warning and Information Messages
Instrument Panel
MessageConditionExplanation
●
Appears if the clutch pedal is not fully depressed while
the Auto Idle Stop is in operation, and the engine is
ready to restart.●Fully depress the clutch pedal.
2Auto Idle Stop P. 194
●
Appears when the shift lever is in any forward gear
position, and the Auto Idle Stop operating time has
continued for a while.●Shift to (N .
2 Auto Idle Stop P. 194
●
Appears when the engine does not automatically
restart for the following reasons while the Auto Idle
Stop is in operation.
• The IMA battery charge is low.
• There is a problem with the system.●
Manually start the engine.
2Starting the Engine P. 178
Manual transmission models
