2013 FORD TAURUS key

Introduction 10
Child Safety 18
Child seats...........................................20
Child seat positioning...................................20
Booster seats.........................................22
Installing child seats with lap and shoulder belts................25
Installing child safety seats with lower anchors and tethers for
children.............................................28
Installing child safety seats with tether straps..................30
Child safety locks......................................32
Safety Belts 33
Fastening the safety belts................................35
Safety belt height adjustment.............................38
Safetybeltwarninglightandindicatorchime..................38
Safety belt-minder.....................................39
Child restraint and safety belt maintenance...................41
Personal Safety System 42
Supplementary Restraints System 43
Driver and passenger airbags..............................45
Front passenger sensing system............................46
Side airbags..........................................50
Safety canopy curtain airbags.............................51
Crash sensors and airbag indicator..........................53
Airbag disposal........................................54
Keys and Remote Control 55
General information on radio frequencies.....................55
Remote control........................................56
Keys...............................................56
Replacing a lost key or remote control.......................62
Table of Contents1
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

MyKey 63
Settings, MyKey.......................................63
Creating.............................................64
Clearing.............................................65
System status.........................................65
Remote start, MyKey...................................65
Troubleshooting, MyKey.................................67
Locks 69
Locking and unlocking..................................69
SecuriCode™ keyless entry keypad.........................73
Trunk release.........................................75
Interior luggage compartment release.......................76
Security 77
SecuriLockpassive anti-theft system.......................77
Anti-theft alarm.......................................80
Steering Wheel 81
Adjusting the steering wheel..............................81
Steering wheel controls..................................83
Pedals 86
Adjustable pedals......................................86
Wipers and Washers 87
Windshield wipers......................................87
Rain-sensing wipers....................................87
Windshield washers.....................................87
2Table of Contents
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

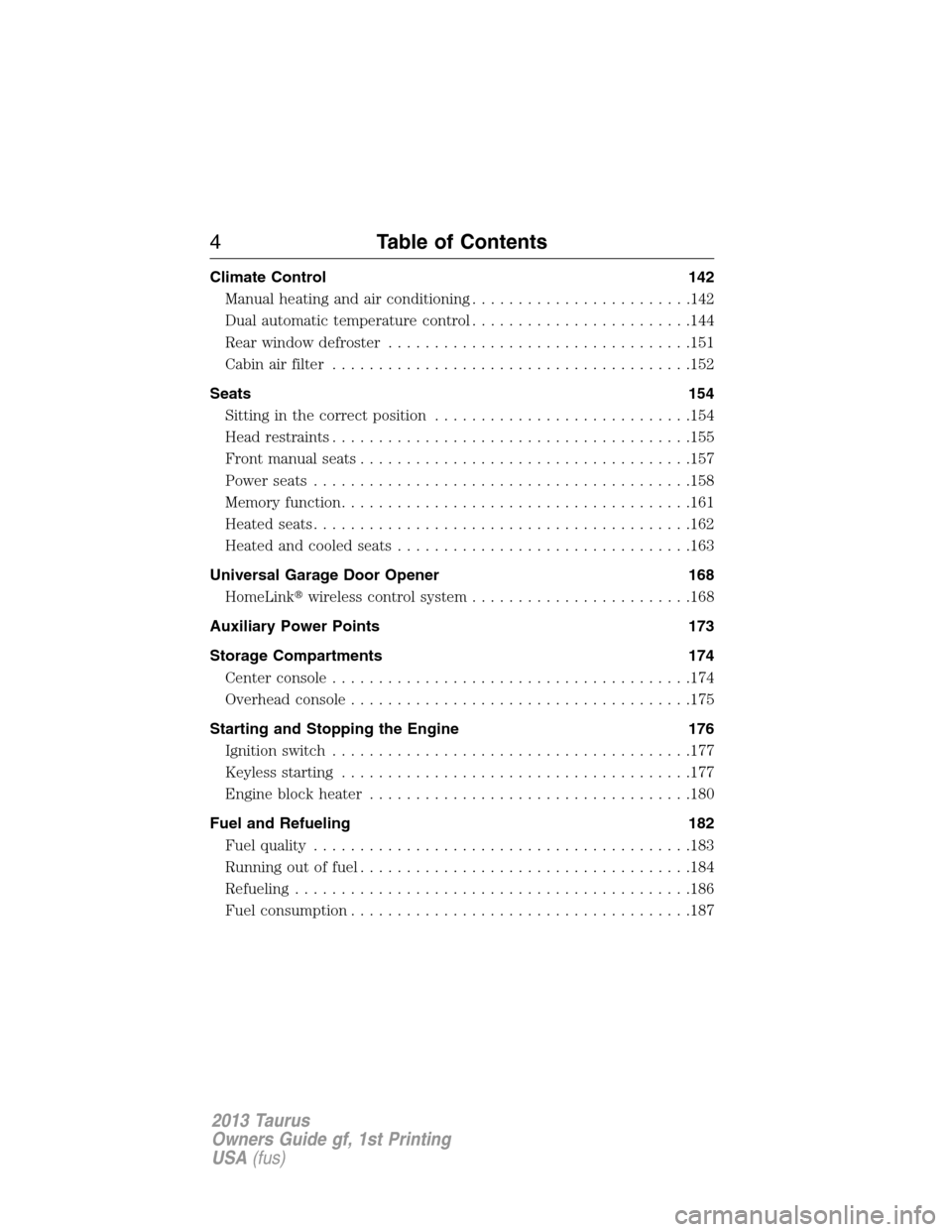

Climate Control 142
Manual heating and air conditioning........................142
Dual automatic temperature control........................144
Rear window defroster.................................151
Cabin air filter.......................................152
Seats 154
Sitting in the correct position............................154
Head restraints.......................................155
Front manual seats....................................157
Power seats.........................................158
Memory function......................................161
Heated seats.........................................162
Heated and cooled seats................................163
Universal Garage Door Opener 168
HomeLinkwireless control system........................168
Auxiliary Power Points 173
Storage Compartments 174
Center console.......................................174
Overhead console.....................................175
Starting and Stopping the Engine 176
Ignition switch.......................................177
Keyless starting......................................177
Engine block heater...................................180
Fuel and Refueling 182
Fuel quality.........................................183
Running out of fuel....................................184
Refueling ...........................................186
Fuel consumption.....................................187
4Table of Contents
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

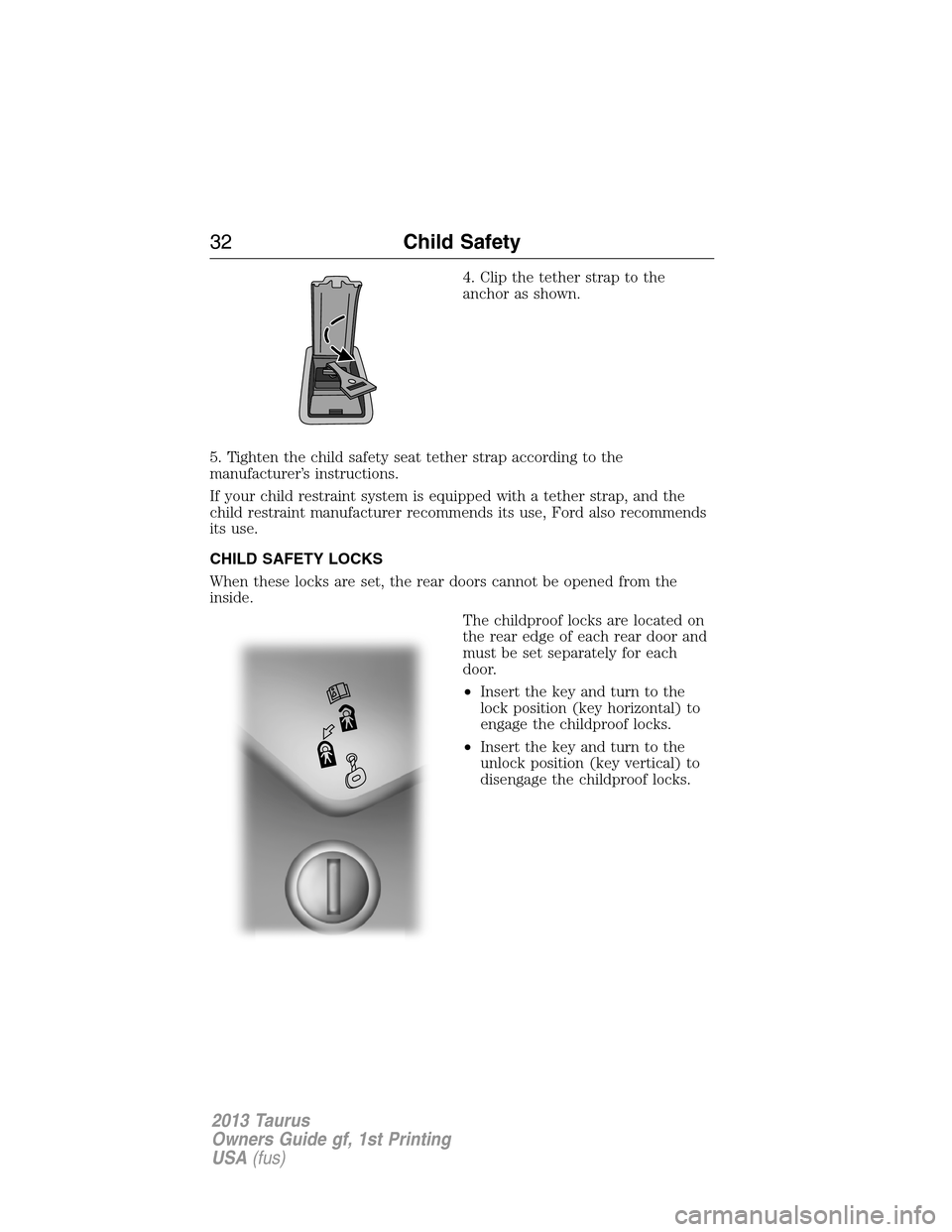

4. Clip the tether strap to the
anchor as shown.
5. Tighten the child safety seat tether strap according to the
manufacturer’s instructions.
If your child restraint system is equipped with a tether strap, and the
child restraint manufacturer recommends its use, Ford also recommends
its use.
CHILD SAFETY LOCKS
When these locks are set, the rear doors cannot be opened from the
inside.
The childproof locks are located on
the rear edge of each rear door and
must be set separately for each
door.
•Insert the key and turn to the
lock position (key horizontal) to
engage the childproof locks.
•Insert the key and turn to the
unlock position (key vertical) to
disengage the childproof locks.
32Child Safety
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

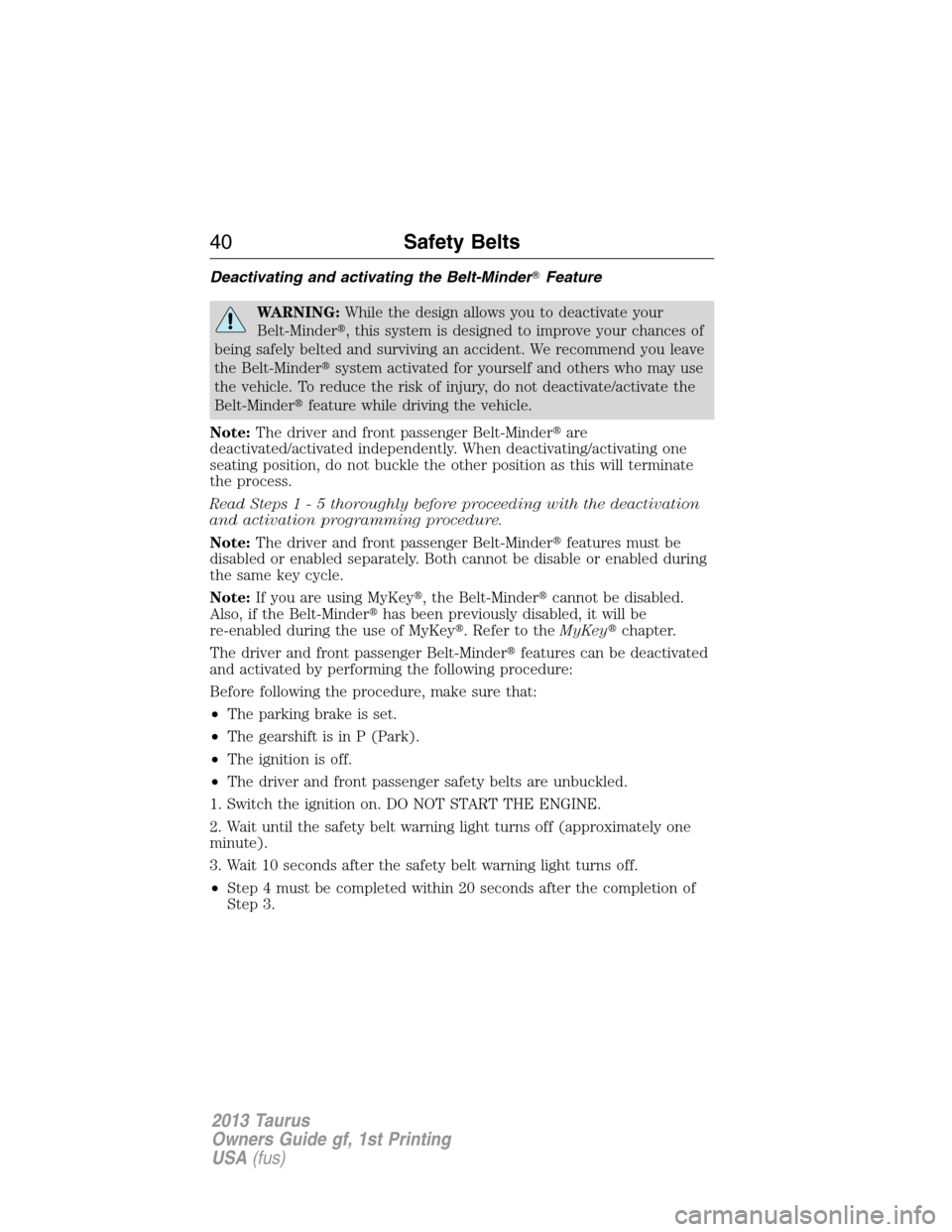

Deactivating and activating the Belt-MinderFeature
WARNING:While the design allows you to deactivate your
Belt-Minder, this system is designed to improve your chances of
being safely belted and surviving an accident. We recommend you leave
the Belt-Mindersystem activated for yourself and others who may use
the vehicle. To reduce the risk of injury, do not deactivate/activate the
Belt-Minderfeature while driving the vehicle.
Note:The driver and front passenger Belt-Minderare
deactivated/activated independently. When deactivating/activating one
seating position, do not buckle the other position as this will terminate
the process.
Read Steps1-5thoroughly before proceeding with the deactivation
and activation programming procedure.
Note:The driver and front passenger Belt-Minderfeatures must be
disabled or enabled separately. Both cannot be disable or enabled during
the same key cycle.
Note:If you are using MyKey, the Belt-Mindercannot be disabled.
Also, if the Belt-Minderhas been previously disabled, it will be
re-enabled during the use of MyKey. Refer to theMyKeychapter.
The driver and front passenger Belt-Minderfeatures can be deactivated
and activated by performing the following procedure:
Before following the procedure, make sure that:
•The parking brake is set.
•The gearshift is in P (Park).
•The ignition is off.
•The driver and front passenger safety belts are unbuckled.
1. Switch the ignition on. DO NOT START THE ENGINE.
2. Wait until the safety belt warning light turns off (approximately one
minute).
3. Wait 10 seconds after the safety belt warning light turns off.
•Step 4 must be completed within 20 seconds after the completion of
Step 3.
40Safety Belts
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

PRINCIPLE OF OPERATION
The remote control allows you to:
•remotely lock or unlock the vehicle doors
•remotely open the trunk
•remotely start or stop the engine (if equipped)
•arm and disarm the anti-theft system (if equipped)
•activate the panic alarm
•activate the global windows (if equipped).
Intelligent Access (If Equipped)
Your vehicle will allow you to unlock and enter your vehicle without
actively using a key or remote control. You can use this feature at the
front doors or at the liftgate/trunk. You can activate the intelligent access
feature as long as you have one of your intelligent access keys within
range of the front doors or the liftgate/trunk.
GENERAL INFORMATION ON RADIO FREQUENCIES
The remote control complies with part 15 of the FCC rules and with
RSS-210 of Industry Canada. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference
that may cause undesired operation.
Note:Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
The typical operating range for your transmitter is approximately 33 feet
(10 meters). Vehicles with the remote start feature will have a greater
range. A decrease in operating range could be caused by:
•weather conditions
•nearby radio towers
•structures around the vehicle
•other vehicles parked next to your vehicle.
Keys and Remote Control55
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

Intelligent Access (If Equipped)
The system uses a radio frequency signal to communicate with your
vehicle and authorize your vehicle to unlock when commanded (either by
touching the inside of the driver door or front passenger exterior door
handle, by activating the exterior power liftgate button, or a button on
the transmitter itself). If excessive radio frequency interface is present in
the area, or if the transmitter battery is low, it may be necessary to
mechanically unlock your door. The mechanical key blade in your
intelligent access key can be used to open the driver’s door in this
situation. Refer toRemote Controlin this chapter for more information
on the location and use of the mechanical key blade.
REMOTE CONTROL
Integrated Keyhead Transmitters (IKTs) (If Equipped)
Your vehicle may be equipped with
two integrated keyhead transmitters.
The key blade is used to start the
vehicle and unlock or lock the
driver’s door from outside the
vehicle. The transmitter portion
functions as the remote control.
Note:Your vehicle’s keys were
issued with a security label that
provides important vehicle key cut
information. Keep the label in a safe
place for future reference.
Intelligent Access Key (If Equipped)
Your vehicle may be equipped with
two intelligent access keys which
operate the power locks and the
remote start system. The key must
be in the vehicle to activate the push
button start system.
CAUTIONTO BE REMOVED
BY CUSTOMER ONLY
56Keys and Remote Control
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

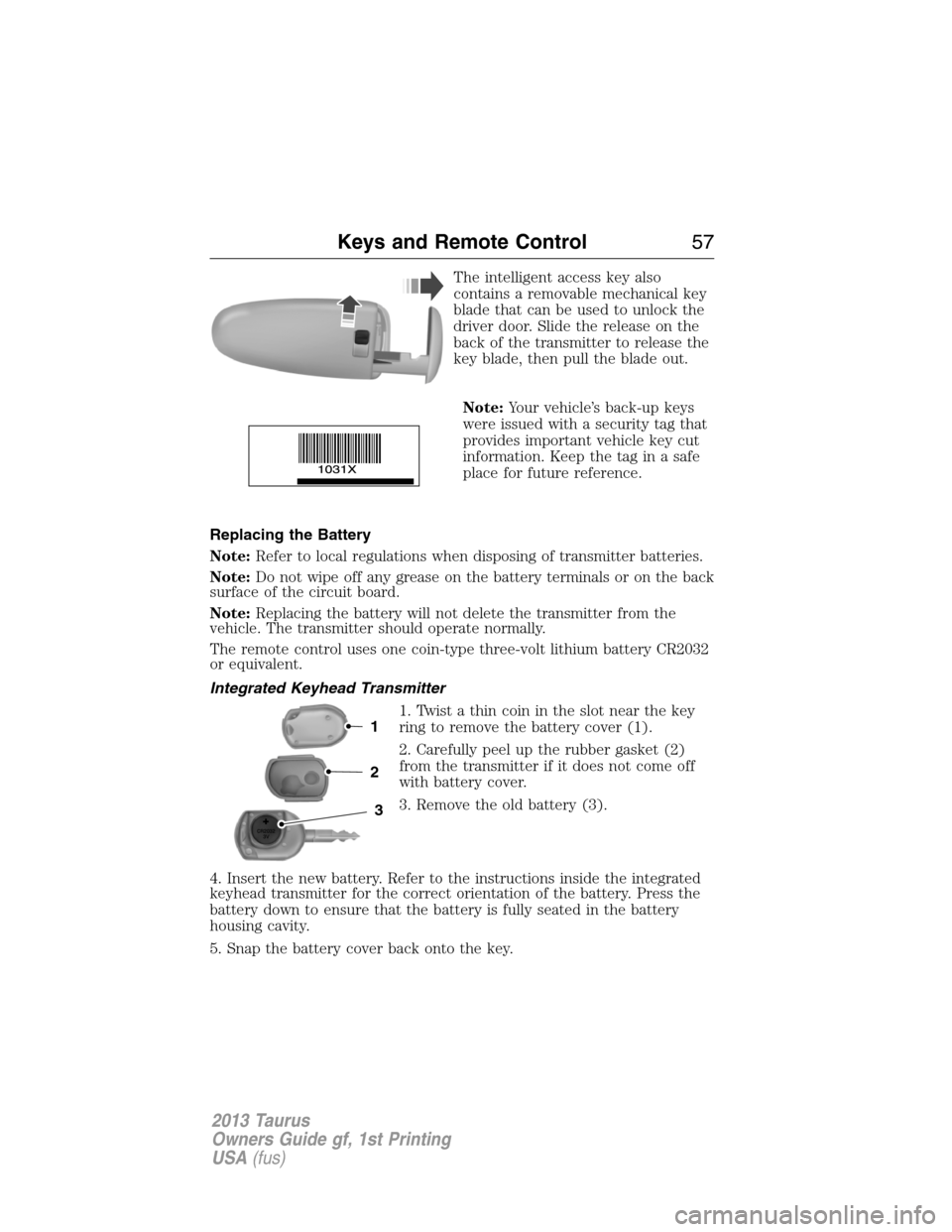

The intelligent access key also
contains a removable mechanical key
blade that can be used to unlock the
driver door. Slide the release on the
back of the transmitter to release the
key blade, then pull the blade out.
Note:Your vehicle’s back-up keys
were issued with a security tag that
provides important vehicle key cut
information. Keep the tag in a safe
place for future reference.
Replacing the Battery
Note:Refer to local regulations when disposing of transmitter batteries.
Note:Do not wipe off any grease on the battery terminals or on the back
surface of the circuit board.
Note:Replacing the battery will not delete the transmitter from the
vehicle. The transmitter should operate normally.
The remote control uses one coin-type three-volt lithium battery CR2032
or equivalent.
Integrated Keyhead Transmitter
1. Twist a thin coin in the slot near the key
ring to remove the battery cover (1).
2. Carefully peel up the rubber gasket (2)
from the transmitter if it does not come off
with battery cover.
3. Remove the old battery (3).
4. Insert the new battery. Refer to the instructions inside the integrated
keyhead transmitter for the correct orientation of the battery. Press the
battery down to ensure that the battery is fully seated in the battery
housing cavity.
5. Snap the battery cover back onto the key.
3
2
1
Keys and Remote Control57
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)
