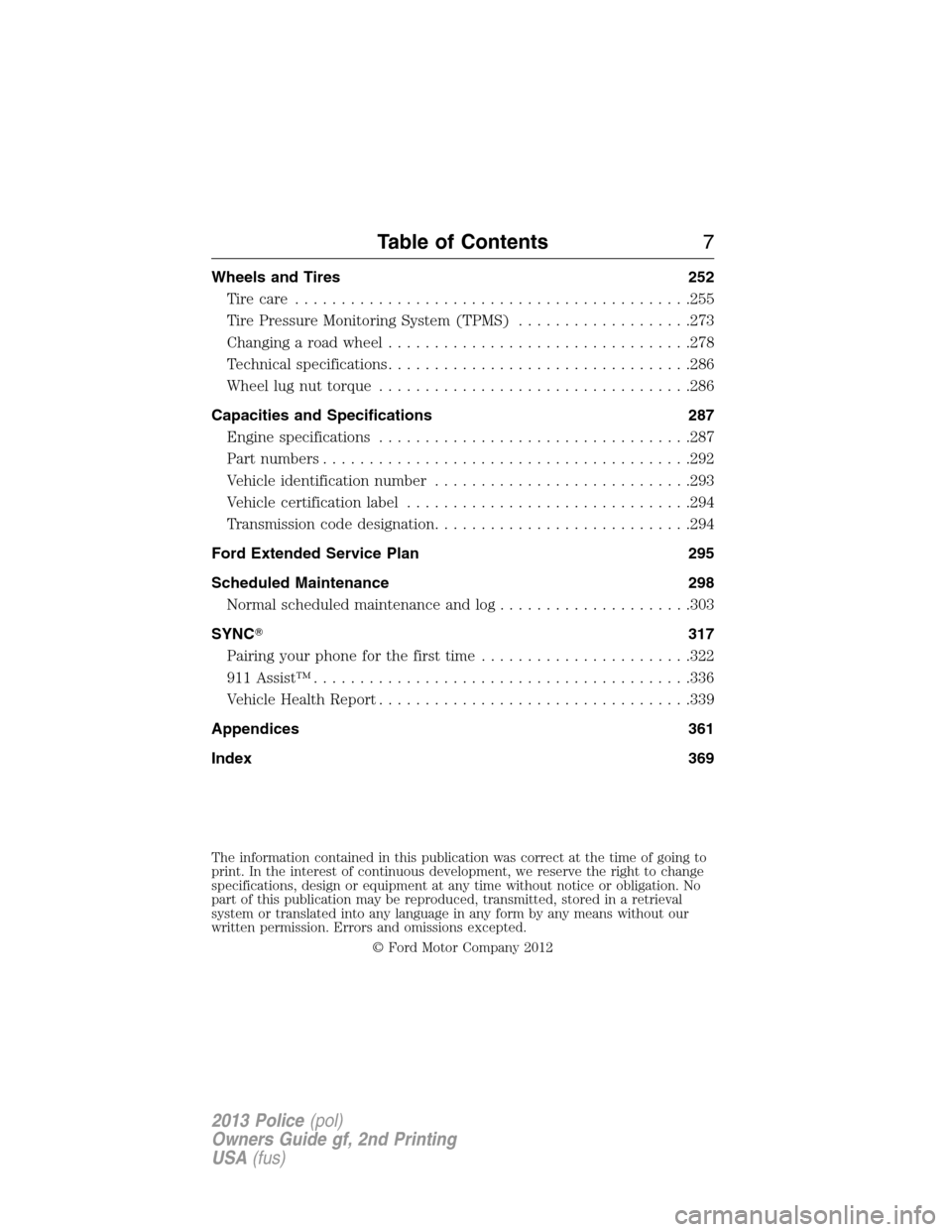

Wheels and Tires 252
Tire care...........................................255
Tire Pressure Monitoring System (TPMS)...................273
Changing a road wheel.................................278
Technical specifications.................................286
Wheel lug nut torque..................................286
Capacities and Specifications 287
Engine specifications..................................287
Part numbers........................................292
Vehicle identification number............................293
Vehicle certification label...............................294
Transmission code designation............................294
Ford Extended Service Plan 295
Scheduled Maintenance 298
Normal scheduled maintenance and log.....................303
SYNC317
Pairing your phone for the first time.......................322
911 Assist™.........................................336
Vehicle Health Report..................................339
Appendices 361
Index 369
The information contained in this publication was correct at the time of going to
print. In the interest of continuous development, we reserve the right to change
specifications, design or equipment at any time without notice or obligation. No
part of this publication may be reproduced, transmitted, stored in a retrieval
system or translated into any language in any form by any means without our
written permission. Errors and omissions excepted.
© Ford Motor Company 2012
Table of Contents7
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

PRINCIPLE OF OPERATION
Keys with the keyed alike feature (if equipped) allow:
•Use of different keys (keyed alike) for a specific vehicle.
•Key lock/unlock operation of the front doors and trunk/liftgate.
The remote control (if equipped) allows you to:
•Remotely lock or unlock the vehicle doors.
•Remotely open the trunk (sedan only).
•Arm and disarm the anti-theft system (if equipped).
•Activate the panic alarm.
GENERAL INFORMATION ON RADIO FREQUENCIES
This device complies with part 15 of the FCC Rules and with Industry
Canada license-exempt RSS standard(s). Operation is subject to the
following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
Note:Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment. The termICbefore the radio certification number only
signifies that Industry Canada technical specifications were met.
The typical operating range for your transmitter is approximately 33 feet
(10 meters). Vehicles with the remote start feature will have a greater
range. A decrease in operating range could be caused by:
•weather conditions
•nearby radio towers
•structures around your vehicle
•other vehicles parked next to your vehicle.
The radio frequency used by your remote control can also be used by
other short distance radio transmissions (e.g. amateur radios, medical
equipment, wireless headphones, remote controls and alarm systems). If
the frequencies are jammed, you will not be able to use your remote
control. You can lock and unlock the doors with the key.
Note:Make sure your vehicle is locked before leaving it unattended.
Note:If you are in range, the remote control will operate if you press
any button unintentionally.
62Keys and Remote Control
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

FUEL FILTER
Your vehicle is equipped with a lifetime fuel filter that is integrated with
the fuel tank. Regular maintenance or replacement is not needed.
WASHER FLUID CHECK
WARNING:If you operate your vehicle in temperatures below
40°F (5°C), use washer fluid with antifreeze protection. Failure
to use washer fluid with antifreeze protection in cold weather could
result in impaired windshield vision and increase the risk of injury or
accident.
Add fluid to fill the reservoir if the level is low. Only use a washer fluid
that meets Ford specifications. See the technical specifications chart in
theCapacities and Specificationschapter.
Note:The front and rear washer systems are supplied from the same
reservoir.
State or local regulations on volatile organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
CHANGING THE VEHICLE BATTERY
WARNING:Batteries normally produce explosive gases which
can cause personal injury. Therefore, do not allow flames, sparks
or lighted substances to come near the battery. When working near the
battery, always shield your face and protect your eyes. Always provide
proper ventilation.
WARNING:When lifting a plastic-cased battery, excessive
pressure on the end walls could cause acid to flow through the
vent caps, resulting in personal injury and/or damage to the vehicle or
battery. Lift the battery with a battery carrier or with your hands on
opposite corners.
226Maintenance
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING:When a wheel is installed, always remove any
corrosion, dirt or foreign materials present on the mounting
surfaces of the wheel or the surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Ensure that any fasteners that
attach the rotor to the hub are secured so they do not interfere with
the mounting surfaces of the wheel. Installing wheels without correct
metal-to-metal contact at the wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to come off while the vehicle is in
motion, resulting in loss of control.
Retighten the lug nuts to the specified torque within 100 miles
(160 kilometers) after any wheel disturbance (rotation, flat tire, wheel
removal, etc.).
Lug nut socket
size/bolt sizeWheel lug nut torque*
ft-lb N•m
12x 20 110 149
* Torque specifications are for nut and bolt threads free of dirt and
rust. Use only Ford recommended replacement fasteners.
Note:Inspect the wheel pilot hole
and mounting surface prior to
installation. Remove any visible
corrosion or loose particles.
286Wheels and Tires
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)

TECHNICAL SPECIFICATIONS
Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Brake fluid
1
Between MIN and
MAX on reservoirMotorcraftDOT4LV
High Performance Motor
Vehicle Brake FluidPM-20 /
WSS-M6C65-A2 and ISO
4925 Class 6
Door latch, hood latch,
auxiliary hood latch,
seat tracks, trunk and
liftgate latches—Multi-Purpose Grease
(Lithium grease)XG-4 or XL-5 or
equivalent /
ESA-M1C93-B
Lock cylinders —MotorcraftPenetrating
and Lock LubricantXL-1 /
None
Automatic transmission
fluid
2,3
10.9 quarts
(10.3L)
(6F50)
Motorcraft
MERCONLV AT FXT-10-QLV /
MERCONLV
11.6 quarts
(11.0L)
(6F55)
Rear differential fluid 2.4 pints (1.15L)MotorcraftSAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Sedan
Power Transfer Unit
fluid (AWD)
4
18 ounces (0.53L)
MotorcraftSAE
75W-140 Synthetic Rear
Axle LubricantX Y-75W140-QL /
WSL-M2C192-A
Utility
Power Transfer Unit
fluid (4WD)
4
12 ounces (0.35L)
288Capacities and Specifications
2013 Police(pol)
Owners Guide gf, 2nd Printing
USA(fus)
