2013 FORD MUSTANG engine

Introduction
3
Welcome 3
Shelby® GT500® Unique Features
5
Safety Belts
10
Driving your Shelby® GT500®
11
Breaking-in your vehicle 11
Transmission operation 11
Clutch protection 12
Virtual gauges 15
Track Apps 15
AdvanceTrac® 16
Brakes 20
Launch control 20
Electronically selectable dampers 21
Engine over-rev 22
Ground clearance 23
Driving through water 24
Washing your vehicle 24
Wheels and Tires
25
Wheels 25
Wheel lug nut torque 25
Tire information 26
Roadside Emergencies
29
Wrecker towing 29
Maintenance
34
Engine oil 35
Air filter(s) 40
Table of Contents
1
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

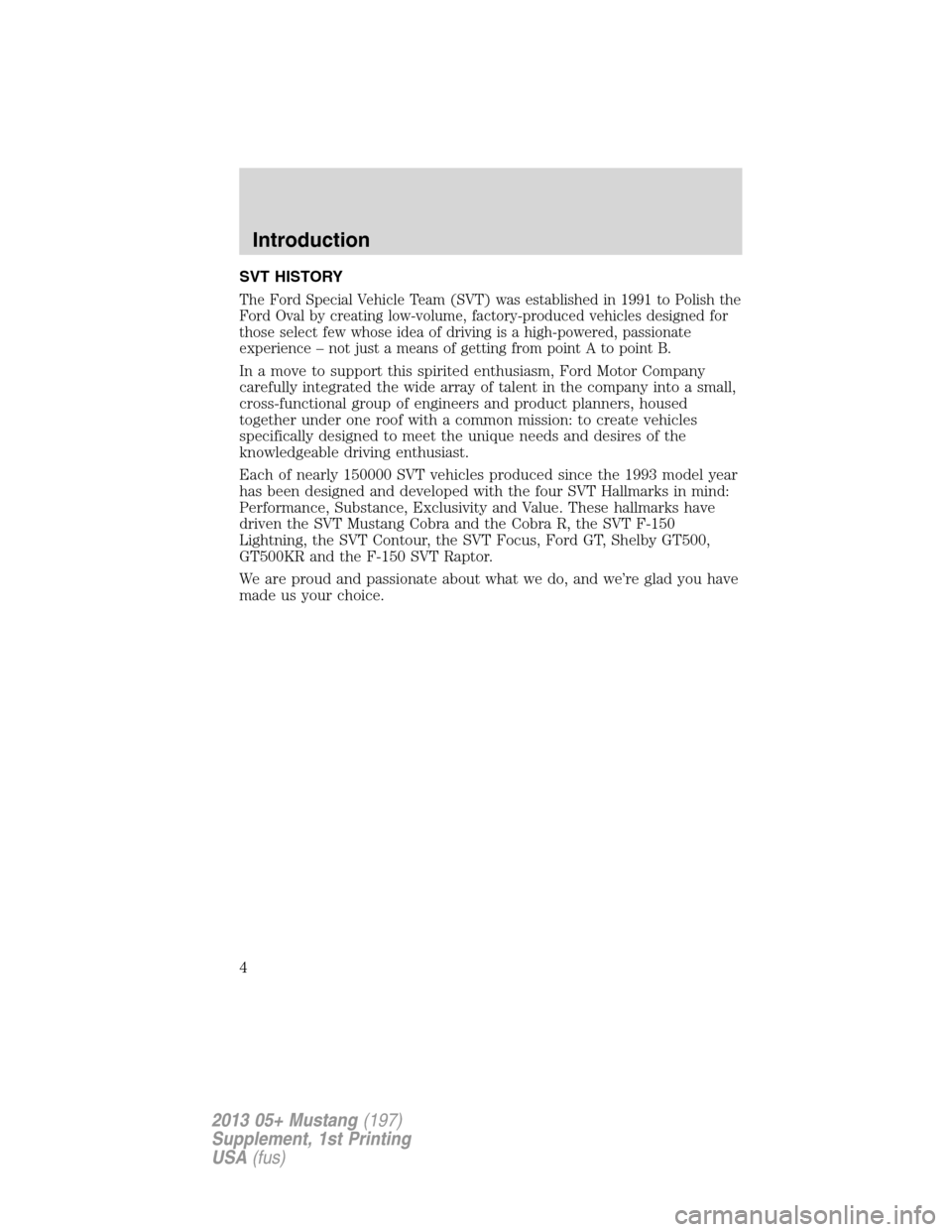

SVT HISTORY
The Ford Special Vehicle Team (SVT) was established in 1991 to Polish the
Ford Oval by creating low-volume, factory-produced vehicles designed for
those select few whose idea of driving is a high-powered, passionate
experience – not just a means of getting from point A to point B.
In a move to support this spirited enthusiasm, Ford Motor Company
carefully integrated the wide array of talent in the company into a small,
cross-functional group of engineers and product planners, housed
together under one roof with a common mission: to create vehicles
specifically designed to meet the unique needs and desires of the
knowledgeable driving enthusiast.
Each of nearly 150000 SVT vehicles produced since the 1993 model year
has been designed and developed with the four SVT Hallmarks in mind:
Performance, Substance, Exclusivity and Value. These hallmarks have
driven the SVT Mustang Cobra and the Cobra R, the SVT F-150
Lightning, the SVT Contour, the SVT Focus, Ford GT, Shelby GT500,
GT500KR and the F-150 SVT Raptor.
We are proud and passionate about what we do, and we’re glad you have
made us your choice.
Introduction
4
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

•5.8L DOHC 32V Supercharged and intercooled V8 engine
•Water-to-oil engine oil cooler (standard)
•Race-track inspired, thermostatically controlled air-to-oil axle,
transmission, and engine cooler included on the SVT Track Pack
(optional)
•Cast aluminum structural oil pan and piston oil squirters
•Low-restriction, cold air intake system
•SVT tuned 2.75 inch exhaust system with Quad 3.5 inch tips
•Electronically programmable launch control
•TREMEC TR6060 high–torque capacity 6-speed manual transmission
•Short-throw shifter with SVT shift knob
•260 millimeter twin disc clutch
•One piece carbon fiber driveshaft with front and rear CV joints
•AdvanceTrac® Stability Enhancement System with sport mode
specifically calibrated and race track tuned by SVT. Refer to the
Stability Controlchapter in yourOwner’s Manualfor more
information.
•Limited slip rear differential with 3.31 rear axle ratio
•TORSEN® limited slip differential included on the SVT Performance
Package (optional)
Shelby® GT500® Unique Features
5
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

•Front brakes: Brembo™ six-piston aluminum calipers with 15 inch x
1.3 inch (380 millimeter x 32 millimeter) vented disc, high air flow
shields and high-performance friction material pads
•Rear brakes: 13.8 inch x 0.75 inch (350 millimeter x 19 millimeter)
vented disc and high-performance friction material pads
•Electronic over-rev with 7000 rpm maximum
•SVT tuned front and rear suspension and optional electronically
selectable dampers by Bilstein™ included on the SVT Performance
Package
•19 inch x 9.5 inch front, 20 inch x 9.5 inch rear forged aluminum
wheels with bolt-in valve stems (standard and optional styles)
•P265/40-19 front, P285/35-20 rear directional Goodyear Eagle F1
Supercar G2 R compound tires
•SVT engineered front fascia, grilles, cold air inlet, rear fascia, fog
lamps, hood with functional air extractor and aerodynamically tuned
front splitter with removable air dam and rear decklid spoiler
•SVT high-speed instrument cluster with track applications dashboard,
over-rev and programmable performance shift indicator
•One-touch instrument panel buttons for launch control (LC),
electronically selectable dampers (ESD) (if equipped) and electric
power assisted steering (EPAS)
•SVT designed seats with over the top stripes and increased lateral
support
•Optional race inspired RECARO® front seats with increased lateral
support on back and cushion, unique Shelby GT500 trim cover,
integrated head restraint, and driver four-way manual adjuster. See the
Seatssection in yourOwner’s Manualfor more information
•Leather and Alcantara® wrapped sport steering wheel, leather shift
boot, parking brake control boot and handle
•I/P appliques, door panels and lighted scuff plates
Shelby® GT500® Unique Features
6
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

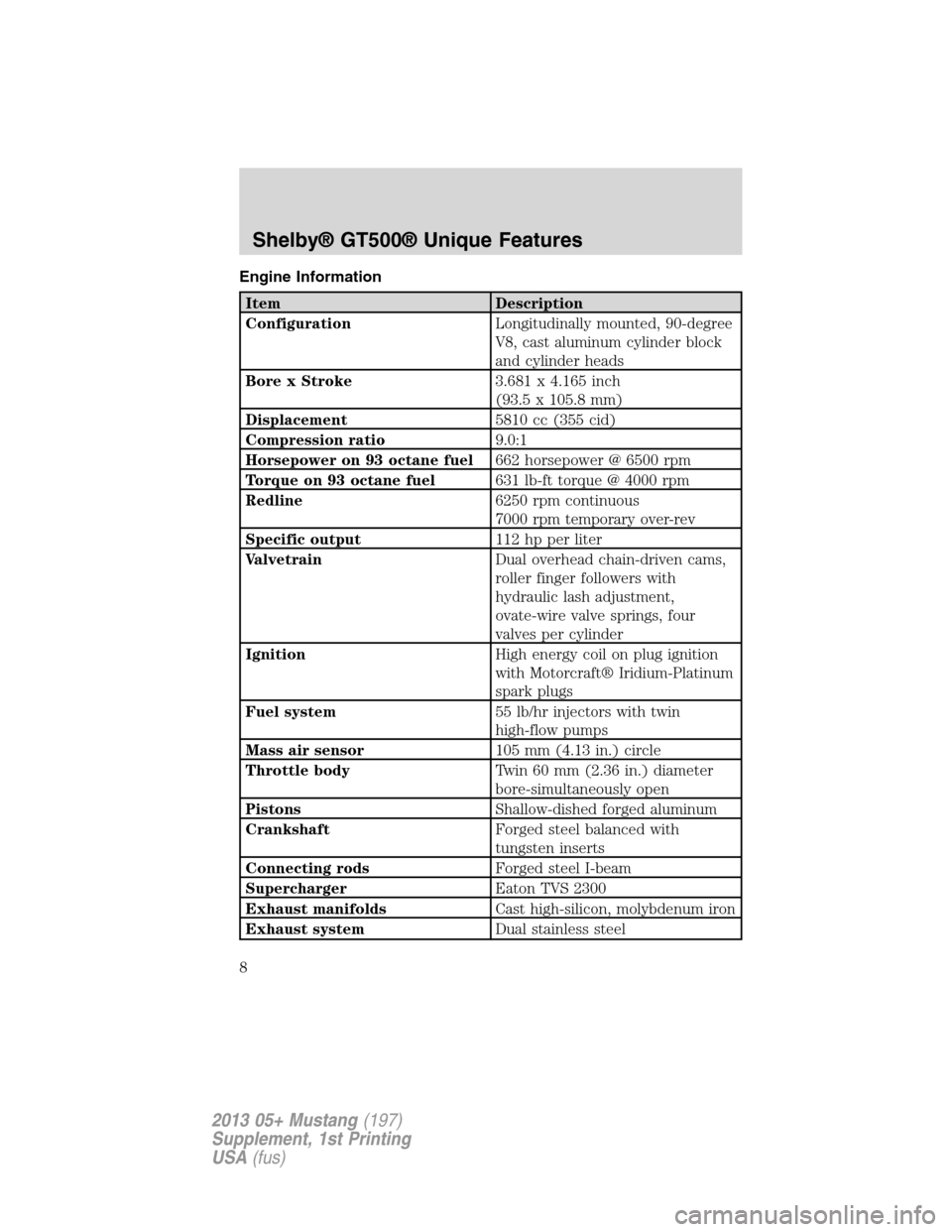

Engine Information
Item Description
ConfigurationLongitudinally mounted, 90-degree
V8, cast aluminum cylinder block
and cylinder heads
Bore x Stroke3.681 x 4.165 inch
(93.5 x 105.8 mm)
Displacement5810 cc (355 cid)
Compression ratio9.0:1
Horsepower on 93 octane fuel662 horsepower @ 6500 rpm
Torque on 93 octane fuel631 lb-ft torque @ 4000 rpm
Redline6250 rpm continuous
7000 rpm temporary over-rev
Specific output112 hp per liter
ValvetrainDual overhead chain-driven cams,
roller finger followers with
hydraulic lash adjustment,
ovate-wire valve springs, four
valves per cylinder
IgnitionHigh energy coil on plug ignition
with Motorcraft® Iridium-Platinum
spark plugs
Fuel system55 lb/hr injectors with twin
high-flow pumps
Mass air sensor105 mm (4.13 in.) circle
Throttle bodyTwin 60 mm (2.36 in.) diameter
bore-simultaneously open
PistonsShallow-dished forged aluminum
CrankshaftForged steel balanced with
tungsten inserts
Connecting rodsForged steel I-beam
SuperchargerEaton TVS 2300
Exhaust manifoldsCast high-silicon, molybdenum iron
Exhaust systemDual stainless steel
Shelby® GT500® Unique Features
8
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

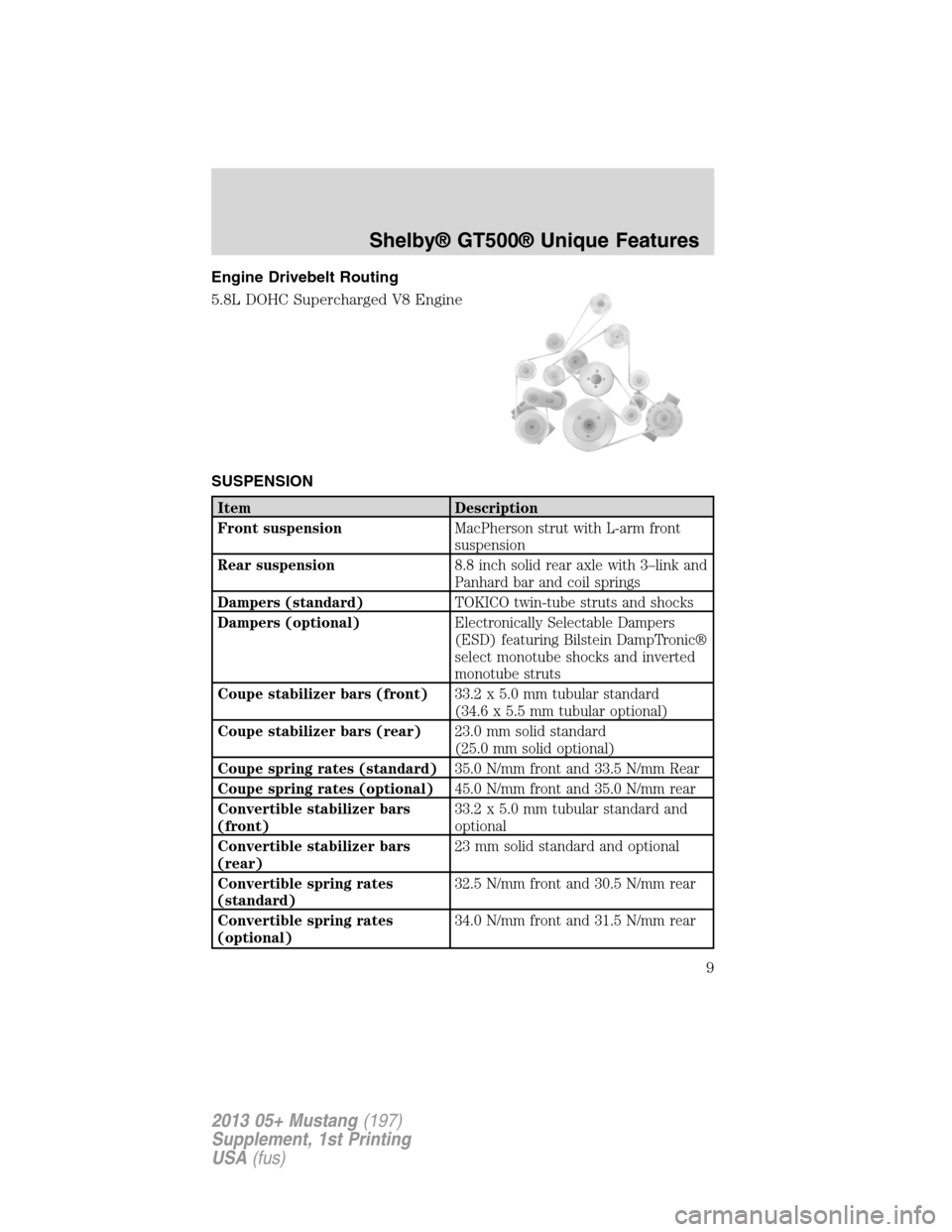

Engine Drivebelt Routing
5.8L DOHC Supercharged V8 Engine
SUSPENSION
Item Description
Front suspensionMacPherson strut with L-arm front
suspension
Rear suspension8.8 inch solid rear axle with 3–link and
Panhard bar and coil springs
Dampers (standard)TOKICO twin-tube struts and shocks
Dampers (optional)Electronically Selectable Dampers
(ESD) featuring Bilstein DampTronic®
select monotube shocks and inverted
monotube struts
Coupe stabilizer bars (front)33.2 x 5.0 mm tubular standard
(34.6 x 5.5 mm tubular optional)
Coupe stabilizer bars (rear)23.0 mm solid standard
(25.0 mm solid optional)
Coupe spring rates (standard)35.0 N/mm front and 33.5 N/mm Rear
Coupe spring rates (optional)45.0 N/mm front and 35.0 N/mm rear
Convertible stabilizer bars
(front)33.2 x 5.0 mm tubular standard and
optional
Convertible stabilizer bars
(rear)23 mm solid standard and optional
Convertible spring rates
(standard)32.5 N/mm front and 30.5 N/mm rear
Convertible spring rates
(optional)34.0 N/mm front and 31.5 N/mm rear
Shelby® GT500® Unique Features
9
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

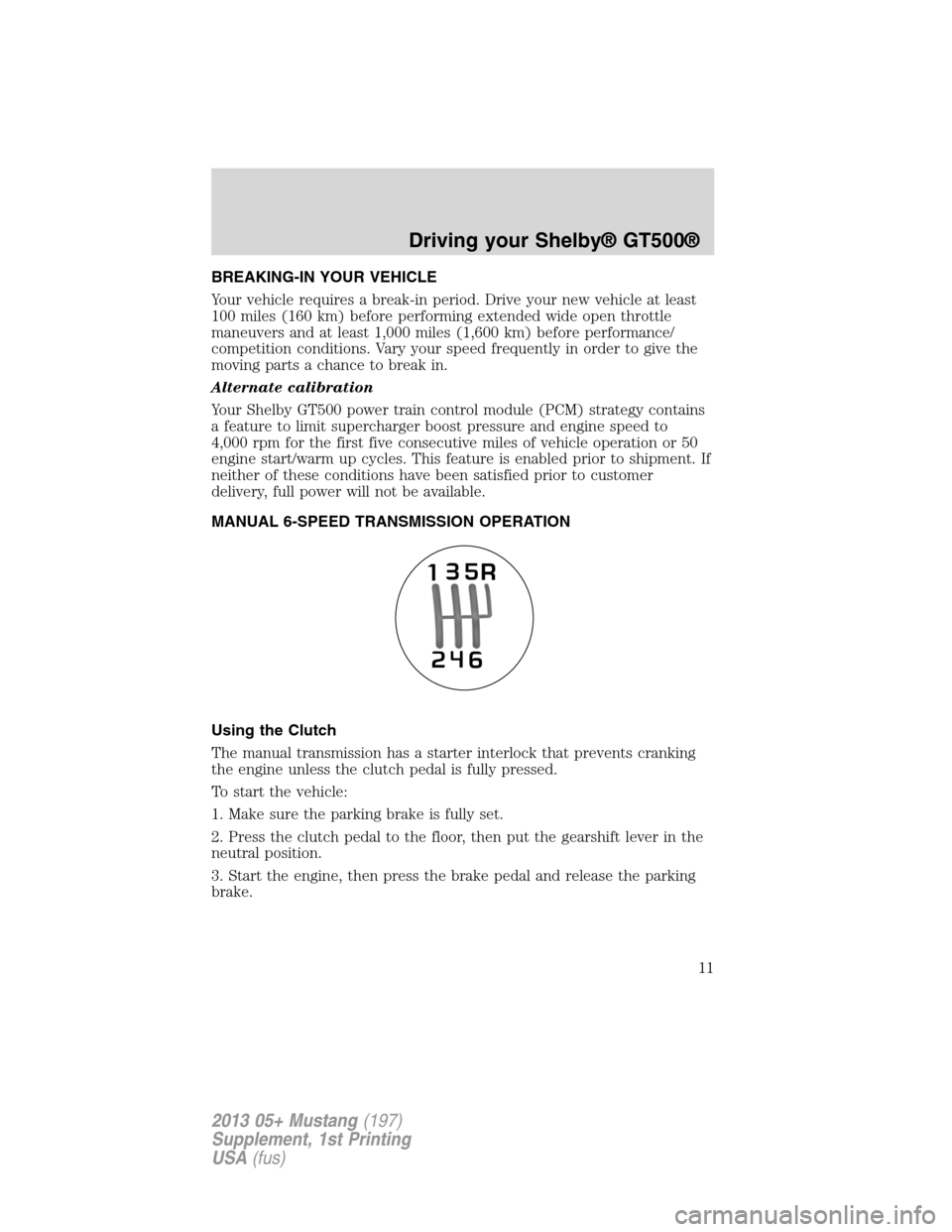

BREAKING-IN YOUR VEHICLE
Your vehicle requires a break-in period. Drive your new vehicle at least
100 miles (160 km) before performing extended wide open throttle
maneuvers and at least 1,000 miles (1,600 km) before performance/
competition conditions. Vary your speed frequently in order to give the
moving parts a chance to break in.
Alternate calibration
Your Shelby GT500 power train control module (PCM) strategy contains
a feature to limit supercharger boost pressure and engine speed to
4,000 rpm for the first five consecutive miles of vehicle operation or 50
engine start/warm up cycles. This feature is enabled prior to shipment. If
neither of these conditions have been satisfied prior to customer
delivery, full power will not be available.
MANUAL 6-SPEED TRANSMISSION OPERATION
Using the Clutch
The manual transmission has a starter interlock that prevents cranking
the engine unless the clutch pedal is fully pressed.
To start the vehicle:
1. Make sure the parking brake is fully set.
2. Press the clutch pedal to the floor, then put the gearshift lever in the
neutral position.
3. Start the engine, then press the brake pedal and release the parking
brake.
Driving your Shelby® GT500®
11
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

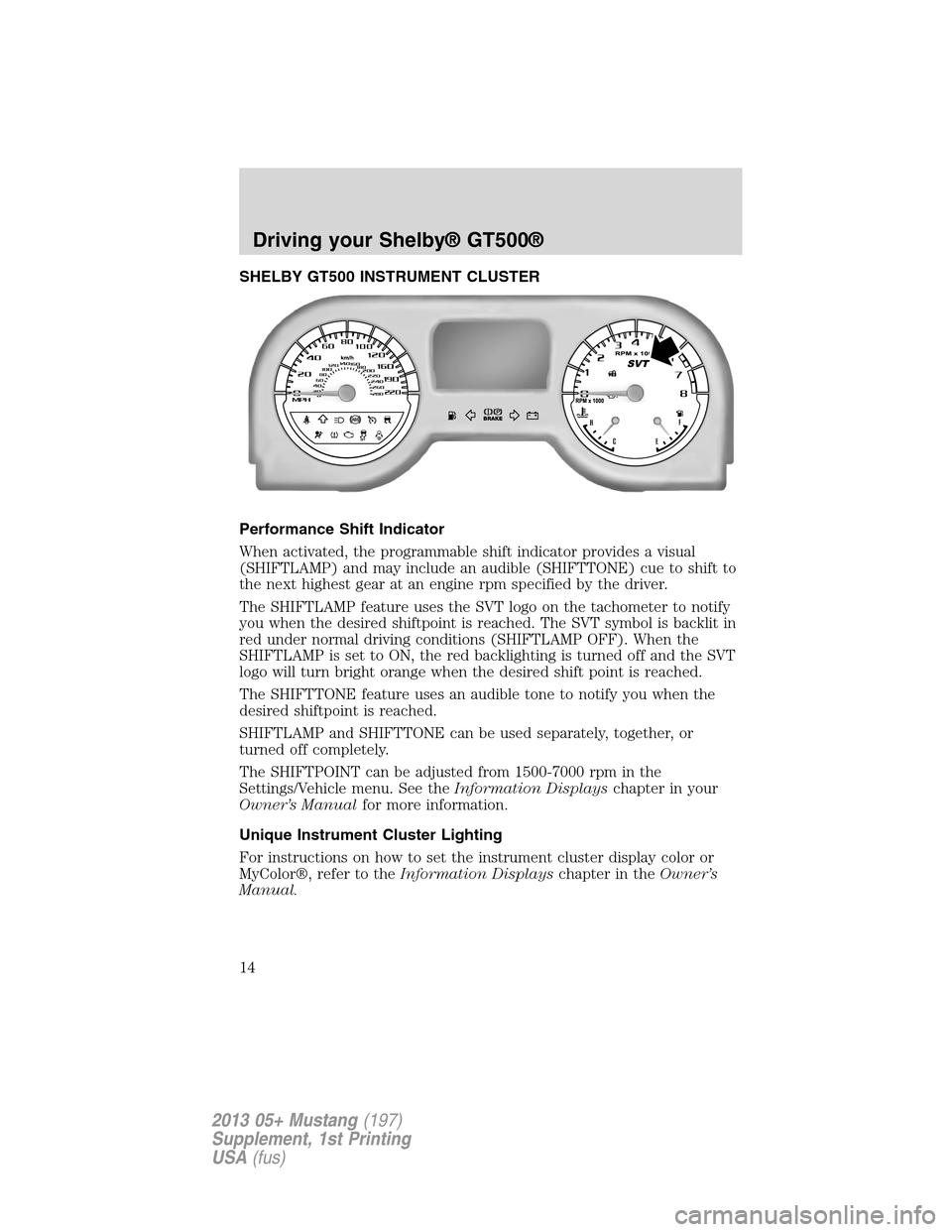

SHELBY GT500 INSTRUMENT CLUSTER
Performance Shift Indicator
When activated, the programmable shift indicator provides a visual
(SHIFTLAMP) and may include an audible (SHIFTTONE) cue to shift to
the next highest gear at an engine rpm specified by the driver.
The SHIFTLAMP feature uses the SVT logo on the tachometer to notify
you when the desired shiftpoint is reached. The SVT symbol is backlit in
red under normal driving conditions (SHIFTLAMP OFF). When the
SHIFTLAMP is set to ON, the red backlighting is turned off and the SVT
logo will turn bright orange when the desired shift point is reached.
The SHIFTTONE feature uses an audible tone to notify you when the
desired shiftpoint is reached.
SHIFTLAMP and SHIFTTONE can be used separately, together, or
turned off completely.
The SHIFTPOINT can be adjusted from 1500-7000 rpm in the
Settings/Vehicle menu. See theInformation Displayschapter in your
Owner’s Manualfor more information.
Unique Instrument Cluster Lighting
For instructions on how to set the instrument cluster display color or
MyColor®, refer to theInformation Displayschapter in theOwner’s
Manual.
Driving your Shelby® GT500®
14
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
