2013 FORD MUSTANG warning

DR3J 19G217 AA
January 2012
First Printing
Quick Reference Guide
Mustang
Litho in USA
Quick Reference Guide
2013 Mustang
This Quick Reference Guide
is not intended to replace
your vehicle Owner’s Manual
which contains more detailed
information concerning the
features of your vehicle, as
well as important safety
warnings designed to help
reduce the risk of injury to you
and your occupants. Please
read your entire Owner’s
Manual carefully as you
begin learning about your
new vehicle and refer to the
appropriate chapters when
questions arise. All information contained in
this Quick Reference Guide
was accurate at the time
of duplication. We reserve
the right to change features,
operation and/or functionality
of any vehicle specification
at any time. Your Ford dealer
is the best source for the
most current information. For
detailed operating and safety
information, please consult
your Owner’s Manual.
Ford Motor Company Customer Relationship Center
U.S. • 1-800-392-3673 (FORD)
(TDD for the hearing impaired: 1-800-232-5952)
fordowner.com
Ford of Canada’s Customer Relationship Centre
Canada • 1-800-565-3673 (FORD)
ford.ca

2013 mustang/Quick RefeRence Guide /3
2/2013 mustang/ Quick RefeRence Guide
fordowner.com
Table of Contents
Instrument Panel 4-5
Getting started with
your SYnc
® system 6 -7
c onvertible top 8-9
c onvenience
10-11
Essential information 12-13
Function 14
c omfort 15
SYNC is a voice-activated
technology personalized by you. It
is a hands-free, voice recognition
system used for entertainment,
information and communication.
syncmyride.com
Learn how to
SYNC® your ride
Driving while distracted can result in
loss of vehicle control, accident and
injury. Ford Motor c ompany strongly
recommends that drivers use extreme
caution when using any device or
feature that may take their focus off
the road. Your primary responsibility is
the safe operation of the vehicle. We
recommend against the use of any hand
held device while driving, encourage the
use of voice-operated systems when
possible and that you become aware
of applicable state and local laws that
may affect use of electronic devices
while driving.
Warning

Roadside assistance:
Your new Ford vehicle comes
with the assurance and support
of 24-hour emergency roadside
assistance. To receive roadside
assistance in the United States,
call 1-800-241-3673. In canada,
call 1 -800-665-2006.
Tire pressure monitoring system:
Your vehicle illuminates a low tire pressure warning light in your instrument cluster when one or more of your
tires is significantly underinflated. If this happens, stop and
check your tires as soon as possible. Inflate them to the
proper pressure. Refer to the Inflating Your Tires section in
the Wheels and Tires chapter of your Owner’s Manual for
more information.
Cleaning:
When washing your vehicle, do not use a commercial
or high pressure wand to wash striped surfaces. For the
best results use Motorcraft
® cleaning products. Wash
your vehicle regularly with cool or lukewarm water and a
neutral pH shampoo such as Motorcraft Detail Wash. For
cleaning chrome wheels use c ustom Bright Metal cleaner.
Apply the product as you would a wax to clean bumpers
and other chrome parts; allow the cleaner to dry for a few
minutes, then wipe off the haze with a clean, dry rag.

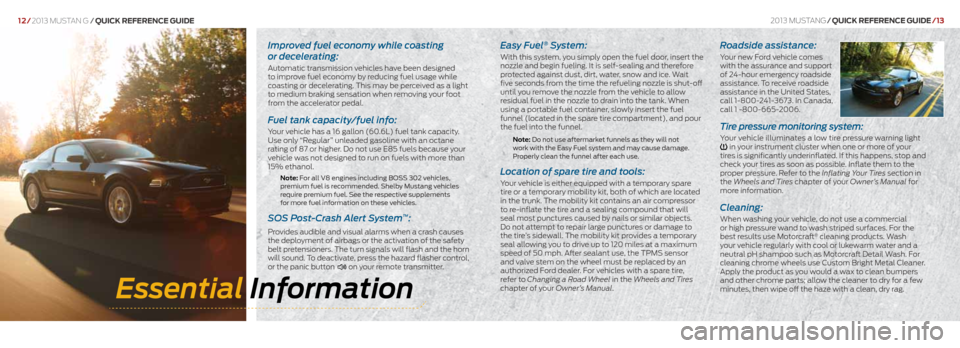

Improved fuel economy while coasting
or decelerating:
Automatic transmission vehicles have been designed
to improve fuel economy by reducing fuel usage while
coasting or decelerating. This may be perceived as a light
to medium braking sensation when removing your foot
from the accelerator pedal.
Fuel tank capacity/fuel info:
Your vehicle has a 16 gallon (60.6L) fuel tank capacity.
Use only “Regular” unleaded gasoline with an octane
rating of 87 or higher. Do not use E85 fuels because your
vehicle was not designed to run on fuels with more than
15% ethanol.
Note: For all V8 engines including BOSS 302 vehicles,
premium fuel is recommended. Shelby Mustang vehicles
require premium fuel. See the respective supplements
for more fuel information on these vehicles.
SOS Post-Crash Alert System™:
Provides audible and visual alarms when a crash causes
the deployment of airbags or the activation of the safety
belt pretensioners. The turn signals will flash and the horn
will sound. To deactivate, press the hazard flasher control,
or the panic button
on your remote transmitter.
12/
2013 mustan g /Quick RefeRence Guide
Easy Fuel® System:
With this system, you simply open the fuel door, insert the
nozzle and begin fueling. It is self-sealing and therefore
protected against dust, dirt, water, snow and ice. Wait
five seconds from the time the refueling nozzle is shut-off
until you remove the nozzle from the vehicle to allow
residual fuel in the nozzle to drain into the tank. When
using a portable fuel container, slowly insert the fuel
funnel (located in the spare tire compartment), and pour
the fuel into the funnel.
Note: Do not use aftermarket funnels as they will not
work with the Easy Fuel system and may cause damage.
Properly clean the funnel after each use.
Location of spare tire and tools:
Your vehicle is either equipped with a temporary spare
tire or a temporary mobility kit, both of which are located
in the trunk. The mobility kit contains an air compressor
to re-inflate the tire and a sealing compound that will
seal most punctures caused by nails or similar objects.
Do not attempt to repair large punctures or damage to
the tire’s sidewall. The mobility kit provides a temporary
seal allowing you to drive up to 120 miles at a maximum
speed of 50 mph. After sealant use, the TPMS sensor
and valve stem on the wheel must be replaced by an
authorized Ford dealer. For vehicles with a spare tire,
refer to Changing a Road Wheel in the Wheels and Tires
chapter of your Owner’s Manual.
Essential Information
2013 mustang /Quick RefeRence Guide /13

Heated front seats*:
The heated seat controls are located on the
instrument panel. Press to enable and disable
heated front seats.
Tilting head restraints*:
Your vehicle’s front row
head restraints can be
adjusted. Pull up to raise
the head restraint. To lower,
press the head restraint
down while pressing and
holding the guide sleeve
adjust/release button. Tilt
the head restraint forward for additional comfort by
gently pulling the top of the head restraint. Once it is
in the forward-most position, tilting it forward once
more will release it to the upright position.
Note: Do not attempt to force the
head restraint backward after it is
tilted. Instead, continue tilting it
forward until the headrest releases
to the upright position.
Accessing and adjusting gauge color,
ambient color, halo color and MyColor®:
The information display screen allows you to select
specific colors to backlight your gauges (Gauge
color) the area around your gauges (Halo color) as
well as selecting ambient lighting options to appear
in the footwell areas, cupholders and console bin
(Ambient color). To access. Press SETUP repeatedly
until the desired feature (GAUGE COLOR, AMBIENT
COLOR or HALO COLOR) appears in the display.
Press RESET repeatedly to scroll through all possible
color options as well as Myc olor
®. Mycolor® allows
you to create your own color preference by adjusting
the levels of the three primary colors (blue, red and
green). Vehicles equipped with the 5-way control
(located on the steering wheel), use the arrows to
scroll through a menu and press the OK button to
select your lighting preferences. See the Information
Displays chapter of your Owner’s Manual for
information on how to customize the colors of
your vehicle.
Glass roof and roller blind sunshade*:
Use the center mounted handle to slide the shade
open or closed.Function
Rearview camera*:
This system provides a visual display of the area behind the vehicle. The
display automatically appears in the navigation screen (if equipped) when
the vehicle is in R (Reverse) and uses green, yellow and red guides to alert
you of your proximity to objects. For non-navigation vehicles, the image will
appear in the rearview mirror.
Reverse sensing system*:
This system sounds a warning tone if there is an obstacle near the vehicle’s
rear bumper when the vehicle is in R (Reverse) and is traveling less than 3
mph (5 km/h). The warning tone will increase in frequency as the object
gets closer.
Note: Visibility aids do not replace the need to watch where the vehicle is moving.
Refer to your Owner’s Manual for safety information, more detail and limitations.
SelectShift Automatic™ transmission:*
Note: Manual transmission vehicles are not SelectShift capable.
To enable, move the SelectShift gearshift lever from D (Drive) to S (Sport).
In (S) Sport Mode, a unique downshift schedule is utilized to keep the
transmission in lower gears for enhanced performance and more aggressive
engine braking. When the vehicle is in (S) Sport mode, manual gear
selection is enabled by using the thumb toggle on the side of the gearshift
lever. Press (+) to upshift, press (–) to downshift. Return the gearshift lever
to (D) Drive when manual control is no longer desired.
14/
2013 mustan g /Quick RefeRence Guide
Comfort
MyKey®:
MyKey allows you to program certain
driving restrictions in order to promote
good driving habits. You can program
things like: speed restrictions,
limited volume levels and safety belt
reminders. For complete information,
refer to the MyKey chapter in your
Owner’s Manual. 2013 mustang
/Quick RefeRence Guide /1 5
*if equipped*if equipped
