2013 FORD FOCUS buttons

HOME
Press to access your home screen. Depending on your vehicle’s
option package and software, your screens may vary in
appearance from the screens shown in this section. Your features may
also be limited depending on your market. Check with your authorized
dealer for availability.
Using the Touch-sensitive Controls on Your System
To turn a feature on and off, just touch the graphic with your finger. To
get the best performance from the touch-sensitive controls:
•Do not press hard on the controls. They are sensitive to light touch.
•Use your bare finger to touch the center of a touch-control graphic.
Touching off-center of the graphic may cause a nearby control to turn
on or off.
•Make sure your hands are clean and dry.
•Since the touchscreen operates based on the touch of a finger, you
may have trouble using it if you are wearing gloves.
•Metal and other conductive material should be kept away from the
surface of the touchscreen as this may cause electronic interference
(i.e., control activation).
Depending on your vehicle and option package, you may also have these
controls on your bezel:
•Power: Turn the media (or climate features) on or off.
•VOL: Increase or decrease the volume.
•Fan: Increase or decrease the fan speed.
•Seek and Tune buttons: Use as you normally would in media modes.
•Eject: Eject a CD.
•SOURCE: Touch the word repeatedly to see all available media
modes. The screen does not change, but you see the media change in
the lower left status bar.
•SOUND: Touch the word to access the Sound menu where you can
make adjustments to settings, such as: Bass, Midrange, Treble,
Balance and Fade, THX Deep Note Demo (if equipped), DSP (if
equipped), Occupancy Mode (if equipped), and Speed Compensated
Volume settings.
•Hazard flasher: Press the button to turn the hazard flashers on or off.
Cleaning the Touchscreen Display
Clean the display with a clean, soft cloth, such as one used for cleaning
glasses. If dirt or finger prints are still visible, apply a small amount of
alcohol to the cloth. Do not pour or spray alcohol onto the display. Do
not use detergent or any type of solvent to clean the display.
MyFord Touch(If Equipped)379
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

To access these settings using voice commands:
Press the voice icon; after the tone sounds, the system says
“Please say a command”. Another tone sounds to let you know
the system is listening.
Using Voice Commands with the Touchscreen Options
Your voice system has a dual mode feature which allows you to switch
between using voice commands and making on-screen selections. This is
most often available when using navigation.
On-screen buttons are outlined in blue to indicate the selections that are
part of the dual mode feature. For example, if while you are in a voice
session rather than saying the command “Enter Street Name” to change
the field, you can press Street and the voice session does not end.
Instead, the voice system changes to the Street field and asks you to say
the street name. The buttons not outlined in blue cannot be used as
voice commands; if they are touched during a voice session, the voice
session is canceled. For example:
From the Navigation home screen, you can choose from the following:
•My Home
•Favorites
•Previous Destinations
•Point of Interest (POI)
•Emergency
•Street Address
•Intersection
•Cancel Route.
Some of the voice commands that are available while viewing this screen
are:
“DESTINATION”
“Destination my home”
“Destination street address”
“Destination favorites”
“Destination previous destinations”
“Destination POI”
“Destination intersection”
“Destination emergency”
MyFord Touch(If Equipped)385
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

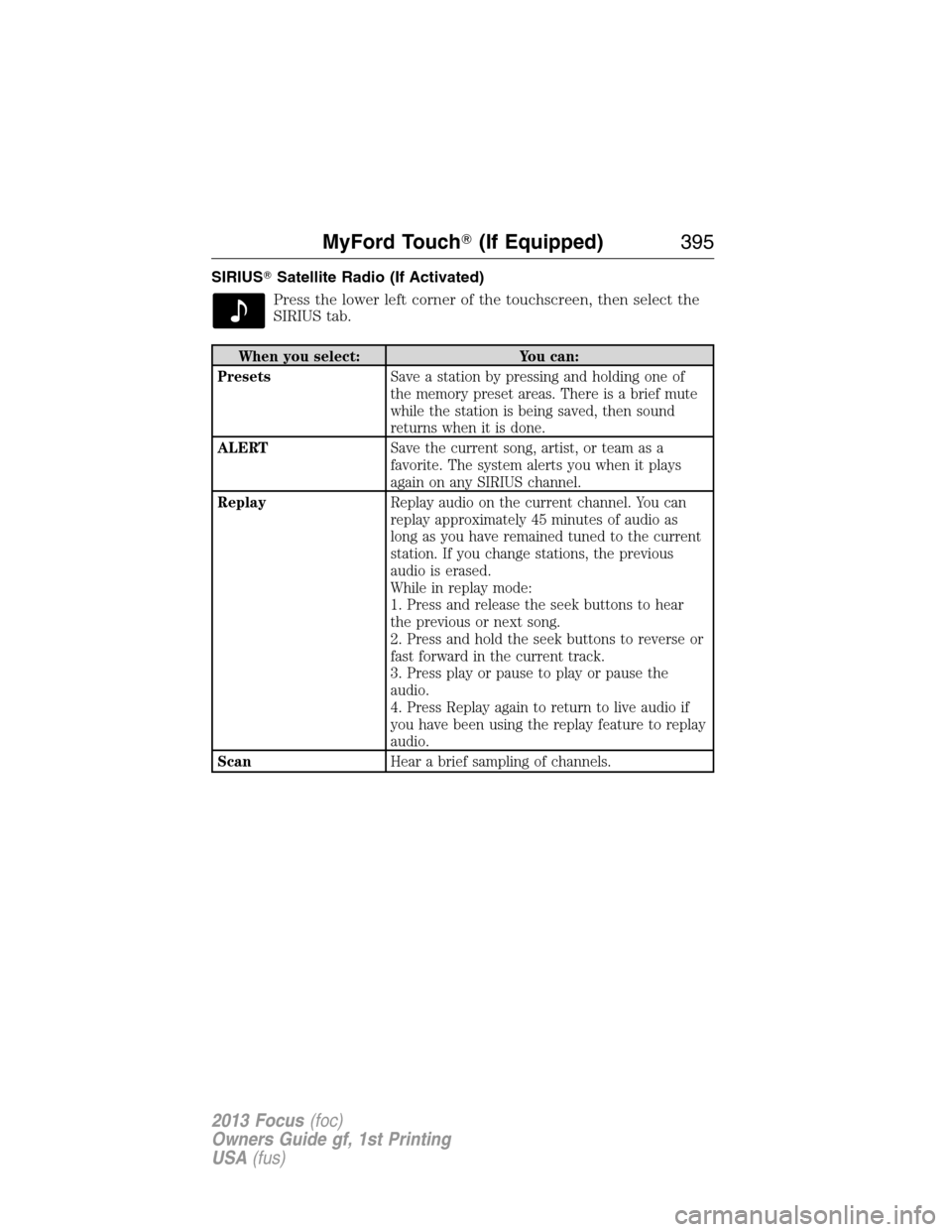

SIRIUSSatellite Radio (If Activated)
Press the lower left corner of the touchscreen, then select the
SIRIUS tab.
When you select: You can:
PresetsSave a station by pressing and holding one of
the memory preset areas. There is a brief mute
while the station is being saved, then sound
returns when it is done.
ALERTSave the current song, artist, or team as a
favorite. The system alerts you when it plays
again on any SIRIUS channel.
ReplayReplay audio on the current channel. You can
replay approximately 45 minutes of audio as
long as you have remained tuned to the current
station. If you change stations, the previous
audio is erased.
While in replay mode:
1. Press and release the seek buttons to hear
the previous or next song.
2. Press and hold the seek buttons to reverse or
fast forward in the current track.
3. Press play or pause to play or pause the
audio.
4. Press Replay again to return to live audio if
you have been using the replay feature to replay
audio.
ScanHear a brief sampling of channels.
MyFord Touch(If Equipped)395
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Change the appearance of the map
display by repeatedly pressing the
arrow button in the upper left
corner of the screen. It toggles
between three different map modes;
Heading up, North up, and 3D.
Heading up (2D map)always shows the direction of forward
travel to be upward on the screen. This view is available for map
scales up to 2.5 miles (4 kilometers). For larger map scales, this
setting is remembered, but the map is shown in North up only. If
the scale returns below this level, then Heading up is restored.
North up (2D map)always shows the northern direction to be
upward on the screen.
3D map modeprovides an elevated perspective of the map. This
viewing angle can be adjusted and the map can be rotated 180
degrees by dragging your finger along the shaded bar with arrows
at the bottom of the map.
Re-centering the mapcan be done by pressing this icon
whenever you scroll the map away from your vehicle’s current
location.
Auto Zoom
Press the green bar to access map mode, then select the + or - zoom
button to bring up the zoom level and Auto buttons on the touchscreen.
When the Auto button is pressed, Auto Zoom is turned on and Auto is
displayed in the bottom left corner of the screen. The map zoom level
then synchronizes with vehicle speed. The slower the vehicle is traveling,
the farther in the map is zoomed in; the faster the vehicle is traveling,
the farther the map is zoomed out. To turn the feature off, just press the
+ or - button again.
MyFord Touch(If Equipped)445
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Quick-touch Buttons
When in map mode, touch anywhere on the map display to access the
following options:
When you select: You can:
Set as DestSelect a scrolled location on the map as your
destination. (You may scroll the map by
pressing your index finger on the map display.
When you reach the desired location, simply
let go and then press Set as Dest.)
Set as WaypointSet the current location as a waypoint.
Save to FavoritesSave the current location to your favorites.
POI Icons On/OffSelect POI icons to be displayed on the map.
Up to three icons can be selected for display
on the map at the same time.
Cancel RouteCancel the active route.
View/Edit RouteAccess these features when a route is active:
•View route
•Edit destination/waypoints
•Edit turn list
•Detour
•Edit route preferences
•Edit traffic preferences
•Cancel route.
Rotate the map view by swiping
your finger across the shaded bar
with the arrows.
Navteq is the digital map provider for the navigation application. If you
find map data errors, you may report them directly to Navteq by going to
http://mapreporter.navteq.com. Navteq evaluates all reported map errors
and responds with the result of their investigation by e-mail.
MyFord Touch(If Equipped)447
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

Map preferences .......................443
Map updates ..............................448
Media Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ..........................369
Message center .........................108
warning messages ...................112
Mirrors ...................................97, 99
fold away ...................................97
side view mirrors (power) .......97
Moon roof ....................................99
Motorcraftparts ..............268, 307
MyFord Touch™ system ..........377
MyKey ..........................................66
N
Navigation features ...................439
Navigation voice commands ....448
Notifications ..............................421
O
Octane rating ............................171
P
Pairing other phones ........338, 409
Pairing your phone ...................408
Pairing your phone for the
first time ............................337, 408
Parental MyKey programming ...66
Park Assist ................................195
Parking brake ............................188
Parts
(see Motorcraftparts) ...........307Phone Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ..........................348
Phone redial ..............................342
Phone settings ..................413, 432
Phone voice commands ............414
Playing music (by artist,
album, genre, playlist,
tracks, similar) ..........................366
POI categories ...........................440
Point of Interest (POI) .............440
Power distribution box
(see Fuses) ...............................237
Power door locks ........................72
Power mirrors .............................97
Powerpoint ................................161
Power steering ..........................207
fluid, refill capacity ................304
fluid, specifications .................304
Power Windows ...........................95
Privacy information ..........334, 381
Push button start system .........164
Putting a call on/off hold .........341
Q
Quick touch buttons .................447
R
Radio ..................125, 127, 130, 132
AM/FM .....................................388
Single CD ........125, 127, 130, 132
Radio reception .........................123
Radio voice commands .............390
472Index
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
