MyKey 70
Settings, MyKey.......................................70
Creating.............................................71
Clearing.............................................72
System status.........................................72
Remote start, MyKey...................................72
Troubleshooting, MyKey.................................74
Locks 76
Locking and unlocking..................................76
SecuriCode™ keyless entry keypad.........................83
Security 86
SecuriLockpassive anti-theft system.......................86
Anti-theft alarm.......................................89
Steering Wheel 90
Adjusting the steering wheel..............................90
Steering wheel controls..................................92
Pedals 95
Adjustable pedals......................................95
Wipers and Washers 96
Windshield wipers......................................96
Rain-sensing wipers....................................96
Windshield washers.....................................97
Rear-window wiper and washer............................97
Lighting 98
Lighting control.......................................98
Autolamps...........................................99
Instrument lighting dimmer...............................99
Headlamp exit delay...................................100
Daytime running lamps.................................101
2Table of Contents
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

Adjusting the headlamps................................324
Changing a bulb......................................325
Vehicle Care 330
Cleaning products.....................................330
Cleaning the exterior...................................330
Waxing.............................................332
Repairing minor paint damage............................332
Cleaning the engine...................................332
Cleaning the windows and wiper blades.....................333
Cleaning the interior...................................333
Cleaning the instrument panel and instrument cluster lens.......334
Cleaning leather seats..................................335
Cleaning the alloy wheels...............................335
Vehicle storage.......................................336
Wheels and Tires 339
Tire care...........................................341
Tire Pressure Monitoring System (TPMS)....................358
Changing a road wheel.................................362
Technical specifications.................................368
Wheel lug nut torque..................................368
Capacities and Specifications 370
Engine specifications...................................370
Maintenance product specifications and capacities.............371
Part numbers........................................375
Vehicle identification number.............................375
Vehicle certification label................................376
Transmission code designation............................377
Accessories 378
Accessories..........................................378
Table of Contents7
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

Deactivating or Activating
Note:The autolock and autounlock features can be activated or
deactivated independently of each other.
These features can be activated or deactivated:
•through your authorized dealer
•by using the information display (if equipped with this feature).
Illuminated Entry
The interior lamps, parking lamps and puddle lamps (if equipped)
illuminate when the integrated keyhead transmitter, intelligent access key
or the keyless entry keypad is used to unlock the vehicle.
The system will turn off the lights if:
•the ignition is turned on
•the lock button on the remote control is pressed
•the vehicle is locked using the keyless entry keypad
•after 25 seconds of illumination.
The lights will not turn off if:
•they have been turned on with the dimmer control
•any door is open.
Illuminated Exit
The interior lamps and select exterior lamps will illuminate when all
doors are closed, the ignition is turned off and the key is removed from
the ignition (integrated keyhead transmitter only).
The lamps will turn off if all the doors remain closed and:
•25 seconds elapse
•
the key is inserted in the ignition (integrated keyhead transmitter only)
•the START/STOP button is pressed (intelligent access key only).
Battery Saver
If the courtesy lamps, dome lamps or headlamps are left on, the battery
saver will shut them off 10 minutes after the ignition has been turned off.
Accessory Mode Battery Saver for Intelligent Access Keys
(If Equipped)
If you shut off the engine and leave the ignition in the on or accessory
mode, the ignition will shut off after 30 minutes.
Locks79
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

LIGHTING CONTROL
A. Off
B. Parking lamps, instrument panel
lamps, license plate lamps and tail
lamps
C. Headlamps
High Beams
•Push the lever toward the
instrument panel to activate.
•Push the lever toward the
instrument panel again or pull the
lever towards you to deactivate.
Headlamp Flasher
Pull toward you slightly to activate
and release to deactivate.
A
ABC
98Lighting
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

AUTOLAMPS (If equipped)
WARNING:In severe weather conditions, it may be necessary to
switch your headlamps on manually.
Note:If the vehicle is equipped with autolamps, it will have the
windshield wiper rainlamp feature.When the windshield wipers are
turned to low- or high-speed wiping during daylight, and the headlamp
control is in the autolamp position, the exterior lamps will turn on after a
brief delay and will remain on until the wipers are turned off.
The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.
The headlamps will remain on for a
period of time after you switch the
ignition off. You can adjust the time
delay using the display controls in
the instrument cluster. See the
Information Displayschapter.
INSTRUMENT LIGHTING DIMMER
•Press repeatedly or press and hold at the first position
until the desired level is reached.
•Fully press and hold the top of the control to activate
the “dome on” feature. This will turn on the interior
courtesy lights. Fully press and hold the bottom of the
control to turn off the interior courtesy lights.
A
Lighting99
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

HEADLAMP EXIT DELAY
You can set the delay time to keep the headlamps on for up to three
minutes after the ignition is turned off.
Follow the steps below to change the delay time (Steps 1 through 6 must
be done within 10 seconds):
1. Turn the ignition off.
2. Turn the lighting control to the autolamp position.
3. Turn the lighting control to the off position.
4. Turn the ignition on.
5. Turn the ignition off.
6. Turn the lighting control to the autolamp position. The headlamps and
parking lamps will turn on.
7. Turn the lighting control to the off position when the desired delay
time has been reached. The headlamps and parking lamps will turn off.
You can set the headlamp exit delay to one of the following settings:
•Off
•10 seconds
•20 seconds
•30 seconds
•60 seconds
•90 seconds
•120 seconds
•180 seconds
Note:You can also adjust the time delay using the display controls in the
instrument cluster. See theInformation Displayschapter.
100Lighting
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

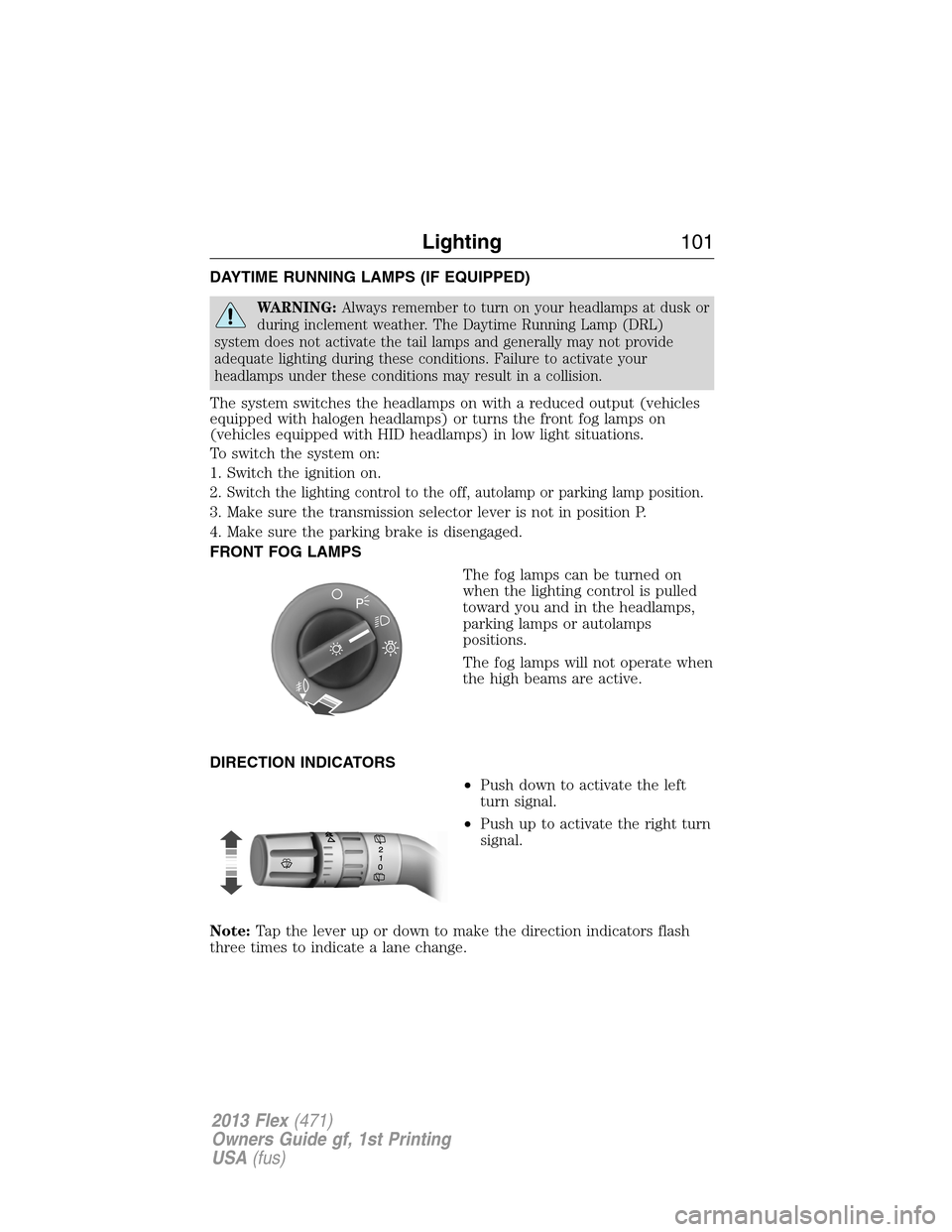

DAYTIME RUNNING LAMPS (IF EQUIPPED)
WARNING:Always remember to turn on your headlamps at dusk or
during inclement weather. The Daytime Running Lamp (DRL)
system does not activate the tail lamps and generally may not provide
adequate lighting during these conditions. Failure to activate your
headlamps under these conditions may result in a collision.
The system switches the headlamps on with a reduced output (vehicles
equipped with halogen headlamps) or turns the front fog lamps on
(vehicles equipped with HID headlamps) in low light situations.
To switch the system on:
1. Switch the ignition on.
2.
Switch the lighting control to the off, autolamp or parking lamp position.
3. Make sure the transmission selector lever is not in position P.
4. Make sure the parking brake is disengaged.
FRONT FOG LAMPS
The fog lamps can be turned on
when the lighting control is pulled
toward you and in the headlamps,
parking lamps or autolamps
positions.
The fog lamps will not operate when
the high beams are active.
DIRECTION INDICATORS
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
Note:Tap the lever up or down to make the direction indicators flash
three times to indicate a lane change.
A
Lighting101
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

Park lamps
Illuminates when the park lamps are on.
Heads up display (if equipped)
A red beam of lights will illuminate on the windshield in certain
instances when using adaptive cruise control and/or the collision
warning system. It will also illuminate momentarily when you
start your vehicle to make sure the display works.
High beams
Illuminates when the high-beam headlamps are on.
Low fuel (RTT)
Illuminates when the fuel level in the fuel tank is at or near
empty.
Liftgate ajar (RTT)
Illuminates when the fuel level in the fuel tank is at or near
empty.
Low tire pressure warning
Illuminates when your tire pressure is low. If the light remains
on at start up or while driving, the tire pressure should be
checked. When the ignition is first turned to on, the light will
illuminate for 3 seconds to ensure the bulb is working. If the light does
not turn on or begins to flash, contact your authorized dealer as soon as
possible.
Low washer fluid (RTT)
Illuminates when the windshield washer fluid is low.
11 4Instrument Cluster
