2013 FORD FIESTA steering

Locks 61
Locking and unlocking..................................61
Locks..............................................61
Trunk release.........................................67
Interior luggage compartment release.......................68
Security 69
SecuriLockpassive anti-theft system.......................69
Steering Wheel 72
Adjusting the steering wheel..............................72
Steering wheel controls.................................73
Wipers and Washers 75
Windshield wipers.....................................75
Windshield washers....................................76
Rear-window wiper and washer............................76
Lighting 77
Lighting control.......................................77
Instrument lighting dimmer...............................77
Headlamp exit delay....................................78
Daytime running lamps..................................78
Turn signal control.....................................78
Interior lamps........................................79
Ambient lighting.......................................80
Windows and Mirrors 81
Power windows.......................................81
Exteriormirrors.......................................83
Interiormirrors .......................................84
Moonroof............................................85
Instrument Cluster 86
Gauges.............................................86
Warning lamps and indicators.............................87
Audible warnings and indicators...........................92
2Table of Contents
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

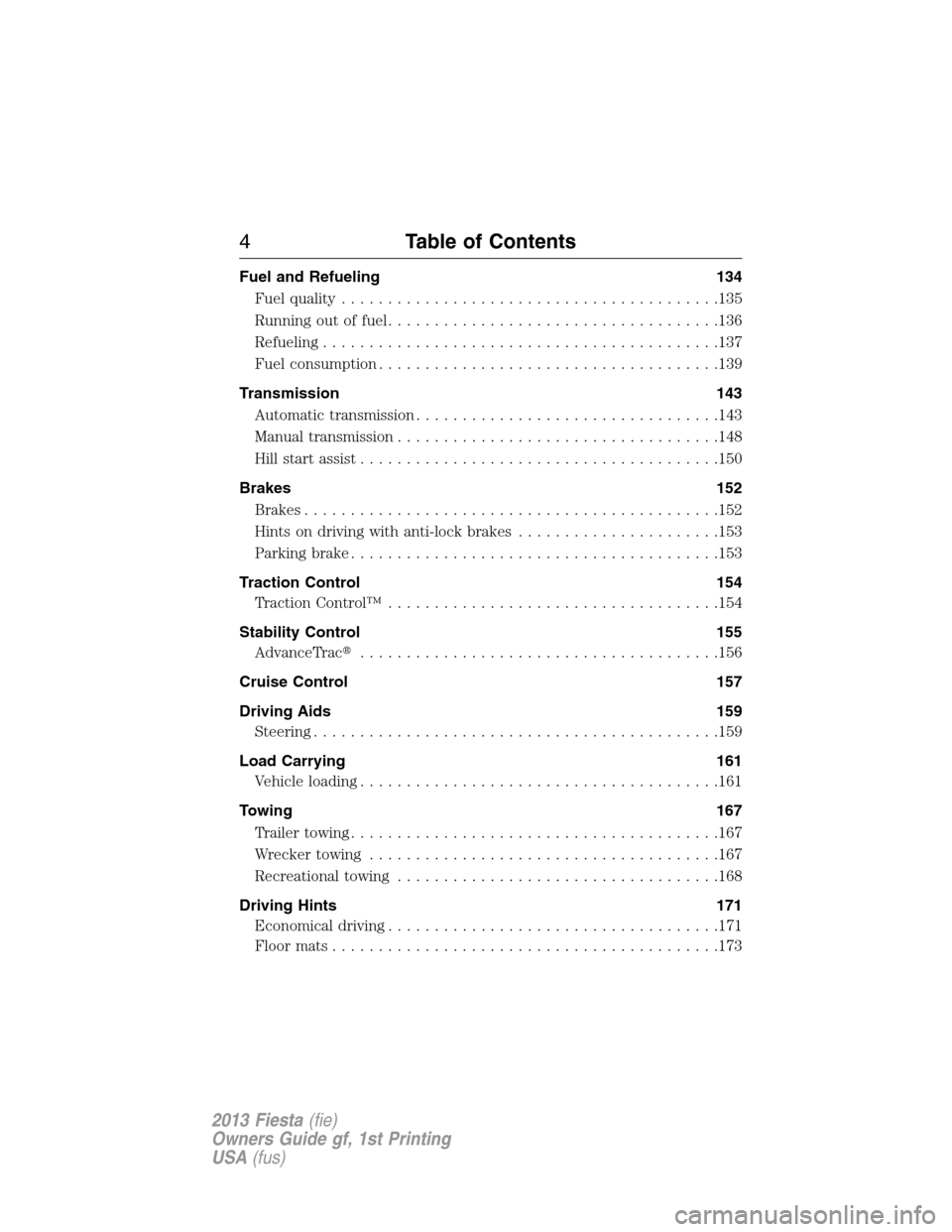

Fuel and Refueling 134
Fuel quality.........................................135
Running out of fuel....................................136
Refueling...........................................137
Fuel consumption.....................................139
Transmission 143
Automatic transmission.................................143
Manual transmission...................................148
Hill start assist.......................................150
Brakes 152
Brakes.............................................152
Hints on driving with anti-lock brakes......................153
Parking brake........................................153
Traction Control 154
TractionControl™ ....................................154
Stability Control 155
AdvanceTrac.......................................156
Cruise Control 157
Driving Aids 159
Steering............................................159
Load Carrying 161
Vehicle loading.......................................161
Towing 167
Trailertowing........................................167
Wrecker towing......................................167
Recreational towing...................................168
Driving Hints 171
Economical driving....................................171
Floormats..........................................173
4Table of Contents
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

Roadside Emergencies 175
Getting roadside assistance..............................175
Hazard warning flashers................................176
Fuel cut-off switch....................................176
Jump-starting the vehicle...............................177
Customer Assistance 180
Reporting safety defects (U.S. only).......................186
Reporting safety defects (Canada only).....................187
Fuses 188
Changing a fuse......................................188
Fuse specification chart................................189
Maintenance 196
General information...................................196
Under hood overview..................................198
Engine oil dipstick....................................199
Engine oil check......................................199
Engine coolant check..................................200
Automatic transmission fluid check........................202
Brake fluid check.....................................203
Power steering fluid check..............................203
Fuel filter...........................................203
Washer fluid check....................................204
Battery ............................................204
Checking the wiper blades..............................206
Changing the wiper blades..............................207
Air filter(s).........................................208
Adjusting the headlamps................................209
Changing a bulb......................................211
Bulb specification chart.................................218
Table of Contents5
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

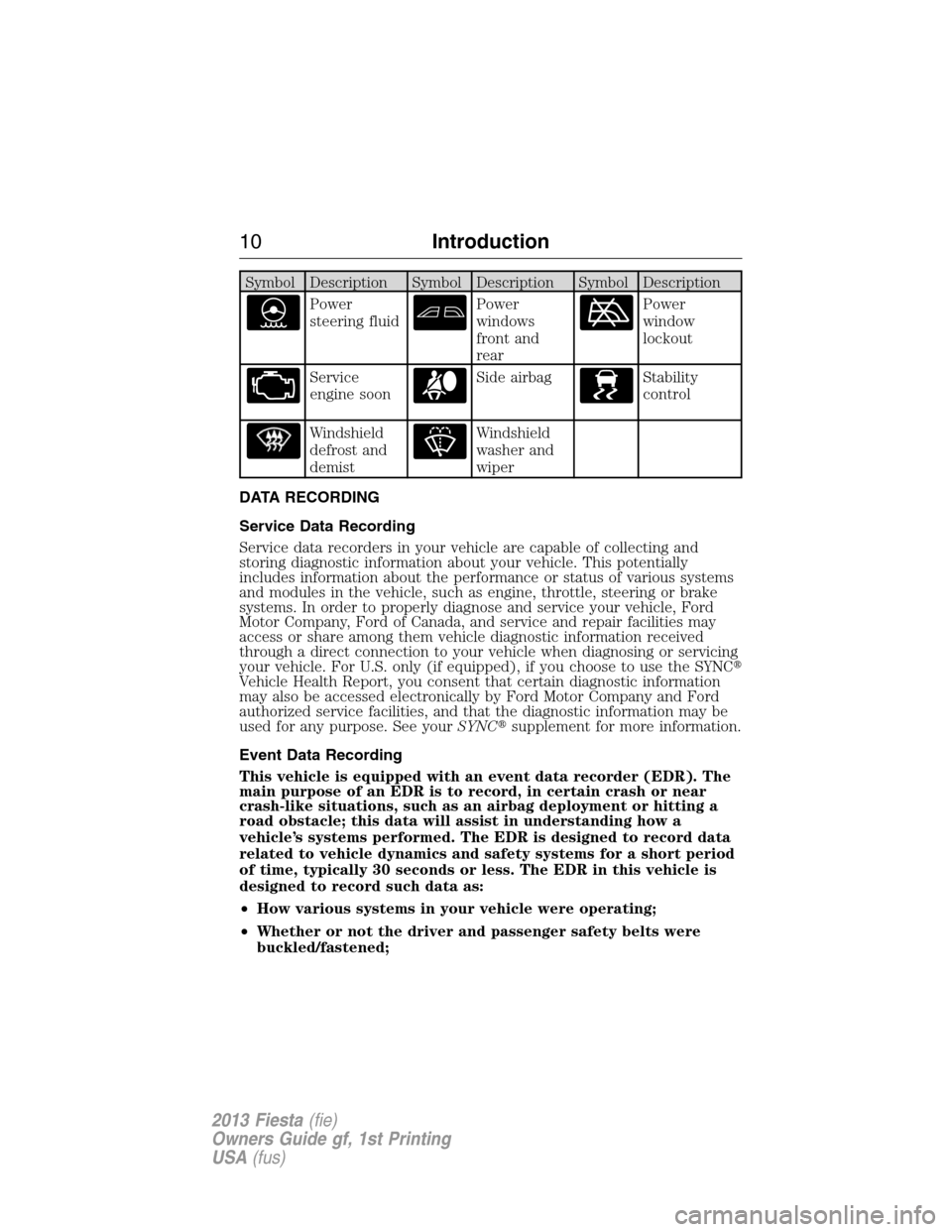

Symbol Description Symbol Description Symbol Description
Power
steering fluidPower
windows
front and
rearPower
window
lockout
Service
engine soonSide airbagStability
control
Windshield
defrost and
demistWindshield
washer and
wiper
DATA RECORDING
Service Data Recording
Service data recorders in your vehicle are capable of collecting and
storing diagnostic information about your vehicle. This potentially
includes information about the performance or status of various systems
and modules in the vehicle, such as engine, throttle, steering or brake
systems. In order to properly diagnose and service your vehicle, Ford
Motor Company, Ford of Canada, and service and repair facilities may
access or share among them vehicle diagnostic information received
through a direct connection to your vehicle when diagnosing or servicing
your vehicle. For U.S. only (if equipped), if you choose to use the SYNC
Vehicle Health Report, you consent that certain diagnostic information
may also be accessed electronically by Ford Motor Company and Ford
authorized service facilities, and that the diagnostic information may be
used for any purpose. See yourSYNCsupplement for more information.
Event Data Recording
This vehicle is equipped with an event data recorder (EDR). The
main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an airbag deployment or hitting a
road obstacle; this data will assist in understanding how a
vehicle’s systems performed. The EDR is designed to record data
related to vehicle dynamics and safety systems for a short period
of time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
•How various systems in your vehicle were operating;
•Whether or not the driver and passenger safety belts were
buckled/fastened;
10Introduction
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

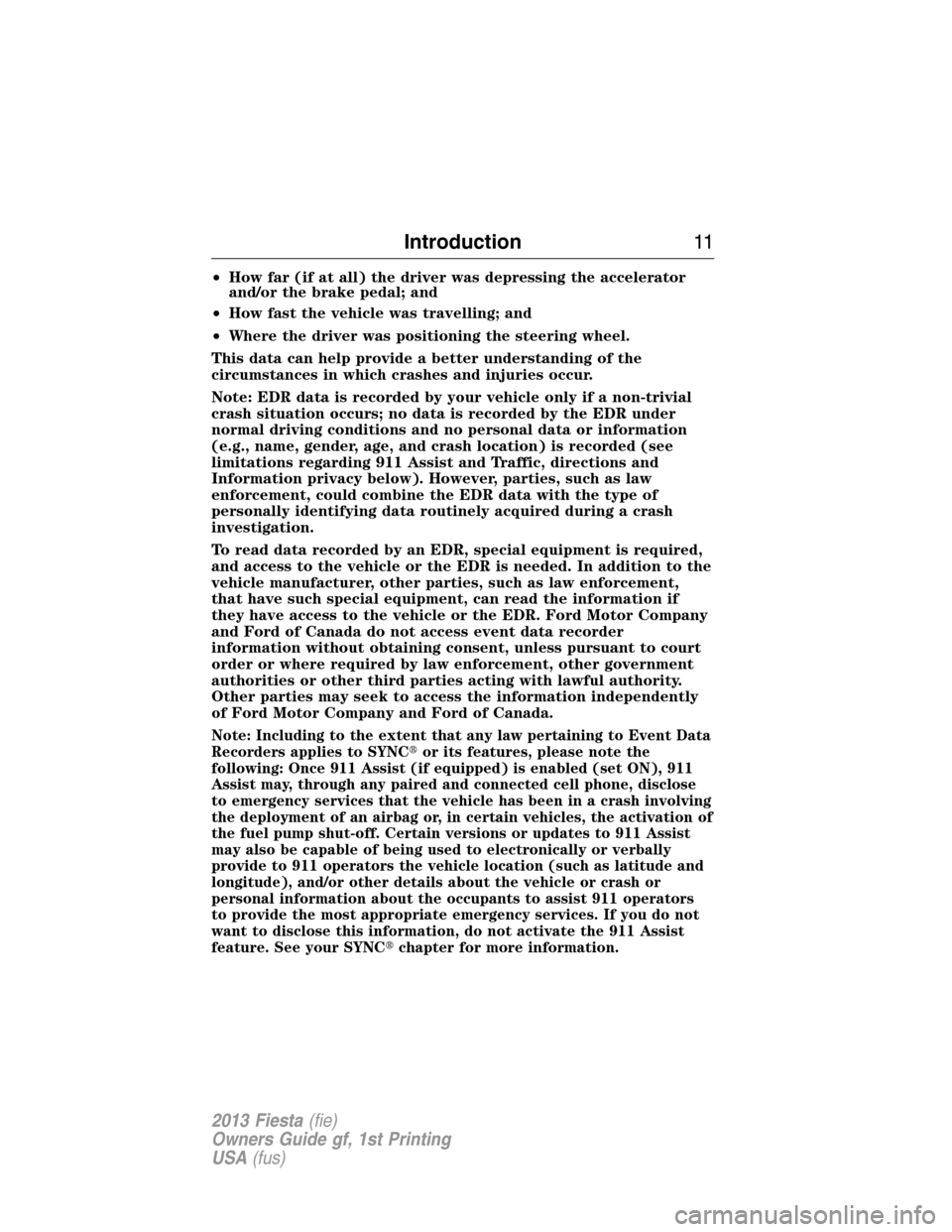

•How far (if at all) the driver was depressing the accelerator
and/or the brake pedal; and
•How fast the vehicle was travelling; and
•Where the driver was positioning the steering wheel.
This data can help provide a better understanding of the
circumstances in which crashes and injuries occur.
Note: EDR data is recorded by your vehicle only if a non-trivial
crash situation occurs; no data is recorded by the EDR under
normal driving conditions and no personal data or information
(e.g., name, gender, age, and crash location) is recorded (see
limitations regarding 911 Assist and Traffic, directions and
Information privacy below). However, parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an EDR, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement,
that have such special equipment, can read the information if
they have access to the vehicle or the EDR. Ford Motor Company
and Ford of Canada do not access event data recorder
information without obtaining consent, unless pursuant to court
order or where required by law enforcement, other government
authorities or other third parties acting with lawful authority.
Other parties may seek to access the information independently
of Ford Motor Company and Ford of Canada.
Note: Including to the extent that any law pertaining to Event Data
Recorders applies to SYNCor its features, please note the
following: Once 911 Assist (if equipped) is enabled (set ON), 911
Assist may, through any paired and connected cell phone, disclose
to emergency services that the vehicle has been in a crash involving
the deployment of an airbag or, in certain vehicles, the activation of
the fuel pump shut-off. Certain versions or updates to 911 Assist
may also be capable of being used to electronically or verbally
provide to 911 operators the vehicle location (such as latitude and
longitude), and/or other details about the vehicle or crash or
personal information about the occupants to assist 911 operators
to provide the most appropriate emergency services. If you do not
want to disclose this information, do not activate the 911 Assist
feature. See your SYNCchapter for more information.
Introduction11
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

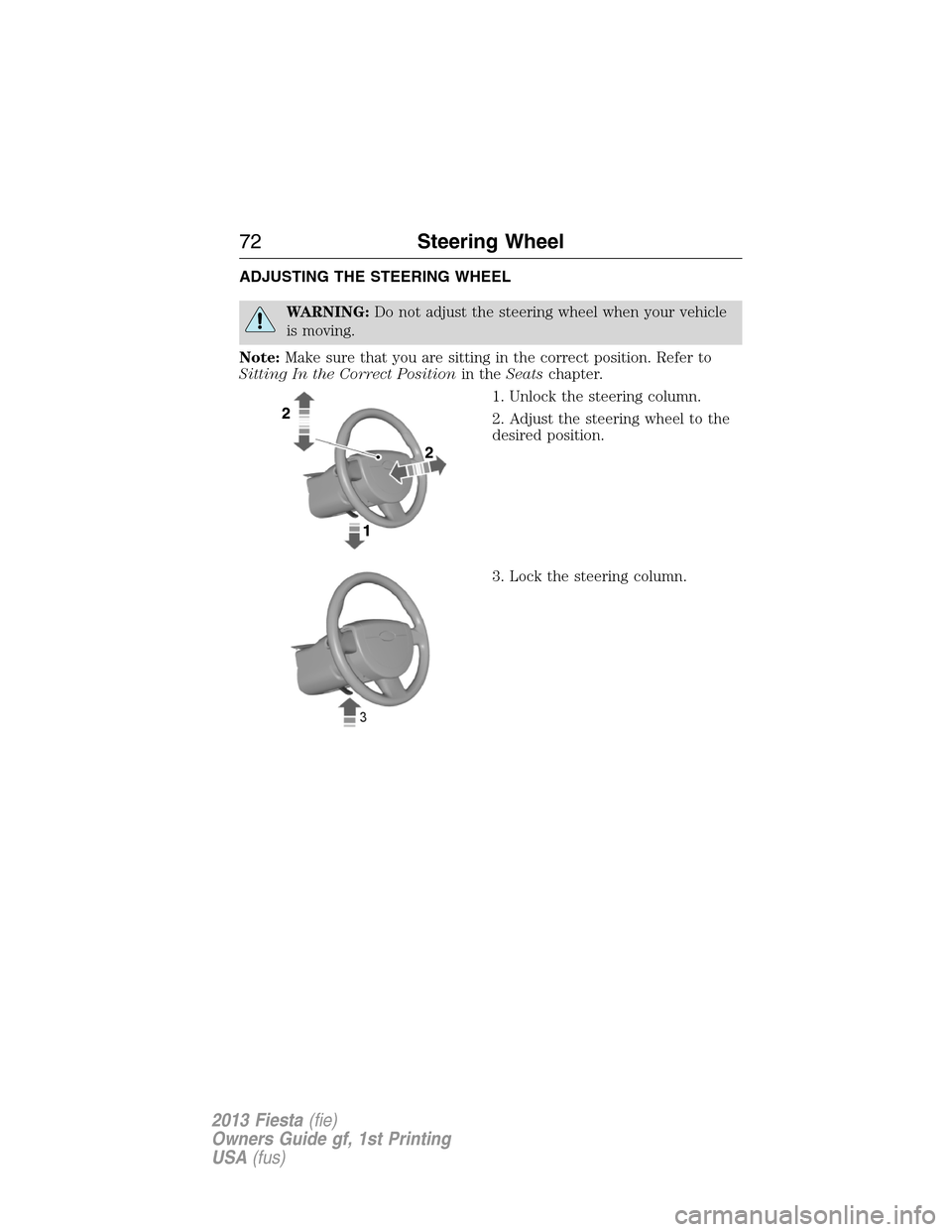

ADJUSTING THE STEERING WHEEL
WARNING:Do not adjust the steering wheel when your vehicle
is moving.
Note:Make sure that you are sitting in the correct position. Refer to
Sitting In the Correct Positionin theSeatschapter.
1. Unlock the steering column.
2. Adjust the steering wheel to the
desired position.
3. Lock the steering column.
72Steering Wheel
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

AUDIO CONTROL (IF EQUIPPED)
Select the required source on the audio unit.
The following functions can be operated with the control:
A. Volume up
B. Seek up or next
C. Volume down
D. Seek down or previous
Seek, Next or Previous
Press the seek button to:
•tune the radio to the next or previous stored preset
•play the next or previous track.
Press and hold the seek button to:
•tune the radio to the next station up or down the frequency band
•seek through a track.
B
A
C
D
Steering Wheel73
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

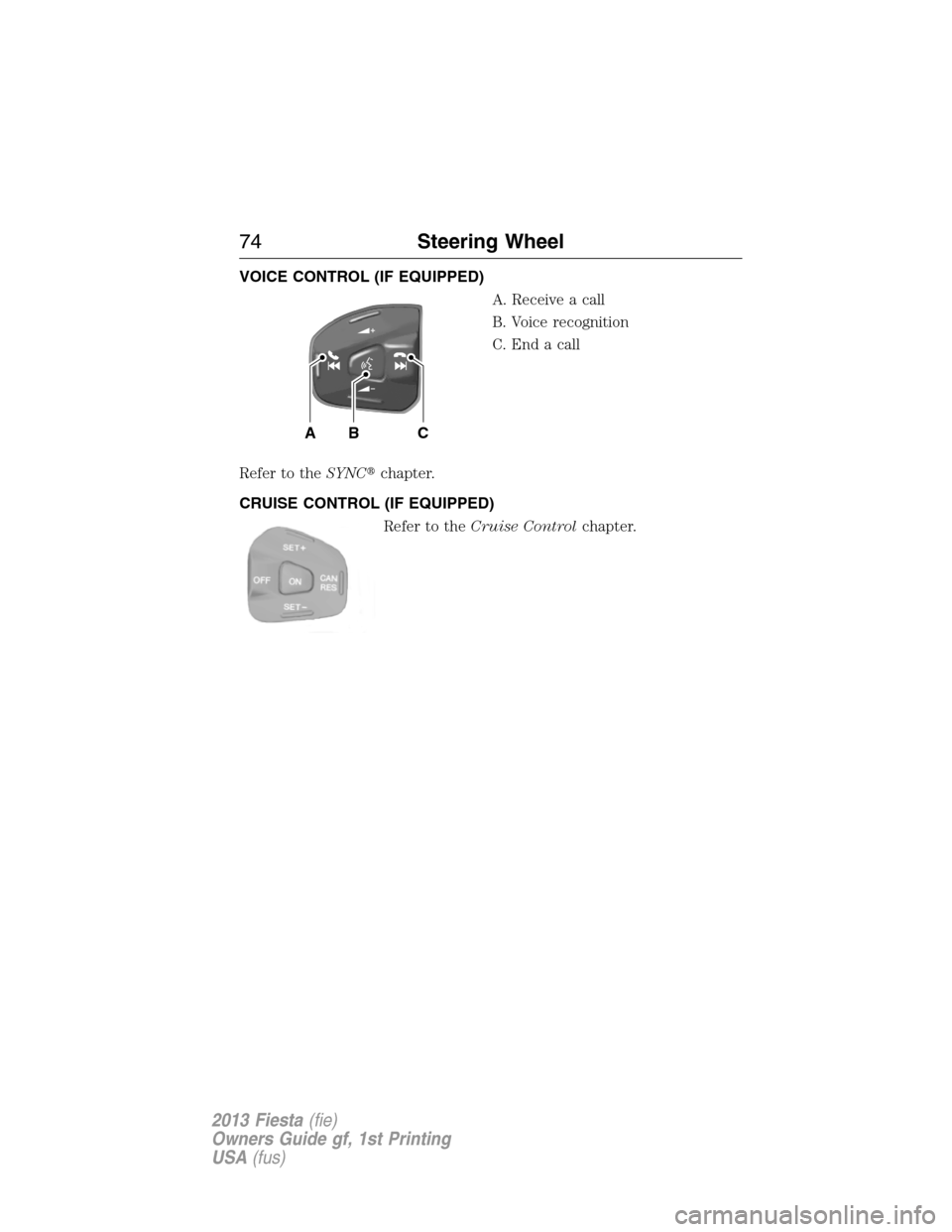

VOICE CONTROL (IF EQUIPPED)
A. Receive a call
B. Voice recognition
C. End a call
Refer to theSYNCchapter.
CRUISE CONTROL (IF EQUIPPED)
Refer to theCruise Controlchapter.
BAC
74Steering Wheel
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)
