2013 FORD EDGE key

Introduction 9
Child Safety 16
Child seats...........................................18
Child seat positioning...................................18
Booster seats.........................................20
Installing child seats with lap and shoulder belts................23
Installing child safety seats with lower anchors and tethers for
children.............................................26
Installing child safety seats with tether straps..................28
Child safety locks......................................30
Safety Belts 31
Fastening the safety belts................................33
Safety belt height adjustment.............................37
Safetybeltwarninglightandindicatorchime..................37
Safety belt-minder.....................................38
Child restraint and safety belt maintenance...................40
Personal Safety System 41
Supplementary Restraints System 42
Driver and passenger airbags..............................44
Front passenger sensing system............................46
Side airbags..........................................49
Safety canopy curtain airbags.............................51
Crash sensors and airbag indicator..........................53
Airbag disposal........................................54
Keys and Remote Control 55
General information on radio frequencies.....................55
Remote control........................................56
Keys...............................................56
Replacing a lost key or remote control.......................62
Table of Contents1
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

MyKey 63
Settings, MyKey.......................................63
Creating.............................................64
Clearing.............................................65
System status.........................................65
Remote start, MyKey...................................65
Troubleshooting, MyKey.................................67
Locks 69
Locking and unlocking..................................69
SecuriCode™ keyless entry keypad.........................77
Security 80
SecuriLockpassive anti-theft system.......................80
Anti-theft alarm.......................................83
Steering Wheel 84
Adjusting the steering wheel..............................84
Steering wheel controls..................................84
Wipers and Washers 87
Windshield wipers......................................87
Rain-sensing wipers....................................87
Windshield washers.....................................88
Rear-window wiper and washer............................88
Lighting 89
Lighting control.......................................89
Autolamps...........................................90
Instrument lighting dimmer...............................90
Headlamp exit delay....................................91
Daytime running lamps..................................91
Directionindicators ....................................92
Interior lamps.........................................92
2Table of Contents
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

4. Tighten the child safety seat tether strap according to the
manufacturer’s instructions.
If your child restraint system is equipped with a tether strap, and the
child restraint manufacturer recommends its use, Ford also recommends
its use.
CHILD SAFETY LOCKS
When these locks are set, the rear doors cannot be opened from the
inside.
The childproof locks are located on
the rear edge of each rear door and
must be set separately for each
door.
•Insert the key and turn to the
lock position (key horizontal) to
engage the childproof locks.
•Insert the key and turn to the
unlock position (key vertical) to
disengage the childproof locks.
30Child Safety
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

PRINCIPLE OF OPERATION
The remote control allows you to:
•remotely lock or unlock the vehicle doors
•unlock the doors without actively using a key or remote control
(intelligent access only)
•remotely open the power liftgate (if equipped)
•remotely start or stop the engine (if equipped)
•arm and disarm the anti-theft system
•activate the panic alarm.
Intelligent Access (If Equipped)
Your vehicle will allow you to unlock and enter your vehicle without
actively using a key or remote control. You can use this feature at the
front doors or at the liftgate/trunk. You can activate the intelligent access
feature as long as you have one of your intelligent access keys within
range of the front doors or the liftgate/trunk.
GENERAL INFORMATION ON RADIO FREQUENCIES
The remote control complies with part 15 of the FCC rules and with
RSS-210 of Industry Canada. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference
that may cause undesired operation.
Note:Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
The typical operating range for your transmitter is approximately 33 feet
(10 meters). Vehicles with the remote start feature will have a greater
range. A decrease in operating range could be caused by:
•weather conditions
•nearby radio towers
•structures around the vehicle
•other vehicles parked next to your vehicle.
Keys and Remote Control55
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

Intelligent Access (If Equipped)
The system uses a radio frequency signal to communicate with your
vehicle and authorize your vehicle to unlock when commanded (either by
touching the inside of the driver door or front passenger exterior door
handle, by activating the exterior power liftgate button, or a button on
the transmitter itself). If excessive radio frequency interface is present in
the area, or if the transmitter battery is low, it may be necessary to
mechanically unlock your door. The mechanical key blade in your
intelligent access key can be used to open the driver’s door in this
situation. Refer toRemote Controlin this chapter for more information
on the location and use of the mechanical key blade.
REMOTE CONTROL
Integrated Keyhead Transmitters (IKTs) (If Equipped)
Your vehicle may be equipped with
two integrated keyhead transmitters.
The key blade is used to start the
vehicle and unlock or lock the
driver’s door from outside the vehicle.
The transmitter portion functions as
the remote control.
Note:Your vehicle’s keys were
issued with a security label that
provides important vehicle key cut
information. Keep the label in a safe
place for future reference.
Intelligent Access Key (If Equipped)
Your vehicle may be equipped with
two intelligent access keys which
operate the power locks and the
remote start system. The key must
be in the vehicle to activate the push
button start system.
CAUTIONTO BE REMOVED
BY CUSTOMER ONLY
56Keys and Remote Control
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

The intelligent access key also
contains a removable mechanical key
blade that can be used to unlock the
driver door. Slide the release on the
back of the transmitter to release the
key blade, then pull the blade out.
Note:Your vehicle’s back-up keys
were issued with a security tag that
provides important vehicle key cut
information. Keep the tag in a safe
place for future reference.
Replacing the Battery
Note:Refer to local regulations when disposing of transmitter batteries.
Note:Do not wipe off any grease on the battery terminals or on the back
surface of the circuit board.
Note:Replacing the battery will not delete the transmitter from the
vehicle. The transmitter should operate normally.
The remote control uses one coin-type three-volt lithium battery CR2032
or equivalent.
Integrated Keyhead Transmitter
1. Twist a thin coin in the slot near the key
ring to remove the battery cover (1).
2. Carefully peel up the rubber gasket (2) from the transmitter if it does
not come off with battery cover.
3. Remove the old battery (3).
3
2
1
Keys and Remote Control57
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

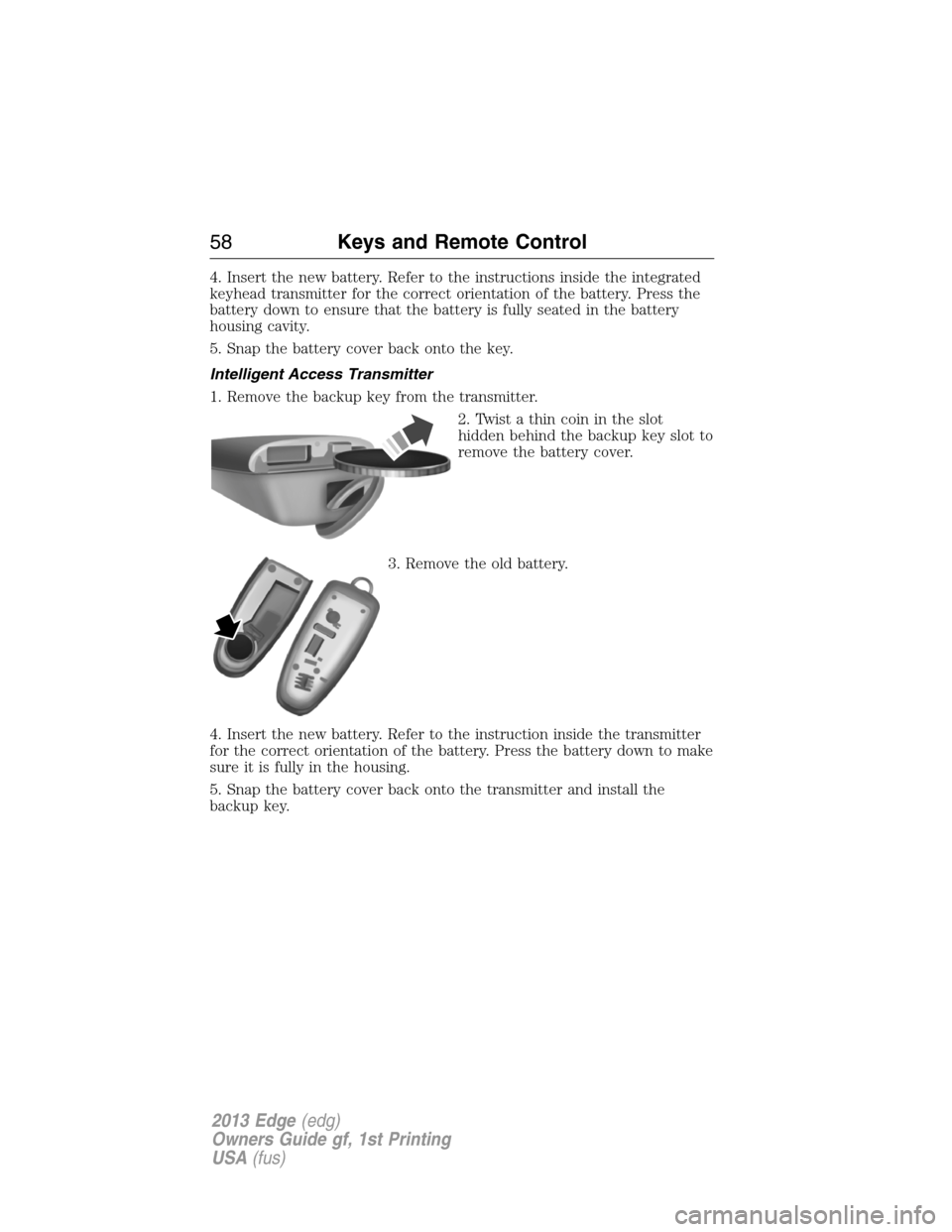

4. Insert the new battery. Refer to the instructions inside the integrated
keyhead transmitter for the correct orientation of the battery. Press the
battery down to ensure that the battery is fully seated in the battery
housing cavity.
5. Snap the battery cover back onto the key.
Intelligent Access Transmitter
1. Remove the backup key from the transmitter.
2. Twist a thin coin in the slot
hidden behind the backup key slot to
remove the battery cover.
3. Remove the old battery.
4. Insert the new battery. Refer to the instruction inside the transmitter
for the correct orientation of the battery. Press the battery down to make
sure it is fully in the housing.
5. Snap the battery cover back onto the transmitter and install the
backup key.
58Keys and Remote Control
2013 Edge(edg)
Owners Guide gf, 1st Printing
USA(fus)

Memory Feature (If Equipped)
This feature allows you to recall the driver seat and power mirrors
memory positions.
Press the unlock button on the remote control or activate intelligent
access (if equipped) to recall memory. The seat and power mirrors
automatically move to the memory position. The mirrors will move to the
programmed position and the seat will move to the easy entry position.
The seat will move to the final position when the ignition is switched out
of off (if easy entry feature is enabled).
Programming Memory To the Transmitter
To activate this feature:
1. Move the memory features to the desired positions using the
associated controls.
2. Press and hold button 1 for five
seconds. A tone will sound
confirming memory position has
been set. Continue to hold until a
second tone is heard after five
seconds.
3. Within three seconds press the lock button on the remote control.
4. Wait 10 seconds, then press the unlock button on the remote control.
5. Repeat this procedure for memory 2 and another transmitter if desired.
Deactivating Memory From the Transmitter
To deactivate this feature:
1. Press and hold either the 1 or 2 button for five seconds. A tone will
sound when the memory store is done. Continue to hold until a second
tone is heard.
2. Within three seconds press the unlock button on the remote control .
3. Repeat this procedure for each additional transmitter if desired.
Car Finder
Press the button twice within three seconds. The horn will chirp
and the turn signals will flash. It is recommended that this method
be used to locate your vehicle, rather than using the panic alarm.
21
Keys and Remote Control59
