2013 FORD E SERIES engine

Seats 103
Sitting in the correct position............................103
Head restraints.......................................104
Manual seats........................................104
Power seats.........................................106
Rear seats..........................................106
Auxiliary Power Points 111
Starting and Stopping the Engine 114
Ignition switch.......................................115
Engine block heater...................................117
Fuel and Refueling 119
Fuel quality.........................................121
Running out of fuel....................................122
Refueling...........................................123
Fuel consumption.....................................124
Transmission 129
Transmission operation.................................129
Automatic transmission.................................129
Brakes 137
Brakes.............................................137
Hints on driving with anti-lock brakes......................138
Parking brake........................................138
Traction Control 139
TractionControl™ ....................................139
Stability Control 140
AdvanceTrac.......................................141
Parking Aids 143
Sensing system.......................................143
Rear-view camera system...............................145
Table of Contents3
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

Maintenance 201
General information...................................201
Opening and closing the hood............................202
Under hood overview..................................203
Engine oil dipstick....................................204
Engine oil check......................................204
Engine coolant check..................................205
Automatic transmission fluid check........................210
Brake fluid check.....................................217
Power steering fluid check..............................217
Fuel filter...........................................217
Washer fluid check....................................218
Changing the vehicle battery.............................218
Checking the wiper blades..............................221
Changing the wiper blades..............................221
Air filter(s).........................................221
Adjusting the headlamps................................223
Changing a bulb......................................226
Removing a headlamp..................................226
Vehicle Care 233
Cleaning products.....................................233
Cleaning the exterior..................................233
Waxing.............................................235
Repairing minor paint damage............................235
Cleaning the engine...................................235
Cleaning the windows and wiper blades.....................236
Cleaning the interior...................................236
Cleaning the instrument panel and instrument cluster lens.......237
Cleaning leather seats..................................238
Cleaning the alloy wheels...............................238
Vehiclestorage.......................................239
Table of Contents5
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

Wheels and Tires 242
Tirecare ...........................................244
Using snow chains....................................261
Tire Pressure Monitoring System (TPMS)...................262
Changing a road wheel.................................269
Technical specifications.................................276
Wheel lug nut torque..................................276
Capacities and Specifications 278
Engine specifications..................................278
Engine drivebelt......................................279
Part numbers........................................285
Vehicle identification number............................286
Vehicle certification label...............................287
Transmission code designation............................288
Accessories 289
Accessories.........................................289
Ford Extended Service Plan 291
Scheduled Maintenance 294
Normal scheduled maintenance and log.....................299
SYNC310
Pairing your phone for the first time.......................315
911 Assist™.........................................329
Vehicle Health Report..................................332
6Table of Contents
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

SYMBOL GLOSSARY
WARNING:You risk death or serious injury to yourself and
others if you do not follow the instruction highlighted by the
warning symbol.
These are some of the symbols you may see on your vehicle.
Symbol Description Symbol Description Symbol Description
Safety alertSee Owner’s
ManualAnti-lock
braking
system
Avoid
smoking,
flames, or
sparksBatteryBattery acid
Brake fluid –
non
petroleum
baseBrake systemCabin air
filter
Check fuel
capChild Safety
Door Lock
and UnlockChild seat
lower anchor
C hild seat
tether anchorCruise
controlDo not open
when hot
Engine air
filterEngine
coolantEngine
coolant
temperature
Engine oilExplosive gasFan warning
Fasten safety
beltFront airbagFront fog
lamps
Fuel pump
resetFuse
compartmentHazard
warning
flasher
Introduction9
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

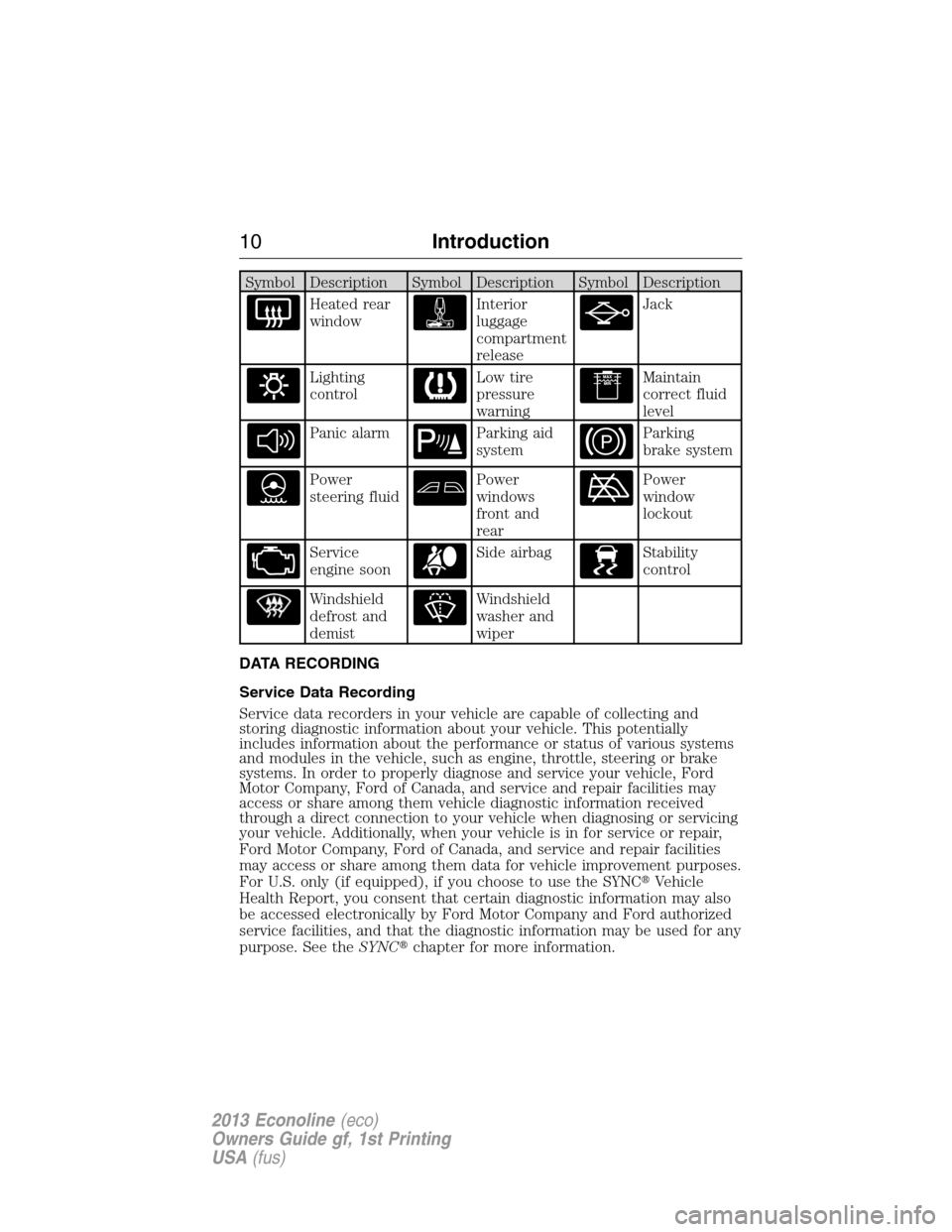

Symbol Description Symbol Description Symbol Description
Heated rear
windowInterior
luggage
compartment
releaseJack
Lighting
controlLow tire
pressure
warningMaintain
correct fluid
level
Panic alarmParking aid
systemParking
brake system
Power
steering fluidPower
windows
front and
rearPower
window
lockout
Service
engine soonSide airbagStability
control
Windshield
defrost and
demistWindshield
washer and
wiper
DATA RECORDING
Service Data Recording
Service data recorders in your vehicle are capable of collecting and
storing diagnostic information about your vehicle. This potentially
includes information about the performance or status of various systems
and modules in the vehicle, such as engine, throttle, steering or brake
systems. In order to properly diagnose and service your vehicle, Ford
Motor Company, Ford of Canada, and service and repair facilities may
access or share among them vehicle diagnostic information received
through a direct connection to your vehicle when diagnosing or servicing
your vehicle. Additionally, when your vehicle is in for service or repair,
Ford Motor Company, Ford of Canada, and service and repair facilities
may access or share among them data for vehicle improvement purposes.
For U.S. only (if equipped), if you choose to use the SYNCVehicle
Health Report, you consent that certain diagnostic information may also
be accessed electronically by Ford Motor Company and Ford authorized
service facilities, and that the diagnostic information may be used for any
purpose. See theSYNCchapter for more information.
10Introduction
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

Note: Including to the extent that any law pertaining to Event Data
Recorders applies to SYNCor its features, please note the
following: Once 911 Assist (if equipped) is enabled (set ON), 911
Assist may, through any paired and connected cell phone, disclose
to emergency services that the vehicle has been in a crash involving
the deployment of an airbag or, in certain vehicles, the activation of
the fuel pump shut-off. Certain versions or updates to 911 Assist
may also be capable of being used to electronically or verbally
provide to 911 operators the vehicle location (such as latitude and
longitude), and/or other details about the vehicle or crash or
personal information about the occupants to assist 911 operators
to provide the most appropriate emergency services. If you do not
want to disclose this information, do not activate the 911 Assist
feature. See your SYNCchapter for more information.
Additionally, when you connect to Traffic, Directions and
Information (if equipped, U.S. only), the service uses GPS
technology and advanced vehicle sensors to collect the vehicle’s
current location, travel direction, and speed (“vehicle travel
information”), only to help provide you with the directions,
traffic reports, or business searches that you request. If you do
not want Ford or its vendors to receive this information, do not
activate the service. Ford Motor Company and the vendors it uses
to provide you with this information do not store your vehicle
travel information. For more information, see Traffic, Directions
and Information, Terms and Conditions. See your SYNC
supplement for more information.
CALIFORNIA PROPOSITION 65
WARNING:Some constituents of engine exhaust, certain vehicle
components, certain fluids contained in vehicles and certain
products of component wear contain or emit chemicals known to the
State of California to cause cancer and birth defects or other
reproductive harm.
PERCHLORATE MATERIAL
Note:Certain components in your vehicle, such as airbag modules,
safety belt pretensioners, and remote control batteries, may contain
perchlorate material. Special handling may apply for service or vehicle
end of life disposal. See www.dtsc.ca.gov/hazardouswaste/perchlorate for
more information.
12Introduction
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

Deactivating and Activating the Belt-MinderFeature
WARNING:While the design allows you to deactivate your
Belt-Minder, this system is designed to improve your chances of
being safely belted and surviving an accident. We recommend you leave
the Belt-Mindersystem activated for yourself and others who may use
the vehicle. To reduce the risk of injury, do not deactivate/activate the
Belt-Minderfeature while driving the vehicle.
Read Steps1-5thoroughly before proceeding with the deactivation
or activation programming procedure.
Before following the procedure, make sure that:
•the parking brake is set
•the transmission selector lever is in positionP
•the ignition is off
•all vehicle doors and the hood are closed
•the driver’s safety belt is unbuckled
•the parking lamps and headlamps are off
1. Turn the ignition on. DO NOT START THE ENGINE.
2. Wait until the safety belt warning light turns off (Approximately one
minute).
•Step 3 must be completed within 30 seconds after the safety belt
warning light turns off.
3. Buckle then unbuckle the safety belt three times at a moderate speed,
ending with the safety belt in the unbuckled state.
•After Step 3 is complete, the safety belt warning light will be turned
on for three seconds.
•Belt-Minderwill automatically exit programming mode without
changing its enable status if Step 4 does not occur within 10 seconds
of the end of Step 3.
4. Within approximately seven seconds of the light turning off, buckle
then unbuckle the safety belt.
•This will disable the feature for that seating position if it is currently
enabled.
•This will enable the feature for that seating position if it is currently
disabled.
42Safety Belts
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)

SECURILOCKPASSIVE ANTI-THEFT SYSTEM (IF EQUIPPED)
Note:The system is not compatible with non-Ford aftermarket remote
start systems. Use of these systems may result in vehicle starting
problems and a loss of security protection.
Note:Metallic objects, electronic devices or a second coded key on the
same key chain may cause vehicle starting issues if they are too close to
the key when starting the engine. Prevent these objects from touching
the coded key while starting the engine. Switch the ignition off, move all
objects on the key chain away from the coded key and restart the engine
if a problem occurs.
Note:Do not leave a duplicate coded key in the vehicle. Always take
your keys and lock all doors when leaving the vehicle.
The system is an engine immobilization system. It is designed to help
prevent the engine from being started unless a coded key programmed
to your vehicle is used. Using the wrong key may prevent the engine
from starting. A message may appear in the information display.
If you are unable to start the engine with a correctly coded key, a
malfunction has happened and a message may appear in the information
display.
Anti-Theft Indicator
The anti-theft indicator is located in the instrument cluster.
•When the ignition is off, the indicator will flash once every
two seconds to indicate the SecuriLock system is functioning
as a theft deterrent.
•When the ignition is on, the indicator will glow for three seconds, then
turn off to indicate normal system functionality.
Vehicles without the SecuriLock Passive Anti-theft system behave as
follows:
•When the ignition is off, the indicator will not flash.
•When the ignition is on, the indicator will glow for three seconds to
indicate the engine is enabled.
Automatic Arming
The vehicle is armed immediately after switching the ignition off.
Automatic Disarming
Switching the ignition on with a coded key disarms the vehicle.
Security63
2013 Econoline(eco)
Owners Guide gf, 1st Printing
USA(fus)
