Windows and Mirrors 98
Power windows.......................................98
Exteriormirrors......................................101
Interior mirrors......................................103
Sun visors..........................................103
Sunshade...........................................104
Instrument Cluster 106
Gauges.............................................106
Warning lamps and indicators............................109
Audible warnings and indicators..........................113
Information Displays 114
Message center.......................................114
Information messages..................................127
Audio System 136
AM/FM/CD with SYNC.................................138
Auxiliary input jack...................................145
USBport...........................................146
Satellite radio information...............................147
Climate Control 151
Dual automatic temperature control........................151
Rear window defroster.................................155
Seats 157
Sitting in the correct position............................157
Head restraints.......................................158
Manual seats........................................161
Power seats.........................................163
Rear seats..........................................164
Heated seats........................................165
Table of Contents3
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

PRINCIPLES OF OPERATION
MyKey allows you to program keys with restricted driving modes to
promote good driving habits. You can use all but one of the keys
programmed to your vehicle with these restricted modes.
Any keys that have not been programmed are referred to as
administrator keys or admin keys. These can be used to:
•create a restricted key
•program optional MyKey settings
•clear all MyKey features.
When you have programmed a MyKey, you can access the following
information using the information display:
•How many admin keys and MyKeys are programmed to your vehicle.
•The total distance your vehicle has traveled using a MyKey.
Note:Switch the ignition on to use the system.
Note:All MyKeys are programmed to the same settings. You cannot
program them individually.
Note:For vehicles equipped with intelligent access keys (push-button
start): When both a MyKey and an admin intelligent access key (fob) are
present, your vehicle will recognize the admin fob to start the engine.
Note:If you start your vehicle while using a MyKey, your key’s
programmed restrictions will remain active until you turn the engine off.
This remains true, even if a passenger with an admin key enters your
vehicle after you started the engine with a MyKey.
Standard Settings
These settings activate automatically with a programmed MyKey:
•Belt-Minder. You cannot disable this feature. The audio system will
mute when this feature is activated.
•Early low fuel. The low-fuel warning activates earlier, giving MyKey
drivers more time to refuel.
•Driver assist features remain on and active: the collision warning
system, navigation, parking aids and BLIS (Blind Spot Information
System) with cross traffic alert.
•Satellite radio adult content restrictions.
66MyKey
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Optional Settings
You can configure MyKey settings when you first create a MyKey.
You can also change the settings afterward with an admin key.
The following settings can be configured using an admin key:
•Set various vehicle speed limits. Warnings will be shown in the display
followed by an audible tone when your vehicle reaches the set speed.
You cannot override the set speed by fully depressing the accelerator
pedal.
•Set various vehicle speed reminders. Warnings will be shown in the
display followed by an audible tone when the set vehicle speed is
exceeded.
•Audio system maximum volume of 45%. A message will be shown
in the display when you attempt to exceed the limited volume.
Automatic volume control will be disabled.
•Always on setting. When this is selected, you will not be able to
disable Advance Trac, 911 Assist or the do not disturb feature
(if your vehicle is equipped).
CREATING A MYKEY
Use the information display to create a MyKey:
1. Insert the key you want to program into the ignition. If your vehicle
is equipped with a push-button start and you have a backup slot, put
the intelligent access key in the backup slot. If your vehicle does not
have a backup slot, hold your intelligent access key fob next to the
steering column. See theStarting and Stopping the Enginechapter
for the proper key fob placement.
2. Turn the ignition on.
3. From the main menu within the information display, pressOKor the
>button to navigate through the various screens. SelectSettings
and thenMyKey.
4. PressOKor the>button to selectCreate.
5. When prompted, hold theOKbutton until you see a message
informing you to label this key as a MyKey. The key will be restricted
at your vehicle’s next start.
After the key is successfully programmed, make sure you label it so you
can distinguish it from the admin keys.
You can also program optional settings for the key(s). Refer to
Programming/Changing Optional Settings.
MyKey67
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

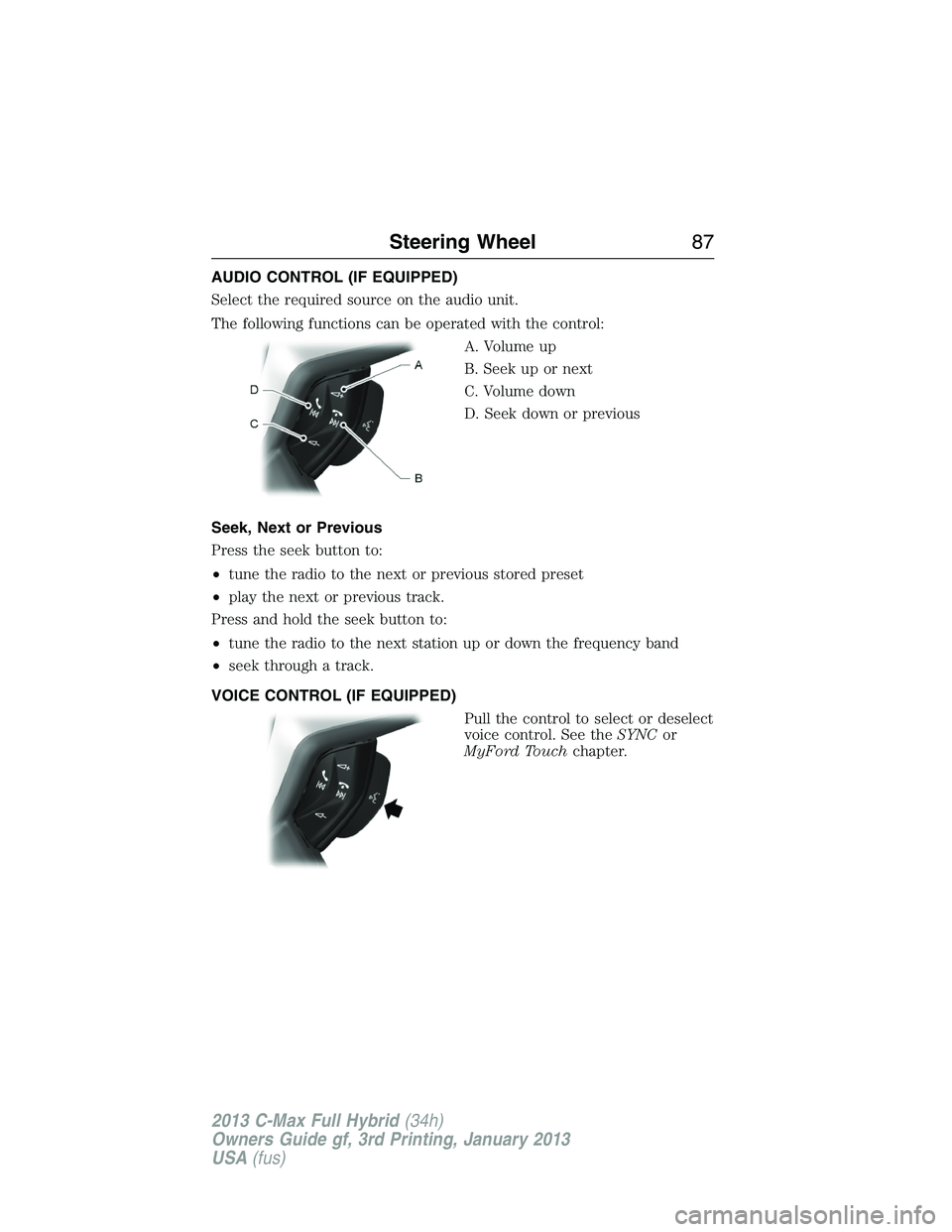

AUDIO CONTROL (IF EQUIPPED)
Select the required source on the audio unit.
The following functions can be operated with the control:
A. Volume up
B. Seek up or next
C. Volume down
D. Seek down or previous
Seek, Next or Previous
Press the seek button to:
•tune the radio to the next or previous stored preset
•play the next or previous track.
Press and hold the seek button to:
•tune the radio to the next station up or down the frequency band
•seek through a track.
VOICE CONTROL (IF EQUIPPED)
Pull the control to select or deselect
voice control. See theSYNCor
MyFord Touchchapter.
Steering Wheel87
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

MyKey® Message Action / Description
Buckle Up to Unmute Audio Displays when a MyKey® is in use
and Belt-Minder® is activated.
MyKey Park Aid Cannot be
DeactivatedDisplays when a MyKey® is in use
and park aid is activated.
Traction Control On - MyKey
SettingDisplays when a MyKey® is in use
and the traction control is always
set to on.
Park Aid Message Action / Description
Check Park Aid Displayed when the transmission is
in R (Reverse) and the park aid is
disabled.
Rear Park Aid On Off Displays the park aid status.
Check Rear Park Aid Displayed when the transmission is
in R (Reverse) and the park aid is
disabled.
Check Front Park Aid Displayed when the transmission is
in R (Reverse) and the park aid is
disabled.
Park Aid Malfunction Displays when there is a
malfunction with the park aid
system.
Power Steering Message Action / Description
Service Power Steering The power steering system has
detected a condition that requires
service. See your authorized
dealer.
Service Power Steering Now The power steering system has
detected a condition within the
power steering system that
requires service immediately.
See your authorized dealer.
134Information Displays
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

GENERAL INFORMATION
Radio Frequencies and Reception Factors
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz
FM: 87.9–107.7, 107.9 MHz
Radio reception factors
Distance and
strengthThe further you travel from an FM station,
the weaker the signal and the weaker the
reception.
TerrainHills, mountains, tall buildings, bridges,
tunnels, freeway overpasses, parking garages,
dense tree foliage and thunderstorms can
interfere with the reception.
Station overloadWhen you pass a ground-based broadcast
repeating tower, a stronger signal may
overtake a weaker one and result in the audio
system muting.
CD and CD Player Information
Note:CD units play commercially pressed 4.75-inch (12 centimeter)
audio compact discs only. Due to technical incompatibility, certain
recordable and re-recordable compact discs may not function correctly
when used in Ford CD players.
Note:Do not insert CDs with homemade paper (adhesive) labels into
the CD player as the label may peel and cause the CD to become
jammed. You should use a permanent felt tip marker rather than
adhesive labels on your homemade CDs. Ballpoint pens may damage
CDs. Please contact your authorized dealer for further information.
Note:Do not use any irregularly shaped discs or discs with a scratch
protection film attached.
Always handle discs by their edges only. Clean the disc with an approved
CD cleaner only. Wipe it from the center of the disc toward the edge.
Do not clean in a circular motion.
Do not expose discs to direct sunlight or heat sources for extended periods.
136Audio System
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

MP3 Track and Folder Structure
Audio systems capable of recognizing and playing MP3 individual tracks
and folder structures work as follows:
•There are two different modes for MP3 disc playback: MP3 track
mode (system default) and MP3 folder mode.
•MP3 track mode ignores any folder structure on the MP3 disc. The
player numbers each MP3 track on the disc (noted by the .mp3 file
extension) from T001 to a maximum of T255.Note:The maximum
number of playable MP3 files may be less depending on the structure
of the CD and exact model of radio present.
•MP3 folder mode represents a folder structure consisting of one level
of folders. The CD player numbers all MP3 tracks on the disc (noted
by the .mp3 file extension) and all folders containing MP3 files, from
F001 (folder) T001 (track) to F253 T255.
•Creating discs with only one level of folders helps with navigation
through the disc files.
If you are burning your own MP3 discs, it is important to understand
how the system reads the structures you create. While various files
may be present, (files with extensions other than mp3), only files with
the .mp3 extension are played; other files are ignored by the system.
This enables you to use the same MP3 disc for a variety of tasks on your
work computer, home computer and your in-vehicle system.
In track mode, the system displays and plays the structure as if it were
only one level deep (all .mp3 files play, regardless of being in a specific
folder). In folder mode, the system only plays the .mp3 files in the
current folder.
Audio System137
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

AM/FM/CD WITH SYNC®
WARNING:Driving while distracted can result in loss of vehicle
control, crash and injury. We strongly recommend that you use
extreme caution when using any device that may take your focus off
the road. Your primary responsibility is the safe operation of your
vehicle. We recommend against the use of any hand-held device while
driving and encourage the use of voice-operated systems when possible.
Make sure you are aware of all applicable local laws that may affect the
use of electronic devices while driving.
Note:
You can operate your audio system for up to one hour after you
switch off the ignition. Press the ON/OFF control to operate the system with
the ignition turned off. The system automatically turns off after one hour.
A.Eject:Press this button to eject a CD.
B.Cursor arrows:Press these buttons to scroll through on-screen
audio system choices.
138Audio System
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
