Cruise Control (if equipped)
It will illuminate when you switch this feature on.
Direction Indicator
Illuminates when the left or right turn signal or the hazard
warning flasher is turned on. If the indicators stay on or flash
faster, check for a burned out bulb.
Door Ajar
Displays when the ignition is on and any door is not completely
closed.
Engine/Motor Coolant Overheat Warning
It will illuminate when the engine or motor cooling system is
overheating. Stop the vehicle in a safe place and contact your
authorized dealer.
Engine Oil
If it illuminates with the engine running or when you are
driving, this indicates a malfunction. Stop your vehicle as soon
as it is safe to do so and switch the engine off. Check the
engine oil level.
Note:Do not resume your journey if it illuminates despite the level
being correct. Have the system checked by your authorized dealer.
EV Now
It will illuminate when you select this feature on
EV Later
It will illuminate when you select this feature on
Fasten Safety belt
It will illuminate and a chime will sound to remind you to fasten
your safety belt.
EV
11 0Instrument Cluster
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

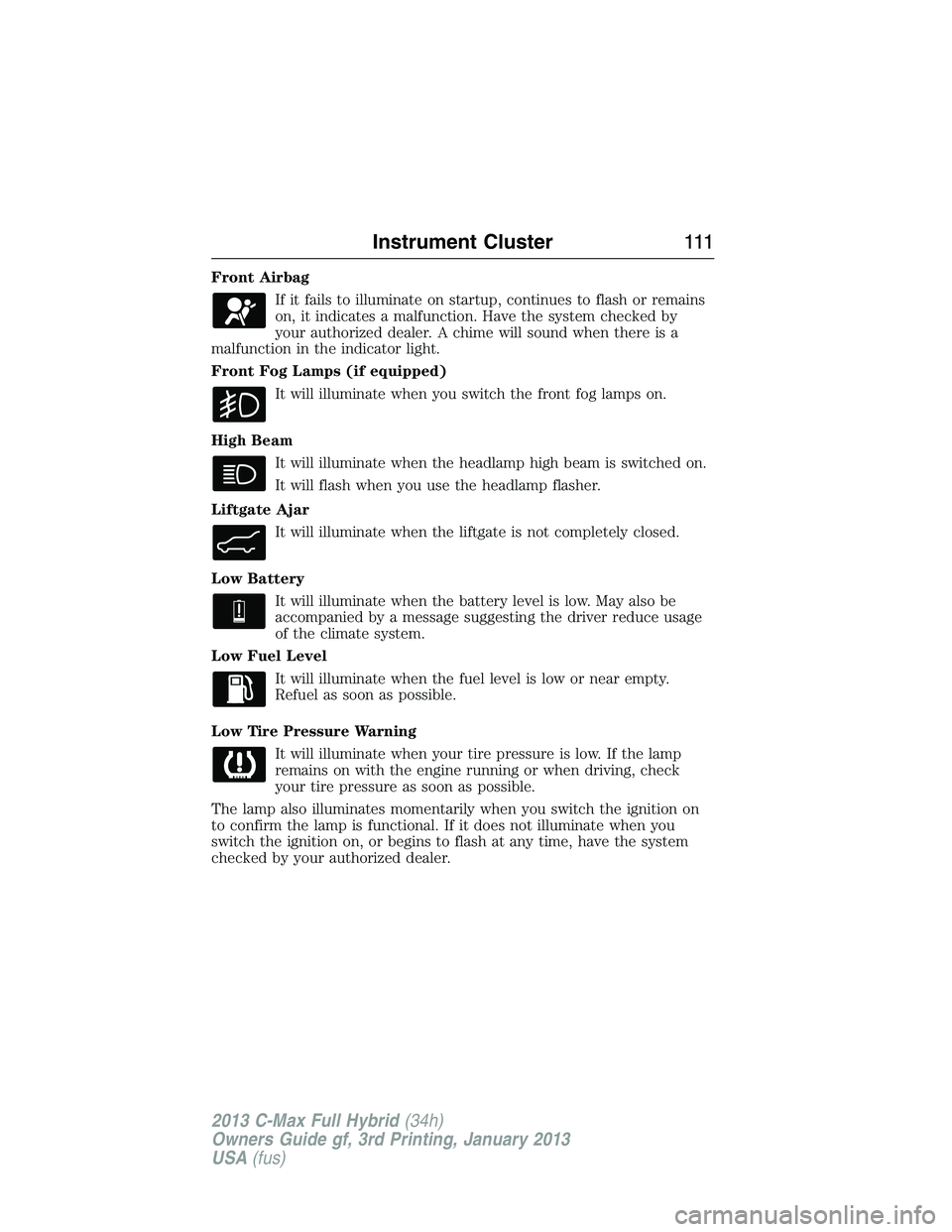

Front Airbag
If it fails to illuminate on startup, continues to flash or remains
on, it indicates a malfunction. Have the system checked by
your authorized dealer. A chime will sound when there is a
malfunction in the indicator light.
Front Fog Lamps (if equipped)
It will illuminate when you switch the front fog lamps on.
High Beam
It will illuminate when the headlamp high beam is switched on.
It will flash when you use the headlamp flasher.
Liftgate Ajar
It will illuminate when the liftgate is not completely closed.
Low Battery
It will illuminate when the battery level is low. May also be
accompanied by a message suggesting the driver reduce usage
of the climate system.
Low Fuel Level
It will illuminate when the fuel level is low or near empty.
Refuel as soon as possible.
Low Tire Pressure Warning
It will illuminate when your tire pressure is low. If the lamp
remains on with the engine running or when driving, check
your tire pressure as soon as possible.
The lamp also illuminates momentarily when you switch the ignition on
to confirm the lamp is functional. If it does not illuminate when you
switch the ignition on, or begins to flash at any time, have the system
checked by your authorized dealer.
Instrument Cluster111
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Overdrive Cancel and Grade Assist (if equipped)
It will illuminate when the overdrive function of the
transmission has been turned off and the grade assist function
has been turned on.
Parking Lamps
It will illuminate when you switch the parking lamps or headlam
ps on.
Powertrain Malfunction/Reduced Power
It will illuminate when a powertrain or high-voltage charge system
fault has been detected. If the indicator stays on or continues to
come on, contact your authorized dealer as soon as possible.
Ready to Drive
It will illuminate once the vehicle has been switched on and is
ready to drive. A corresponding message may display stating
ready to drive or a message regarding budget if a charge point
has not been entered.
Service Engine Soon
Theservice engine soonindicator light illuminates when the
ignition is first turned to the on position to check the bulb and to
indicate whether the vehicle is ready for Inspection/Maintenance
(I/M) testing. Normally, the “service engine soon” light will stay on until the
engine is cranked, then turn itself off if no malfunctions are present.
However, if after 15 seconds the “service engine soon” light blinks eight
times, it means that the vehicle is not ready for I/M testing. See the
Readiness for inspection/maintenance (I/M) testingin theFuel and
Refuelingchapter.
Solid illumination after the engine is started indicates the on-board
diagnostics system (OBD-II) has detected a malfunction. Refer to
On-board diagnostics (OBD-II)in theFuel and Refuelingchapter.
If the light is blinking, engine misfire is occurring which could damage
your catalytic converter. Drive in a moderate fashion (avoid heavy
acceleration and deceleration) and have your vehicle serviced
immediately by your authorized dealer.
WARNING:Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel
system, interior floor coverings or other vehicle components, possibly
causing a fire.
11 2Instrument Cluster
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

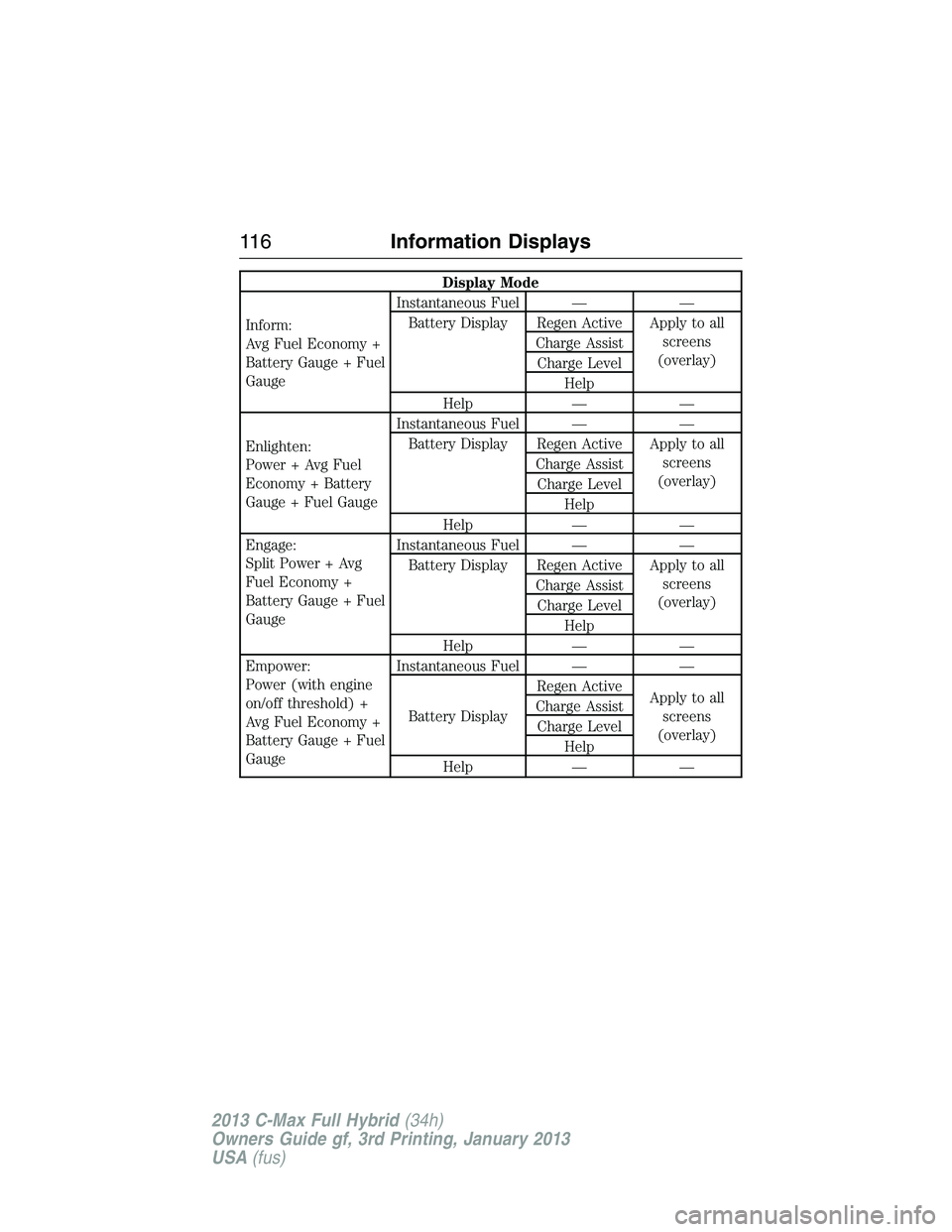

Display Mode
Inform:
Avg Fuel Economy +
Battery Gauge + Fuel
GaugeInstantaneous Fuel — —
Battery Display Regen Active Apply to all
screens
(overlay) Charge Assist
Charge Level
Help
Help — —
Enlighten:
Power + Avg Fuel
Economy + Battery
Gauge + Fuel GaugeInstantaneous Fuel — —
Battery Display Regen Active Apply to all
screens
(overlay) Charge Assist
Charge Level
Help
Help — —
Engage:
Split Power + Avg
Fuel Economy +
Battery Gauge + Fuel
GaugeInstantaneous Fuel — —
Battery Display Regen Active Apply to all
screens
(overlay) Charge Assist
Charge Level
Help
Help — —
Empower:
Power (with engine
on/off threshold) +
Avg Fuel Economy +
Battery Gauge + Fuel
GaugeInstantaneous Fuel — —
Battery DisplayRegen Active
Apply to all
screens
(overlay) Charge Assist
Charge Level
Help
Help — —
11 6Information Displays
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

•Inform— Inform shows the fuel level, battery display and average
fuel economy, with options available for the Battery Display and an
Instantaneous Fuel Economy gauge. When the vehicle is operating on
battery power only, EV is displayed. Hold OK to reset average fuel
economy.
•
Enlighten— Enlighten displays power demand in addition to the typical
information and options from Inform. The Instantaneous Fuel Economy
gauge will be displayed by default. When the vehicle is operating on
battery power only, EV is displayed and the gauge fill is shown in blue.
When both the engine and the electric motor are providing power the
gauge fill is white. Hold OK to reset average fuel economy.
•Engage— Engage replaces the power demand gauge from Enlighten
with separate gauges for engine power and electric motor power. The
engine power gauge fill is white and the high voltage battery power
gauge fill is blue. When the vehicle is operating on battery power only,
EV is displayed. Hold OK to reset average fuel economy.
•Empower— Empower adds an engine on/off threshold to the power
demand gauge from Enlighten. The threshold is shown as a blue
double outline. The gauge is designed to show you how close you are
to the gasoline engine on/off threshold and how much power you are
requesting by how much you press on the accelerator pedal.
When power demand is below the threshold the vehicle is operating on
battery power only, EV is displayed and the gauge fill is shown in blue.
When power demand exceeds the threshold both the engine and the
high voltage battery provide power and the gauge fill is white.
When power demand surpasses the amber indicator, this level of
demand and associated fuel economy are shown in amber.
Hold OK to reset average fuel economy.
MyView— You can choose what to display in this view. Selecting
Change MyView in the Options menu allows you to scroll through two
columns of content choices. The content you select is saved to the
current driver’s key as MyView.
•Avg Fuel — Indicates the average fuel consumption since the function
was last reset.
•Power — When the transmission is in a drive gear only, this gauge
shows you vehicle power.
Information Displays11 9
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

•Split Power— This gauge indicates the power being supplied by the
vehicle’s two power sources: the high voltage battery and the gasoline
engine. When the hybrid system is operating in electric vehicle mode
(without the gasoline engine), EV is displayed.
•Power + Threshold — When the transmission is in a drive gear only,
this gauge shows you vehicle power demand and gasoline engine
on/off threshold. It is designed to show you how close you are to
the gasoline engine on/off threshold and how much power you are
requesting by how much you press on the accelerator pedal.
•Tach rpm x 1000— When the gasoline engine is running, the
tachometer gauge displays the engine speed in revolutions per minute
(RPM). When the vehicle is operating on battery power only, EV is
displayed and the tachometer is greyed out.
•Accessory Power— Indicates electrical power demands from your
vehicle’s accessory systems. Accessories use power but do not
contribute to propelling the vehicle. The gauge separately displays
power demand in kilowatts (kW) for climate and other accessories.
Climate includes the power being used by high voltage climate control
components such as the electric A/C compressor and the electric
heater (Energi vehicles only). Other includes all power being used by
the low voltage accessories (cabin fans, headlights, heated seats, etc.)
•Battery Display — The high voltage battery display options include
Regen Active, Charge Assist and Charge Level.
•Regen Active — A circular arrow symbol appears over the center of
the battery when energy is being recaptured through the regenerative
braking system.
•Charge Assist — An arrow above the battery indicates the battery is
being charged; an arrow below the battery indicates that battery
power is being used for propulsion or to power the vehicle
accessories.
120Information Displays
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

•Charge Level — This indicates the State of Charge of the battery.
Additionally, for Energi vehicles the option only applies for the Hybrid
Mode battery display (simple battery graphic). The Plug-in Power
Mode battery will always show the charge level with associated
remaining EV range.
•Inst. Fuel — Shows instantaneous fuel usage.
•Coolant Temp – Indicates engine coolant temperature. At normal
operating temperature, the level indicator will be white and will
be in the normal range (between H and C). If the engine coolant
temperature exceeds the normal range, the level indicator will change
to red to indicate that the engine is overheating. Stop the vehicle as
soon as safely possible, turn off the vehicle and let the engine cool.
The thermometer indicator next to the gauge will illuminate in blue or
white to indicate the following:
•
Blue thermometer : This indicates that the hybrid system is not
warm enough to allow EV operation. The gasoline engine will run
continuously when the indicator is blue. During silent key start mode,
the thermometer indicator will be blue, but the gasoline engine will not
run. This is the result of the vehicle computer allowing the engine to be
cooler during the silent key start period. This is normal operation and
does not indicate a problem with your vehicle. After the first engine
start the indicator will turn white when the gasoline engine is warm
enough to turn off.
•White thermometer : This indicates that the hybrid system is warm
enough to allow EV operation. If the vehicle operates on battery
power long enough, it is possible that the gasoline engine may need to
run to keep the system warm. In this case, the thermometer indicator
will revert back to blue.
Note:Trip data, average fuel economy and average speed cannot be
reset in MyView. You can reset this data from other screens where it is
shown.
Information Displays121
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)

Charging and Electrical System
MessageAction / Description
Ready to Drive Displays when the vehicle is ready
to drive.
Engine On Displays when the engine is on.
Unplug Prior to Starting Vehicle Displays when the vehicle detects
it is still plugged and the power is
activated. (Energi only)
Doors Message Action / Description
X Door Ajar Displays when not completely
closed.
Liftgate Ajar Displays when not completely
closed.
Fuel Message Action / Description
Check Fuel Fill Inlet Displayed when the fuel fill inlet
may not be properly closed.
Fuel Level LOW Displays when the fuel level is low.
Please Wait to Refuel Displays when you need to wait
before refueling your vehicle.
Ready to Refuel Displays when the vehicle is ready
to be refueled.
Close Fuel Door Displays when the fuel door listed
is not closed.
Refuel Error See Manual Displays when there is a vehicle
error and it cannot be refueled.
Refer toRefuelingin theFuel
and Refuelingchapter for more
information.
Fuel Freshness Displays when EV functionality is
disabled and the engine is running
to maintain fuel freshness. Refer to
theFuel and Refuelingchapter
for more information.
Information Displays129
2013 C-Max Full Hybrid(34h)
Owners Guide gf, 3rd Printing, January 2013
USA(fus)
