2013 FORD B MAX technical specifications

Downloaded from www.Manualslib.com manuals search engine Interior Lamps..................................................51
Windows and Mirrors
Power Windows..............................................53
Exterior Mirrors................................................54
Interior Mirror...................................................55
Childminder Mirror.........................................56
Global Opening and Closing......................56
Instrument Cluster
Gauges...............................................................58
Warning Lamps and Indicators................58
Audible Warnings and Indicators..............61
Information Displays
General Information......................................63
Clock...................................................................66
Trip Computer.................................................66
Personalized Settings...................................67
Information Messages..................................67
Climate Control
Principle of Operation...................................75
Air Vents.............................................................75
Manual Climate Control..............................76
Automatic Climate Control.........................77
Hints on Controlling the InteriorClimate...........................................................79
Heated Windows and Mirrors....................82
Seats
Sitting in the Correct Position...................83
Head Restraints..............................................83
Manual Seats..................................................85
Rear Seats........................................................86
Heated Seats...................................................87
Front Seat Armrest........................................87
Auxiliary Power Points
Auxiliary Power Points.................................88
Cigar Lighter.....................................................88
Storage Compartments
Cup Holders.....................................................89
Glasses Holder................................................89
Starting and Stopping theEngine
General Information.....................................90
Ignition Switch................................................90
Keyless Starting.............................................90
Steering Wheel Lock - Vehicles Without:Keyless Entry and Push ButtonStart/Push Button Start..........................92
Steering Wheel Lock - Vehicles With:Keyless Entry and Push ButtonStart/Push Button Start..........................92
Starting a Gasoline Engine.........................93
Starting a Diesel Engine..............................94
Diesel Particulate Filter...............................94
Switching Off the Engine............................95
Unique Driving Character-istics
Auto-Start-Stop.............................................96
Fuel and Refueling
Safety Precautions........................................98
Fuel Quality - Gasoline................................99
Fuel Quality - Diesel.....................................99
Running Out of Fuel......................................99
Catalytic Converter.....................................100
Refueling...........................................................101
Fuel Consumption.......................................102
Technical Specifications............................103
Transmission
Manual Transmission.................................104
2B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Table of Contents

Downloaded from www.Manualslib.com manuals search engine Engine Oil Check...........................................157
Engine Coolant Check................................158
Brake and Clutch Fluid Check..................159
Washer Fluid Check.....................................159
Changing the 12V Battery..........................159
Checking the Wiper Blades......................160
Changing the Wiper Blades.....................160
Adjusting the Headlamps..........................161
Removing a Headlamp................................161
Changing a Bulb............................................162
Bulb Specification Chart...........................168
Technical Specifications...........................169
Vehicle Care
Cleaning the Exterior....................................172
Cleaning the Interior.....................................172
Repairing Minor Paint Damage................173
Cleaning the Alloy Wheels.........................173
Wheels and Tires
General Information....................................174
Temporary Mobility Kit................................174
Tire Care............................................................177
Using Winter Tires.........................................177
Using Snow Chains......................................178
Tire Pressure Monitoring System............178
Changing a Road Wheel............................179
Technical Specifications............................183
Capacities and Specific-ations
Vehicle Identification Plate......................186
Vehicle Identification Number.................187
Technical Specifications............................187
Audio System
General Information....................................190
Audio unit - Vehicles With:AM/FM/CD..................................................191
Audio unit - Vehicles With:AM/FM/CD/Bluetooth...........................196
Audio unit - Vehicles With:AM/FM/CD/Navigation System........202
Audio unit - Vehicles With: SonyAM/FM/CD................................................208
Audio unit - Vehicles With: NavigationSystem/Sony AM/FM/CD.....................214
Audio System Security...............................219
Digital Audio...................................................219
Compact Disc Player - Vehicles With:AM/FM/CD..................................................221
Compact Disc Player - Vehicles With:AM/FM/CD/Bluetooth/SonyAM/FM/CD.................................................224
Auxiliary Input Jack.....................................228
Audio Troubleshooting..............................229
Navigation
Navigation......................................................230
SYNC™
General Information...................................239
Using Voice Recognition...........................240
Using SYNC™ With Your Phone............243
SYNC™ Applications and Services......253
Using SYNC™ With Your MediaPlayer...........................................................256
SYNC™ Troubleshooting.........................260
Appendices
Electromagnetic compatibility..............268
End User License Agreement.................269
4B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Table of Contents

Downloaded from www.Manualslib.com manuals search engine Front Exterior Overview
See Locking and Unlocking (page 34). See Keyless Entry (page 36).A
See Active City Stop (page 119).B
See Changing the Wiper Blades (page 160).C
See Maintenance (page 152).D
See Towing Points (page 127).E
See Changing a Bulb (page 162).F
Tire pressures. See Technical Specifications (page 183).G
See Changing a Road Wheel (page 179).H
9B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013At a Glance

Downloaded from www.Manualslib.com manuals search engine Rear Exterior Overview
See Changing a Bulb (page 162).A
See Changing the Wiper Blades (page 160).B
See Changing a Bulb (page 162).C
See First Aid Kit (page 132). See Warning Triangle (page 132). See TemporaryMobility Kit (page 174). Spare wheel, jack, and wheel brace. See Changing aRoad Wheel (page 179). Towing eye. See Towing Points (page 127).
D
See Towing Points (page 127).E
Tire pressures. See Technical Specifications (page 183).F
See Changing a Road Wheel (page 179).G
See Refueling (page 101).H
14B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013At a Glance

Downloaded from www.Manualslib.com manuals search engine Calculating Fuel Economy
Do not measure fuel economy during thefirst 1000 miles (1600 km) of driving (thisis your engine’s break-in period). A moreaccurate measurement is obtained after2000 - 3000 miles (3200 - 4800 km).Also, fuel expense, frequency of fill ups orfuel gauge readings are not accurate waysto measure fuel economy.
1.Fill the fuel tank completely and recordthe initial odometer reading.
2.Each time you fill the tank, record theamount of fuel added.
3.After at least three to five tank fill ups,fill the fuel tank and record the currentodometer reading.
4.Subtract your initial odometer readingfrom the current odometer reading.
5.Calculate fuel economy by dividingmiles traveled by gallons used (ForMetric: Multiply liters used by 100, thendivide by kilometers traveled).
Keep a record for at least one month andrecord the type of driving (city or freeway).This provides an accurate estimate of yourvehicle’s fuel economy under currentdriving conditions. Additionally, keepingrecords during summer and winter showhow temperature impacts fuel economy.In general, lower temperatures mean lowerfuel economy.
TECHNICAL SPECIFICATIONS
Fuel Consumption Figures
CO2 Emis-sionsCombinedExtra-UrbanUrban
Variant
g/kml/100 km(mpg)l/100 km(mpg)l/100 km(mpg)
1195.1 (55.4)4.3 (65.7)6.6 (42.8)1.0L EcoBoost(74kW/100PS) withoutstart-stop
1144.9 (57.6)4.2 (67.3)6 (47.1)1.0L EcoBoost(74kW/100PS) with start-stop
1144.9 (57.6)4.2 (67.3)6 (47.1)1.0L EcoBoost(90kW/120PS)
1396 (47.1)4.9 (57.6)7.9 (35.8)1.4L Duratec-16V
1496.4 (44.1)5.1 (55.4)8.6 (32.8)1.6L Duratec-16V Ti-VCT
1044 (70.6)3.6 (78.4)4.7 (60.1)1.5L Duratorq-TDCi
1094.1 (68.9)3.8 (74.3)4.8 (58.9)1.6L Duratorq-TDCi
103B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Fuel and Refueling

Downloaded from www.Manualslib.com manuals search engine GENERAL INFORMATION
Have your vehicle serviced regularly to helpmaintain its roadworthiness and resalevalue. There is a large network of Fordauthorized repairers that are there to helpyou with their professional servicingexpertise. Authorized repairers are bestqualified to service your vehicle properlyand expertly, with a wide range of highlyspecialized tools.
In addition to regular servicing, werecommend that you carry out thefollowing checks.
WARNINGS
Switch the ignition off beforetouching or attempting adjustmentof any kind.
Do not touch the electronic ignitionsystem parts after you have switchedthe ignition on or when the engine isrunning. The system operates at highvoltage.
Keep your hands and clothing clearof the engine cooling fan. Undercertain conditions, the fan maycontinue to run for several minutes afteryou have switched the engine off.
Make sure that you fit filler capssecurely after carrying outmaintenance checks.
Daily Checks
•Exterior lamps.
•Interior lamps.
•Warning lamps and indicators.
Check When Refueling
•Engine oil level. See Engine Oil Check(page 157).
•Brake fluid level. See Brake andClutch Fluid Check (page 159).
•Washer fluid level. See Washer FluidCheck (page 159).
•Tire pressures (when cold). SeeTechnical Specifications (page 183).
•Tire condition. See Wheels and Tires(page 174).
Monthly Checks
•Engine coolant level (engine cold). SeeEngine Coolant Check (page 158).
•Pipes, hoses and reservoirs for leaks.
•Air conditioning operation.
•Parking brake operation.
•Horn operation.
•Tightness of lug nuts. See TechnicalSpecifications (page 183).
OPENING AND CLOSING THE
HOOD
Opening the Hood
1.Pull the hood release handle.
152B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Maintenance

Downloaded from www.Manualslib.com manuals search engine ENGINE OIL DIPSTICK - 1.0L
ECOBOOST™
MinimumA
MaximumB
ENGINE OIL DIPSTICK - 1.4L
DURATEC-16V (SIGMA)/1.6L
DURATEC-16V TI-VCT (SIGMA)
MinimumA
MaximumB
ENGINE OIL DIPSTICK - 1.5L
DURATORQ-TDCI/1.6L
DURATORQ-TDCI (DV) DIESEL
MinimumA
MaximumB
ENGINE OIL CHECK
1.Make sure that your vehicle is on levelground.
2.Switch off the engine and wait 10minutes for the oil to drain into the oilpan.
3.Remove the dipstick and wipe it witha clean, lint free cloth. Replace thedipstick and remove it again to checkthe oil level.
If the oil level is at the minimum mark, addoil immediately. See TechnicalSpecifications (page 169).
Note:Check the oil level before starting theengine.
Note:Make sure that the oil level isbetween the minimum and the maximummarks.
Note:Do not use oil additives or otherengine treatments. Under certain conditions,they may damage the engine.
Note:The oil consumption of new enginesreaches its normal level after approximately3000 miles (5000 kilometers).
157B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Maintenance

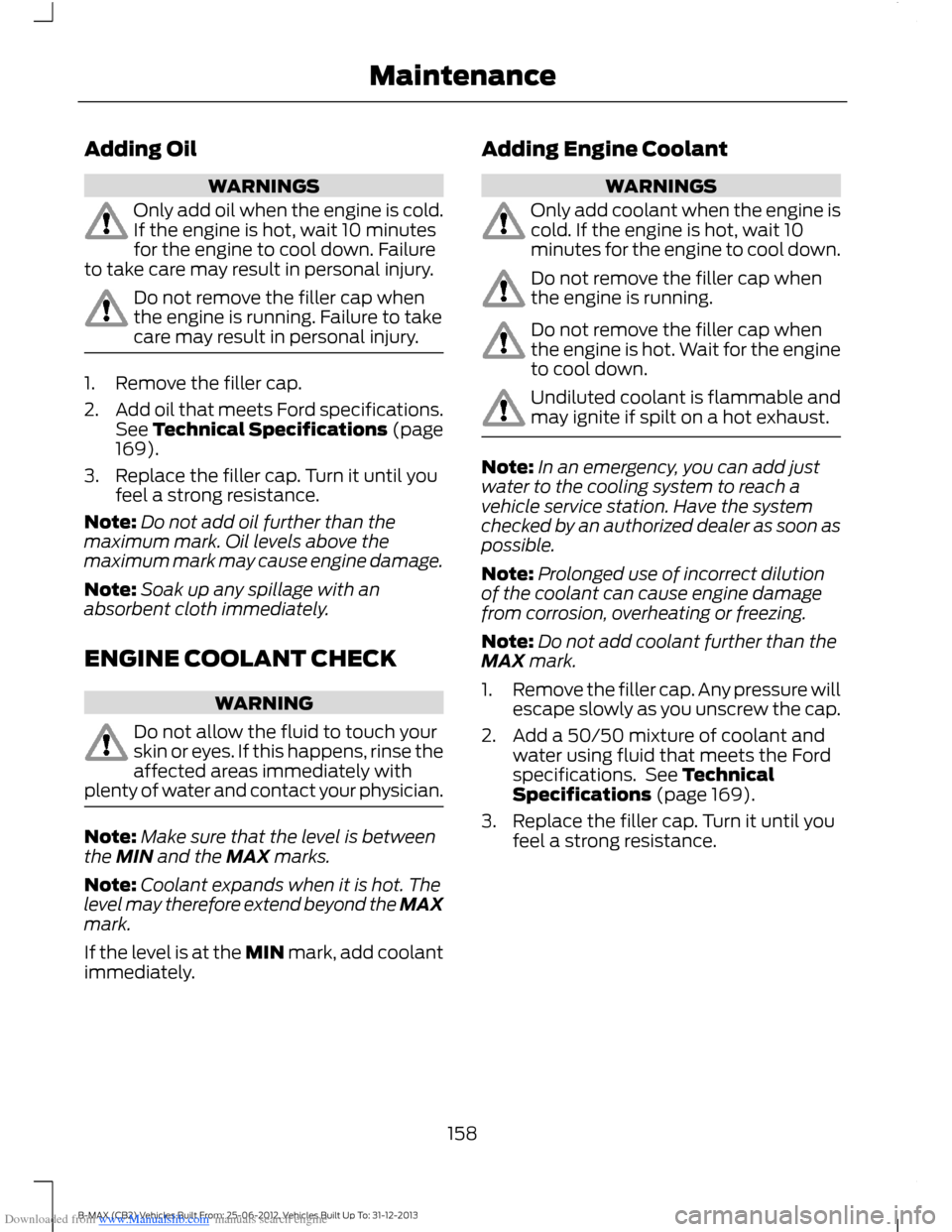

Downloaded from www.Manualslib.com manuals search engine Adding Oil
WARNINGS
Only add oil when the engine is cold.If the engine is hot, wait 10 minutesfor the engine to cool down. Failureto take care may result in personal injury.
Do not remove the filler cap whenthe engine is running. Failure to takecare may result in personal injury.
1.Remove the filler cap.
2.Add oil that meets Ford specifications.See Technical Specifications (page169).
3.Replace the filler cap. Turn it until youfeel a strong resistance.
Note:Do not add oil further than themaximum mark. Oil levels above themaximum mark may cause engine damage.
Note:Soak up any spillage with anabsorbent cloth immediately.
ENGINE COOLANT CHECK
WARNING
Do not allow the fluid to touch yourskin or eyes. If this happens, rinse theaffected areas immediately withplenty of water and contact your physician.
Note:Make sure that the level is betweenthe MIN and the MAX marks.
Note:Coolant expands when it is hot. Thelevel may therefore extend beyond the MAXmark.
If the level is at the MIN mark, add coolantimmediately.
Adding Engine Coolant
WARNINGS
Only add coolant when the engine iscold. If the engine is hot, wait 10minutes for the engine to cool down.
Do not remove the filler cap whenthe engine is running.
Do not remove the filler cap whenthe engine is hot. Wait for the engineto cool down.
Undiluted coolant is flammable andmay ignite if spilt on a hot exhaust.
Note:In an emergency, you can add justwater to the cooling system to reach avehicle service station. Have the systemchecked by an authorized dealer as soon aspossible.
Note:Prolonged use of incorrect dilutionof the coolant can cause engine damagefrom corrosion, overheating or freezing.
Note:Do not add coolant further than theMAX mark.
1.Remove the filler cap. Any pressure willescape slowly as you unscrew the cap.
2.Add a 50/50 mixture of coolant andwater using fluid that meets the Fordspecifications. See TechnicalSpecifications (page 169).
3.Replace the filler cap. Turn it until youfeel a strong resistance.
158B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Maintenance
