When the engine is hot, take
care when working inside the
engine compartment to avoid burns.
Remember that when the engine is
hot, fan may cut in: danger of injury.
Scarves, ties and other loose cloth-
ing might be pulled by moving parts.
WARNING
ENGINE COOLANT fig. 9
The coolant level shall be checked with
cold engine and shall be within the MIN
and MAXmarks on the tank.
If the level is low, pour slowly a mixture
of 50% distilled water and 50%
PARAFLU
UPof the PETRONAS LU-
BRICANTSthrough the filler neck Aun-
til the level reaches the MAXmark.
A 50-50 mixture of PARAFLU
UPand
distilled water gives freeze protection to
–35°C.
fig. 9F0P0152m
The engine cooling system us-
es protective antifreeze fluid
PARAFLU
UP. Use the same
fluid type as that already in
the cooling system when topping up.
PARAFLU
UPfluid cannot be mixed with
any other type of fluid. Should it hap-
pen, under no circumstances start the
engine; contact a Fiat Dealership.
The cooling system is pres-
surised. If necessary, replace
the cap only with another genuine
one, otherwise system efficiency
could be compromised. Do not re-
move the reservoir cap when the en-
gine is hot: you risk scalding yourself.
WARNING
Used engine oil and filter con-
tain harmful substances for
the environment. Contact Fi-
at Dealership to have the oil
and filter changed, as they are
equipped to dispose of the waste oil
and filters respecting the nature and
the law.
Do not add oil with specifica-
tions other than that already
in the engine.
155-174 SCUDO LUM GB_153-172 Nuovo ScudoG9 GB 17/10/12 14.44 Pagina 163

164
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
BRAKE FLUID fig. 11
Unscrew cap Aand check that the fluid
level in the reservoir is at maximum.
Fluid level in the reservoir shall not exceed
the MAXmark.
Use only DOT4fluid for topping up. We
recommend TUTELA TOP 4, which is
the fluid used for first filling.
IMPORTANT Brake fluid absorbs mois-
ture, for this reason, if the vehicle is main-
ly used in areas with a high degree of at-
mospheric humidity, the fluid should be
replaced at more frequent intervals than
specified in the “Service schedule”. Check level through the reservoir.
fig. 11
Do not travel with the wind-
screen washer reservoir emp-
ty: the windscreen washer is funda-
mental for improving visibility.
WARNING
Certain commercial addi-
tives for windscreen washers
are inflammable. The engine com-
partment contains hot components
which may set it on fire.
WARNINGWINDSCREEN/REAR WINDOW
WASHER FLUID fig. 10
To top up, remove the cap A.
Pour a mixture of water and TUTELA
PROFESSIONAL SC35, in the follow-
ing concentrations:
30% TUTELA PROFESSIONAL
SC35and 70% water in summer.
50% TUTELA PROFESSIONAL
SC35and 50% water in winter.
In case of temperatures below –20°C, use
undiluted TUTELA PROFESSIONAL
SC35fluid.
fig. 10F0P0154mF0P0155m
155-174 SCUDO LUM GB_153-172 Nuovo ScudoG9 GB 17/10/12 14.44 Pagina 164

165
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
Make sure that the highly
corrosive brake fluid does not
drip onto the paintwork; if it
does, wash it off immediate-
ly with water.
Brake fluid is poisonous and
highly corrosive. In the event
of accidental contact, wash the parts
involved immediately with neutral
soap and water, then rinse thor-
oughly. Call the doctor immediately
if the fluid is swallowed.
WARNING
The symbol πon the con-
tainer indicates synthetic
brake fluid, distinguishing it from the
mineral kind. Using mineral fluids ir-
reversibly damages the special brak-
ing system rubber seals.
WARNING
POWER STEERING FLUID
With the vehicle on level ground, engine not
running and cold, check whether the oil lev-
el in the tank is between the MINand
MAXmarks on the tank fig. 12 and
fig. 13.
If oil is hot the level can also exceed the
MAXmark.
If required, top up with oil having the same
characteristics of the oil present in the sys-
tem.
fig. 12 - 90 Multijet versionsF0P0150mfig. 13 - 120 - 130 -
165 Multijet versionsF0P0151m
Power steering oil consump-
tion is extremely low. If the
fluid level needs topping up
again after a short period of
time, have the system checked for leak-
age at a Fiat Dealership.
Do not allow the power
steering fluid to touch the
hot parts of the engine: it is inflam-
mable.
WARNING
For the van outfitting it is
recommended to replace the
brakes liquid every two years.
WARNING
155-174 SCUDO LUM GB_153-172 Nuovo ScudoG9 GB 17/10/12 14.44 Pagina 165

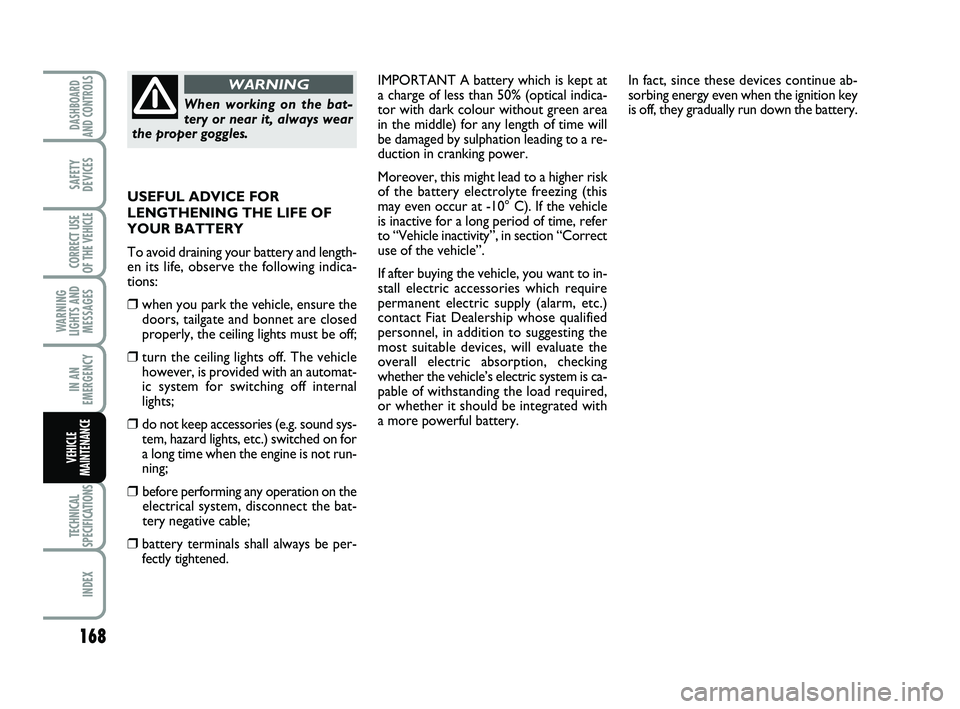

168
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
IMPORTANT A battery which is kept at
a charge of less than 50% (optical indica-
tor with dark colour without green area
in the middle) for any length of time will
be damaged by sulphation leading to a re-
duction in cranking power.
Moreover, this might lead to a higher risk
of the battery electrolyte freezing (this
may even occur at -10° C). If the vehicle
is inactive for a long period of time, refer
to “Vehicle inactivity”, in section “Correct
use of the vehicle”.
If after buying the vehicle, you want to in-
stall electric accessories which require
permanent electric supply (alarm, etc.)
contact Fiat Dealership whose qualified
personnel, in addition to suggesting the
most suitable devices, will evaluate the
overall electric absorption, checking
whether the vehicle’s electric system is ca-
pable of withstanding the load required,
or whether it should be integrated with
a more powerful battery. USEFUL ADVICE FOR
LENGTHENING THE LIFE OF
YOUR BATTERY
To avoid draining your battery and length-
en its life, observe the following indica-
tions:
❒when you park the vehicle, ensure the
doors, tailgate and bonnet are closed
properly, the ceiling lights must be off;
❒turn the ceiling lights off. The vehicle
however, is provided with an automat-
ic system for switching off internal
lights;
❒do not keep accessories (e.g. sound sys-
tem, hazard lights, etc.) switched on for
a long time when the engine is not run-
ning;
❒ before performing any operation on the
electrical system, disconnect the bat-
tery negative cable;
❒battery terminals shall always be per-
fectly tightened.
When working on the bat-
tery or near it, always wear
the proper goggles.
WARNINGIn fact, since these devices continue ab-
sorbing energy even when the ignition key
is off, they gradually run down the battery.
155-174 SCUDO LUM GB_153-172 Nuovo ScudoG9 GB 17/10/12 14.44 Pagina 168

172
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
❒Spraying of plastic parts, with a protec-
tive function in the more exposed
points: underdoor, inner fender parts,
edges, etc;
❒ Use of “open” boxed sections to pre-
vent condensation and pockets of mois-
ture from triggering rust inside.
BODY AND UNDERBODY
WARRANTY
Your vehicle is covered by warranty
against perforation due to rust of any orig-
inal element of the structure or body.
For the general terms of this warranty, re-
fer to Fiat Warranty Booklet.
ADVICE FOR PRESERVING THE
BODYWORK
Paintwork
The paintwork is not only to make your
vehicle look attractive but also to protect
the steel.
In the case of deep scrapes or scores, you
are advised to have the necessary touching
up carried out immediately to avoid the for-
mation of rust. For touching up use only
original products (see “Bodywork paint
identification plate” in section “Technical
specifications”).
BODYWORK
PROTECTION FROM
ATMOSPHERIC AGENTS
The main causes of corrosion are the fol-
lowing:
❒ atmospheric pollution;
❒ salty air and humidity (coastal areas, or
hot humid climates);
❒ seasonal environment conditions.
Not to be underestimated is also the abra-
sive action of wind-borne atmospheric
dust and sand and mud and gravel raised
by other vehicles.
On your vehicle, Fiat implemented the
best manufacturing technologies to effec-
tively protect the bodywork against cor-
rosion.
These are the most important:
❒ Painting products and systems which
give the vehicle particular resistance to
corrosion and abrasion;
❒ Use of galvanised (or pretreated) steel
sheets, with high resistance to corro-
sion;
❒ Spraying the underbody, engine com-
partment, wheelhouse internal parts
and other parts with highly protective
wax products; SPRAY NOZZLES
Windscreen wiper fig. 18
If the jet of fluid is inadequate, firstly check
that there is fluid in the reservoir: see
“Checking fluid levels” in this section).
Then check that the nozzle holes are not
clogged, if necessary use a needle.
The windscreen jets are directed by ad-
justing the angle of the nozzles.
Fluid jets shall be directed at about
1/3height from the window upper edge.
Rear window
(rear window washer)
The rear window wiper nozzle is located
in the rear window wiper blade.
fig. 18F0P0163m
155-174 SCUDO LUM GB_153-172 Nuovo ScudoG9 GB 17/10/12 14.44 Pagina 172

209
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Brakes
– emergency.......................................118
– fluid level......................................... 164
Bulb (replacement).............................. 141
Capacities ............................................ 204
Carrying children safely...................... 99
– ISOFIX child restraint
system (fitting)................................ 105
Central and side air vents .................. 28
Central locking .................................... 72
Changing a wheel................................. 137
Checking levels..................................... 160
Child restraint system label ............... 109
Cigar lighter .......................................... 67
Clock ...................................................... 16
Clutch..................................................... 183
CO2 emissions at exhaust ................. 210
Cruise control ...................................... 54
Dashboard ........................................... 5
Demisting
– rear windows.......................30-34-38
– side front windows.............28-32-38– windscreen ...........................28-32-38
Diesel filter
(water in diesel filter) ....................... 134
Dimensions ...........................................187
Dipped beam headlights
– bulb (replacement)........................ 143
– control ............................................. 47
Direction indicators
– control ............................................. 48
– front bulb replacement................. 144
– rear bulb replacement .................. 145
– side bulb replacement................... 144
Door locking/unlocking
remote control .................................. 7
Doors ..................................................... 69
Engine
Electric windows.................................. 74
Engine compartment........................... 160
Engine coolant level............................. 163
Engine oil consumption ...................... 162
Engine oil level...................................... 162
ABS ...................................................... 82
Accessories purchased by
the owner ........................................... 90
Air cleaner.............................................166
Air recirculation .........................31-36-41
Airbags .................................................. 108
– front passenger airbag and
child restraint systems ........109-110
– child restraint system label .......... 109
Ashtray................................................... 67
Battery
– economy mode .............................. 153
– fluid level......................................... 166
– jump starting ...................................136
– recharging........................................153
– specifications................................... 182
Bodywork
– maintenance.................................... 172
– versions............................................ 175
Bonnet.................................................... 76
Brake fluid level.................................... 164
Brake lights............................................ 145
I I
N N
D D
E E
X X
211-218 SCUDO LUM GB.qxd:200-208 Nuovo ScudoG9 ING 18-10-2012 8:30 Pagina 209

210
WARNING
LIGHTS AND
MESSAGES
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
VEHICLE
IN AN
EMERGENCY
VEHICLE
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Fuel consumption................................ 207
Fuel cut-off switch............................... 64
Fuel level gauge .................................... 14
Fuel
– fuel tank cap.................................... 91
– level gauge ....................................... 14
Fuses....................................................... 148
Gearbox
– using the manual gearbox ............ 119
Handbrake ........................................... 118
Hazard warning lights......................... 61
Head restraints..................................... 23
Headlight washer................................. 53
Headlights
– light beam direction ...................... 81
Heated rear window.................30-35-43
Heating and ventilation ...................... 27
Identification data................................ 176
In an emergency................................... 135
Instrument panel brightness
regulator .............................................15
Instrument panel.................................. 13
Interior fittings...................................... 65
Interiors .................................................174
Isofix (child restraint system) ............ 103Jack ......................................................... 138
Keys ....................................................... 7
Levels (checking)................................ 160
Load advice ...........................................79
Lubricants (specifications).................. 205
Main beam headlights
– bulb (replacement)........................ 143
– control ............................................. 47
Manual climate control....................... 31
Number plate lights........................... 146
On-board instruments...................... 14
Paintwork.............................................172
Performance .........................................192
Periodic checks.................................... 159
Pneumatic suspension ......................... 78
Power steering fluid level................... 165
Pretensioners........................................ 96
Radio system .......................................89
Rear view mirrors
– door mirrors .................................. 25 Engine oil
– consumption................................... 162
– level check....................................... 162
– technical specifications ................. 205
Engine start
– bump starting .................................137
– ignition device................................ 12
– jump starting ...................................136
– start procedure.............................. 116
– warming up the engine
once started....................................117
Engine
– identification code .........................179
– lubrication .......................................205
– supply............................................... 183
– technical data..................................175
EOBD (system) .................................... 87
Fiat CODE .......................................... 6
Fix&Go quick tyre repair kit ............. 140
Fix&Go................................................... 140
Fog lights/rear fog lights
– bulb replacement................142-143
– control ............................................. 47
Front passenger airbag and child
restraint systems .....................109-110
– child restraint system label .......... 109
211-218 SCUDO LUM GB.qxd:200-208 Nuovo ScudoG9 ING 18-10-2012 8:30 Pagina 210

Fiat Group Automobiles S.p.A. - Parts & Services - Technical Services - Service Engineering
Largo Senatore G. Agnelli, 3 - 10040 Volvera - Torino (Italia)
Print N. 603.99.291 - 10/2012 - 1 Edition
ENGINE OIL REPLACEMENT
FUEL CAPACITY (litres) COLD TYRE INFLATION PRESSURE
The inflation pressure value for the tires when cold depends on the vehicle version and outfitting. The values are indicated on the
plate on the front left door (see the “Wheels” section in the “Technical specifications" Chapter).
Add +0.3 bar to the prescribed inflation pressure when the tyres are warm. Recheck pressure value with cold tyres.
90 Multijet (*) - 120 Multijet - 130 Multijet - 165 Multijet
Tank capacity: 80
Riserve: 8
(*) Euro 4 - Euro 5
Only refuel cars with diesel engines with diesel fuel for motor vehicles conforming to the EN590 European Specification
90 Multijet (*) 120 Multijet 130 Multijet 165 Multijet
litres kg litres kg litres kg litres kg
Sump and filter: 6.2 – 5.25 – 5.25 – 5.25 –
(*) Euro 4 - Euro 5
211-218 SCUDO LUM GB.qxd:200-208 Nuovo ScudoG9 ING 18-10-2012 8:30 Pagina 216
