Speed limit exceeded
(for versions/markets, where provided)
The warning light switches on (together with a
message on the display) when the speed limit set in
the Setup Menu is exceeded.
When the car exceeds this value, on some versions a
message and a symbol are shown in the display and
an acoustic signal is emitted.
Fuel cut-off system intervention/fault
The warning light switches on (together with a
message on the display) in the event of fuel cut-off
system intervention/fault.
Start&Stop system fault
(for versions/markets, where provided)
The warning light switches on (together with a
message on the display) when a Start&Stop system
failure is detected.
In the event of a Start&Stop system failure, contact a
Fiat Dealership.
Temporary or permanent City Brake Control
- "Collision Mitigation" system failure
(for versions/markets, where provided)
The warning light switches on (together with a
message on the display) when a temporary or
permanent City Brake Control - "Collision
Mitigation" system failure is detected.If the failure is permanent: contact a Fiat Dealership
to have the system checked.
Parking sensor failure
(for versions/markets, where provided)
The warning light switches on (together with a
message on the display) when a parking sensor fault
is detected.
Exterior lights failure
(for versions/markets, where provided)
The warning light will come on when a fault to one
of the following lights is detected:
❒side lights;
❒number plate lights;
❒rear fog lights;
❒direction indicators;
❒daytime running lights (DRL).
Engine oil pressure sensor failure
(for versions/markets, where provided)
The engine oil pressure sensor failure is indicated by
the activation of the warning light on the instrument
panel.
Water in diesel filter (diesel versions)
(for versions/markets, where provided)
Turning the key to MAR switches on the warning
light, but it should switch off after a few seconds.
140
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

The
warning light switches on when water is
detected in the diesel filter.
A specific message is displayed on certain versions.If the warning light
switches on (on
some versions the warning light
is
accompanied by the dedicated message
on the display), contact a Fiat Dealership as soon
as possible to have the system bled. If the above
indication occurs immediately after refuelling,
water may have entered the tank: stop the engine
immediately and contact a Fiat Dealership.
REAR FOG LIGHT (amber)
The warning light switches on when the rear fog
lights are activated.FOG LIGHTS (green)
The warning light switches on when the fog lights are
activated.
SIDE LIGHTS AND DIPPED
HEADLIGHTS (green)/FOLLOW ME
HOME (green)
SIDE LIGHTS AND DIPPED HEADLIGHTS
The warning light switches on when side lights
or dipped headlights are activated.
FOLLOW ME HOME
This warning light switches on (on some versions
together with a message and a symbol in the display)
when this device is used (see the "Follow me home"
paragraph in the "Knowing your car" section).MAIN BEAM HEADLIGHTS (blue)
The warning light switches on when the main beam
headlights are activated.LEFT DIRECTION INDICATOR
(green) (intermittent)
The warning light switches on when the direction
indicator control stalk is moved downwards or,
together with the right indicator, when the hazard
warning light button is pressed.
141GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

RIGHT DIRECTION INDICATOR
(green) (intermittent)
The warning light switches on when the direction
indicator control stalk is moved upwards or, together
with the left indicator, when the hazard warning
light button is pressed.DOORS/BONNET/LUGGAGE
COMPARTMENT OPEN
The warning light switches on (on some versions
together with a message and a symbol in the display)
when one or more doors, the bonnet or the tailgate
are not properly closed. An acoustic signal is emitted
with the doors open and the car in motion.City Brake Control - "Collision
Mitigation" SYSTEM DEACTIVATED
(amber)
(for versions/markets, where provided)
The warning light switches on when the City Brake
Control - "Collision Mitigation" system is deactivated
through the setup menu.START&STOP SYSTEM ACTIVATION/
DEACTIVATION
(for versions/markets, where provided)
Start&Stop system activation
Start&Stop system activation is signalled by a
message on the display. In this condition the LED on
the
button on the control panel (see “Start&Stop”
in the "Knowing your car" section) is off.
Start&Stop system deactivation
Start&Stop system deactivation is signalled by a
message on the display.
The LED on the
button switches on when the
system is deactivated.
SERVICE (SCHEDULED SERVICING)
EXPIRED
When the next scheduled service is approaching and
the key is turned to MAR-ON, the word “Service”
appears on the display, followed by the number
of kilometres or miles left. Go to a Fiat Dealership,
where the "Scheduled Servicing Plan" operations will
be performed and the message will be reset.
142
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGWARNING LIGHTS
AND MESSAGESIN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

SERVICING AND MAINTENANCE
SCHEDULED SERVICINGCorrect servicing is essential in guaranteeing a long
life for the car under the best conditions.
Fiat has therefore arranged a series of checks and
service operations to be carried out every 30,000
kilometres (for petrol versions) or every 35,000
kilometres (for diesel versions).
Check the items on the Scheduled Servicing Plan
(e.g. periodically check level of liquids, tyre pressure,
etc.) before 30,000/35,000 km and between these
services deadlines.
Scheduled Servicing is offered by all Fiat Dealerships
according to a set time schedule. If, during each
operation, in addition to the ones scheduled, the
need arises for further replacements or repairs,these may be carried out only with the explicit
agreement of the Customer. If your car is
used frequently for towing, the interval between one
service operation and the next should be reduced.
WARNING
At 2,000 km from the next service operation the
display will show a message.
The Scheduled Services intervals are set out by the
Manufacturer. Failure to have them carried out
may invalidate the warranty.
It is advisable to inform a Fiat Dealership of any small
operating irregularities without waiting for the next
service.
175GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

TABLE OF CONTENTS
INTRODUCTION ...................................................................233
ADVICE....................................................................................233
TECHNICAL CHARACTERISTICS ..................................235
QUICK GUIDE .........................................................................236
General functions...................................................................237
Radio functions .......................................................................238
CD functions...........................................................................238
Media Player functions (only withBlue&Me™) ..........239
STEERING WHEEL CONTROLS .......................................240
INTRODUCTION ...................................................................241
FUNCTIONS AND ADJUSTMENTS ..................................242
SWITCHING ON THE CAR RADIO ..............................242
SWITCHING OFF THE CAR RADIO..............................242
SELECTING THE RADIO FUNCTIONS ........................242
SELECTING CD FUNCTION............................................243
AUDIO SOURCE MEMORY FUNCTION ......................243
VOLUME ADJUSTMENT ....................................................243
MUTE/PAUSE FUNCTION .................................................243
AUDIO SETTINGS................................................................244
TONE ADJUSTMENT (bass/treble) ..................................244
BALANCE ADJUSTMENT ..................................................244
FADER ADJUSTMENT .........................................................245
LOUDNESS FUNCTION ....................................................245
EQ FUNCTION ...................................................................245
USER EQ SETTINGS FUNCTION ..................................246
MENU .......................................................................................246
AF SWITCHING function ..................................................247
TRAFFIC INFORMATION function .................................247
REGIONAL MODE function .............................................249
MP3 DISPLAY function ........................................................249SPEED VOLUME function ..................................................250
RADIO ON VOLUME function ........................................250
SPEECH VOLUME function ...............................................251
AUX OFFSET function ........................................................251
RADIO OFF function ..........................................................251
SYSTEM RESET function ......................................................252
PHONE SET-UP .....................................................................252
ANTI-THEFT PROTECTION .............................................252
RADIO (TUNER) .....................................................................254
INTRODUCTION.................................................................254
FREQUENCY BAND SELECTION...................................254
PRESET BUTTONS ...............................................................255
STORING THE LAST STATION LISTENED TO ...........255
AUTOMATIC TUNING .......................................................255
MANUAL TUNING ..............................................................255
AUTOSTORE FUNCTION ................................................256
EMERGENCY ALARM RECEPTION ................................256
EON FUNCTION (Enhanced Other Network) ............257
STEREOPHONIC BROADCASTERS ...............................257
CD PLAYER ...............................................................................257
INTRODUCTION.................................................................257
SELECTING THE CD PLAYER ..........................................257
LOADING/EJECTING A CD ..............................................258
DISPLAY INFORMATION ...................................................259
TRACK SELECTION (forward/backward) ......................259
TRACK FAST FORWARD/REWIND ...............................259
PAUSE FUNCTION ..............................................................259
CD MP3 PLAYER......................................................................260
INTRODUCTION.................................................................260
MP3 MODE .............................................................................260
231
SOUND-SYSTEM

SELECTING MP3 SESSIONS ON HYBRID DISCS .......261
DISPLAY INFORMATION ...................................................261
SELECTING NEXT/PREVIOUS FOLDER .......................262
STRUCTURE OF THE FOLDERS .....................................262
AUX (only with theBlue&Me™ system) .......................263
INTRODUCTION.................................................................263AUX MODE............................................................................263
TROUBLESHOOTING ..........................................................264
GENERAL ................................................................................264
CD PLAYER.............................................................................264
MP3 FILE READING .............................................................264
232
SOUND-SYSTEM

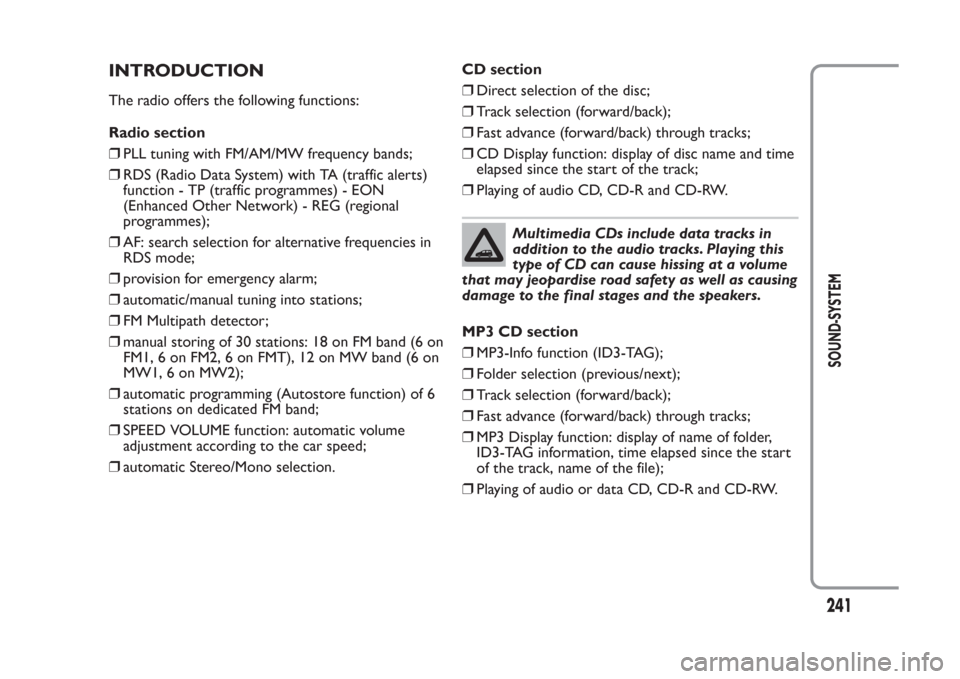

INTRODUCTIONThe radio offers the following functions:
Radio section
❒PLL tuning with FM/AM/MW frequency bands;
❒RDS (Radio Data System) with TA (traffic alerts)
function - TP (traffic programmes) - EON
(Enhanced Other Network) - REG (regional
programmes);
❒AF: search selection for alternative frequencies in
RDS mode;
❒provision for emergency alarm;
❒automatic/manual tuning into stations;
❒FM Multipath detector;
❒manual storing of 30 stations: 18 on FM band (6 on
FM1, 6 on FM2, 6 on FMT), 12 on MW band (6 on
MW1, 6 on MW2);
❒automatic programming (Autostore function) of 6
stations on dedicated FM band;
❒SPEED VOLUME function: automatic volume
adjustment according to the car speed;
❒automatic Stereo/Mono selection.CD section
❒Direct selection of the disc;
❒Track selection (forward/back);
❒Fast advance (forward/back) through tracks;
❒CD Display function: display of disc name and time
elapsed since the start of the track;
❒Playing of audio CD, CD-R and CD-RW.
Multimedia CDs include data tracks in
addition to the audio tracks. Playing this
type of CD can cause hissing at a volume
that may jeopardise road safety as well as causing
damage to the final stages and the speakers.
MP3 CD section
❒MP3-Info function (ID3-TAG);
❒Folder selection (previous/next);
❒Track selection (forward/back);
❒Fast advance (forward/back) through tracks;
❒MP3 Display function: display of name of folder,
ID3-TAG information, time elapsed since the start
of the track, name of the file);
❒Playing of audio or data CD, CD-R and CD-RW.
241
SOUND-SYSTEM

SELECTING CD FUNCTION
By pressing the MEDIA button briefly it is possible to
select the CD function.
AUDIO SOURCE MEMORY FUNCTION
If another function (e.g. the radio) is selected whilst
listening to a CD, playback is interrupted and is
resumed from the same point when returning to the
CD source.
If another function is selected whilst listening to the
radio, the last station selected is tuned into when
returning to the Radio mode.
VOLUME ADJUSTMENT
Turn the
(ON/OFF) button/knob to adjust the
volume.
If the volume level is changed during the transmission
of traffic news, the new setting will only be
maintained until the update is finished.MUTE/PAUSE FUNCTION
(setting volume to zero)
Press the
button briefly to activate the Mute
function. The volume will gradually decrease and the
words "RADIO Mute" will be displayed (in radio
mode) or "PAUSE" (in CD mode).
Press thebutton again to deactivate the Mute
function. The volume will gradually increase until it
reaches the level previously set.
When the volume level is changed using the
dedicated controls, the Mute function is deactivated
and the volume is adjusted to the new level selected.
With the Mute function activated, it will be ignored
when there is an incoming traffic alert (if the TA
function is activated), or if an emergency alarm is
received. The function will be reactivated when the
alert is over.
243
SOUND-SYSTEM
