CHANGING A BULBGENERAL INSTRUCTIONS
❒Before changing a bulb check the contacts for
oxidation;
❒burnt bulbs must be replaced by others of the
same type and power;
❒after replacing a headlight bulb, always check its
alignment;
❒when a light is not working, check that the
corresponding fuse is intact before changing a bulb.
For the location of fuses, refer to the paragraph
“If a fuse blows” in this section;
WARNING
Modifications or repairs to the electric
system that are not carried out properly
or do not take the system technical
specifications into account can cause
malfunctions leading to the risk of fire.
WARNING
Halogen bulbs contain pressurised gas,
in the case of breakage they may burst
causing glass fragments to be projected
outwards.
Halogen bulbs must be handled holding
the metal part only.Touching the
transparent part of the bulb with your
fingers may reduce the intensity of the emitted
light and even reduce the lifespan of the bulb. In
case of accidental contact , wipe the bulb with
a cloth moistened with alcohol and let the bulb
dry.Where possible, it is advisable to have
bulbs changed at a Fiat Dealership.The
correct operation and direction of the
external lights are absolutely essential for the
safety of the car and of compliance with the law.
IMPORTANT When the weather is cold or damp
or after heavy rain or washing, the surface of
headlights or rear lights, may steam up and/or form
drops of condensation on the inside. This is a natural
phenomenon due to the difference in temperature
and humidity between the inside and the outside
of the glass which does not indicate a fault and does
not compromise the normal operation of lighting
devices. The mist disappears quickly when the lights
are turned on, starting from the centre of the
diffuser, extending progressively towards the edges.
154
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

TYPES OF BULBSVarious types of bulbs are fitted to your car:
All-glass bulbs:(type A) press-fitted. Pull to remove.Bayonet type bulbs:(type B) to remove them press the
bulb and turn it anticlockwise.
Tubular bulbs:(type C) release them from their contacts
to remove.
Halogen bulbs:(type D) to remove the bulb, release the
clip holding the bulb in place.
155GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

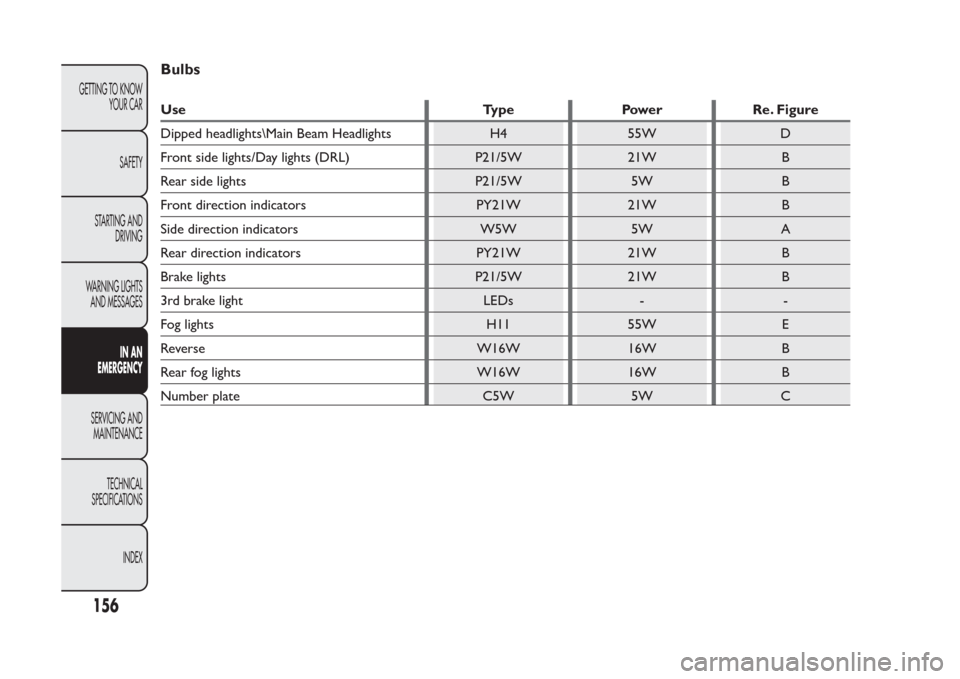

BulbsUse Type Power Re. Figure
Dipped headlights\Main Beam Headlights H4 55W D
Front side lights/Day lights (DRL) P21/5W 21W B
Rear side lights P21/5W 5W B
Front direction indicators PY21W 21W B
Side direction indicators W5W 5W A
Rear direction indicators PY21W 21W B
Brake lights P21/5W 21W B
3rd brake light LEDs - -
Fog lights H11 55W E
Reverse W16W 16W B
Rear fog lights W16W 16W B
Number plate C5W 5W C
156
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

REPLACING EXTERIOR BULBSFor the type of bulb and power rating, see “Changing
a bulb".
FRONT LIGHT CLUSTERS
These contain the bulbs for the dipped beams, main
beams and direction indicators. The bulbs are
arranged as follows fig. 125:A
Main/dipped beam headlights
B
Direction indicatorsMAIN/DIPPED BEAM HEADLIGHTS
To change the bulb, proceed as follows:
❒remove cover A fig. 125;
❒push the connector + bulb holder unit B fig. 126
downwards;
❒remove the bulb C from connector D and replace
it;
❒refit the new bulb on the connector making sure
that it is locked correctly, then reinsert the
connector unit and the bulb holder B in
its housing;
❒then refit the cover A fig. 125.fig. 125
F0W0033
fig. 126
F0W0068
157GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

DIRECTION INDICATORS
Front
To change the bulb, proceed as follows:
❒remove cover B fig. 125;
❒turn the bulb holder anticlockwise, extract the
bulb and replace it;
❒refit the new bulb on the connector making sure
that it is locked correctly, then reinsert the
connector in its housing rotating it clockwise;
Side
To change the bulb, proceed as follows:
❒adjust the lens A fig. 127 to compress in the
internal catch B, then pull the unit outwards;
❒turn the bulb holder C anticlockwise, extract the
bulb and replace it;
❒refit the bulb holder C in the lens and turn it
clockwise;
❒refit the unit making sure that the internal catch B
clips into position.FOG LIGHTS
(for versions/markets, where provided)
Replace the bulb as follows:
❒steer the wheel completely;
❒adjust the screws A fig. 133 and remove the flap B;
fig. 127
F0W0209
fig. 128
F0W0197
158
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

❒adjust the catch C fig. 129 and disconnect the
electrical connector D;
❒turn and remove the bulb holder E;
❒release and replace the bulb;
❒refit the new lamp and carry out the procedure
described previously in reverse.SIDE LIGHTS/DAY LIGHTS (DRL)
(for versions/markets, where provided)
Replace the bulb as follows:
❒steer the wheel completely;
❒adjust the screws A fig. 128 and remove the flap B;
❒adjust the catch C fig. 130 and disconnect the
electrical connector D;
❒turn and remove the bulb holder E;
❒release and replace the bulb;
❒refit the new lamp and carry out the procedure
described previously in reverse.
fig. 129
F0W0198
fig. 130
F0W0069
159GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGESIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

REAR LIGHT CLUSTERS
These contain the bulbs for the side lights, brake
lights and direction indicators. The reversing lights
and rear fog lights are located instead in the rear
bumper.
To change the bulb proceed as follows:
❒slacken the two screws fig. 131 from their seats,
pull gently outwards until releasing the whole
headlight from the two clips (press-fitted D fig. 13
and release the connector;
❒undo the five screws B from their seats and
remove the bulb holder C fig. 132;
❒remove the bulbs, pushing them slightly and
turning them anti-clockwise;
❒refit the new lamp and carry out the procedure
described previously in reverse.3
rd
BRAKE LIGHTS
These are located in the tailgate and are LED lights.
For replacement, contact a Fiat Dealership.
fig. 132
F0W0311
fig. 131
F0W0310
160
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
A
2)

FOG LIGHT/REAR FOG LIGHT
To change the bulb, proceed as follows:
❒adjust the tabs A and remove the flap B fig. 133;
❒adjust the catch C and disconnect the electrical
connector D fig. 134;
❒turn and remove the bulb holder E;
❒extract the bulb and replace it;
❒refit the new lamp and carry out the procedure
described previously in reverse.
WARNING
Before replacing the bulb, wait for the
catalytic conver ter to cool down: RISK
OF BURNSNUMBER PLATE LIGHTS
To replace the bulbs proceed as follows:
❒remove lens A fig. 135;
❒replace the bulb A fig. 136, releasing it from the
side contacts;
fig. 133
F0W0205
fig. 134
F0W0206
fig. 135
F0W0259
