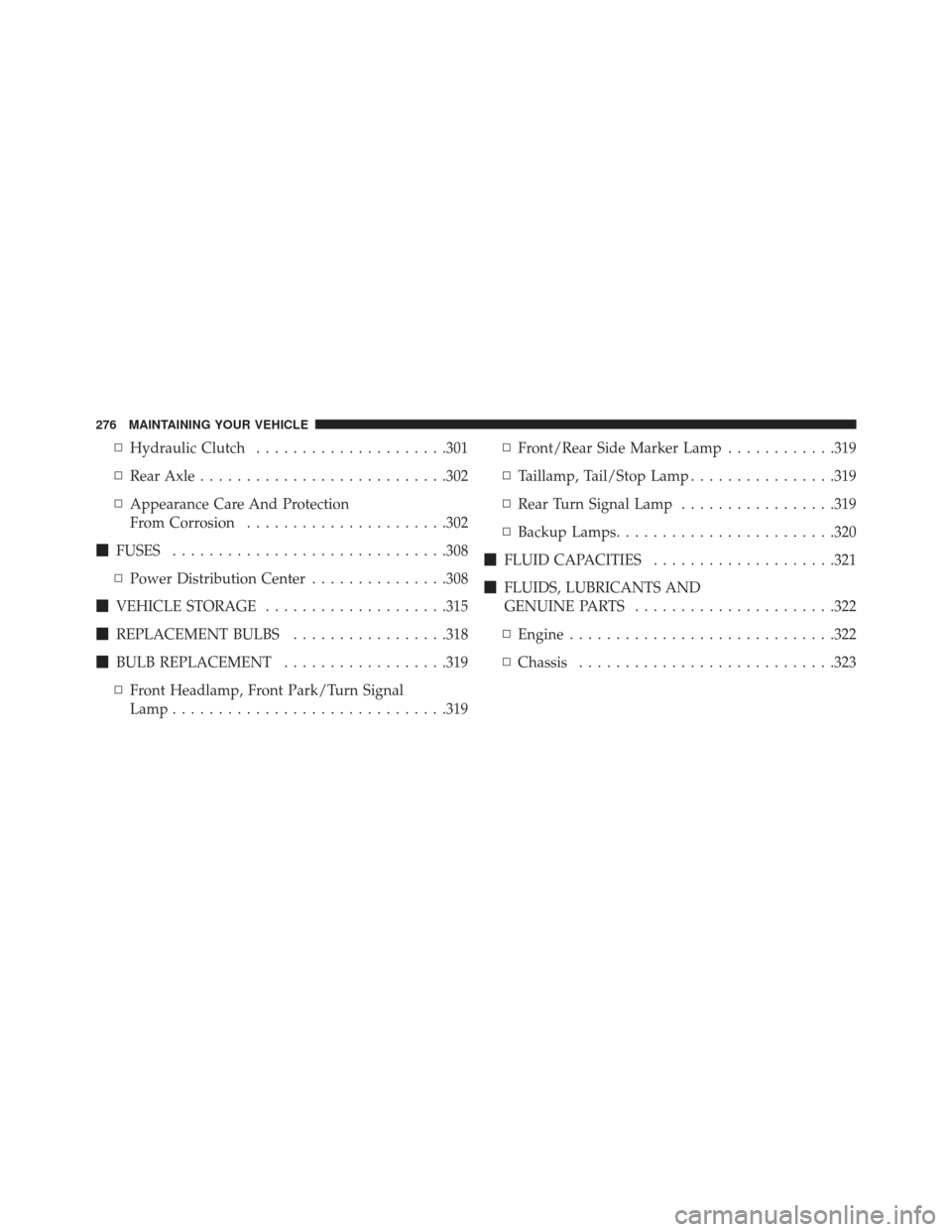

▫Hydraulic Clutch .....................301
▫ Rear Axle .......................... .302
▫ Appearance Care And Protection
From Corrosion ..................... .302
 FUSES ............................. .308
▫ Power Distribution Center ...............308
 VEHICLE STORAGE ....................315
 REPLACEMENT BULBS .................318
 BULB REPLACEMENT ..................319
▫ Front Headlamp, Front Park/Turn Signal
Lamp ............................. .319▫
Front/Rear Side Marker Lamp ............319
▫ Taillamp, Tail/Stop Lamp ................319
▫ Rear Turn Signal Lamp .................319
▫ Backup Lamps ....................... .320
 FLUID CAPACITIES ....................321
 FLUIDS, LUBRICANTS AND
GENUINE PARTS ..................... .322
▫ Engine ............................ .322
▫ Chassis ........................... .323
276 MAINTAINING YOUR VEHICLE

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Message Center
Indicators 103
Cluster 103
Gauge Pack 103
Heater Control 37
Interior Lamp LED (Serviced at
Authorized Dealer)
Courtesy Foot Well
Lights 194
Cargo Lamp (Coupe
Liftgate) 168
Exterior Bulbs
Bulb Number
Low/High Beam
Headlamp LED (Serviced at
Authorized Dealer)
Front Park/Turn Signal
Lamp LED (Serviced at
Authorized Dealer)
Front Side Marker Lamp 2886X
Center High Mounted
Stop Lamp (CHMSL) LED (Serviced at
Authorized Dealer)
Tail/Stop/Turn Signal
Lamp LED (Serviced at
Authorized Dealer)
Rear Marker Lamp 194
Backup Lamp 3157
License Lamp LED (Serviced at
Authorized Dealer)
318 MAINTAINING YOUR VEHICLE

BULB REPLACEMENT
Front Headlamp, Front Park/Turn Signal Lamp
For bulb replacement, see your authorized dealer.
Front/Rear Side Marker Lamp
1. Remove the front/rear side marker. Use a fiber stick orsimilar tool to gently pry the lamp on the outboard
side to disengage the clip.
NOTE:
• If a screwdriver is used, make sure a soft material is
placed between the vehicle body and tool so not to
scratch the paint.
2. Rotate the bulb’s socket counterclockwise, and remove the bulb and socket assembly from the housing. 3. Pull the bulb out of the socket and insert the replace-
ment bulb.
4. Install the bulb and socket assembly into the housing, and rotate the socket clockwise to lock it in place.
5. Reinstall the front/rear side marker.Taillamp, Tail/Stop Lamp
For bulb replacement, see your authorized dealer.
Rear Turn Signal Lamp
For bulb replacement, see your authorized dealer.
7
MAINTAINING YOUR VEHICLE 319
