NOTE:Leaving the hazard flashers on for extended
periods will wear down the battery.
5. High Beam Indicator
This indicator shows that the high beam head-
lights are on. Push the multifunction lever for-
ward to switch the headlights to high beam, and pull
toward yourself (normal position) to return to low beam.
6. EVIC Menu Set (Selectable ICONS)
The EVIC displays are located In the center portion of the
cluster and consists of eight section:
• Speedometer (Digital or Analog) (km/h or mph)
• Main Screen — The inner ring of the display will
illuminate in gray under normal conditions, yellow for
non critical warning, red for critical warnings and
white for on demand information. •
Selectable Information (Compass, Temp, Range, to
Empty, Trip A, Trip B, Average MPG)
• Menu Titles / Odometer
• Menu Set (Selectable Icons)
• Shift Lever Status (PRNDL)
• Reconfigurable Telltales
• Audio / Phone Information
• Sub-menu Current Position — Whenever there are
sub-menus available, the position within the sub-
menus is here
Refer to Electronic Vehicle Information Center (EVIC) for
further information.
154 UNDERSTANDING YOUR INSTRUMENT PANEL

16. EVIC Amber Telltale Lights
When the appropriate conditions exist, the following
EVIC Amber Telltale Lights will display:
•Windshield Washer Fluid Low Indicator — If
Equipped This light will turn on to indicate the wind-
shield washer fluid is low
• Low Fuel Light
When the fuel level reaches approximately 3.0 gal
(11.0 L) this light will turn on, and remain on until
fuel is added.
17. EVIC Red Telltale Lights
When the appropriate conditions exist, the following
EVIC Red Telltale Lights will display: •
Engine Temperature
This telltale warns of an overheated engine con-
dition. As temperatures rise and the gauge ap-
proaches H, or 260°F, this telltale will illuminate
and a single chime will sound after reaching a set
threshold. Further overheating will cause the tempera-
ture gauge to pass H, or 260°F, a continuous chime will
occur until the engine is allowed to cool.
If the telltale turns on while driving, safely pull over and
stop the vehicle. If the A/C system is on, turn it off. Also,
shift the transmission into NEUTRAL and idle the ve-
hicle. If the temperature reading does not return to
normal, turn the engine off immediately and call for
service. Refer to “If Your Engine Overheats” in “What To
Do In Emergencies” for more information.
160 UNDERSTANDING YOUR INSTRUMENT PANEL

ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC)
The Electronic Vehicle Information Center (EVIC) fea-
tures a driver-interactive display that is located in the
instrument cluster.This system allows the driver to select a variety of useful
information by pressing the switches mounted on the
steering wheel. The EVIC consists of the following:
•
Digital Speedometer
• SRT Performance Info
• Vehicle Info
• Fuel Economy Info
• Trip A
• Trip B
• Radio Info
• Stored Messages
• Screen Setup
• Diagnostic Codes
• Vehicle Hibernation Settings
164 UNDERSTANDING YOUR INSTRUMENT PANEL

•RIGHT Arrow Button
Press and release the RIGHT arrow button to
access/select the information screens or sub-
menu screens of a main menu item. Press and
hold the RIGHT arrow button for two seconds
to reset displayed/selected features that can be reset.
• LEFT Arrow Button
Press the LEFT arrow button to return to the
main menu from an info screen or sub-menu
item.Electronic Vehicle Information Center (EVIC)
Displays
166 UNDERSTANDING YOUR INSTRUMENT PANEL

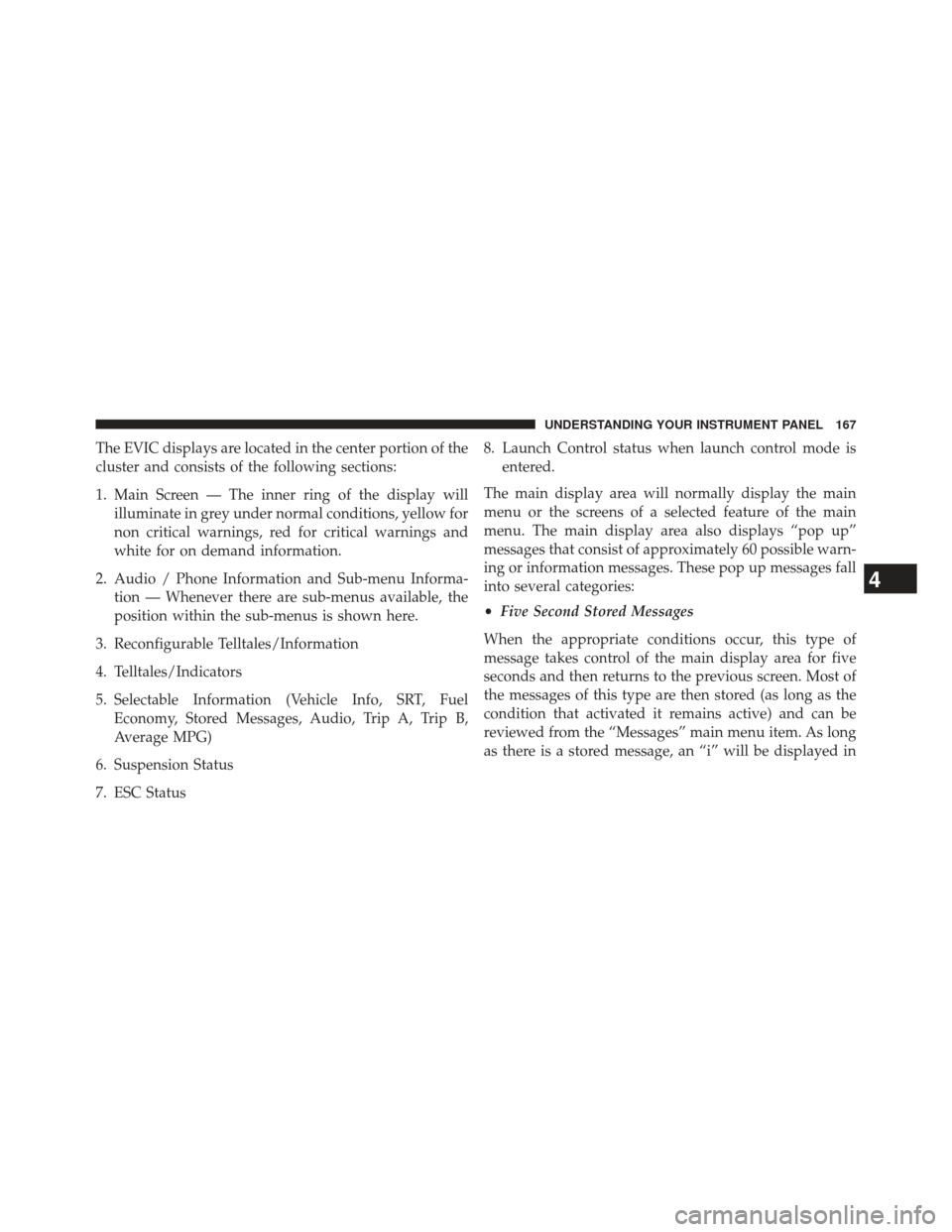

The EVIC displays are located in the center portion of the
cluster and consists of the following sections:
1. Main Screen — The inner ring of the display willilluminate in grey under normal conditions, yellow for
non critical warnings, red for critical warnings and
white for on demand information.
2. Audio / Phone Information and Sub-menu Informa- tion — Whenever there are sub-menus available, the
position within the sub-menus is shown here.
3. Reconfigurable Telltales/Information
4. Telltales/Indicators
5. Selectable Information (Vehicle Info, SRT, Fuel Economy, Stored Messages, Audio, Trip A, Trip B,
Average MPG)
6. Suspension Status
7. ESC Status 8. Launch Control status when launch control mode is
entered.
The main display area will normally display the main
menu or the screens of a selected feature of the main
menu. The main display area also displays “pop up”
messages that consist of approximately 60 possible warn-
ing or information messages. These pop up messages fall
into several categories:
• Five Second Stored Messages
When the appropriate conditions occur, this type of
message takes control of the main display area for five
seconds and then returns to the previous screen. Most of
the messages of this type are then stored (as long as the
condition that activated it remains active) and can be
reviewed from the “Messages” main menu item. As long
as there is a stored message, an “i” will be displayed in
4
UNDERSTANDING YOUR INSTRUMENT PANEL 167

the EVIC’s compass/outside temp line. Examples of this
message type are “Right Front Turn Signal Lamp Out”
and “Low Tire Pressure”.
•Unstored Messages
This message type is displayed indefinitely or until the
condition that activated the message is cleared. Examples
of this message type are “Turn Signal On” (if a turn signal
is left on) and “Lights On” (if driver leaves the vehicle).
• Five Second Unstored Messages
When the appropriate conditions occur, this type of
message takes control of the main display area for five
seconds and then returns to the previous screen. An
example of this message type is “Automatic High Beams
On”.Electronic Vehicle Information Center (EVIC)
Messages
• Front Seatbelts Unbuckled
• Driver Seatbelt Unbuckled
• Passenger Seatbelt Unbuckled
• Key Fob Battery Low
• Service Airbag System
• ESC Status
• Oil Pressure Low
• Fuel Low
• Service Antilock Brake System
• Service Electronic Throttle Control
• Cruise Off
168 UNDERSTANDING YOUR INSTRUMENT PANEL

Tachometer
Press and release the UP or DOWN arrow
button until the Tachometer icon is highlighted
in the EVIC. Press and release the RIGHT
arrow button to change the display between
full tachometer or with digital speedometer.
MPH — km/h
Press and release the UP or DOWN arrow button until
the MPH-km/h icon is highlighted in the EVIC. Press
and release the RIGHT arrow button to change the
display between MPH or km/h
Vehicle Info (Customer Information Features)
Press and release the UP or DOWN arrow
button until the Vehicle Info icon is highlighted
in the EVIC. Press and release the RIGHT arrow button and Coolant Temp will be displayed. Press
the UP or DOWN arrow button to scroll through the
following information sub-menus:
Tire Pressure
Press and release the UP or DOWN arrow button until
“Tire Pressure” is highlighted in the EVIC. Press and
release the RIGHT arrow button and one of the following
will be displayed:
•
If tire pressure is OK for all tires a vehicle ICON is
displayed with tire pressure values in each corner of
the ICON.
• If one or more tires have low pressure, The tire
pressure values in each corner of the ICON with the
pressure value of the low tire displayed in a different
color than the other tire pressure value.
• If the Tire Pressure system requires service, “Service
Tire Pressure System” is displayed.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 173

Tire PSI is an information only function and cannot be
reset. Press and release the LEFT arrow button to return
to the main menu.
Refer to “Tire Pressure Monitoring System (TPMS)”
under “Starting and Operating” for further information.
Coolant Temperature
Press and release the UP or DOWN arrow button until
“Coolant Temperature” is highlighted in the EVIC. Press
and release the RIGHT arrow button and the coolant
temperature will be displayed.
Oil Temperature
Press and release the UP or DOWN arrow button until
“Oil Temperature” is highlighted in the EVIC. Press and
release the RIGHT arrow button and the oil temperature
will be displayed.Battery Voltage
Press and release the UP or DOWN arrow button until
“Battery Voltage” is highlighted in the EVIC. Press and
release the RIGHT arrow button and the battery voltage
will be displayed.
Intake Air Temp.
Press and release the UP or DOWN arrow button until
“Intake Air Temp.” is highlighted in the EVIC. Press and
release the RIGHT arrow button and the intake air
temperature will be displayed.
Current Torque
Press and release the UP or DOWN arrow button until
“Current Torque” is highlighted in the EVIC. Press and
release the RIGHT arrow button and the current torque
will be displayed.
