2013 DODGE CHARGER headlights

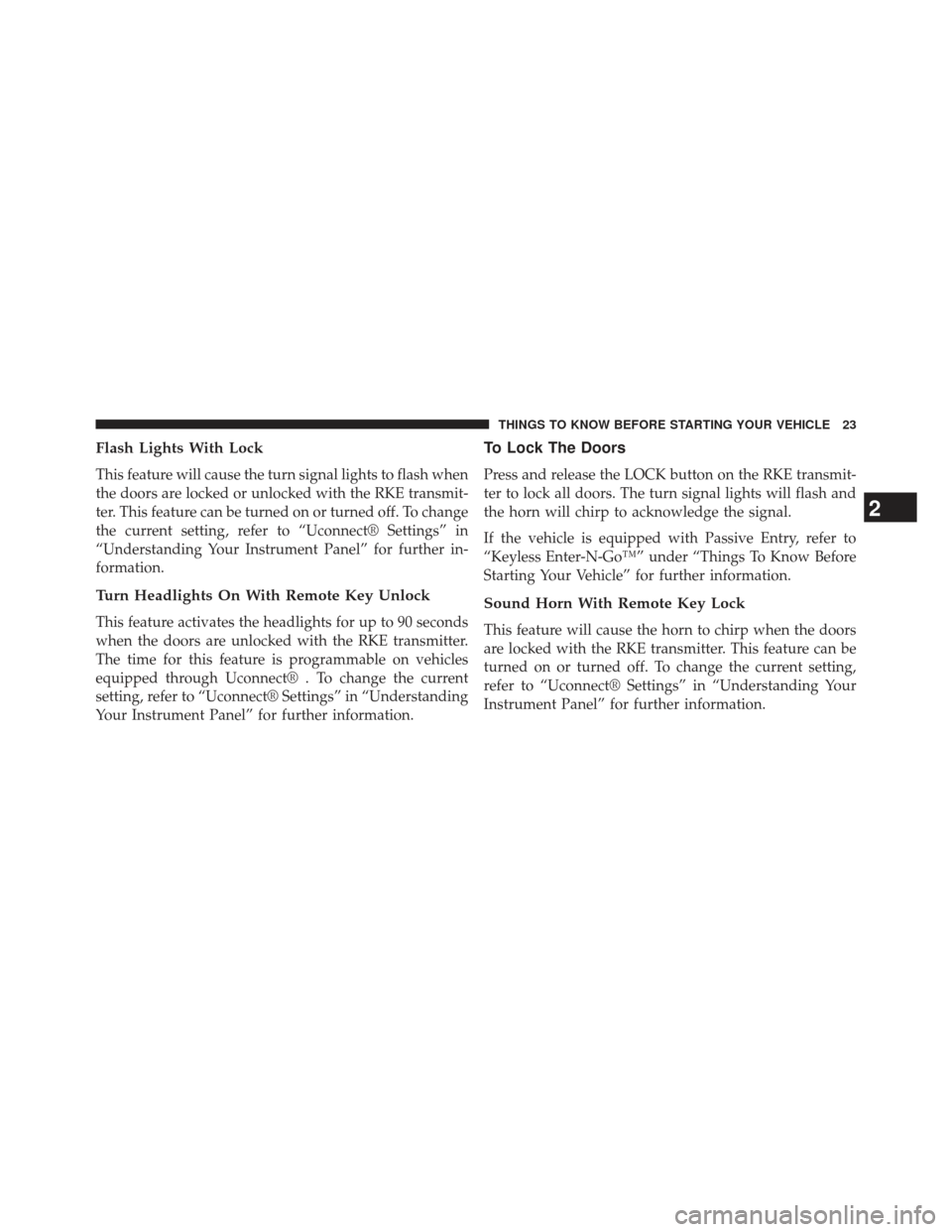

Flash Lights With Lock
This feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the RKE transmit-
ter. This feature can be turned on or turned off. To change
the current setting, refer to “Uconnect® Settings” in
“Understanding Your Instrument Panel” for further in-
formation.
Turn Headlights On With Remote Key Unlock
This feature activates the headlights for up to 90 seconds
when the doors are unlocked with the RKE transmitter.
The time for this feature is programmable on vehicles
equipped through Uconnect® . To change the current
setting, refer to “Uconnect® Settings” in “Understanding
Your Instrument Panel” for further information.
To Lock The Doors
Press and release the LOCK button on the RKE transmit-
ter to lock all doors. The turn signal lights will flash and
the horn will chirp to acknowledge the signal.
If the vehicle is equipped with Passive Entry, refer to
“Keyless Enter-N-Go™” under “Things To Know Before
Starting Your Vehicle” for further information.
Sound Horn With Remote Key Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or turned off. To change the current setting,
refer to “Uconnect® Settings” in “Understanding Your
Instrument Panel” for further information.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23

To Unlatch The Trunk
Press the TRUNK button on the RKE transmitter two
times within five seconds to unlatch the trunk.
If the vehicle is equipped with Passive Entry, refer to
“Keyless Enter-N-Go™ ” under “Things To Know Before
Starting Your Vehicle” for further information.
Using The Panic Alarm
To turn the Panic Alarm feature on or off, press and hold
the PANIC button on the RKE transmitter for at least one
second and release. When the Panic Alarm is on, the
headlights will turn on, the park lights will flash, the
horn will pulse on and off, and the interior lights will
turn on.
The Panic Alarm will stay on for three minutes unless
you turn it off by either pressing the PANIC button a
second time or drive the vehicle at a speed of 15 mph
(24 km/h) or greater.NOTE:
•
The interior lights will turn off if you cycle the ignition
switch to the ACC or ON/RUN position while the
Panic Alarm is activated. However, the exterior lights
and horn will remain on.
• You may need to be less than 35 ft (11 m) from the
vehicle when using the RKE transmitter to turn off the
Panic Alarm due to the radio frequency noises emitted
by the system.
Programming Additional Transmitters
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

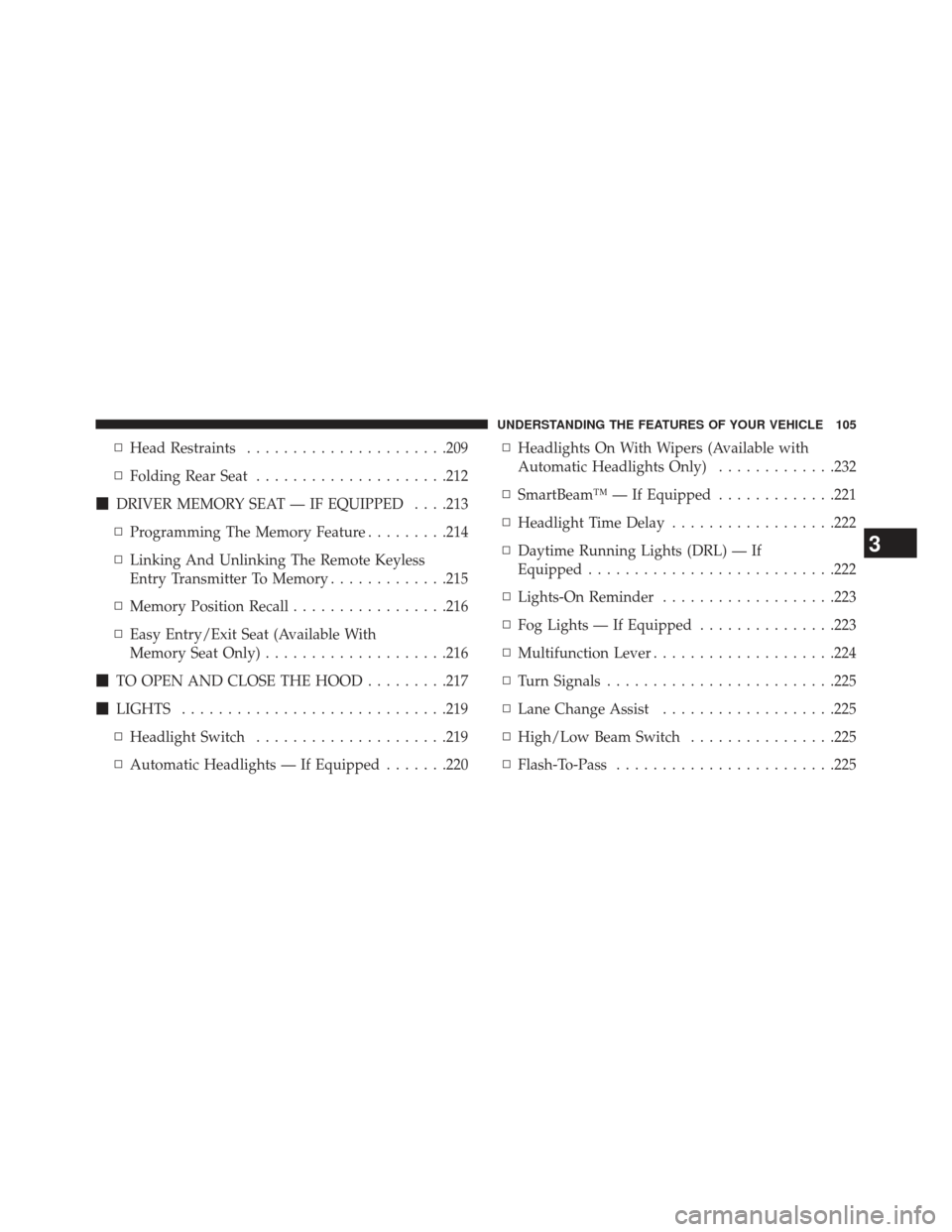

▫Head Restraints ..................... .209
▫ Folding Rear Seat .....................212
 DRIVER MEMORY SEAT — IF EQUIPPED . . . .213
▫ Programming The Memory Feature .........214
▫ Linking And Unlinking The Remote Keyless
Entry Transmitter To Memory .............215
▫ Memory Position Recall .................216
▫ Easy Entry/Exit Seat (Available With
Memory Seat Only) ....................216
 TO OPEN AND CLOSE THE HOOD .........217
 LIGHTS ............................ .219
▫ Headlight Switch .....................219
▫ Automatic Headlights — If Equipped .......220▫
Headlights On With Wipers (Available with
Automatic Headlights Only) .............232
▫ SmartBeam™ — If Equipped .............221
▫ Headlight Time Delay ..................222
▫ Daytime Running Lights (DRL) — If
Equipped .......................... .222
▫ Lights-On Reminder ...................223
▫ Fog Lights — If Equipped ...............223
▫ Multifunction Lever ....................224
▫ Turn Signals ........................ .225
▫ Lane Change Assist ...................225
▫ High/Low Beam Switch ................225
▫ Flash-To-Pass ....................... .225
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

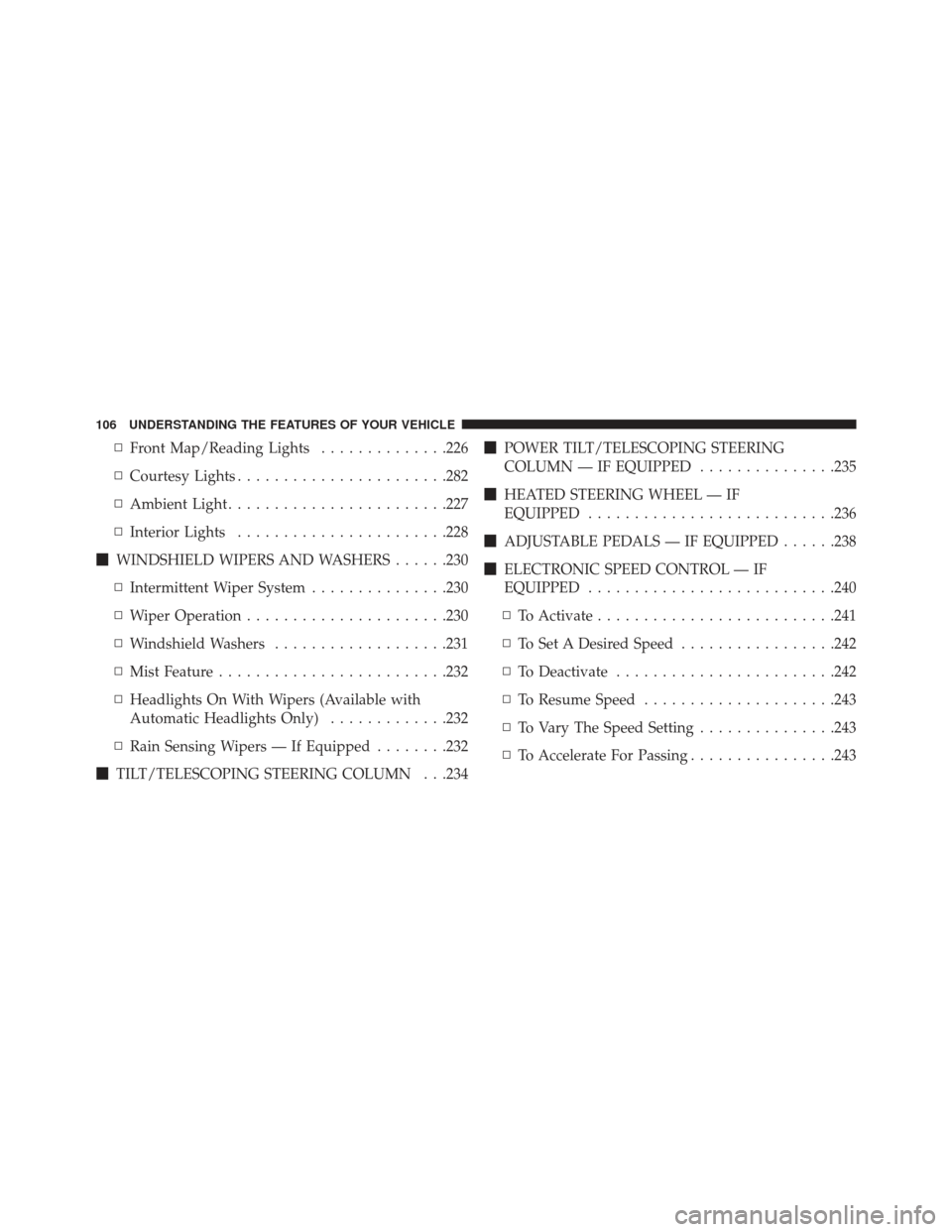

▫Front Map/Reading Lights ..............226
▫ Courtesy Lights ...................... .282
▫ Ambient Light ....................... .227
▫ Interior Lights ...................... .228
 WINDSHIELD WIPERS AND WASHERS ......230
▫ Intermittent Wiper System ...............230
▫ Wiper Operation ..................... .230
▫ Windshield Washers ...................231
▫ Mist Feature ........................ .232
▫ Headlights On With Wipers (Available with
Automatic Headlights Only) .............232
▫ Rain Sensing Wipers — If Equipped ........232
 TILT/TELESCOPING STEERING COLUMN . . .234
POWER TILT/TELESCOPING STEERING
COLUMN — IF EQUIPPED ...............235
 HEATED STEERING WHEEL — IF
EQUIPPED .......................... .236
 ADJUSTABLE PEDALS — IF EQUIPPED ......238
 ELECTRONIC SPEED CONTROL — IF
EQUIPPED .......................... .240
▫ To Activate ......................... .241
▫ To Set A Desired Speed .................242
▫ To Deactivate ....................... .242
▫ To Resume Speed .....................243
▫ To Vary The Speed Setting ...............243
▫ To Accelerate For Passing ................243
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

LIGHTS
Headlight Switch
The headlight switch is located on the left side of
the instrument panel. This switch controls the
operation of the headlights, parking lights, instru-
ment panel lights, instrument panel light dimming, inte-
rior lights and fog lights.
Rotate the headlight switch clockwise to the first detent
for parking light and instrument panel light operation.
Rotate the headlight switch to the second detent for
headlight, parking light and instrument panel light op-
eration.
Headlight Switch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 219

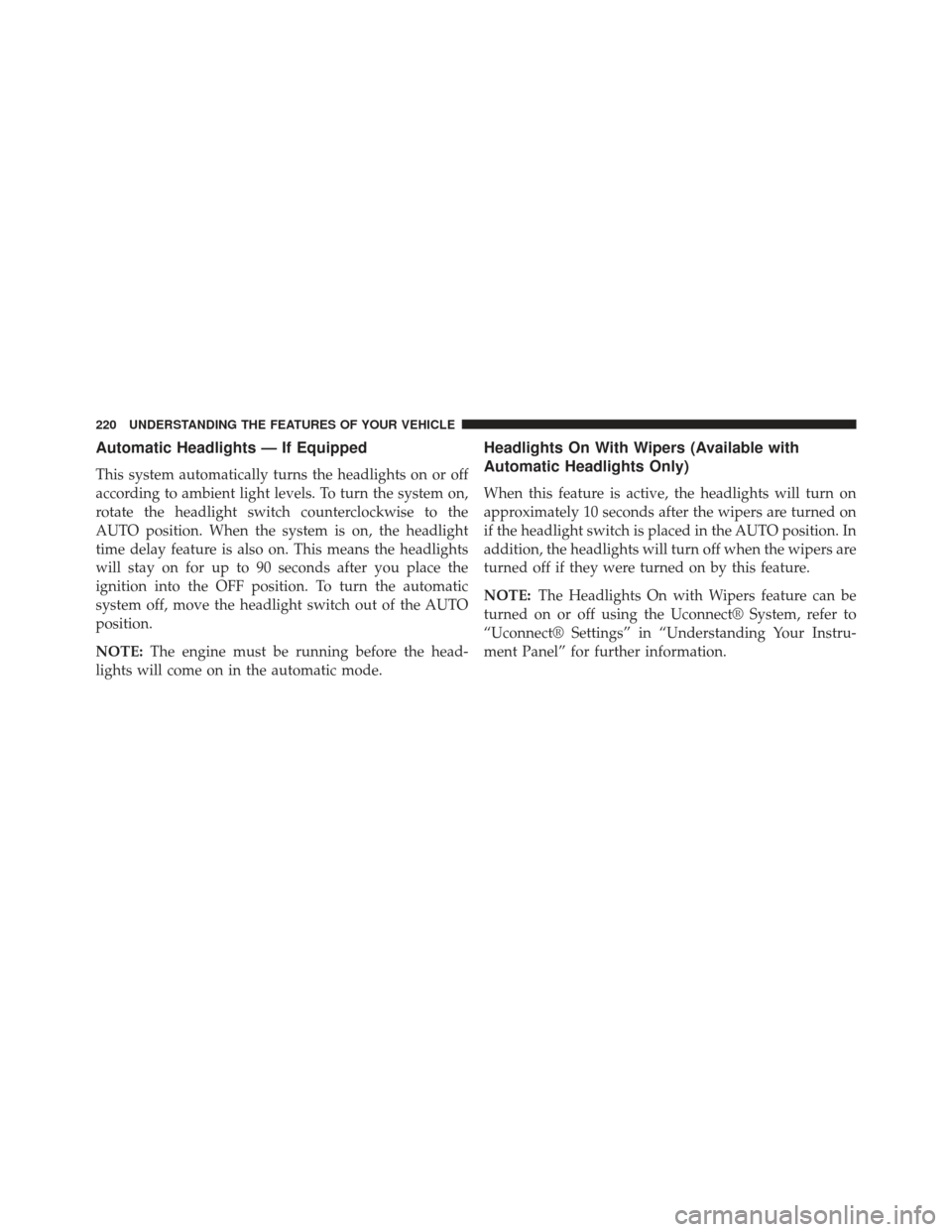

Automatic Headlights — If Equipped
This system automatically turns the headlights on or off
according to ambient light levels. To turn the system on,
rotate the headlight switch counterclockwise to the
AUTO position. When the system is on, the headlight
time delay feature is also on. This means the headlights
will stay on for up to 90 seconds after you place the
ignition into the OFF position. To turn the automatic
system off, move the headlight switch out of the AUTO
position.
NOTE:The engine must be running before the head-
lights will come on in the automatic mode.
Headlights On With Wipers (Available with
Automatic Headlights Only)
When this feature is active, the headlights will turn on
approximately 10 seconds after the wipers are turned on
if the headlight switch is placed in the AUTO position. In
addition, the headlights will turn off when the wipers are
turned off if they were turned on by this feature.
NOTE: The Headlights On with Wipers feature can be
turned on or off using the Uconnect® System, refer to
“Uconnect® Settings” in “Understanding Your Instru-
ment Panel” for further information.
220 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

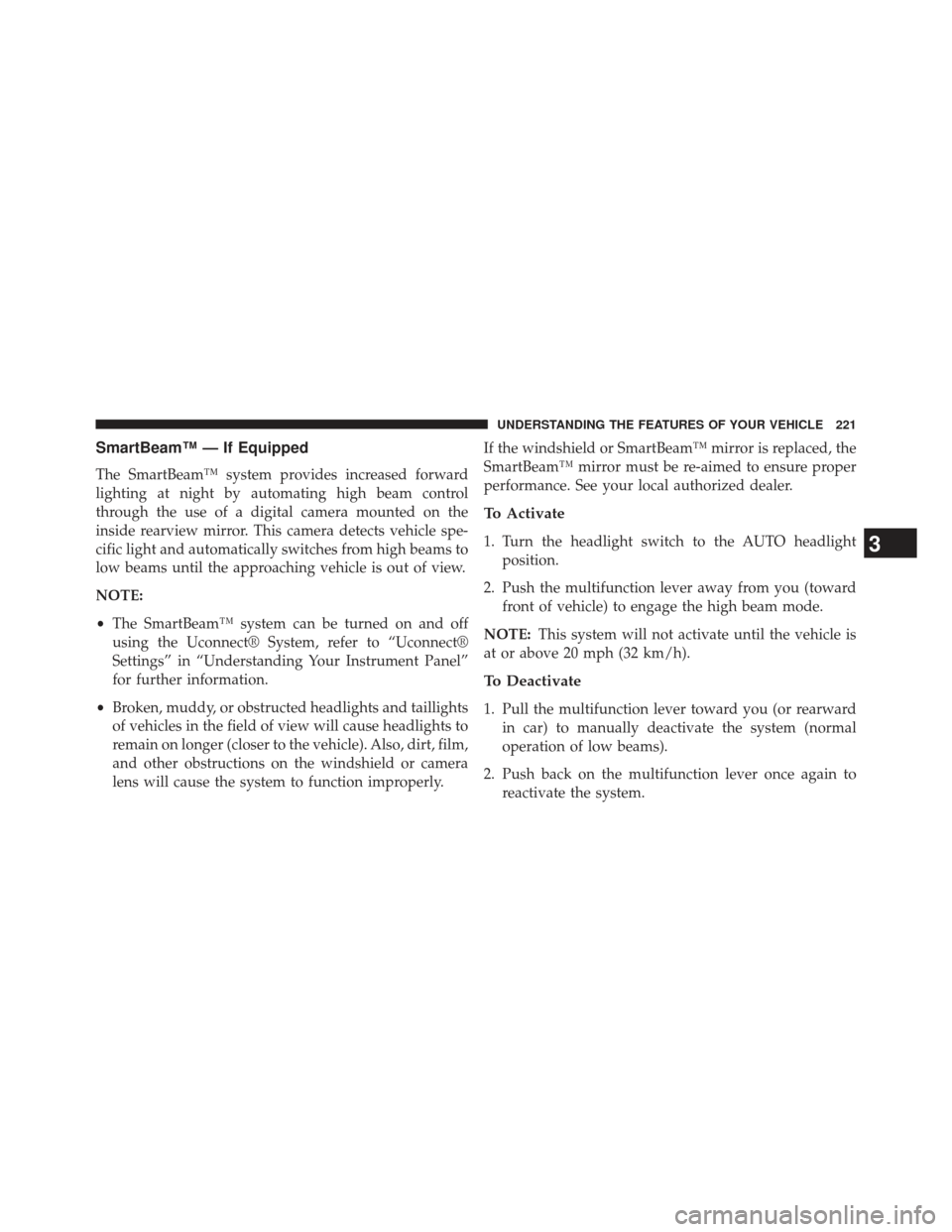

SmartBeam™ — If Equipped
The SmartBeam™ system provides increased forward
lighting at night by automating high beam control
through the use of a digital camera mounted on the
inside rearview mirror. This camera detects vehicle spe-
cific light and automatically switches from high beams to
low beams until the approaching vehicle is out of view.
NOTE:
•The SmartBeam™ system can be turned on and off
using the Uconnect® System, refer to “Uconnect®
Settings” in “Understanding Your Instrument Panel”
for further information.
• Broken, muddy, or obstructed headlights and taillights
of vehicles in the field of view will cause headlights to
remain on longer (closer to the vehicle). Also, dirt, film,
and other obstructions on the windshield or camera
lens will cause the system to function improperly. If the windshield or SmartBeam™ mirror is replaced, the
SmartBeam™ mirror must be re-aimed to ensure proper
performance. See your local authorized dealer.
To Activate
1. Turn the headlight switch to the AUTO headlight
position.
2. Push the multifunction lever away from you (toward front of vehicle) to engage the high beam mode.
NOTE: This system will not activate until the vehicle is
at or above 20 mph (32 km/h).
To Deactivate
1. Pull the multifunction lever toward you (or rearward in car) to manually deactivate the system (normal
operation of low beams).
2. Push back on the multifunction lever once again to reactivate the system.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 221

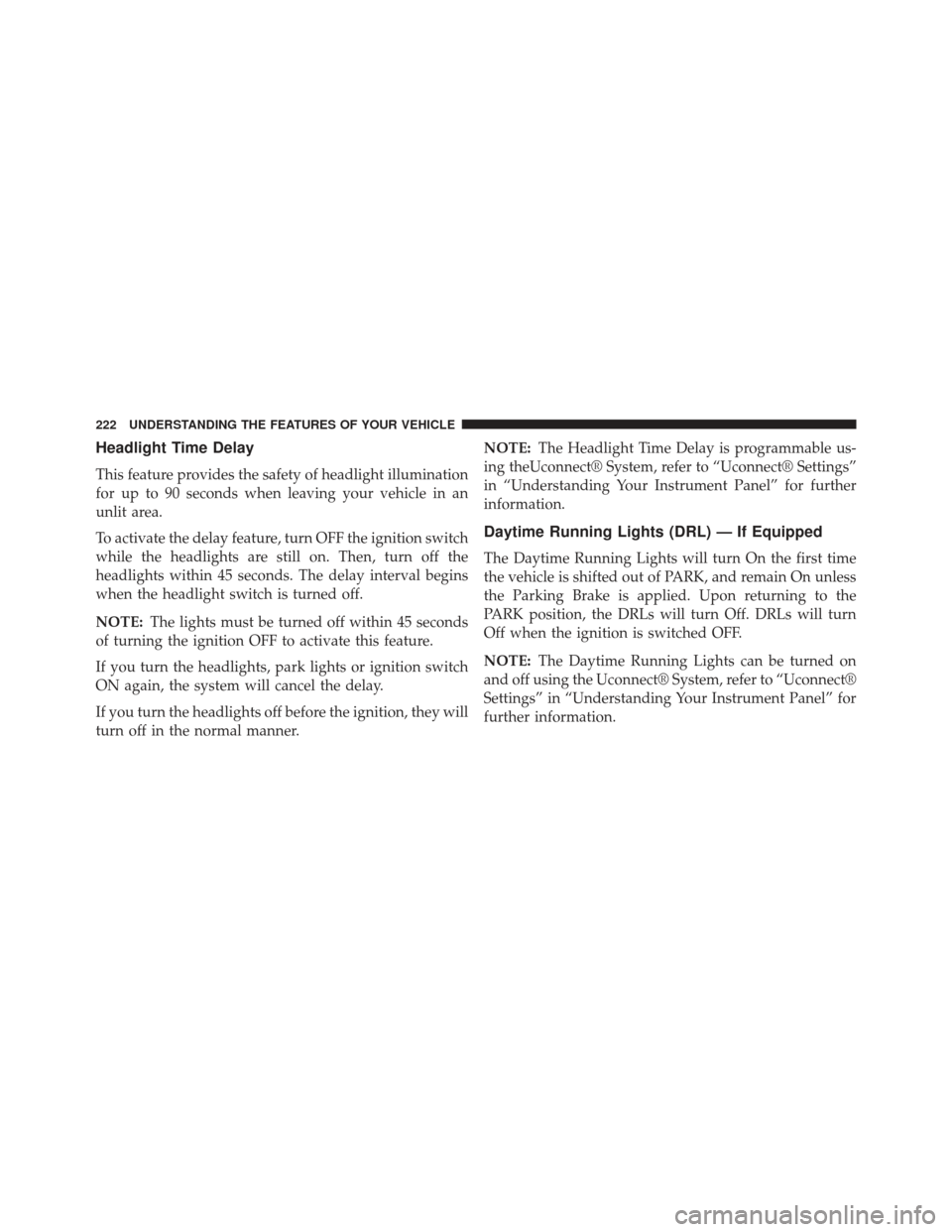

Headlight Time Delay
This feature provides the safety of headlight illumination
for up to 90 seconds when leaving your vehicle in an
unlit area.
To activate the delay feature, turn OFF the ignition switch
while the headlights are still on. Then, turn off the
headlights within 45 seconds. The delay interval begins
when the headlight switch is turned off.
NOTE:The lights must be turned off within 45 seconds
of turning the ignition OFF to activate this feature.
If you turn the headlights, park lights or ignition switch
ON again, the system will cancel the delay.
If you turn the headlights off before the ignition, they will
turn off in the normal manner. NOTE:
The Headlight Time Delay is programmable us-
ing theUconnect® System, refer to “Uconnect® Settings”
in “Understanding Your Instrument Panel” for further
information.
Daytime Running Lights (DRL) — If Equipped
The Daytime Running Lights will turn On the first time
the vehicle is shifted out of PARK, and remain On unless
the Parking Brake is applied. Upon returning to the
PARK position, the DRLs will turn Off. DRLs will turn
Off when the ignition is switched OFF.
NOTE: The Daytime Running Lights can be turned on
and off using the Uconnect® System, refer to “Uconnect®
Settings” in “Understanding Your Instrument Panel” for
further information.
222 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
