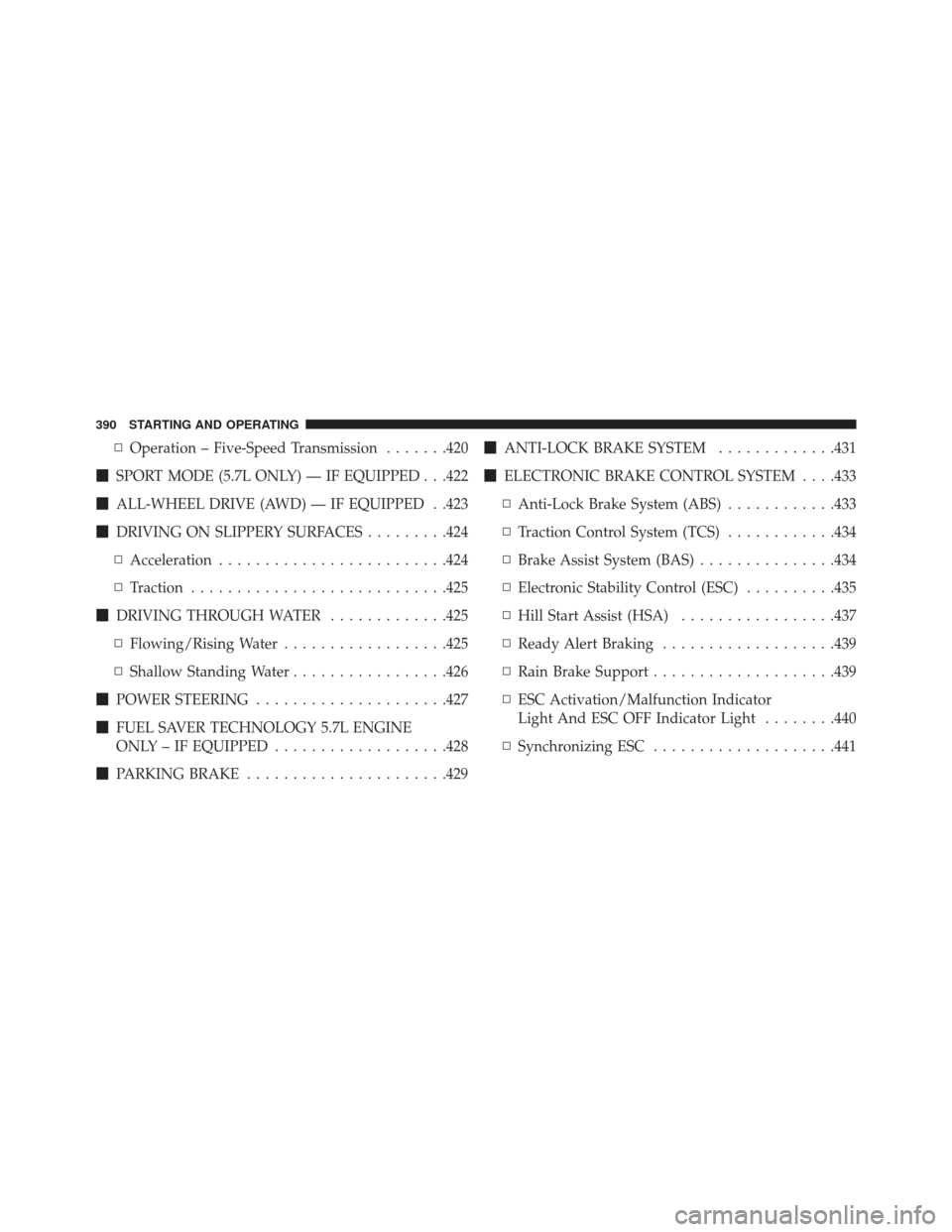

▫Operation – Five-Speed Transmission .......420
 SPORT MODE (5.7L ONLY) — IF EQUIPPED . . .422
 ALL-WHEEL DRIVE (AWD) — IF EQUIPPED . .423
 DRIVING ON SLIPPERY SURFACES .........424
▫ Acceleration ........................ .424
▫ Traction ........................... .425
 DRIVING THROUGH WATER .............425
▫ Flowing/Rising Water ..................425
▫ Shallow Standing Water .................426
 POWER STEERING .....................427
 FUEL SAVER TECHNOLOGY 5.7L ENGINE
ONLY – IF EQUIPPED ...................428
 PARKING BRAKE ..................... .429
ANTI-LOCK BRAKE SYSTEM .............431
 ELECTRONIC BRAKE CONTROL SYSTEM . . . .433
▫ Anti-Lock Brake System (ABS) ............433
▫ Traction Control System (TCS) ............434
▫ Brake Assist System (BAS) ...............434
▫ Electronic Stability Control (ESC) ..........435
▫ Hill Start Assist (HSA) .................437
▫ Ready Alert Braking ...................439
▫ Rain Brake Support ....................439
▫ ESC Activation/Malfunction Indicator
Light And ESC OFF Indicator Light ........440
▫ Synchronizing ESC ....................441
390 STARTING AND OPERATING

TIRE SAFETY INFORMATION .............441
▫ Tire Markings ....................... .441
▫ Tire Identification Number (TIN) ...........445
▫ Tire Terminology And Definitions ..........447
▫ Tire Loading And Tire Pressure ...........448
 TIRES — GENERAL INFORMATION .........452
▫ Tire Pressure ....................... .452
▫ Tire Inflation Pressures .................453
▫ Tire Pressures For High Speed Operation . . . .455
▫ Radial Ply Tires ..................... .455
▫ Tire Types .......................... .456
▫ Run Flat Tires ....................... .457
▫ Spare Tires ......................... .457▫
Tire Spinning ....................... .460
▫ Tread Wear Indicators ..................460
▫ Life Of Tire ........................ .461
▫ Replacement Tires .....................461
 TIRE CHAINS ........................ .463
 TIRE ROTATION RECOMMENDATIONS .....465
 TIRE PRESSURE MONITOR SYSTEM (TPMS) . .466
▫ Base System ........................ .468
▫ Premium System – If Equipped ............471
▫ General Information ...................476
 FUEL REQUIREMENTS ..................476
▫ 3.6L Engine – If Equipped ...............476
▫ 5.7L Engine – If Equipped ...............476
5
STARTING AND OPERATING 391

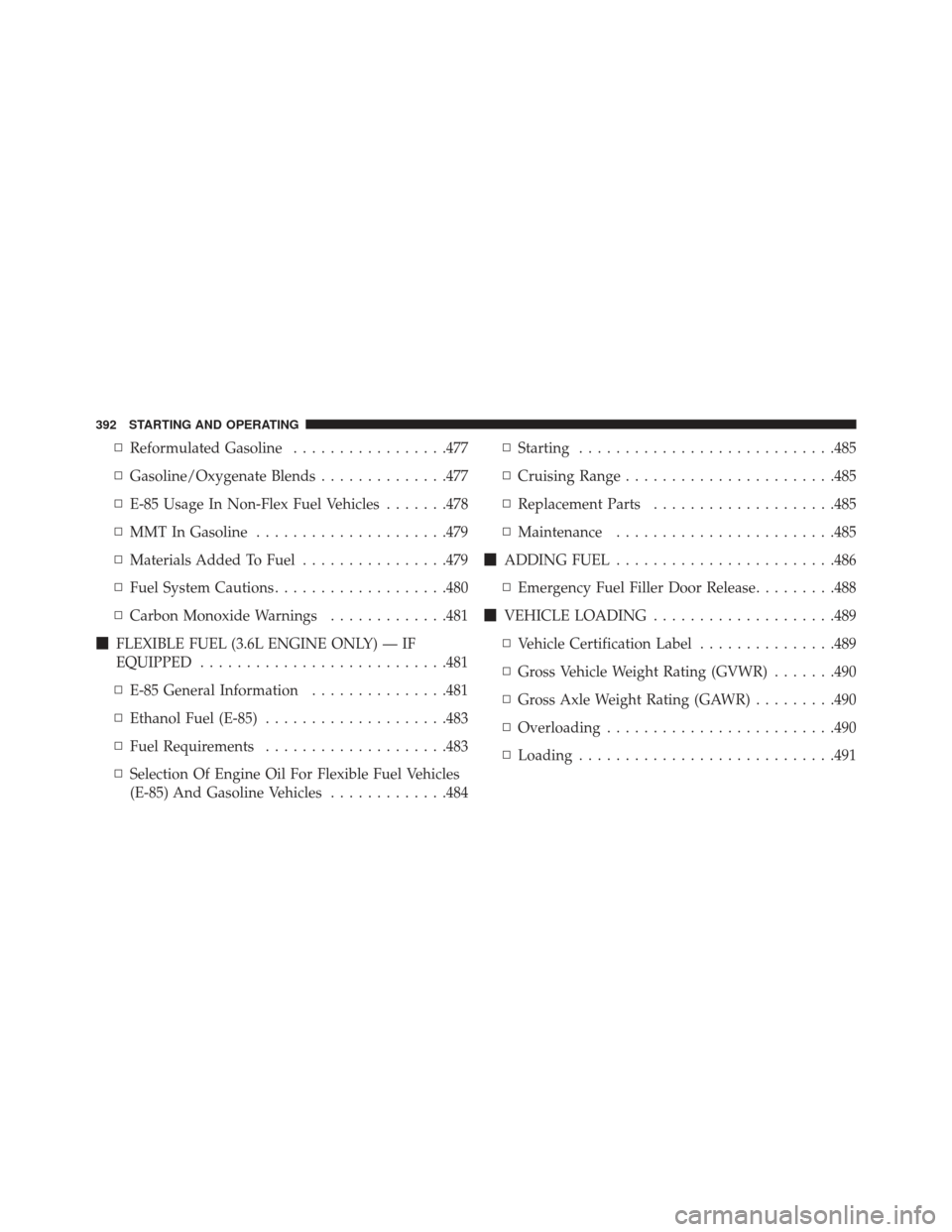

▫Reformulated Gasoline .................477
▫ Gasoline/Oxygenate Blends ..............477
▫ E-85 Usage In Non-Flex Fuel Vehicles .......478
▫ MMT In Gasoline .....................479
▫ Materials Added To Fuel ................479
▫ Fuel System Cautions ...................480
▫ Carbon Monoxide Warnings .............481
 FLEXIBLE FUEL (3.6L ENGINE ONLY) — IF
EQUIPPED .......................... .481
▫ E-85 General Information ...............481
▫ Ethanol Fuel (E-85) ....................483
▫ Fuel Requirements ....................483
▫ Selection Of Engine Oil For Flexible Fuel Vehicles
(E-85) And Gasoline Vehicles .............484▫
Starting ........................... .485
▫ Cruising Range ...................... .485
▫ Replacement Parts ....................485
▫ Maintenance ....................... .485
 ADDING FUEL ....................... .486
▫ Emergency Fuel Filler Door Release .........488
 VEHICLE LOADING ....................489
▫ Vehicle Certification Label ...............489
▫ Gross Vehicle Weight Rating (GVWR) .......490
▫ Gross Axle Weight Rating (GAWR) .........490
▫ Overloading ........................ .490
▫ Loading ........................... .491
392 STARTING AND OPERATING

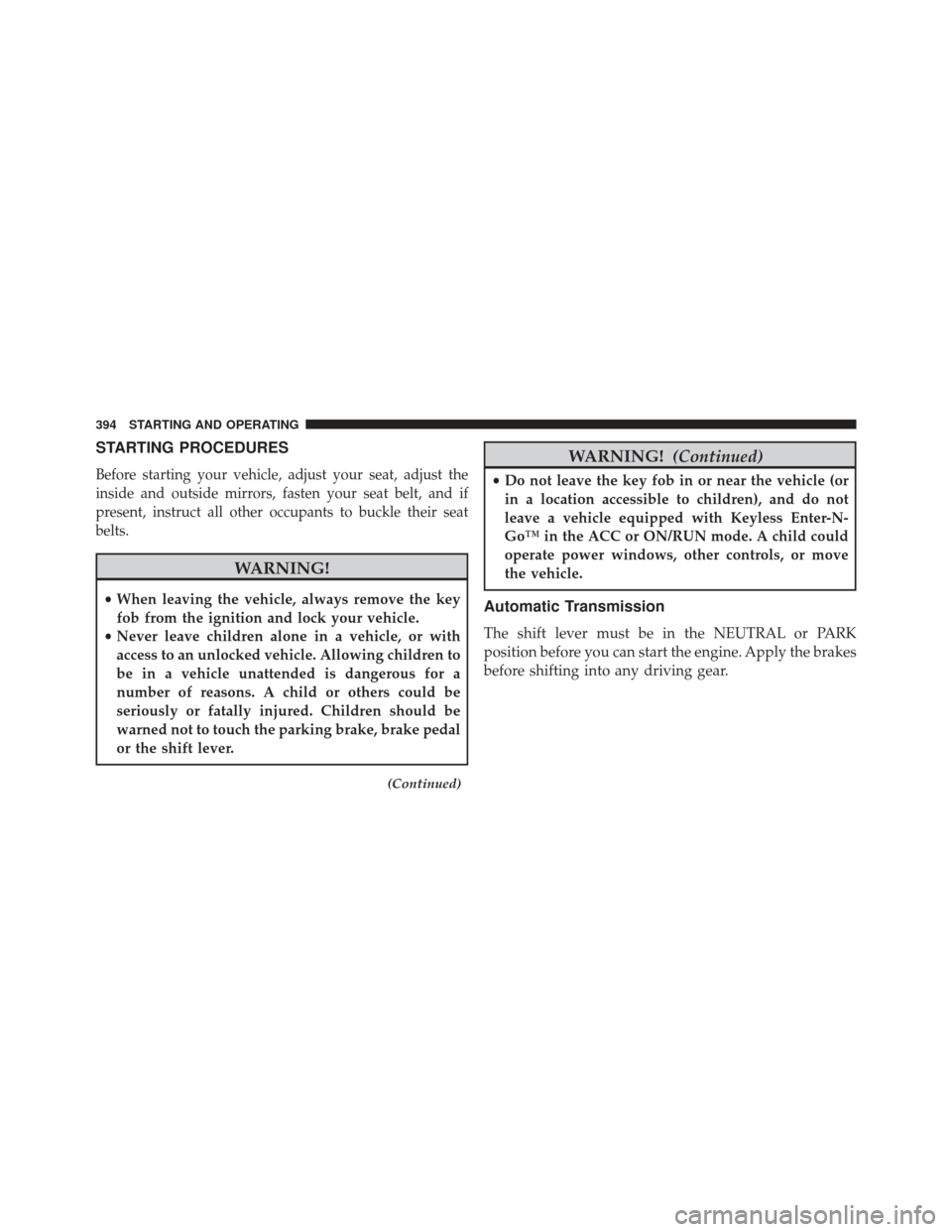

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
•When leaving the vehicle, always remove the key
fob from the ignition and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle. Allowing children to
be in a vehicle unattended is dangerous for a
number of reasons. A child or others could be
seriously or fatally injured. Children should be
warned not to touch the parking brake, brake pedal
or the shift lever.
(Continued)
WARNING! (Continued)
•Do not leave the key fob in or near the vehicle (or
in a location accessible to children), and do not
leave a vehicle equipped with Keyless Enter-N-
Go™ in the ACC or ON/RUN mode. A child could
operate power windows, other controls, or move
the vehicle.
Automatic Transmission
The shift lever must be in the NEUTRAL or PARK
position before you can start the engine. Apply the brakes
before shifting into any driving gear.
394 STARTING AND OPERATING

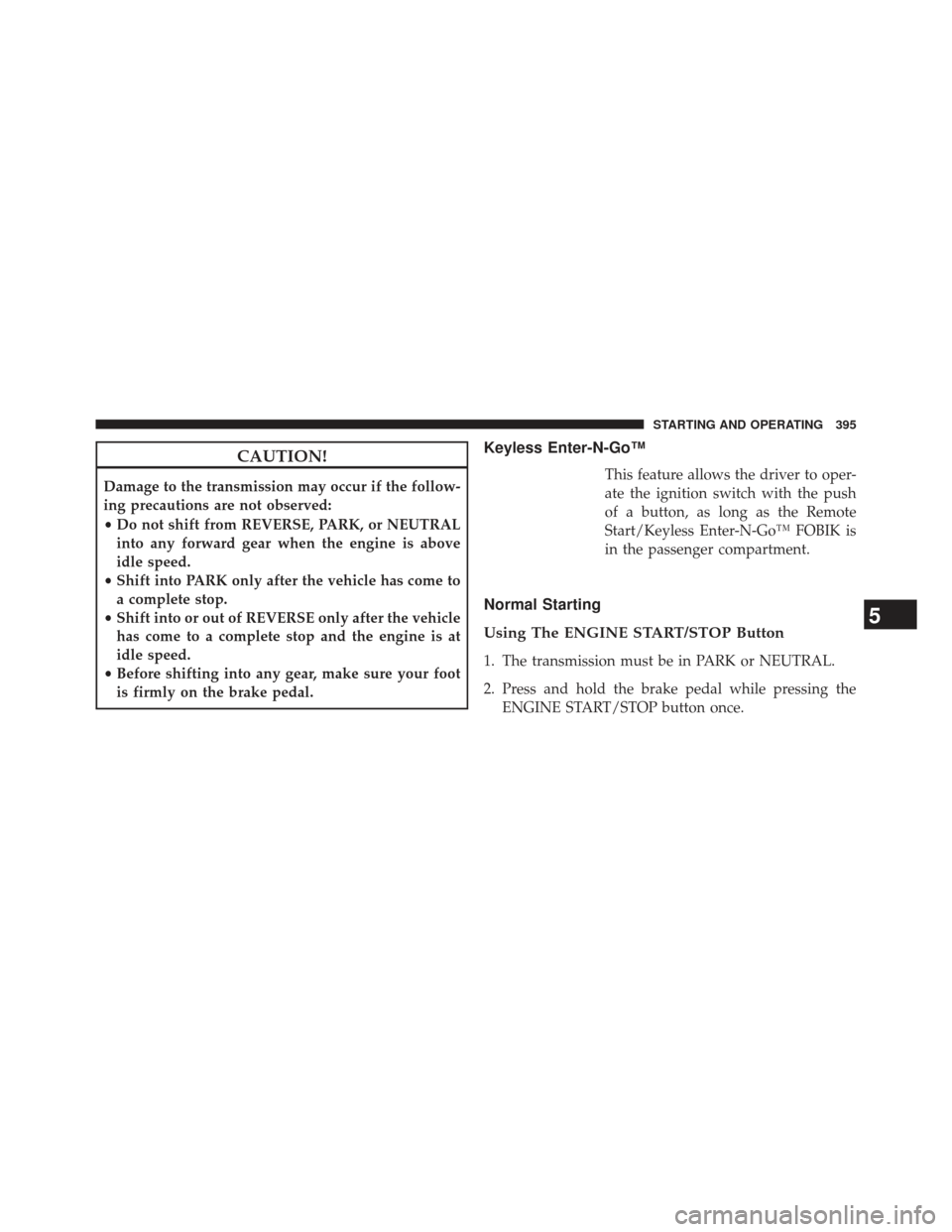

CAUTION!
Damage to the transmission may occur if the follow-
ing precautions are not observed:
•Do not shift from REVERSE, PARK, or NEUTRAL
into any forward gear when the engine is above
idle speed.
• Shift into PARK only after the vehicle has come to
a complete stop.
• Shift into or out of REVERSE only after the vehicle
has come to a complete stop and the engine is at
idle speed.
• Before shifting into any gear, make sure your foot
is firmly on the brake pedal.
Keyless Enter-N-Go™
This feature allows the driver to oper-
ate the ignition switch with the push
of a button, as long as the Remote
Start/Keyless Enter-N-Go™ FOBIK is
in the passenger compartment.
Normal Starting
Using The ENGINE START/STOP Button
1. The transmission must be in PARK or NEUTRAL.
2. Press and hold the brake pedal while pressing the ENGINE START/STOP button once.
5
STARTING AND OPERATING 395

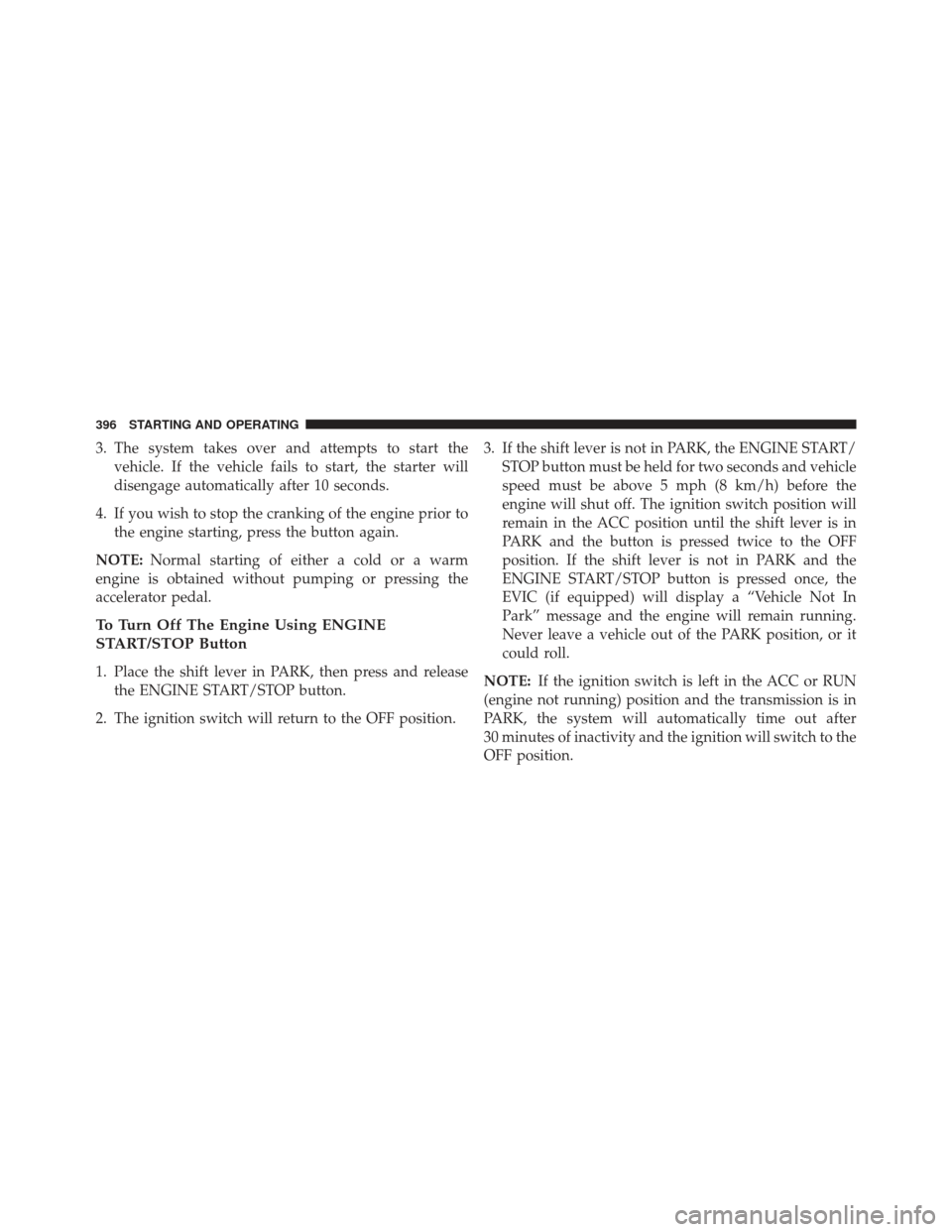

3. The system takes over and attempts to start thevehicle. If the vehicle fails to start, the starter will
disengage automatically after 10 seconds.
4. If you wish to stop the cranking of the engine prior to the engine starting, press the button again.
NOTE: Normal starting of either a cold or a warm
engine is obtained without pumping or pressing the
accelerator pedal.
To Turn Off The Engine Using ENGINE
START/STOP Button
1. Place the shift lever in PARK, then press and release the ENGINE START/STOP button.
2. The ignition switch will return to the OFF position. 3. If the shift lever is not in PARK, the ENGINE START/
STOP button must be held for two seconds and vehicle
speed must be above 5 mph (8 km/h) before the
engine will shut off. The ignition switch position will
remain in the ACC position until the shift lever is in
PARK and the button is pressed twice to the OFF
position. If the shift lever is not in PARK and the
ENGINE START/STOP button is pressed once, the
EVIC (if equipped) will display a “Vehicle Not In
Park” message and the engine will remain running.
Never leave a vehicle out of the PARK position, or it
could roll.
NOTE: If the ignition switch is left in the ACC or RUN
(engine not running) position and the transmission is in
PARK, the system will automatically time out after
30 minutes of inactivity and the ignition will switch to the
OFF position.
396 STARTING AND OPERATING

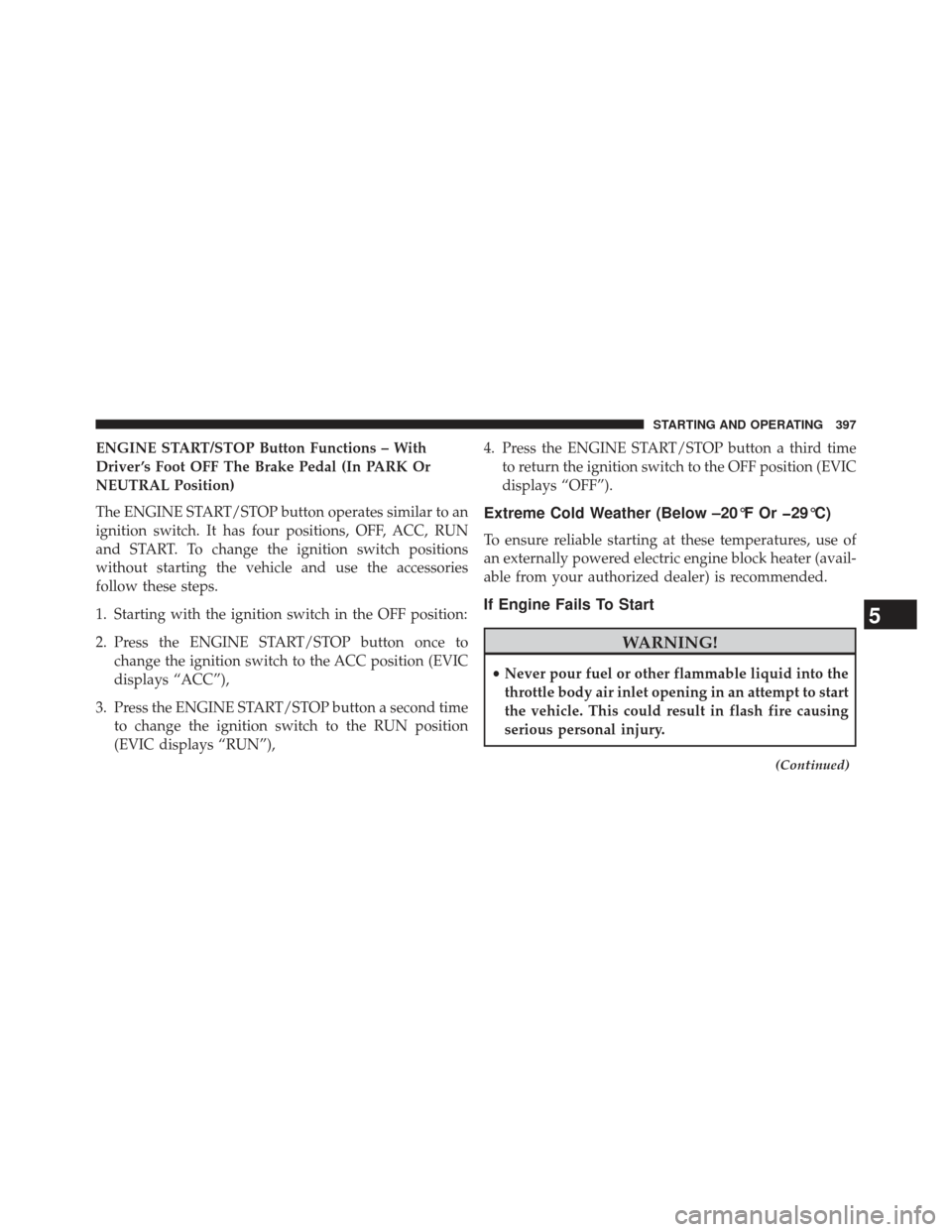

ENGINE START/STOP Button Functions – With
Driver ’s Foot OFF The Brake Pedal (In PARK Or
NEUTRAL Position)
The ENGINE START/STOP button operates similar to an
ignition switch. It has four positions, OFF, ACC, RUN
and START. To change the ignition switch positions
without starting the vehicle and use the accessories
follow these steps.
1. Starting with the ignition switch in the OFF position:
2. Press the ENGINE START/STOP button once tochange the ignition switch to the ACC position (EVIC
displays “ACC”),
3. Press the ENGINE START/STOP button a second time to change the ignition switch to the RUN position
(EVIC displays “RUN”), 4. Press the ENGINE START/STOP button a third time
to return the ignition switch to the OFF position (EVIC
displays “OFF”).
Extreme Cold Weather (Below –20°F Or 29°C)
To ensure reliable starting at these temperatures, use of
an externally powered electric engine block heater (avail-
able from your authorized dealer) is recommended.
If Engine Fails To Start
WARNING!
•Never pour fuel or other flammable liquid into the
throttle body air inlet opening in an attempt to start
the vehicle. This could result in flash fire causing
serious personal injury.
(Continued)
5
STARTING AND OPERATING 397

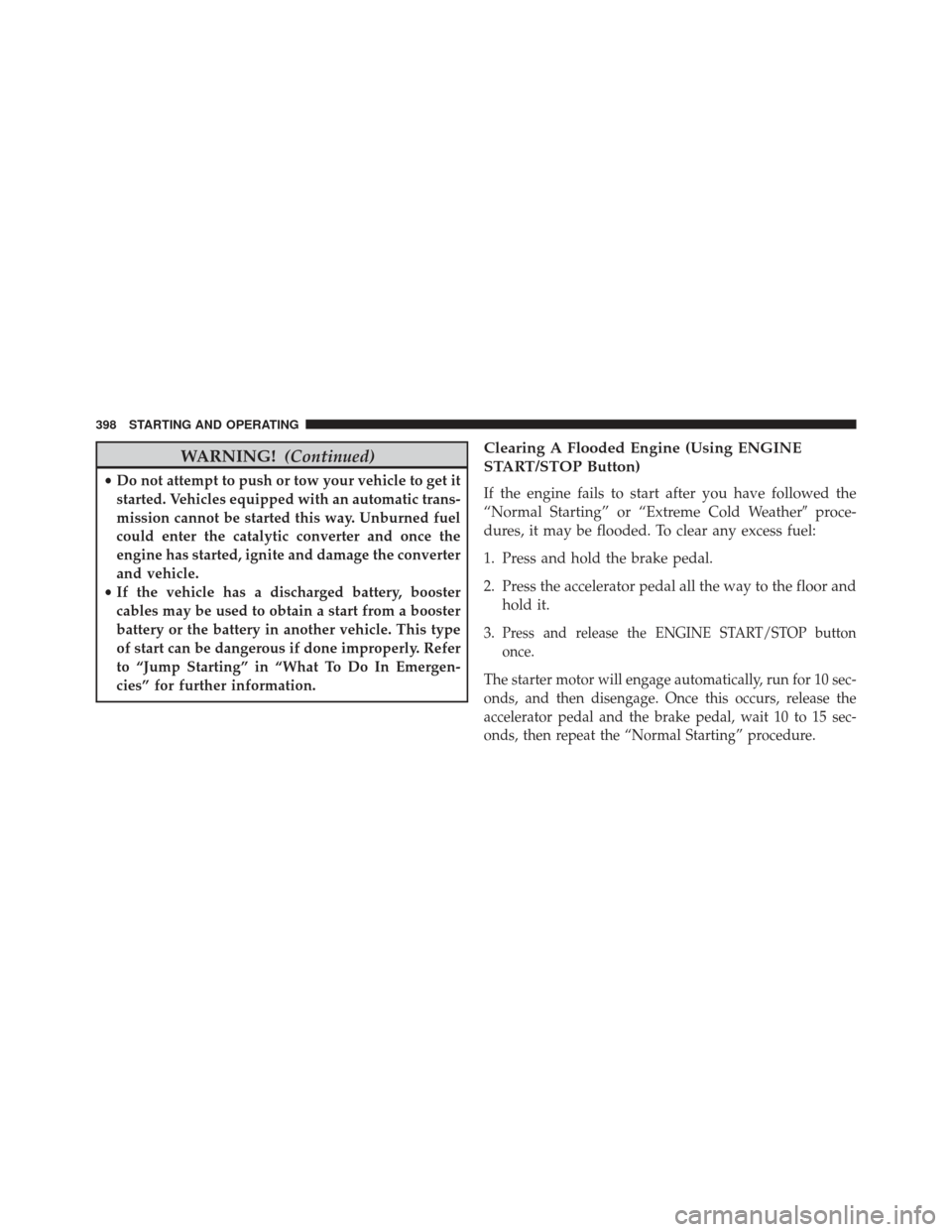

WARNING!(Continued)
•Do not attempt to push or tow your vehicle to get it
started. Vehicles equipped with an automatic trans-
mission cannot be started this way. Unburned fuel
could enter the catalytic converter and once the
engine has started, ignite and damage the converter
and vehicle.
• If the vehicle has a discharged battery, booster
cables may be used to obtain a start from a booster
battery or the battery in another vehicle. This type
of start can be dangerous if done improperly. Refer
to “Jump Starting” in “What To Do In Emergen-
cies” for further information.
Clearing A Flooded Engine (Using ENGINE
START/STOP Button)
If the engine fails to start after you have followed the
“Normal Starting” or “Extreme Cold Weather proce-
dures, it may be flooded. To clear any excess fuel:
1. Press and hold the brake pedal.
2. Press the accelerator pedal all the way to the floor and hold it.
3.
Press and release the ENGINE START/STOP button
once.
The starter motor will engage automatically, run for 10 sec-
onds, and then disengage. Once this occurs, release the
accelerator pedal and the brake pedal, wait 10 to 15 sec-
onds, then repeat the “Normal Starting” procedure.
