2013 DODGE CHARGER traction control

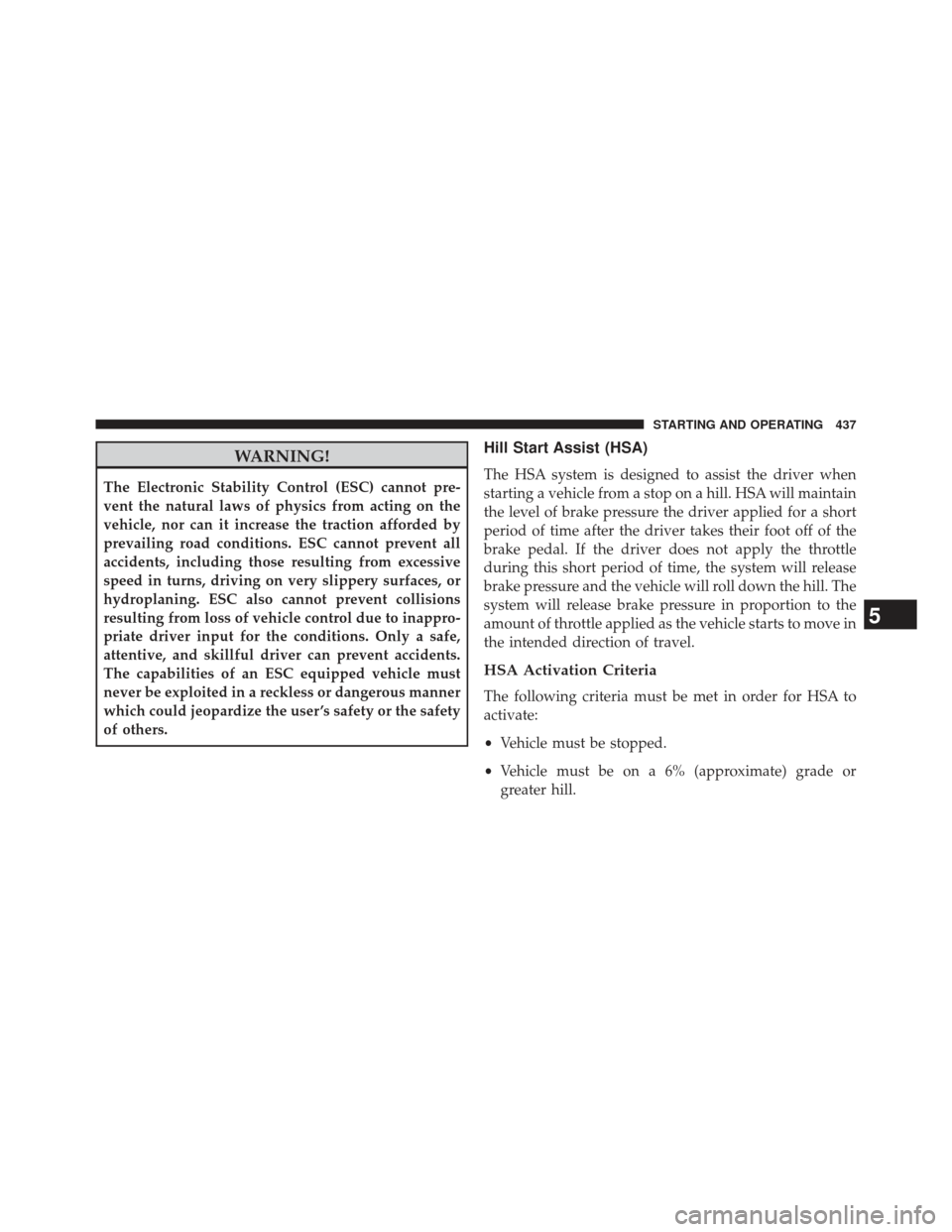

WARNING!
The Electronic Stability Control (ESC) cannot pre-
vent the natural laws of physics from acting on the
vehicle, nor can it increase the traction afforded by
prevailing road conditions. ESC cannot prevent all
accidents, including those resulting from excessive
speed in turns, driving on very slippery surfaces, or
hydroplaning. ESC also cannot prevent collisions
resulting from loss of vehicle control due to inappro-
priate driver input for the conditions. Only a safe,
attentive, and skillful driver can prevent accidents.
The capabilities of an ESC equipped vehicle must
never be exploited in a reckless or dangerous manner
which could jeopardize the user ’s safety or the safety
of others.
Hill Start Assist (HSA)
The HSA system is designed to assist the driver when
starting a vehicle from a stop on a hill. HSA will maintain
the level of brake pressure the driver applied for a short
period of time after the driver takes their foot off of the
brake pedal. If the driver does not apply the throttle
during this short period of time, the system will release
brake pressure and the vehicle will roll down the hill. The
system will release brake pressure in proportion to the
amount of throttle applied as the vehicle starts to move in
the intended direction of travel.
HSA Activation Criteria
The following criteria must be met in order for HSA to
activate:
•Vehicle must be stopped.
• Vehicle must be on a 6% (approximate) grade or
greater hill.
5
STARTING AND OPERATING 437

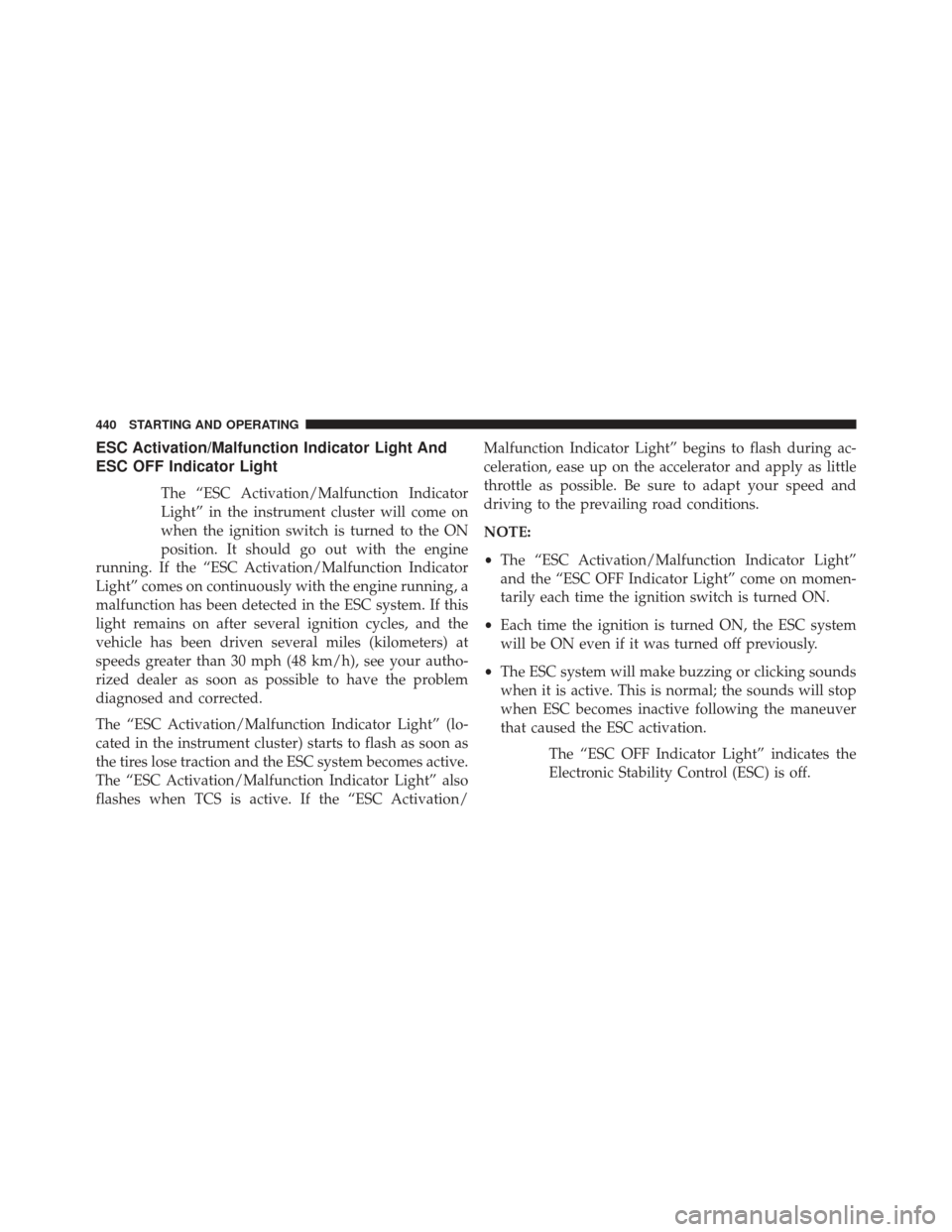

ESC Activation/Malfunction Indicator Light And
ESC OFF Indicator Light
The “ESC Activation/Malfunction Indicator
Light” in the instrument cluster will come on
when the ignition switch is turned to the ON
position. It should go out with the engine
running. If the “ESC Activation/Malfunction Indicator
Light” comes on continuously with the engine running, a
malfunction has been detected in the ESC system. If this
light remains on after several ignition cycles, and the
vehicle has been driven several miles (kilometers) at
speeds greater than 30 mph (48 km/h), see your autho-
rized dealer as soon as possible to have the problem
diagnosed and corrected.
The “ESC Activation/Malfunction Indicator Light” (lo-
cated in the instrument cluster) starts to flash as soon as
the tires lose traction and the ESC system becomes active.
The “ESC Activation/Malfunction Indicator Light” also
flashes when TCS is active. If the “ESC Activation/ Malfunction Indicator Light” begins to flash during ac-
celeration, ease up on the accelerator and apply as little
throttle as possible. Be sure to adapt your speed and
driving to the prevailing road conditions.
NOTE:
•
The “ESC Activation/Malfunction Indicator Light”
and the “ESC OFF Indicator Light” come on momen-
tarily each time the ignition switch is turned ON.
• Each time the ignition is turned ON, the ESC system
will be ON even if it was turned off previously.
• The ESC system will make buzzing or clicking sounds
when it is active. This is normal; the sounds will stop
when ESC becomes inactive following the maneuver
that caused the ESC activation.
The “ESC OFF Indicator Light” indicates the
Electronic Stability Control (ESC) is off.
440 STARTING AND OPERATING

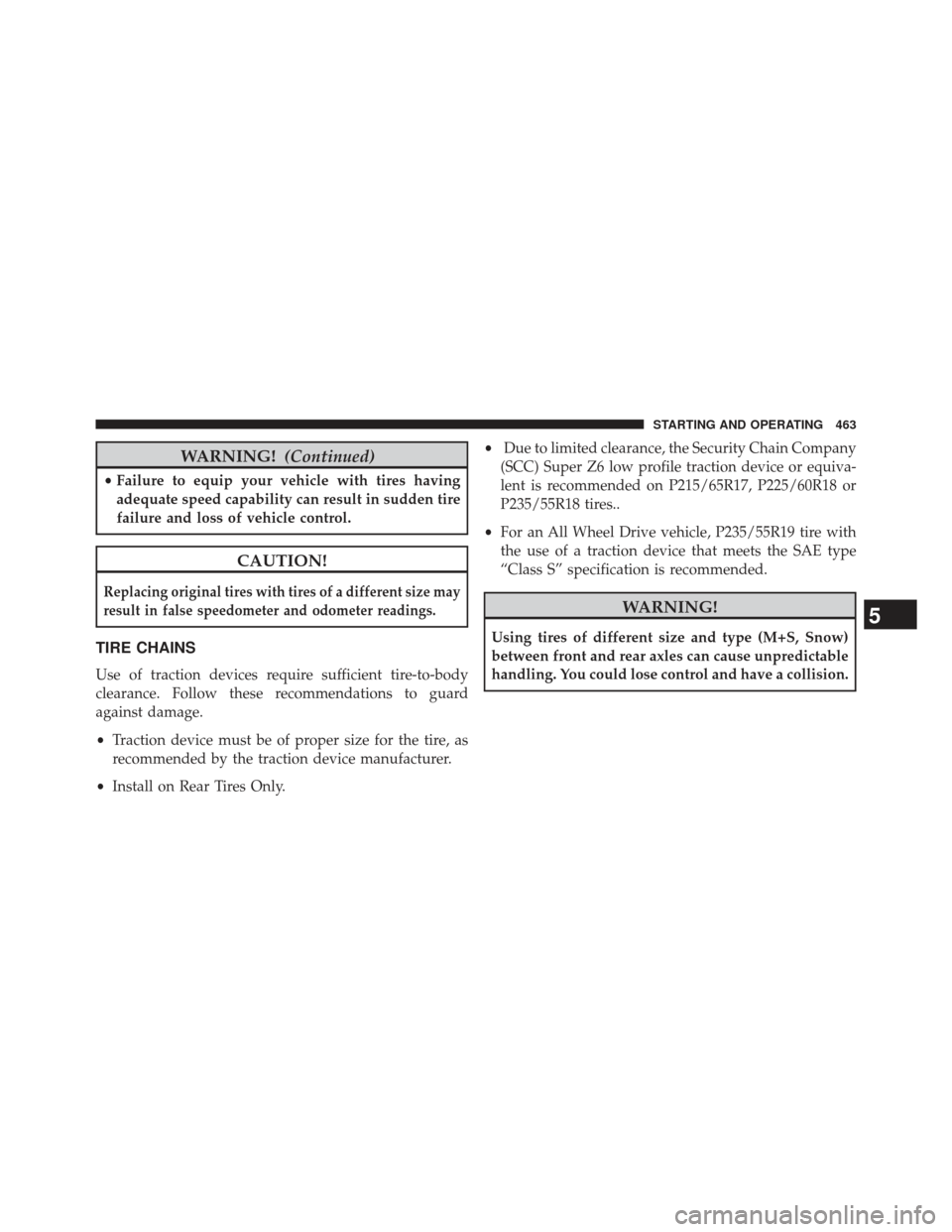

WARNING!(Continued)
•Failure to equip your vehicle with tires having
adequate speed capability can result in sudden tire
failure and loss of vehicle control.
CAUTION!
Replacing original tires with tires of a different size may
result in false speedometer and odometer readings.
TIRE CHAINS
Use of traction devices require sufficient tire-to-body
clearance. Follow these recommendations to guard
against damage.
• Traction device must be of proper size for the tire, as
recommended by the traction device manufacturer.
• Install on Rear Tires Only. •
Due to limited clearance, the Security Chain Company
(SCC) Super Z6 low profile traction device or equiva-
lent is recommended on P215/65R17, P225/60R18 or
P235/55R18 tires..
• For an All Wheel Drive vehicle, P235/55R19 tire with
the use of a traction device that meets the SAE type
“Class S” specification is recommended.
WARNING!
Using tires of different size and type (M+S, Snow)
between front and rear axles can cause unpredictable
handling. You could lose control and have a collision.
5
STARTING AND OPERATING 463

Treadwear
The Treadwear grade is a comparative rating, based on the
wear rate of the tire when tested under controlled conditions
on a specified government test course. For example, a tire
graded 150 would wear one and one-half times as well on
the government course as a tire graded 100. The relative
performance of tires depends upon the actual conditions of
their use, however, and may depart significantly from the
norm due to variations in driving habits, service practices,
and differences in road characteristics and climate.
Traction Grades
The Traction grades, from highest to lowest, are AA, A, B,
and C. These grades represent the tire’s ability to stop on
wet pavement, as measured under controlled conditions
on specified government test surfaces of asphalt and
concrete. A tire marked C may have poor traction perfor-
mance.
WARNING!
The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not
include acceleration, cornering, hydroplaning, or
peak traction characteristics.
604 IF YOU NEED CONSUMER ASSISTANCE

DrivingThrough Flowing, Rising, or Shallow
Standing Water ........................ .425
Driving to Achieve Maximum Fuel Economy ......336
E-85 Fuel .............................. .481
Electrical Power Outlets .....................296
Electric Rear Window Defrost .................308
Electric Remote Mirrors .....................113
Electronic Brake Control System ...............433
Anti-Lock Brake System ..................433
Brake Assist System .....................434
Traction Control System ...................434
Electronic Power Distribution Center (Fuses) ......570
Electronic Speed Control (Cruise Control) ........240
Electronic Stability Control (ESC) ..............435
Electronic Vehicle Information Center (EVIC) ......279
Emergency Deck Lid Release ..................45Emergency, In Case of
Freeing Vehicle When Stuck ................522
Hazard Warning Flasher ..................508
Jacking .............................. .509
Jump Starting ......................... .518
Overheating .......................... .508
Towing ............................. .527
Emergency Trunk Release ....................45
Emission Control System Maintenance ..........536
Engine ................................ .534
Air Cleaner .......................... .543
Block Heater ......................... .399
Break-In Recommendations .................97
Checking Oil Level ..................... .539
Compartment ......................... .533
Compartment Identification ................533
Coolant (Antifreeze) .....................553
Cooling ............................. .553
612 INDEX

Lights On Reminder.....................223
Low Fuel ............................ .331
Malfunction Indicator (Check Engine) .........319
Map Reading ......................... .226
Parade Mode (Daytime Brightness) ...........229
Passing ............................. .225
Reading ............................. .226
Seat Belt Reminder ..................... .324
Security Alarm (Theft Alarm) ...............322
Service .............................. .579
Service Engine Soon (Malfunction Indicator) . . . .319
SmartBeams .......................... .221
Theft Alarm (Security Alarm) ...............322
Tire Pressure Monitoring (TPMS) ............318
Traction Control ....................... .440
Turn Signal .......................... .102
Vanity Mirror ..........................114
Warning (Instrument Cluster Description) ......316Loading Vehicle
......................... .489
Capacities ........................... .491
Tires ............................... .448
Load Leveling System ..................... .309
Locks ..................................30
Automatic Door .........................33
Auto Unlock ...........................33
Child Protection .........................33
Door .................................30
Power Door ............................32
Low Tire Pressure System ...................466
Lubrication, Body ........................ .549
Maintenance Free Battery ....................544
Maintenance Procedures ....................538
Maintenance Schedule ..................... .588
Malfunction Indicator Light (Check Engine) .......319
Manual, Service ......................... .602
618 INDEX

Replacement.......................... .461
Rotation ............................. .465
Safety .............................. .441
Sizes ............................... .443
Snow Tires ........................... .456
Spare Tire ............................ .510
Spinning ............................ .460
Trailer Towing ........................ .500
Tread Wear Indicators ....................460
Tire Safety Information .....................441
Tongue Weight/Trailer Weight ................496
Towing ............................... .491
Disabled Vehicle ....................... .527
Guide .............................. .496
Recreational .......................... .505
Weight .............................. .496
Traction ............................... .424
Traction Control ......................... .434
Trailer Towing .......................... .491Cooling System Tips
.....................504
Hitches ............................. .495
Minimum Requirements ..................498
Tips................................ .503
Trailer and Tongue Weight .................496
Wiring .............................. .501
Trailer Towing Guide ...................... .496
Trailer Weight ........................... .496
Transfer Case ........................... .563
Fluid ............................... .563
Maintenance .......................... .563
Transmission Automatic ........................... .399
Fluid ............................... .561
Maintenance .......................... .561
Shifting ............................. .399
T

ransmitter Battery Service (Remote Keyless Entry) . .25
Transmitter Programming (Remote Keyless Entry) . . .21
Transmitter, Remote Keyless Entry (RKE) .........21
10
INDEX 625
