2013 DODGE CHALLENGER SRT headlight bulb

If you turn the headlights off before the ignition, they will
turn off in the normal manner.
NOTE:The lights must be turned off within 45 seconds
of placing the ignition in the OFF position to activate this
feature.
The Headlight delay time is programmable. Refer to
“Electronic Vehicle Information Center (EVIC)/
Customer-Programmable Features” in “Understanding
Your Instrument Panel” for further information.
Daytime Running Lights — If Equipped
The headlights will come on as Daytime Running Lights
(DRL) whenever the ignition is placed in the RUN
position, the headlights are off and the parking brake is
released. The headlight switch must be used for normal
nighttime driving. If vehicle is equipped with High Intensity Discharge
(HID) headlights, the front turn signal lamps provide the
DRL function. If equipped, the DRL will flash when a
turn signal is in operation, and return to DRL mode when
the turn signal is no longer flashing.
WARNING!
A transient high voltage occurs at the bulb sockets of
HID headlamps when the headlamp switch is turned
ON. It may cause serious electrical shock or electro-
cution if not serviced properly. See your authorized
dealer for service.
Lights-On Reminder
If the headlights or parking lights are on after the ignition
is in the OFF position, a chime will sound to alert the
driver when the driver’s door is opened.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161

Multifunction Lever
The multifunction lever controls the operation of the turn
signals, headlight beam selection and passing lights. The
multifunction lever is located on the left side of the
steering column.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.
NOTE:
•If either light remains on and does not flash, or there is
a very fast flash rate, check for a defective outside light
bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
• A “Turn Signal On” message will appear in the Elec-
tronic Vehicle Information Center (EVIC) and a con-
tinuous chime will sound if the vehicle is driven more
than 1 mile (1.6 km) with either turn signal on.
Multifunction Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 163

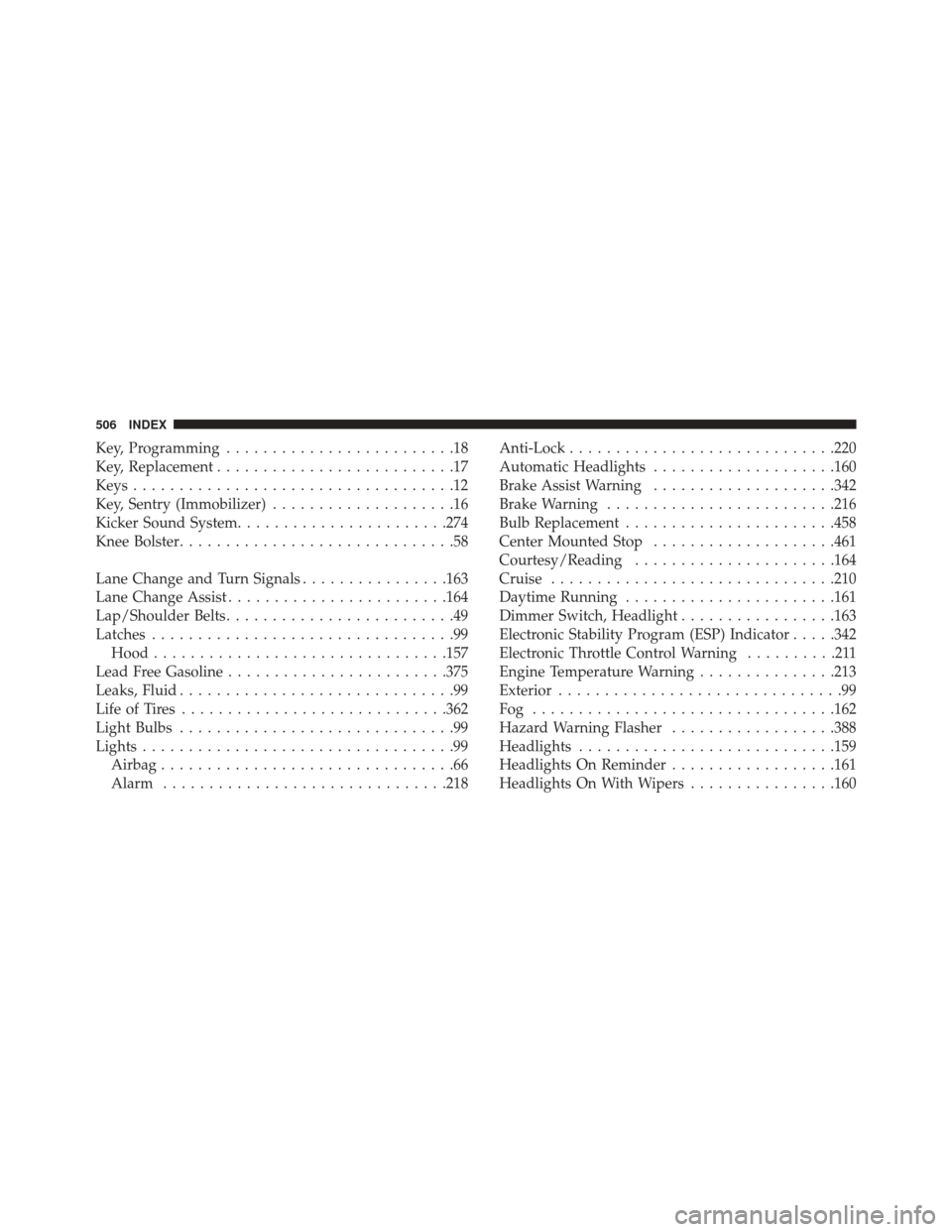

Key, Programming.........................18
Key, Replacement ..........................17
Keys ...................................12
Key, Sentry (Immobilizer) ....................16
Kicker Sound System ...................... .274
Knee Bolster ..............................58
Lane Change and Turn Signals ................163
Lane Change Assist ....................... .164
Lap/Shoulder Belts .........................49
Latches .................................99
Hood ............................... .157
Lead Free Gasoline ....................... .375
Leaks, Fluid ..............................99
Life of Tires ............................ .362
Light Bulbs ..............................99
Lights ..................................99
Airbag ................................66
Alarm .............................. .218Anti-Lock
............................ .220
Automatic Headlights ....................160
Brake Assist Warning ....................342
Brake Warning ........................ .216
Bulb Replacement ...................... .458
Center Mounted Stop ....................461
Courtesy/Reading ..................... .164
Cruise .............................. .210
Daytime Running ...................... .161
Dimmer Switch, Headlight .................163
Electronic Stability Program (ESP) Indicator .....342
Electronic Throttle Control Warning ..........211
Engine Temperature Warning ...............213
Exterior ...............................99
Fog ................................ .162
Hazard Warning Flasher ..................388
Headlights ........................... .159
Headlights On Reminder ..................161
Headlights On With Wipers ................160
506 INDEX
