1.41
ENG_UD38141_5
Poste de conduite direction à gauche (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
DRIVER’S POSITION, LEFT-HAND DRIVE (2/2)
The presence of the equipment DEPENDS ON THE VEHICLE VERSION AND COUNTRY.
1 Side air vent.
2 Side demister outlet.
3 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog lights,
– horn.
4 Instrument panel.
5 Location for driver’s airbag.
6 Steering column stalk for winds-
creen and rear screen wash/wipe.
On-board computer information
readout control.
7 Centre air vents.
8 Central demister outlet.
9 Location for passenger airbag.
10 Side demister outlet.
11 Side air vent. 12 Passenger airbag activation/deac-
tivation switch.
13 Glovebox.
14 Hazard warning lights switch.
15 Electric central locking switch.
16 Location for radio or storage com-
partment.
17 Heating and ventilation controls.
18 Rear screen and door mirror de-
icing control
19 Cigarette lighter.
Accessories socket.
20 Handbrake.
21 Activation/deactivation controls for
the Stop and Start. function
22 LPG control
23 Location for ashtray or cup holder. 24 Gear lever.
25 ECO mode switch.
26 Cruise control/speed limiter main
control.
27 Ignition switch.
28 Radio remote control.
29 Cruise control/speed limiter
controls.
30 Beam height adjustment control.
31 Fuse box.
Storage box.
32 Bonnet release control.
33 Controls for:
– activating/deactivating the trac-
tion control system,
– activating/deactivating the par-
king distance control.
34 Door mirror adjustment control.
Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.27
ENG_UD38160_5
Fusibles (X92 - Renault) ENG_NU_975-8_X92_Dacia_5

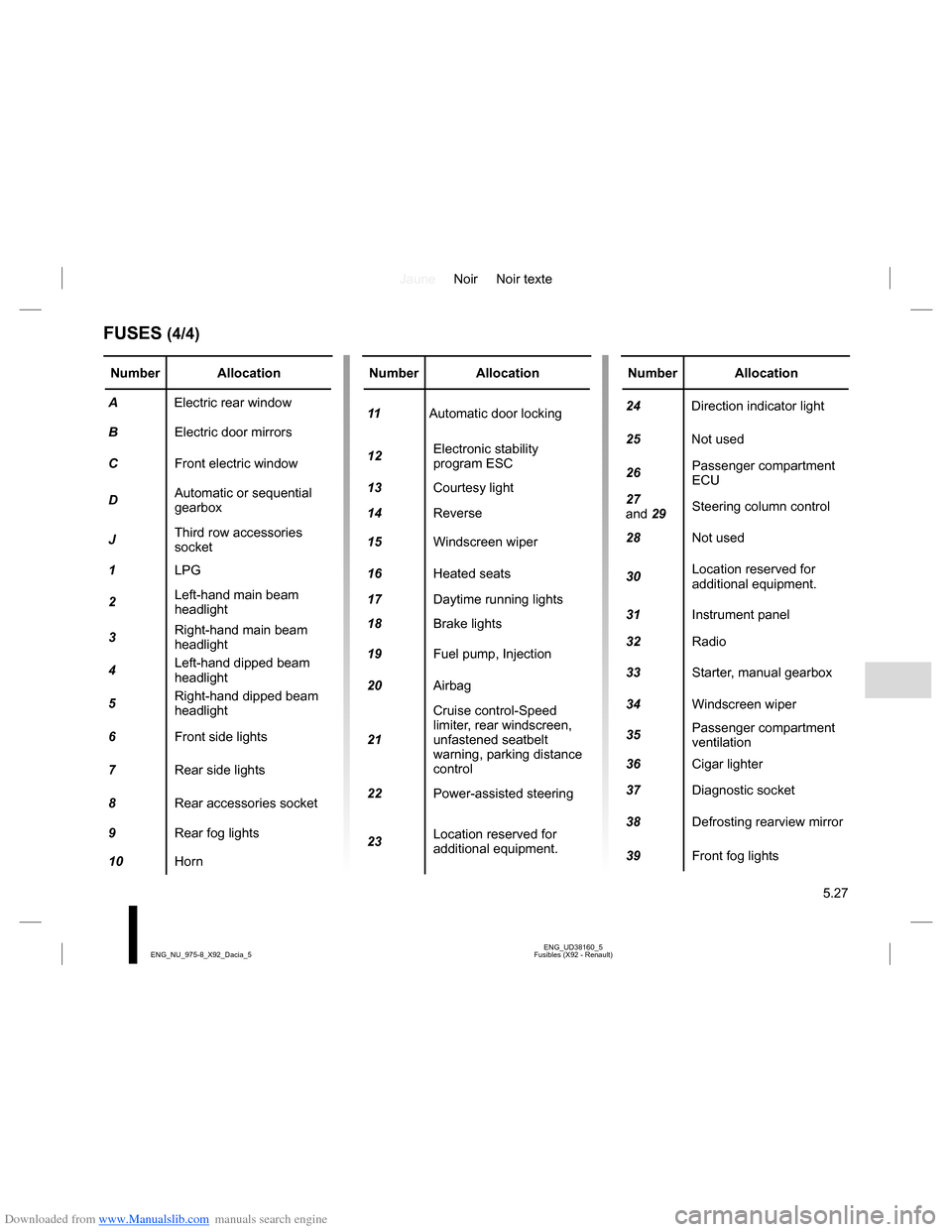

FUSES (4/4)
Number Allocation
A Electric rear window
BElectric door mirrors
CFront electric window
DAutomatic or sequential
gearbox
JThird row accessories
socket
1LPG
2Left-hand main beam
headlight
3Right-hand main beam
headlight
4Left-hand dipped beam
headlight
5Right-hand dipped beam
headlight
6Front side lights
7Rear side lights
8Rear accessories socket
9Rear fog lights
10HornNumber Allocation
11Automatic door locking
12Electronic stability
program ESC
13Courtesy light
14Reverse
15Windscreen wiper
16Heated seats
17Daytime running lights
18Brake lights
19Fuel pump, Injection
20Airbag
21Cruise control-Speed
limiter, rear windscreen,
unfastened seatbelt
warning, parking distance
control
22Power-assisted steering
23Location reserved for
additional equipment.Number Allocation
24 Direction indicator light
25 Not used
26Passenger compartment
ECU
27
and 29Steering column control
28Not used
30Location reserved for
additional equipment.
31Instrument panel
32Radio
33Starter, manual gearbox
34Windscreen wiper
35Passenger compartment
ventilation
36Cigar lighter
37Diagnostic socket
38Defrosting rearview mirror
39Front fog lights
