Eclairages et signalisations extérieures (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
EXTERIOR LIGHTING AND SIGNALS (1/2)
šSide lights
Turn the end of stalk 1 until the
symbol is opposite mark 2.
kDipped beam
headlights
Turn the end of stalk 1 until the symbol
is opposite mark 2.
This indicator light on the instrument
panel comes on.
áMain beam headlightsWith the dipped beam
headlights lit, push stalk 1. This indica-
tor light on the instrument panel comes
on.
To return to the dipped headlight posi-
tion, pull the stalk 1 towards you again.
eSwitching off the lightsFrom the main beam head-
lights position, pull the stalk 1 towards
you, then turn the end of the stalk 1
until the symbol
e appears by the
mark 2.From the dipped beam headlights posi-
tion, turn the end of the stalk 1 until the
symbol
e appears by the mark 2.
Daytime running lights
function
(front lights only)
These lights are automatically lit during
daylight hours. They are deactivated
when the main and dipped beams are
lit.
Lights-on reminder buzzer
If the lights are on after the engine is
switched off, a warning beep sounds
when the driver’s door is opened to
warn you that the lights are still on.
Before driving at night, check that the electrical equipment is operating
correctly and adjust the headlight beams (if your vehicle is not carrying
its normal load).
Check that the lights are not obscured (by dirt, mud, snow or objects
which could cover them).
21
12

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
1.60
ENG_UD24424_1
Essuie-vitre / Lave-vitre arrière / Dégivrage (X92 - Renault) ENG_NU_975-8_X92_Dacia_1
REAR SCREEN WASH/WIPE, DE-ICING
YRear screen wiper(depending on vehicle)
With the ignition switched on, turn the
end of stalk 2 to align the symbol with
mark 1.
pRear screen washer/
wiper
(depending on vehicle)
With the ignition switched on, turn the
end of stalk 2 to align the symbol with
mark 1.
When the stalk is released, it returns to
the rear wipe position.
VHeated rear screen
This function de-ices/demists
the rear screen and rearview mirrors
(depending on the vehicle).
With the engine running, press
switch 3. The indicator light in the
switch lights up.
Depending on the vehicle, the function
is stopped:
– automatically after 12 minutes of op-
eration;
– by pressing button 3 again.
The integrated indicator light goes off.
Before using the rear wiper, check
that no object is obstructing the
travel of the blade.
In frosty weather, make sure that
the wiper blades are not stuck by ice
(to avoid the risk of the motor over-
heating).
Keep an eye on the condition of the
blades. Replace the wiper blades as
soon as they begin to lose efficiency
(approximately once a year).
Regularly clean your rear screen.
21
3

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.15
ENG_UD36360_3
Conseils de conduite, Eco conduite (X92 - X67 - Dacia) ENG_NU_975-8_X92_Dacia_2

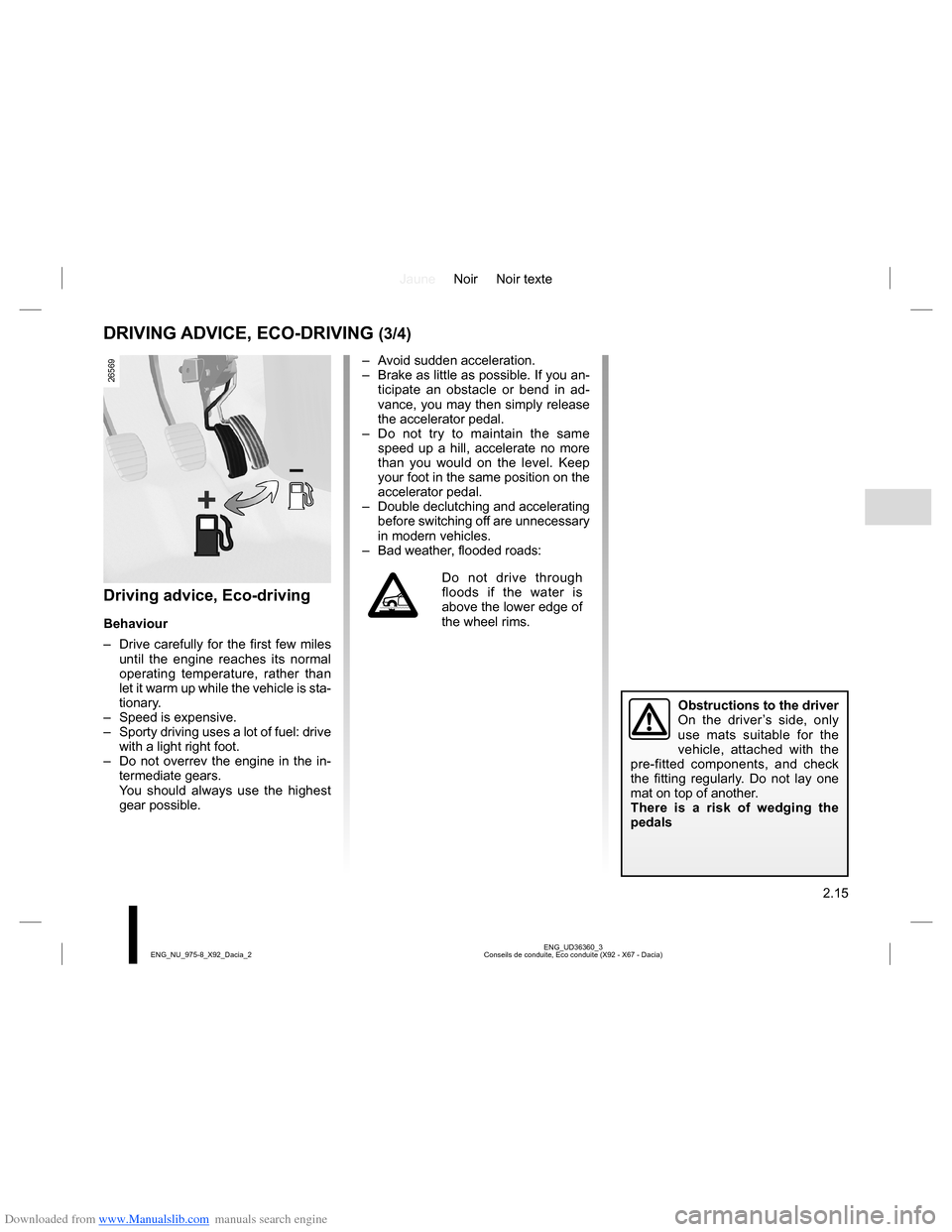

DRIVING ADVICE, ECO-DRIVING (3/4)
Driving advice, Eco-driving
Behaviour
– Drive carefully for the first few miles
until the engine reaches its normal
operating temperature, rather than
let it warm up while the vehicle is sta-
tionary.
– Speed is expensive.
– Sporty driving uses a lot of fuel: drive
with a light right foot.
– Do not overrev the engine in the in-
termediate gears.
You should always use the highest
gear possible.
– Avoid sudden acceleration.
– Brake as little as possible. If you an-
ticipate an obstacle or bend in ad-
vance, you may then simply release
the accelerator pedal.
– Do not try to maintain the same
speed up a hill, accelerate no more
than you would on the level. Keep
your foot in the same position on the
accelerator pedal.
– Double declutching and accelerating
before switching off are unnecessary
in modern vehicles.
– Bad weather, flooded roads:
Do not drive through
floods if the water is
above the lower edge of
the wheel rims.
Obstructions to the driver
On the driver’s side, only
use mats suitable for the
vehicle, attached with the
pre-fitted components, and check
the fitting regularly. Do not lay one
mat on top of another.
There is a risk of wedging the
pedals

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.17
ENG_UD38086_4
Conseils entretien et antipollution (X91 - B91 - K91 - D91 - X95 - E95 - J95 - R95 - H79 - X67 - X92 - X98 - X52 - X87 - H79 Ph2 - X07 - JFC - HFE - Renault) ENG_NU_975-8_X92_Dacia_2
MAINTENANCE AND ANTIPOLLUTION ADVICE
Your vehicle complies with criteria for
recycling and recovering vehicles at the
end of their service life which will come
into force in 2015.
Some parts of your vehicle have there-
fore been designed to facilitate future
recycling.
These parts are easy to remove so
that they can be recovered and reproc-
essed by recycling companies.
By virtue of its design, moderate fuel
consumption and initial settings, your
vehicle also conforms to current anti-
pollution regulations. The manufac-
turer is actively striving to reduce pol-
lutant exhaust gas emissions and to
save energy. But the fuel consumption
of your vehicle and the level of pollutant
exhaust gas emissions are also your
responsibility. Ensure that it is main-
tained and used correctly.
Maintenance
It is important to remember that fail-
ure to respect anti-pollution regulations
could lead to legal action being taken
against the vehicle owner.In addition, replacing engine, fuel
supply system and exhaust compo-
nents with parts other than those origi-
nally recommended by the manufac-
turer may alter your vehicle so that it
no longer complies with anti-pollution
regulations.
Have your vehicle adjusted and
checked by an authorised dealer, in ac-
cordance with the instructions given in
your maintenance schedule: they will
have all the equipment necessary for
ensuring that your vehicle is maintained
to its original standard.
Engine adjustments
– Spark plugs: for optimum condi-
tions of use, output and performance
the specifications laid down by our
Design Department must be strictly
applied.
If the spark plugs have to be changed,
use the make, type and gap specified
for your vehicle’s engine. Contact an
authorised dealer for this.
– Air filter, fuel filter: a choked ele-
ment will reduce efficiency. It must
be replaced.
– Ignition and idle speed: no adjust-
ment is needed.
Exhaust gas monitoring
system
The exhaust gas monitoring system will
detect any operating faults in the vehi-
cle’s antipollution system.
If this system malfunctions, toxic sub-
stances may be released into the at-
mosphere or damage may occur.
ÄThis warning light on the in-
strument panel will indicate if
there are any faults in the system:
This lights up when the ignition is
switched on and goes out when the
engine is started.
– If it lights up continuously, consult an
approved Dealer as soon as possi-
ble;
– if it flashes, reduce the engine speed
until the light stops flashing. Contact
an authorised dealer as soon as pos-
sible.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.19
ENG_UD38215_3
Avertisseur de perte de pression des pneumatique (X92 - Dacia) ENG_NU_975-8_X92_Dacia_2

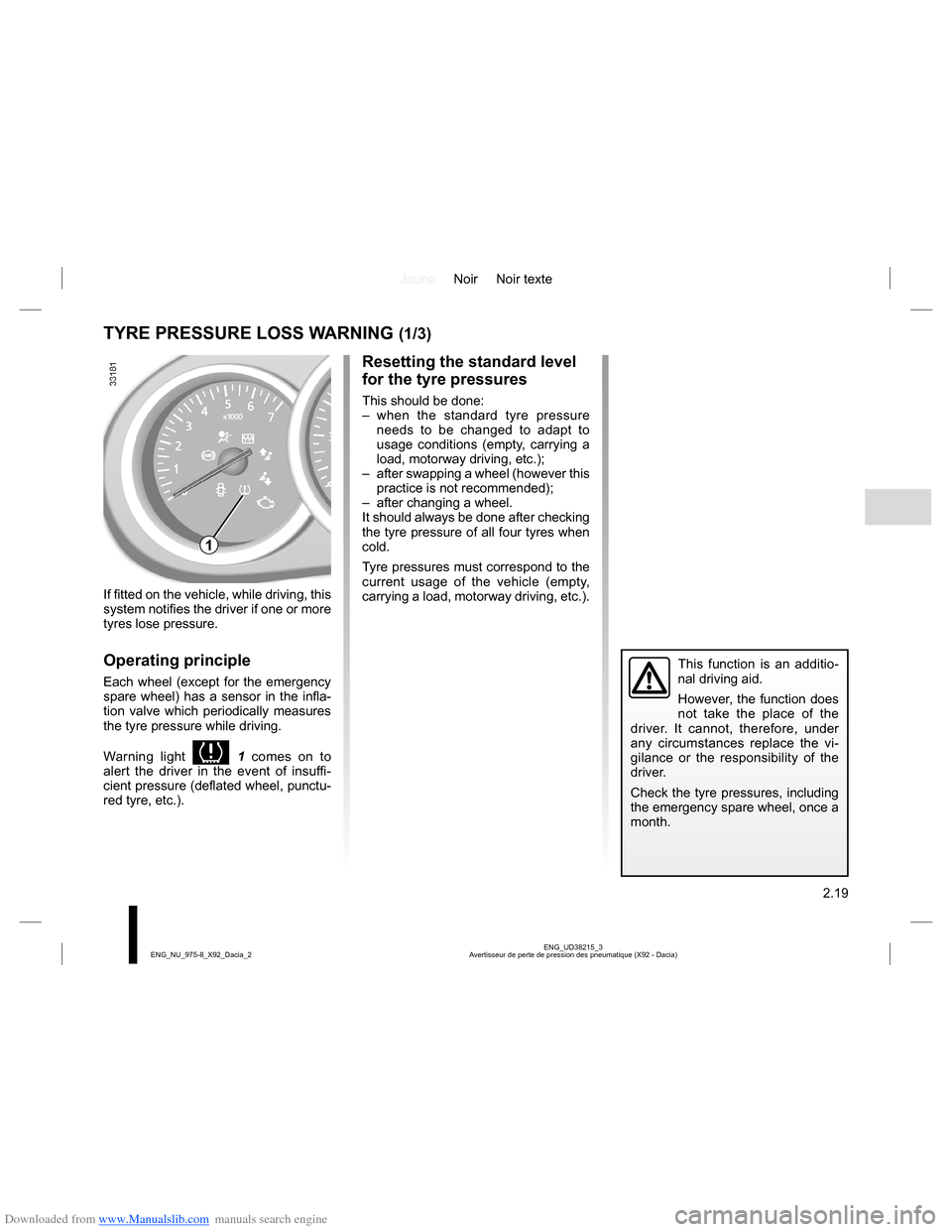

TYRE PRESSURE LOSS WARNING (1/3)
If fitted on the vehicle, while driving, this
system notifies the driver if one or more
tyres lose pressure.
Operating principle
Each wheel (except for the emergency
spare wheel) has a sensor in the infla-
tion valve which periodically measures
the tyre pressure while driving.
Warning light
 1 comes on to
alert the driver in the event of insuffi-
cient pressure (deflated wheel, punctu-
red tyre, etc.).
Resetting the standard level
for the tyre pressures
This should be done:
– when the standard tyre pressure
needs to be changed to adapt to
usage conditions (empty, carrying a
load, motorway driving, etc.);
– after swapping a wheel (however this
practice is not recommended);
– after changing a wheel.
It should always be done after checking
the tyre pressure of all four tyres when
cold.
Tyre pressures must correspond to the
current usage of the vehicle (empty,
carrying a load, motorway driving, etc.).
This function is an additio-
nal driving aid.
However, the function does
not take the place of the
driver. It cannot, therefore, under
any circumstances replace the vi-
gilance or the responsibility of the
driver.
Check the tyre pressures, including
the emergency spare wheel, once a
month.
1

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.20
ENG_UD38215_3
Avertisseur de perte de pression des pneumatique (X92 - Dacia) ENG_NU_975-8_X92_Dacia_2
Note:
The standard tyre pressure cannot be
less than that recommended and indi-
cated on the door frame.
Display
Check tyre pressure
The warning light
 comes on (not
flashing).
This indicates that at least one tyre is
flat.
Check and, if necessary, readjust the
pressures of the four wheels when cold.
The warning light
 goes off after a
few minutes’ driving.
Puncture
The warning light
 and the red
warning light
Ò come on steady to-
gether with a beep.
They indicate that at least one wheel
is punctured or severely underinflated.
Replace it or contact an authorised
dealer if it is punctured. Top up the tyre
pressure if the wheel is deflated.
TYRE PRESSURE LOSS WARNING (2/3)
Resetting procedure
With the ignition on:
– repeatedly press the button 3 to
select the “SEt tP” function on the
display 2;
– press and hold (around 3 seconds)
the button 3 to start initialisation. The
flashing, lasting around five seconds,
followed by a constant display of the
message “SEt tP” indicates that the
reset request for the tyre pressure
reference value has been taken into
account.
Reinitialisation is carried out after a few
minutes’ driving.
The sudden loss of pressure in a
tyre (burst tyre, etc.) cannot be de-
tected by the system.
2
3
The red warning light Ò
requires you to stop imme-
diately, for your own safety,
as soon as traffic conditions allow.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.21
ENG_UD38215_3
Avertisseur de perte de pression des pneumatique (X92 - Dacia) ENG_NU_975-8_X92_Dacia_2
Check tyre sensors
The warning light
 flashes for
several seconds, then stays on, along
with the orange warning light
Ò.
They indicate that at least one tyre is
not fitted with sensors (e.g. emergency
spare wheel). In other cases, contact
an authorised dealer.
Readjustment of tyre
pressures
The tyre pressures must be adjusted
when cold (please refer to the label lo-
cated on the edge of the driver’s door).
If tyre pressures cannot be checked
when the tyres are cold, the recom-
mended pressures must be increased
by 0.2 to 0.3 bar (3 PSI).
Never deflate a hot tyre.
TYRE PRESSURE LOSS WARNING (3/3)
Replacing wheels/tyres
This system requires specific equip-
ment (wheels, tyres, hubcaps, etc.).
Please see the information on “Tyres”
in Section 5.
Contact an approved Dealer to fit new
tyres and to find out about available ac-
cessories compatible with the system
and available from your dealer network:
the use of any other accessory could
affect the correct operation of the
system or damage a sensor.
Emergency spare wheel
If the vehicle is equipped with an emer-
gency spare wheel, it will not have a
sensor.
When fitted to the vehicle, the warn-
ing light
 and the orange warning
light
Ò are displayed on the instru-
ment panel.
Inflation kit
Because the valves are specially desi-
gned, only use equipment approved by
the approved network.
Please refer to “Tyre inflation kit” in
Section 5.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.22
ENG_UD38064_2
Levier de vitesses (X92 - Renault) ENG_NU_975-8_X92_Dacia_2
GEAR LEVER
Selecting reverse gear(vehicle stationary)
Vehicle with manual gearbox: Follow
the grid marked on knob 1 and, depend-
ing on the vehicle, lift the ring against
the knob to engage reverse gear.
Vehicles with automatic gear-
box: refer to the information on the
“Automatic gearbox” in Section 2.
The reversing lights will come on as
soon as reverse gear is selected with
the ignition on.
An impact to the under-
side of the vehicle while
manoeuvring (e.g.: strik-
ing a post, raised kerb or
other street furniture) may result in
damage to the vehicle (e.g.: defor-
mation of an axle).
To prevent any risk of accident,
have your vehicle checked by an
approved dealer.
1
