2013 DACIA LODGY ESP

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
4.15
ENG_UD26811_2
Entretien de la carrosserie (peinture mate) (X44 - X77 - J77 - X85 - B90 - X61 - TEST - X77 ph2 - X95 - B95 - D95 - K95 - J95 - R95 - L90 Ph2 - F90 Ph2 - R90 Ph2 - X62 ENG_NU_975-8_X92_Dacia_4
Respect local regulations about wash-
ing vehicles (e.g. do not wash your ve-
hicle on a public highway).
Observe the vehicle stopping distances
when driving on gravelled surfaces to
prevent paint damage.
Repair, or have repaired quickly, areas
where the paint has been damaged, to
prevent corrosion spreading.
Remember to visit the body shop pe-
riodically in order to maintain your
anti-corrosion warranty. Refer to the
Maintenance Document.
If it is necessary to clean mechani-
cal components, hinges, etc., spray
them with products approved by our
Technical Department to protect them
after they have been cleaned.
BODYWORK MAINTENANCE (2/2)
We have selected special products
to care for your vehicle and you can
obtain these from the manufactur-
er’s accessory outlets.
Using a roller type car wash
Return the windscreen wiper stalk to
the Park position (refer to the informa-
tion on the “Windscreen washer, wiper”
in Section 1). Check the mounting of
external accessories, additional lights
and mirrors, and ensure that the wiper
blades are secured with adhesive tape.
Remove the radio aerial mast if your
vehicle is fitted with this equipment.
Remember to remove the tape and refit
the antenna after washing.
Cleaning the headlights
As the headlights are made of plastic
“glass”, use a soft cloth or cotton wool
to clean them. If this does not clean
them properly, moisten the cloth with
soapy water, then wipe clean with a soft
damp cloth or cotton wool.
Finally, carefully dry off with a soft dry
cloth.
Cleaning products containing alco-
hol must not be used.
Vehicles with a matte paint
finish
This type of paint requires certain pre-
cautions.
Do not do the following
– use wax-based products (polishing);
– rub hard;
– wash the vehicle in a roller-type car
wash;
– wash the vehicle using a high-pres-
sure device;
– attach stickers to the paintwork (risk
of leaving marks).
You should do the following
Wash the vehicle by hand using plenty
of water, using a soft cloth or a gentle
sponge.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.28
ENG_UD13290_3
Télécommande à radiofréquence : piles (X61 - F61 - K61 - Renault) ENG_NU_975-8_X92_Dacia_5
Replacing the remote control
battery
Undo screw 1 to remove the remote
control cover.Replace battery 2 according to the di-
rection marked on the cover.
Note: It is not advisable to touch the
electronic circuit in the key cover when
replacing the battery.
Do not throw away your
used batteries; give them to
an organisation responsible
for collecting and recycling
batteries.
RADIO FREQUENCY REMOTE CONTROL: batteries
1
2
When refitting, ensure that the cover
is correctly clipped on and the screw
tightened.
The batteries are available from ap-
proved Dealers, and their service
life approximately two years.
Check that there is no dye on the
battery: risk of an incorrect electri-
cal contact.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
5.31
ENG_UD24481_1
Balais d’essuie-vitres (X92 - Renault) ENG_NU_975-8_X92_Dacia_5
WIPER BLADES
Replacing windscreen wiper
blades 1
– With the ignition switched off, lift
wiper arm 3;
– turn the blade horizontally (move-
ment A);
– press tab 2 and slide the wiper blade
downwards (movement D) until
hook 4 on the wiper arm is released.
– slide the blade (movement C) then
lift it (movement B) to release it.
12
3
4
Replacing the rear screen
wiper blade 6
– With the ignition switched off, lift
wiper arm 5;
– pivot the blade 6 until some resist-
ance is met;
– pull the blade to release it (move-
ment E).
Refitting a front or rear wiper
blade
To refit the wiper blade, proceed in re-
verse order to removal. Make sure that
the blade is correctly locked in position.
Check the condition of the wiper
blades. You are responsible for their
service life:
– clean the blades, windscreen and
rear screen regularly with soapy
water;
– do not use them when the wind-
screen or rear screen are dry;
– free them from the windscreen or
rear screen when they have not
been used for a long time.
– In frosty weather, make
sure that the wiper blades
are not stuck by ice (to
avoid the risk of the motor
overheating).
– Check the condition of the wiper
blades.
Replace the wiper blades as soon
as they begin to lose efficiency
(approximately once a year).
Whilst changing the blade, take care
not to drop the arm onto the window
after it has been removed as this
may break the window.
A
D
C
B
5
6E

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
6.3
ENG_UD38027_3
Plaque d\’identification moteur (X92 - Renault) ENG_NU_975-8_X92_Dacia_6
ENGINE IDENTIFICATION PLATES
The details given on engine plate A
should be included with all correspond-
ence and orders (location varies de-
pending on engine).
1 Engine type
2 Engine suffix
3 Engine number
A
A
A
12
3A
A

Downloaded from www.Manualslib.com manuals search engine 3 Field of application:
3.1 The Customer is covered for: free repair (parts, consumables and labour) of any material or assembly
defect duly found in the vehicle, at their own request, as well as any repairs on damage caused by this defect to other
vehicle parts. It is the RENAULT authorized workshop’s discretion to decide whether it is appropriate to repair or
replace the defective part, whilst keeping the Customer informed,
3.2 24/7 assistance services as defined in the “Renault Assistance” section under clause 6.
3.3 Original equipment battery: The warranty term for original equipment is for a period of 2 years or 50,000 KMs, whichever
is earlier, starting from date of delivery of vehicle. However, for a Pulse, Scala & Duster the warranty term shall be as
follows:
3.3.1 For a defective battery within the first 12 months from the delivery date, Renault will replace it free of charge; and
3.3.2 For a defective battery after 12 months but within 24 months from the delivery date, Renault will reimburse only
50% of the cost of new battery.
3.4 Original equipment tire: The warranty term for tire is covered by respective tire manufacturer, as per their warranty
terms and conditions. However, Renault dealers shall provide assistance for dealing with tire defects with respective
tire manufacturer.
4 The RENAULT New Vehicle Warranty does not cover and Renault India Private Limited
(RIPL) and / or RENAULT authorized workshop shall not be responsible for the following:
4.1 Normal maintenance services other than the three free services, including without limitation, cleaning and polishing,
minor adjustments, engine tuning, oil/fluid changes, filters replenishment, fastener retightening, wheel balancing,
wheel alignment and tyre rotation etc.
4.2 the indirect and remote consequences of any fault (loss of operation, duration of immobilization, etc.);
4.3 vehicle components which have undergone conversion work, and/or specification and design changes and the
consequences (deterioration, premature wear and tear, alterations, etc.) of the conversion work on other vehicle parts
or components, or on its specifications;
4.4 the costs incurred by the Customer for routine maintenance

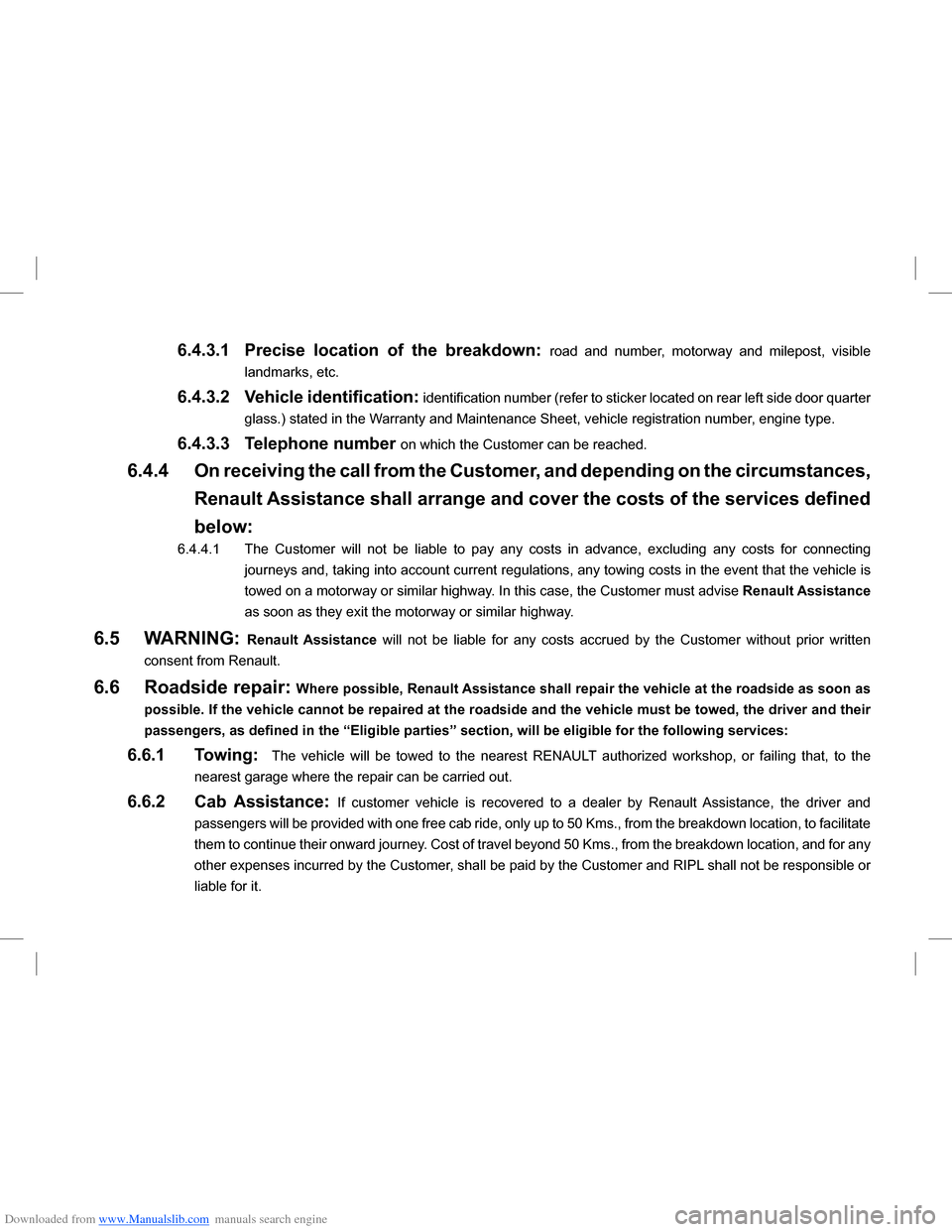

Downloaded from www.Manualslib.com manuals search engine 6.4.3.1 Precise location of the breakdown: road and number, motorway and milepost, visible
landmarks, etc.
6.4.3.2 Vehicle identification: identification number (refer to sticker located on rear left side door quarter
glass.) stated in the Warranty and Maintenance Sheet, vehicle registration number, engine type.
6.4.3.3 Telephone number on which the Customer can be reached.
6.4.4 On receiving the call from the Customer, and depending on the circumstances,
Renault Assistance shall arrange and cover the costs of the services defined
below:
6.4.4.1 The Customer will not be liable to pay any costs in advance, excluding any costs for connecting
journeys and, taking into account current regulations, any towing costs in the event that the vehicle is
towed on a motorway or similar highway. In this case, the Customer must advise Renault Assistance
as soon as they exit the motorway or similar highway.
6.5 WARNING: Renault Assistance will not be liable for any costs accrued by the Customer without prior written
consent from Renault.
6.6 Roadside repair: Where possible, Renault Assistance shall repair the vehicle at the roadside as soon as
possible. If the vehicle cannot be repaired at the roadside and the vehicle must be towed, the driver and their
passengers, as defined in the “Eligible parties” section, will be eligible for the following services:
6.6.1 Towing: The vehicle will be towed to the nearest RENAULT authorized workshop, or failing that, to the
nearest garage where the repair can be carried out.
6.6.2 Cab Assistance: If customer vehicle is recovered to a dealer by Renault Assistance, the driver and
passengers will be provided with one free cab ride, only up to 50 Kms., from the breakdown location, to facilitate
them to continue their onward journey. Cost of travel beyond 50 Kms., from the breakdown location, and for any
other expenses incurred by the Customer, shall be paid by the Customer and RIPL shall not be responsible or
liable for it.

Downloaded from www.Manualslib.com manuals search engine - At least 30% of kilometers covered towing a trailer weighting more than 500 Kg,
- Driving in a dusty environment (building site, more than 1000 Km of trails per year,
OperationsFrequencyChange engine oil, oil filter, air filter, fuel filter, cabin filter, belts
and rollers (accessory and timing) (1) (2)Halve the kilometer frequency for recommended
replacement in normal conditions of use,
For the following certain condition of use:
At least 50% of journeys with the engine running at idle speed, halve, as well, the time frequency replacement for
oil and oil filter.
(1) The certain condition of use “driving in a dusty environment” does not modify the replacement frequency for belts
(accessories and timing) as recommended replacement in normal condition of use.
(2) The damper pulleys for certain engines must be replaced during this operation. For more information, please
consult your Renault representative.
B) – Use of engine oil* (for petrol and diesel engines without particles filter), which don’t correspond to
RENAULT recommendations, (check maintenance pages),
– Prolonged use (+ 5000 Km / year) in temperatures bellow -15°C,
– Use of fuels that don’t correspond to RENAULT recommendations, (See User Manual booklet).
* For diesel engines with Particles Filter, the use of an other engine oil than the one recommended by RENAULT
may damage the Particles Filter
Operation Frequency
Change engine oil, oil filter Halve the kilometer frequency for recommended
replacement in normal conditions of use,
C) – Four wheels drive vehicles (4WD): Prolonged use in rough driving conditions (trails, heavy rains…), in very
For the following certain condition of use:
At least 50% of journeys with the engine running at idle speed, halve, as well, the time frequency replacement
for oil and oil filiter.
Operations Frequency
Change engine oil, oil filter, air filter, fuel filter, cabin
filter, belts and rollers (accessory and timing) (1) (2)Halve the kilometer frequency for recommended
replacement in normal conditions of use,
Operations Frequency
Change engine oil, oil filter Halve the kilometer frequency for recommended
replacement in normal conditions of use,
