2013 DACIA LODGY engine

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.27
ENG_UD38206_4
Régulateur-limiteur de vitesses : fonction limiteur (X92 - Renault) ENG_NU_975-8_X92_Dacia_2
The speed limiter function helps you
stay within the driving speed limit that
you choose, known as the limit speed.
CRUISE CONTROL/SPEED LIMITER: speed limiter function (1/3)
Switching on
Press the side switch 1 . The warn-
ing light 6 comes on, lit orange and, de-
pending on the vehicle, the message
“LIMIT” appears on the instrument
panel, or the
 warning light comes
on, accompanied by dashes to indicate
that the speed limiter function is acti-
vated and waiting to store a speed limit.
To store the current speed, press
switch 2 (+): the limit speed will replace
the dashes.
The minimum stored speed is 20 mph
(30 km/h).
Controls
1 Main “On/Off” switch.
2 Limit speed activation, storage and
increase switch (+).
3 Decreasing the limit speed (-).
4 Activation and recall of memorised
limit speed (R).
5 Speed limiter function standby (with
limited speed memory) (O).
12
6
345

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.28
ENG_UD38206_4
Régulateur-limiteur de vitesses : fonction limiteur (X92 - Renault) ENG_NU_975-8_X92_Dacia_2
CRUISE CONTROL/SPEED LIMITER: speed limiter function (2/3)
Driving
When a limited speed has been stored
and this speed is not reached, driving is
similar to driving a vehicle without the
speed limiter function.
Once you have reached the stored
speed, no effort on the accelera-
tor pedal will allow you to exceed
the programmed speed except in an
emergency (refer to information on
“Exceeding the limit speed”).
Varying the limit speed
The limit speed may be changed by re-
peatedly pressing:
– switch 2 (+) to increase speed;
– switch 3 (-) to reduce speed.
Exceeding the limit speed
It is possible to exceed the limit speed
at any time. To do this: press the accel-
erator pedal firmly and fully (beyond
the resistance point).
While the speed is being exceeded, the
programmed speed displayed on the
instrument panel flashes.
Then, release the accelerator: the
speed limiter function will return as
soon as you reach a speed lower than
the stored speed.
Limited speed cannot be maintained
If driving up or down a steep gradient,
the system is unable to maintain the
limit speed: the stored speed will flash
on the instrument panel information dis-
play to inform you of this situation.
The speed limiter function is
in no way linked to the brak-
ing system.
23

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.29
ENG_UD38206_4
Régulateur-limiteur de vitesses : fonction limiteur (X92 - Renault) ENG_NU_975-8_X92_Dacia_2
CRUISE CONTROL/SPEED LIMITER: speed limiter function (3/3)
Switching off the function
The speed limiter function is deac-
tivated if you press switch 1: in this
case a speed is no longer stored. The
orange instrument panel warning light
 goes out, confirming that the func-
tion is stopped.
Putting the function on
standby
The speed limiter function is sus-
pended when you press switch 5 (O).
In this case, the speed limit remains
stored and, depending on the vehicle,
the message “MEM”, or the
 warn-
ing light comes on, accompanied by
this speed, on the instrument panel.
Recalling the limit speed
If a speed has been saved, it can be re-
called by pressing switch 4 ((R)).
2451
3
When the speed limiter is put on
standby, pressing switch 2 (+) re-
activates the function without taking
into account the stored speed: it is
the speed at which the vehicle is
moving that is taken into account.

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.30
ENG_UD38216_3
Régulateur-limiteur de vitesse : fonction régulateur (X92 - Dacia) ENG_NU_975-8_X92_Dacia_2
The cruise control function helps you to
maintain your driving speed at a speed
that you choose, called the cruising
speed.
This cruising speed may be set at any
speed above 20 mph (30 km/h).
This function is an addi-
tional driving aid. However,
the function does not take
the place of the driver.
Therefore, it can under no circum-
stances replace the driver’s respon-
sibility to respect speed limits and to
be vigilant (the driver must always
be ready to brake).
Cruise control must not be used in
heavy traffic, on undulating or slip-
pery roads (black ice, aquaplan-
ing, gravel) and during bad weather
(fog, rain, side winds etc.).
There is a risk of accidents.
The cruise control function
is in no way linked to the
braking system.
Controls
1 Main “On/Off” switch.
2 Cruising speed activation, storage
and increase switch (+).
3 Decreasing cruising speed (-).
4 Activation with recall of saved cruis-
ing speed (R).
5 Switch the function to standby (with
cruising speed saved) (O).
CRUISE CONTROL/SPEED LIMITER: cruise control function (1/4)
12345

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte

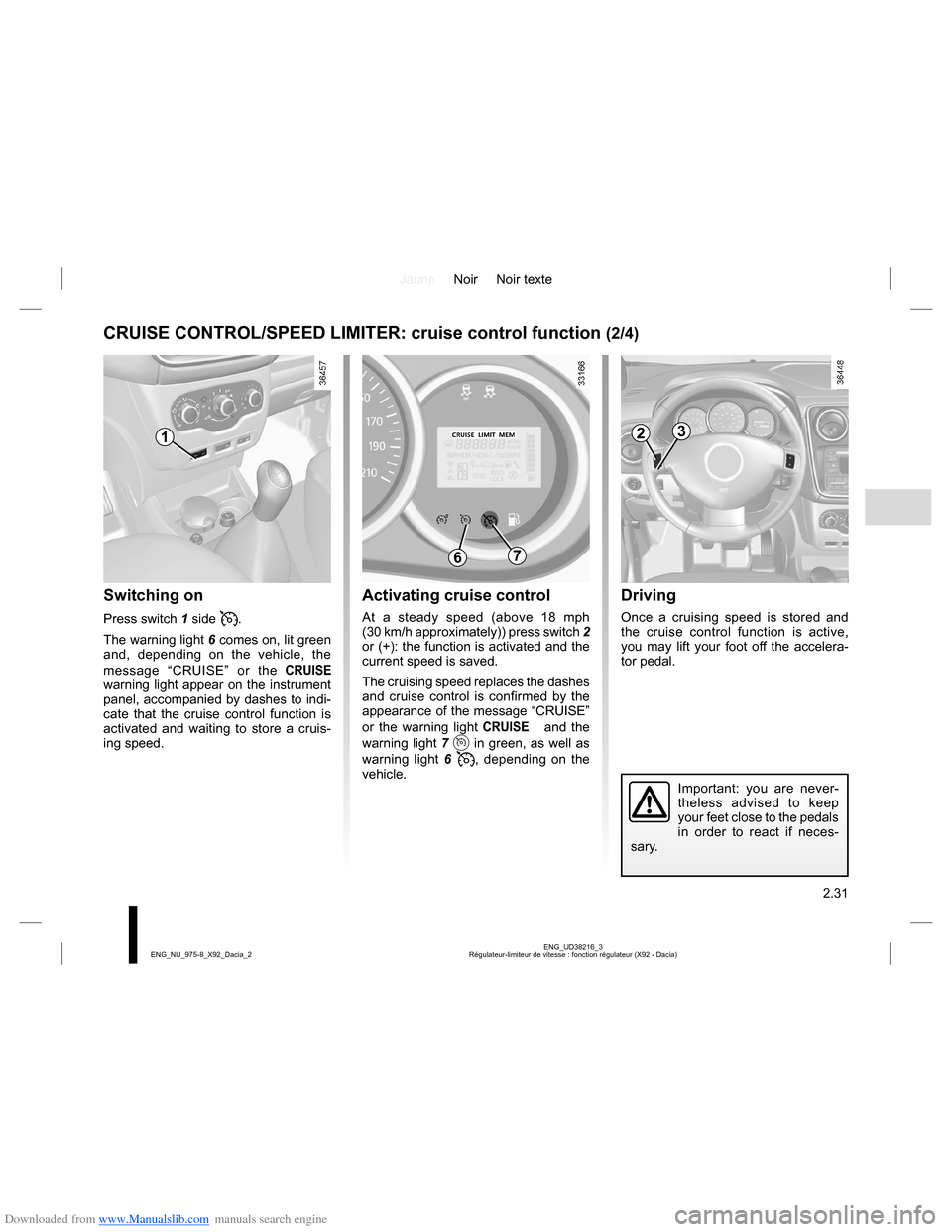

2.31
ENG_UD38216_3
Régulateur-limiteur de vitesse : fonction régulateur (X92 - Dacia) ENG_NU_975-8_X92_Dacia_2
Driving
Once a cruising speed is stored and
the cruise control function is active,
you may lift your foot off the accelera-
tor pedal.
Important: you are never-
theless advised to keep
your feet close to the pedals
in order to react if neces-
sary.
Activating cruise control
At a steady speed (above 18 mph
(30 km/h approximately)) press switch 2
or (+): the function is activated and the
current speed is saved.
The cruising speed replaces the dashes
and cruise control is confirmed by the
appearance of the message “CRUISE”
or the warning light
 and the
warning light 7
 in green, as well as
warning light 6
, depending on the
vehicle.
Switching on
Press switch 1 side .
The warning light 6 comes on, lit green
and, depending on the vehicle, the
message “CRUISE” or the

warning light appear on the instrument
panel, accompanied by dashes to indi-
cate that the cruise control function is
activated and waiting to store a cruis-
ing speed.
CRUISE CONTROL/SPEED LIMITER: cruise control function (2/4)
1
67
23

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.32
ENG_UD38216_3
Régulateur-limiteur de vitesse : fonction régulateur (X92 - Dacia) ENG_NU_975-8_X92_Dacia_2
CRUISE CONTROL/SPEED LIMITER: cruise control function (3/4)
Exceeding the cruising speed
The cruising speed may be exceeded
at any time by depressing the accelera-
tor pedal. While it is being exceeded,
the cruising speed flashes on the in-
strument panel.
Then, release the accelerator: after a
few seconds, the vehicle will automati-
cally return to its set cruising speed.
Cruising speed cannot be
maintained
When driving down a steep gradient,
the system is unable to maintain the
cruising speed: the stored speed will
flash on the instrument panel informa-
tion display to inform you of this situ-
ation.
Adjusting the cruising speed
The cruising speed may be changed by
pressing the following repeatedly:
– switch 2 (+) to increase the speed,
– switch 3 (-) to decrease the speed.
The cruise control function
is in no way linked to the
braking system.
23

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.33
ENG_UD38216_3
Régulateur-limiteur de vitesse : fonction régulateur (X92 - Dacia) ENG_NU_975-8_X92_Dacia_2
Switching off the function
The cruise control function is deacti-
vated if you press switch 1: in this case
a speed is no longer stored. The two in-
strument panel warning lights
 and
 go out to confirm that the function is
deactivated. Returning to the cruising speed
If a speed is stored, it can be recalled,
once you are sure that the road con-
ditions are suitable (traffic, road sur-
face, weather conditions, etc.). Press
switch 4 (R) if the vehicle speed is
above 20 mph (30 km/h).
When the stored speed is recalled, acti-
vation of the cruise control is confirmed
by the illumination of the
 warning
light.
NB: if the speed previously stored is
much higher than the current speed,
the vehicle will accelerate more rapidly
to reach this threshold.
When the cruise control function is
put on standby, pressing switch 2
(+) reactivates the cruise control
function without taking into account
the stored speed: it is the speed at
which the vehicle is moving that is
taken into account.
Putting the function on
standby
The function is set to standby if you:
– use the switch 5 (O);
– the brake pedal;
– the clutch pedal;
In all three cases, the cruising speed
remains stored and, depending on the
vehicle, the message “MEM” or the
warning light
 appear on the instru-
ment panel. Standby is confirmed by
the warning light
 going out.
CRUISE CONTROL/SPEED LIMITER: cruise control function (4/4)
Putting the cruise control
on standby or switching it
off does not cause a rapid
reduction in speed: you
must brake by depressing the brake
pedal.
23541

Downloaded from www.Manualslib.com manuals search engine JauneNoir Noir texte
2.34
ENG_UD28035_2
Aide au parking (X92 - Renault) ENG_NU_975-8_X92_Dacia_2
This function is an addi-
tional aid that indicates the
distance between the vehi-
cle and an obstacle whilst
reversing, using sound signals.
Under no circumstances should it
replace the driver’s care or respon-
sibility whilst reversing.
The driver should always look out
for sudden hazards during driving:
always ensure that there are no
moving obstacles (such as a child,
animal, pram, bicycle, etc.) or small,
narrow objects such as stones or
posts in your path when manoeu-
vring.
Operating principle
Ultrasonic sensors, fitted in the vehi-
cle’s rear bumper, measure the dis-
tance between the vehicle and an ob-
stacle when reversing.
This measurement is indicated by
beeps which become more frequent the
closer you come to the obstacle, until
they become a continuous beep when
the vehicle is approximately 40 centi-
metres from the obstacle.
There is a beep when reverse gear is
engaged. If the beep sounds for a long
time (3 seconds), this signals an oper-
ating fault.
NB: ensure that the ultrasonic sensors
are not obscured (by dirt, mud, snow,
etc.).
PARKING DISTANCE CONTROL (1/2)
An impact to the under-
side of the vehicle while
manoeuvring (e.g.: strik-
ing a post, raised kerb or
other street furniture) may result in
damage to the vehicle (e.g.: defor-
mation of an axle).
To avoid any risk of accident, have
your vehicle checked by an ap-
proved dealer.
