2013 Citroen JUMPY parking sensors

2

Contents
Remote control 20Key 21Alarm 22Doors 24Instrument panel 27Adjusting the time 28Warning lamps 29Fuel gauge 35Coolant 35Tyre under-inflation detection 36Service indicator 37Lighting dimmer 38Gearboxes 39Gear shift indicator 40Automatic gearbox 41Steering wheel adjustment 44Starting and stopping 44
Controls for 45lighting 45wipers 48Cruise control 50Fixed speed limiter 52Speed limiter 53Heating / air conditioning,manual 56digital 58Demisting and defrosting 62Additional heating 64Seats 672-seat front bench 69Cab fittings 71Courtesy lamps 74Toll cards/car park tickets 74Crew cab 75Load space fittings 76Rear suspension 78Mirrors 81
Electric windows 83
2. READY TO GO
20-44
4. SAFETY
84-103
Presentation 4Exterior 6Sitting comfortably 11Seeing clearly 13Driving safely 14Cab fittings 15Load space 16Ventilation 17Eco-driving 18
1. FAMILIARISATION
4-19
Parking brake 84Hazard warning lamps 84Parking sensors 85Horn 86Anti-lock braking system(ABS) 86Emergency braking assistance 86ASR and DSC 87"Grip control" 88Seat belts 90Airbags 93Lateral airbags 95Front airbags 96Deactivating the passenger'sairbag 96Child seats 97Recommended seats 101
3. EASE OF USE and COMFORT 45-83

7
4
7
8
3a
2b
2
2a


Exterior

FAMILIARISATIO
N
1




Key
: section identifi cation
: page identification 121 85
Rear suspension

Repairing a wheel
Parking sensors 123
Changing a wheel
78 26
25 20
Side-hinged rear doors

Key - Remote control

Sliding side door 142

Usable dimensions

Interior

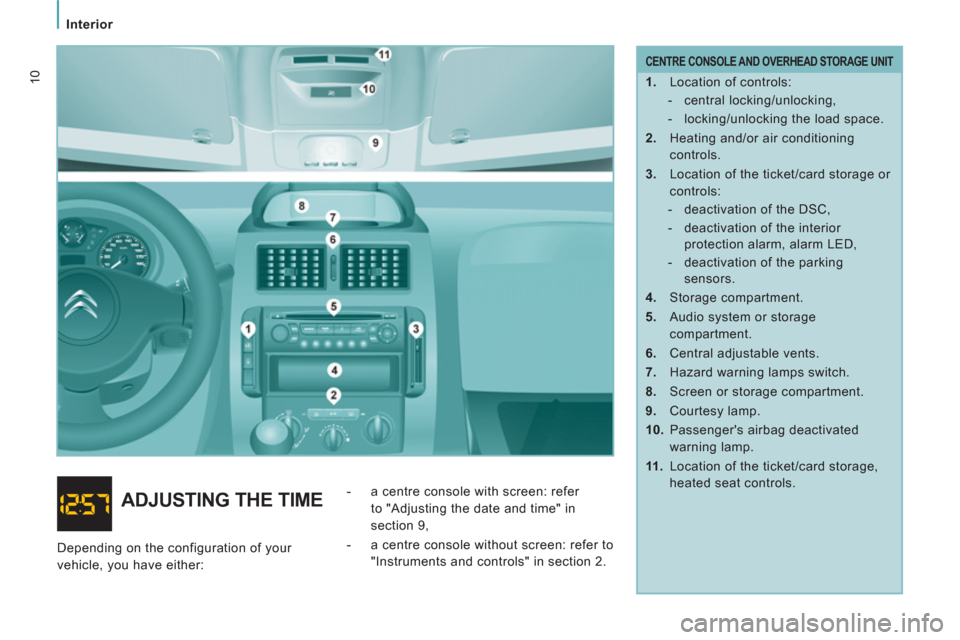

10 CENTRE CONSOLE AND OVERHEAD STORAGE UNIT



1.
Location of controls:


- central locking/unlocking,

- locking/unlocking the load space.

2.
Heating and/or air conditioning
controls.

3.
Location of the ticket/card storage or
controls:


- deactivation of the DSC,

- deactivation of the interior
protection alarm, alarm LED,

- deactivation of the parking
sensors.

4.
Storage compartment.

5.
Audio system or storage
compartment.

6.
Central adjustable vents.

7.
Hazard warning lamps switch.

8.
Screen or storage compartment.

9.
Courtesy lamp.

10.
Passenger's airbag deactivated
warning lamp.

11 .
Location of the ticket/card storage,
heated seat controls.




ADJUSTING THE TIME


- a centre console with screen: refer
to "Adjusting the date and time" in
section 9,

- a centre console without screen: refer to
"Instruments and controls" in section 2.
Depending on the configuration of your
vehicle, you have either:

85


Parking sensors

SAFETY
4


Engage reverse gear

An audible signal confi rms the activation of the
system by engaging reverse gear.
The proximity information is indicated by an audible
signal which becomes more rapid as the vehicle
approaches the obstacle. When the distance
between the rear of the vehicle and the obstacle
is less than approximately thirty centimetres, the
audible signal becomes continuous.

Stop the assistance

Change to neutral.

REAR PARKING SENSORS

The audible and/or visual rear parking
sensor system consists of four proximity
sensors, installed in the rear bumper. The
sensors detect any obstacle which enters
the field: person, vehicle, tree, fence, behind
the vehicle during the manoeuvre.
Certain objects detected at the beginning of
the manoeuvre will no longer be detected
at the end of the manoeuvre due to the
blind spots between and below the sensors.
Examples: stake, roadworks cone or
pavement post.

Activation / Deactivation

You can activate or deactivate the
system by pressing this button.

The activation or deactivation of
the system is stored when the
vehicle stops.


Malfunction

In the event of a malfunction, when reverse
gear is engaged the LED in the button
comes on, accompanied by an audible
signal and a message in the screen. Contact
a CITROËN dealer or a qualified workshop.


Good practice

In bad weather or in winter, ensure that the
sensors are not covered with mud, ice or
snow.
The system will be deactivated automatically
if a trailer is being towed or if a bicycle
carrier is fitted (vehicle fitted with a
towbar or bicycle carrier recommended by
CITROËN).
The parking assistance cannot, in any
circumstances, take the place of the
vigilance and responsibility of the driver.
Display in the screen


You are advised to deactivate the system if
your vehicle is fitted with a rear ladder or if
you are transporting a load which exceeds
the length of the vehicle.

105


Towing a trailer

ACCESSORIE
S
5

You should therefore use a high gear to
lower the engine speed and reduce your
speed.
In all cases, pay attention to the coolant
temperature.
Ty r e s
Check the tyre pressures of the towing
vehicle (see the "Identification markings"
section of chapter 8) and of the trailer,
observing the recommended pressures.
Towbar

We recommend the use of genuine
CITROËN towbars and their harnesses,
which have been tested and approved from
the design stage of your vehicle, and that
you entrust the fitting of this equipment to a
CITROËN dealer.
If this equipment is not fitted by a CITROËN
dealer, it is imperative that it is fitted using
the electrical pre-equipment installed at the
rear of the vehicle and in accordance with
the manufacturer's instructions.
In accordance with the general instructions
a reminder of which has been given above,
we draw your attention to the risk associated
with fitting a towbar or electrical accessory
not recommended by CITROËN. Fitting such
equipment could result in the failure of your
vehicle's electronic system. Please obtain
information from the Manufacturer before
fitting this type of equipment.
See the "Levels" section of chapter 6.

Good Practice

In certain cases of particularly arduous
use (towing the maximum load up a steep
slope in high temperatures), the engine
automatically limits its power. In this
case, the air conditioning is automatically
cut off to save engine power.
If the coolant temperature warning
lamp comes on, stop the vehicle
and switch off the engine as soon
as possible.
Brakes
Towing increases the braking distance. Drive
at a moderate speed, change down early
and brake gradually.

Side wind
Sensitivity to side wind is increased. Drive
smoothly and at a moderate speed.

ABS/DSC
The ABS or DSC systems only control the
vehicle, not the trailer or caravan.

Rear parking sensors
The parking sensors system does not
function while the vehicle is towing.

10
7


Equipment

ACCESSORIE
S
5

The fitting of electrical equipment
or accessories which are not
recommended by CITROËN may result
in the failure of your vehicle's electronic
system. Please note this specific warning.
You are advised to contact a representative
of the Marque to be shown the range of
recommended equipment and accessories.
Depending on the country in which the
vehicle is sold or operated, it is compulsory
to have a high visibility safety vest, warning
triangle and replacement bulbs available in
the vehicle.

Installation of radiocommunication
transmitters
Before installing accessory
radiocommunication transmitters with an
external aerial on your vehicle, you are
advised to contact a representative of the
CITROËN marque.
The CITROËN dealer network can inform
you of the specifications (frequency
band, maximum output power, aerial
position, specific installation conditions)
of the transmitters which can be fitted,
in accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/CE). Front mud flaps, rear mud flaps, ...

Range of trade equipment

Parts and Services technical information
publishes an accessory catalogue offering
various equipment and fittings, such as: Screenwash, replacement fuses, wiper
blades, interior and exterior cleaning
and maintenance products, replacement
bulbs, ...
Roof bars for short, medium and long
wheelbase (load retainers for all models).
Towbar, towbar harness: trailer towbar which
must be fi tted by the network. Sill plate, loading roller, sill. Sill plate,
loading roller, sill.
Roof bars for the various heights, roof bars,
ladder.
Separation partitions and grilles, smooth,
non-slip wooden protective floor.
Protective grilles, multimedia.

Another range is also available, structured
around comfort, leisure and maintenance:
Anti-theft alarm, window engraving, first aid
kit, high visibility safety vest, rear parking
sensors, warning triangle,
Front seat covers compatible with airbags,
bench, rubber mats, carpet mats, snow
chains. To prevent the mat from becoming caught
under the pedals:


- ensure that the mat and its fixings are
positioned correctly,

- never fit one mat on top of another.
Audio equipment, hands-free kit, speakers,
CD changer, navigation, ...
Regardless of the audio and telematic
equipment offered on the market, the technical
constraints linked with the fi tting of equipment
of these families of products mean that the
special features of the equipment and its
compatibility with the capacities of the your
vehicle's standard equipment must be taken
into account. Please contact a dealer for
information before fi tting such equipment.

135


Changing a fuse

QUICK HEL
P
7

RIGHT-HAND SIDE DASHBOARD
FUSES


- Tilt the storage compartment then pull it
firmly to access the fuses.

Fuses
F


Amperes
A

Allocation


1


15
Rear wiper


2


-
Free


3


5
Airbag control unit


4


10
Steering wheel angle sensor, Diagnostic socket, DSC
sensor, Manual ventilation, Clutch switch, Headlamp beam
height, Particle emission filter pump


5


30
Electric mirrors, Passenger electric window motor


6


30
Front electric windows supply


7


5
Courtesy lamps and glove box lamp


8


20
Multifunction screen, Anti-theft alarm siren, Audio
equipment, Compact disc changer, Audio/telephone, Trailer
fusebox (accessory), Coachbuilder/vehicle converter unit
(platform cab)


9


10
Load space accessory socket


10


30
Rear ride height corrector, Steering wheel switching,
Instrument panel


11


15
Diagnostic socket, Ignition switch


12


15
Hands-free kit, Airbag control unit, Parking sensors control
unit


13


5
Engine fusebox, Trailer fusebox


14


15
Rain sensor, Digital air conditioning, Instrument panel


15


30
Locking/unlocking/deadlocking


16


-
Free


17


40 Heated rear screen, Heated mirrors


17


10
Heated mirrors only

15
1


Exterior

VISUAL SEARCH
10

EXTERIOR

Remote control 20-21
Changing the battery, reinitialisation 21
Key 21
Starting 43
Central locking / unlocking 20, 24
Locking / unlocking the load
space 20, 24
Alarm 22-23
Fuel cut-off, Diesel priming 117-118 Wiper blades 139
Door mirrors 81
Side repeater 131
Front lamps, foglamps, direction
indicators 45-47
Headlamp beam height adjustment 47
Changing front bulbs 129-131
Headlamp wash 48, 112
Snow shield 127
Front doors 24
Sliding side door 25
Key 21
Opening the bonnet 108
Filler cap, fuel tank 116-117
Towbar 104-105
Rear parking sensors 85
Van dimensions 142-145 Doors, tailgate 24-26
Emergency control 26
Number plate lamp 133
Spare wheel, jack, changing a wheel,
tools 123-127
Infl ation, pressures 150
Towing, lifting 140-141

Rear lamps, direction indicators 45-46, 132
3rd brake lamp 133
Changing rear bulbs 129, 132
Load space 20, 24 Accessories 106-107
Roof bars 106
Temporary puncture repair kit 121-122 Platform cab dimensions 146-147
Brakes, pads 84, 111, 113
Emergency braking 86
ABS, EBFD 86
ASR, DSC 87
Tyre, pressure 150
Snow chains 128
Rear suspension 78-80
