2013 Citroen JUMPY MULTISPACE glove box

9
Interior

FAMILIARISATIO
N
1



INSTRUMENTS AND CONTROLS


1.
Lighting and direction indicator
control stalk.

2.
Instrument panel with screen.

3.
Wipers, screenwash, trip computer
control stalk.

4.
Gear lever.

5.
Ignition.

6.
Audio system controls.

7.
Driver's airbag, horn.

8.
Steering wheel height and reach
adjustment.

9.
Headlamp beam adjustment.

10.
Cruise control, speed limiter
switches.

11 .
12 volt accessory socket (120 W
max) of the cigarette lighter type.

12.
Ashtray.

13.
Glove box, auxiliary socket,
passenger's airbag deactivation
switch.

14.
"Grip control".

33
3
3
3
15

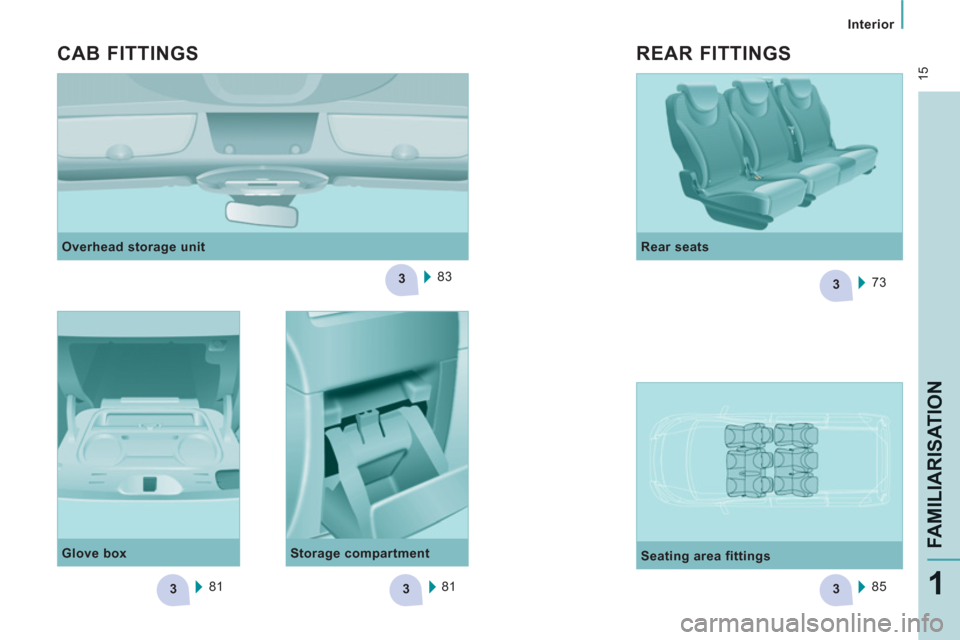

Interior

FAMILIARISATIO
N
1


Overhead storage unit
83


CAB FITTINGS


Glove box
81 81

Storage compartment
Rear seats
73

Seating area fittings
85


REAR FITTINGS

81


Practical information

EASE OF USE and COMFOR
T
3

CAB FITTINGS

Depending on the vehicle's equipment, the
various fittings below enhance your cab.
Glove box
This is fitted with a lock, you can lock it
using the key.
It contains three sockets for the connection
of portable electronic equipment (video
equipment, ...) if the vehicle is fitted with a
colour screen.
It also contains cup holders and
compartments for storing maps, a packet of
cigarettes, an A4 format document, a pen,
etc.


Storage compartment
PRACTICAL INFORMATION


Sun visor

To prevent dazzle from ahead, fold the sun
visor down.
A pocket is provided in the driver's sun visor
for storing toll cards, tickets, ...

147
Changing a fuse
QUICK HEL
P
7
RIGHT-HAND SIDE DASHBOARD
FUSES


- Tilt the storage compartment then pull it
firmly to access the fuses.

Fuses


A (amps)

Allocation


1


15
Rear wiper


2


-
Free


3


5
Airbag control unit


4


10
Steering wheel angle sensor, Diagnostic socket, DSC sensor,
Manual ventilation, Clutch switch, Headlamp beam height,
Particle emission filter pump


5


30
Electric mirrors, Passenger electric window motor


6


30
Front electric windows supply


7


5
Courtesy lamps and glove box lamp


8


20
Multifunction screen, Anti-theft alarm siren, Audio equipment,
Compact disc changer, Audio/telephone, Trailer fusebox
(accessory)


9


10
Row 2 accessory socket


10


30
Rear ride height corrector, Steering wheel switching,
Instrument panel


11


15
Diagnostic socket, Ignition switch


12


15
Hands-free kit, Airbag control unit, Parking sensors control
unit


13


5
Engine fusebox, Trailer fusebox


14


15
Rain sensor, Rear ventilation, Digital air conditioning,
Instrument panel


15


30
Locking/unlocking/deadlocking


16


-
Free


17


40
Heated rear screen, Heated mirrors

16
3


Instruments and controls

VISUAL SEARCH
10


Screens, display Section 9
Setting the time in
the screen Section 9
Rear view mirror 92
Toll cards, car park tickets 85
Child surveillance mirror 92
Courtesy lamps 84, 143
Warning lamp in overhead storage unit 2 8
Heated seats 70
Rear ventilation 65-67

Dashboard fuses,
right-hand side 147
Passenger's airbag deactivation 106
Controls


- central locking 24-25

- alarm 23-24

- electric child lock 26

- parking sensors 95

- ASR, DSC 97


Technology on board Section 9


- Emergency or assistance call

- eMyWay

- Audio system


Gearbox 40-44
Hazard warning lamps 94

Heating, ventilation


- manual ventilation 57-58

- air conditioning A/C 57

- air recirculation 58
Air conditioning with separate
adjustments 59-61
Demisting/defrosting 63-64
Additional heating 66-67

Cab fittings 81-83


- glove box,

- overhead storage,

- ashtray,

- sun visor,

- 12 volt socket,

- ticket holder,

- storage compartment.
