Changing a fuse


PASSENGER'S SIDE DASHBOARD FUSES



- Remove the bolts and tilt the box to access the fuses.


Fuses


A (amps)

Allocation


12


7.5
Right-hand dipped beam headlamp


13


7.5
Left-hand dipped beam headlamp


31


7.5
Relay supply


32


10
Cab lighting


33


15
Rear 12 V socket


34


-
Not used


35


7.5
Reversing lamps - Water in Diesel fuel sensor


36


15
Central locking control - Battery


37


7.5
Brake lamps switch - Third brake lamp - Instrument panel


38


10
Central locking


39


10
Audio system - Diagnostic socket - Alarm siren - Programmable additional heating controls -
Air conditioning controls - Tachograph - Battery


40


15
Heated: rear screen (left hand), driver's side mirror


41


15
Heated: rear screen (right hand), passenger's side mirror


42


7.5
ABS control unit and sensor - ASR sensor - ESP sensor - Brake lamps switch


43


30
Windscreen wiper motor


44


20
Cigarette lighter - 12 V socket


45


7.5
Door controls


46


-
Not used


47


20
Driver's electric window motor


48


20
Passenger electric window motor


49


7.5
Audio system - Instrument panel controls - Driver's electric window


50


7.5
Airbags and pre-tensioners unit


51


7.5
Tachograph - Cruise control - Air conditioning controls



52


7.5
Optional relay supply


53


7.5
Instrument panel - Rear foglamp

160


Changing a fuse


FUSES IN THE ENGINE COMPARTMENT



- Remove the nuts and tilt the box to
access the fuses.

Fuses


A (amps)

Allocation


1


40
ABS pump supply


2


50
Diesel pre-heater unit


3


30
Ignition switch


4


20
Programmable additional heating


5


20
Cab ventilation with programmable additional heating


6


40/60
Cab fan max speed


7


40/50
Cab fan min speed


8


40
Cab fan unit


9


20
Screenwash pump


10


15
Horn


14


7.5
Right hand main beam


15


7.5
Left hand main beam


20


30
Headlamp wash pump


21


15
Fuel pump supply


23


30
ABS electrovalves


30


15
Front foglamps

161
QUICK HELP
8


Changing a wiper blade
CHANGING A WIPER BLADE

The steps, located in the front bumper,
enable you to access the blades and the
screenwash nozzles.
Changing a front wiper blade

Lift the wiper arm.
Unclip the blade by pressing the button and
remove it by pulling it outwards.
Fit the new blade and ensure that it is
secured correctly.
Push back the wiper arm.
Changing the rear wiper blade

Lift the wiper arm, then unclip the blade and
remove it.
Fit the new blade and push back the wiper arm.

To return the windscreen wipers to their
normal position, switch on the ignition
and operate the wiper stalk.
Check that the screenwash or headlamp
wash nozzles are not blocked.

174
Exterior



EXTERIOR


Rear lamps, direction indicators, 3 rd
brake lamp, foglamps 36, 47, 153, 156


Left-hand side: fuel fi ller cap, fuel tank 144
Fuel cut-off 144


Load space 75-76
Rear doors 28



Number plate lamp 156



Parking sensors 83

Spare wheel, jack,changing a wheel,tools, puncture repair kit 148-152
Infl ating, pressures 173


Towing, lifting 162
Towbar, towball 133-134
Dimensions 164-170

Accessories 135-136
Roof bars 135
Brakes, pads 139, 141 ABS, Electronicbrake force distribution 115EBA 11 5 ASR, ESP 116-117Tyres, pressures 173Pneumatic suspension 86


Key, remote control, battery 21-23 Starting 41-42
Central locking 29
Confi dential card 25 Alarm 26


Wiper blade 161 Door mirror 77
Side repeater 155


Front lamps, foglamps, directionindicators 153-155
Headlamp beam height adjustment 49
Headlamp wash 50 Changing bulbs 153-155

Opening/closing doors 27-29
Key 23 Opening the bonnet, stay 137
Mode - autoclose 81

17
5
Instruments and controls
10
VISUAL SEARCH

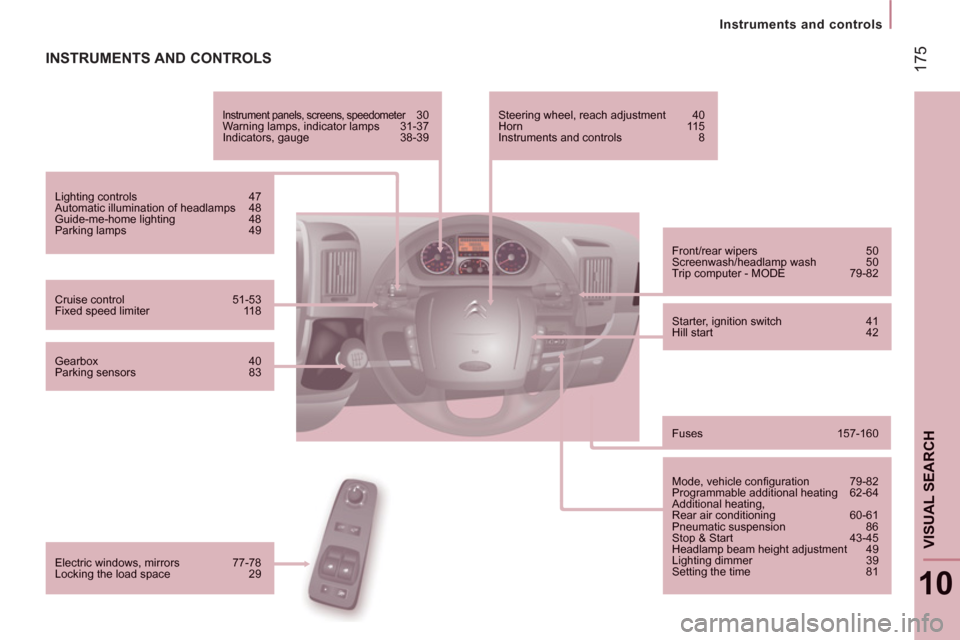

INSTRUMENTS AND CONTROLS

Instrument panels, screens, speedometer30r Warning lamps, indicator lamps 31-37
Indicators, gauge 38-39
Lighting controls 47
Automatic illumination of headlamps 48 Guide-me-home lighting 48 Parking lamps 49



Fuses 157-160


Mode, vehicle confi guration 79-82
Programmable additional heating 62-64 Additional heating,Rear air conditioning 60-61
Pneumatic suspension 86 Stop & Start 43-45
Headlamp beam height adjustment 49
Lighting dimmer 39 Setting the time 81


Front/rear wipers 50
Screenwash/headlamp wash 50
Trip computer - MODE 79-82


Starter, ignition switch 41
Hill start 42
Cruise control 51-53 Fixed speed limiter 118
Steering wheel, reach adjustment 40 Horn 115 Instruments and controls 8
Electric windows, mirrors 77-78 Locking the load space 29

Gearbox 40 Parking sensors 83

17
8
Technical data - Maintenance
Screenwash/headlamp wash, level 140

Bulbs, lighting, changing bulbs 153-155

Opening the bonnet, stay 137
Under the bonnet 138


Identifi cation markings, serial number,paint, tyres 173

Changing a wiper blade 161

Levels 139-140


●
dipstick,

●
power steering fluid,

●
brake fluid,

●
coolant.



Water bleed, Diesel fi lter 141

Checks 141-142


●
battery,

●
air/passenger compartment filter,

●
oil filter,

●
parking brake,

●
particle filter,

●
brake pads.
Emission control 38


Engine fuses 157, 160

TECHNICAL DATA - MAINTENANCE


Dimensions 164-170
Weights 172
