Familiarisation

Automatic headlamp dipping

This system automatically changes between
dipped and main beam, depending on the
driving conditions, using a camera located in
the interior rear view mirror.
14 3

Front and rear parking sensors
This systems warns you of the presence of obstacles located in front of or behind thevehicle during parking manoeuvres.
133

Temporary puncture repair kit
This kit is a complete system consisting of a compressor and a sealant car tridge, to allow
the temporary repair of a tyre.
18
6
Exterior
Reversing camera

This system, available only with satellite
navigation, is activated automatically onengaging reverse gear and provides an imagein the colour screen.
13
5

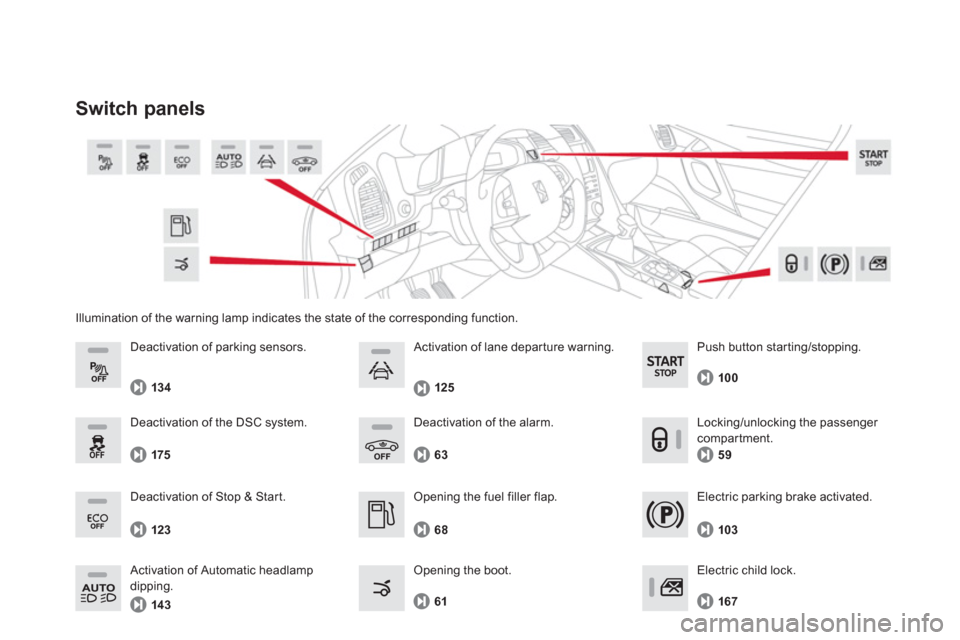

Illumination of the warning lamp indicates the state of the corresponding function.
Switch panels
Opening the fuel filler flap.

Opening the boot. 6
8
63 D
eactivation of the alarm.
6
1
Electric parking brake activated.
103


Push button star ting/stopping.
100

Deactivation o
f Stop & Start.
123


Deactivation of parking sensors.
134


Electric child lock.
167
Deactivation of the DSC s
ystem.
175

Activation of Automatic headlamp
dippin
g.
143
125
Activation of lane depar ture warning.
59
Lockin
g/unlocking the passenger compartment.

133Driving
This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.) which comes within the field of detection of sensorslocated in the bumper.
Certain types of obstacle (stake, roadworkscone, etc.) detected initially will no longer bedetected at the end of the manoeuvre due to
the presence of blind spots.






Parking sensors


This function cannot, in any circumstances, take the place of the vigilance and responsibility of the driver.
Rear parking sensors
The system is switched on by engaging reversegear. This is accompanied by an audible signal.
The system is switched off when you exit reverse gear.
Audible assistance
The proximity information is given by anintermittent audible signal, the frequency of which increases as the vehicle approaches the obstacle.
The sound emitted by the speaker (right or left) indicates the side on which the obstacle islocated. When the distance between the vehicle andthe obstacle becomes less than approximately
thirty centimetres, the audible signal becomescontinuous.



Visual assistance

This supplements the audible signal bydisplaying bars in the multifunction screen
w
hich move progressively nearer to the vehicle.When the obstacle is near, the "Danger" symbol is also displayed in the screen.

In bad weather or in winter, ensure that the sensors are not covered with mud, ice or snow. When reverse gear is
engaged, an audible signal (long beep)indicates that the sensors may be dirty. Cer tain sound sources (motorcycle,lorry, pneumatic drill, etc.) may trigger the audible signals of the parkingsensor system.
In th
e event of a malfunctionof the system, when reverse gear is engaged this warning
lamp is displayed in the instrument paneland/or a message appears in the screen,
accompanied by an audible signal (short beep).
Contact a CITROËN dealer or a qualified
workshop.

Operating fault
In addition to the rear parking sensors, the front parking sensors are triggered when an obstacle
is detected in front and the speed of the vehicle
is still below 6 mph
(10 km/h).
The front parking sensors are interrupted if
the vehicle stops for more than three seconds
in for ward gear, if no fur ther obstacles are
detected or when the speed of the vehicle
exceeds 6 mph (10 km/h).
Front par king sensors
The function will be deactivated automatically if a trailer is being towed or a bicycle carrier is fitted (vehicle fitted with a towbar or bicycle carrier recommended by CITROËN).



Deactivation / Activation of thefront and rear parking sensors

The function is deactivated by pressing this button.The indicator lamp in the button comes on.
Pressing this button again reactivates the function. The indicator lamp in the button goes off.

The sound emitted by the speaker (front
or rear) indicates whether the obstacle is in front or behind.

217Practical information

Driving advice


Distribution of loads

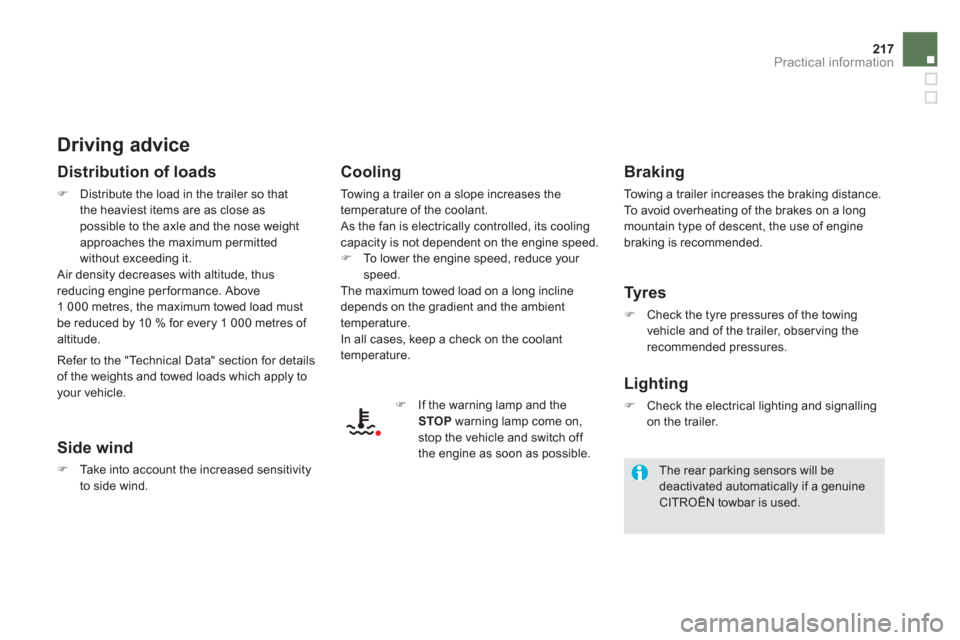

)Distribute the load in the trailer so that
the heaviest items are as close as possible to the axle and the nose weight approaches the maximum permitted
without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towed load must
be reduced b
y 10 % for every 1 000 metres of altitude.

Side wind
)Take into account the increased sensitivity
to side wind.
Cooling
Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling capacity is not dependent on the engine speed. )
To lower the engine speed, reduce your speed. The maximum towed load on a long inclinedepends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
) If the warning lamp and theSTOPwarning lamp come on, stop the vehicle and switch off
the engine as soon as possible.



Braking

To w i ng a trailer increases the braking distance.
To avoid overheating of the brakes on a long
mountain type of descent, the use of engine
braking is recommended.


Tyres
)
Check the tyre pressures of the towing
vehicle and of the trailer, obser ving the
recommended pressures.



Lighting
)
Check the electrical lighting and signalling on the trailer.



The rear parking sensors will be deactivated automatically if a genuineCITROËN towbar is used.

R
efer to the "Technical Data" section for detailsof the weights and towed loads which apply to your vehicle.

219Practical information





Accessories
A wide range of accessories and genuine par ts is available from the CITROËN dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.



"Comfort":

door deflectors, side window blinds, rear screen blind, isotherm module, coat hanger fixed to head restraint, mobile reading lamp, mirror for caravan, parking sensors...


"Transport systems":

child seats and booster cushions, boot carpet,
boot liner, boot net, boot spacers, transverse
roof bars, bic
ycle carrier, ski carrier, roof boxes,
towbars, wiring harnesses...
If a towbar and wiring harness are fitted
outside the CITROËN dealer network, theinstallation must be done using the vehicle's electrical pre-equipment and fitted following the manufacturer's recommendations.
"Styling":
gear lever knobs, aluminium foot rest, alloy wheels, chrome mirror shells, chrome door aperture finishers...

*
To avoid an
y risk of jamming the pedals:
- ensure that mats are correctly positionedand secured,
- never fit one mat on top of another.
"Security and safety":
anti-intrusion alarm, anti-tilt unit, stolen
vehicle tracking system, child seats and
booster cushions, breathalyser, first aid kit, fire
extinguisher, warning triangle, high visibility
vest, wheel security bolts, snow chains, non-
slip covers...

"Protection":

mats * , seat covers compatible with lateral
airbags, mud flaps, door protective mouldings,bumper protection strips, vehicle cover...
The rear bodywork has been designedto avoid spray.
