2013 Citroen DS5 HYBRID4 stop start

14 . Controls for electric windows / electric child lock / central locking.
15. eMyWay controls.
16.Gear selector.
17. Hybrid4 mode selector.
18
. Heating / air conditioning controls.
19.Audio system.
20.Hazard warning lamps. 21. Multifunction screen.22.Central adjustable air vents.
23.Clock.
24.Starting with the STA R T/STOP button.
25. Electronic key reader.
26. Wiper / screenwash / trip computer stalk.






Instruments and controls
1.
Bonnet release lever.2.
Headlamp height adjustment. 3.
Side adjustable air vents.4.
Front door window demisting/defrosting
vents.
5. Quarter light demisting windows.
6.Head-up display.7. Windscreen demisting/defrosting vent.8.Passenger's airbag. 9.
Glove box / Passenger's airbag deactivation inside. 10.12 V accessory socket. 11.
Rear electric window controls.12.Central armrest with storage.
USB por t / auxiliary socket. 13.Electric parking brake.
27. Audio equipment steering mountedcontrols. 28.
Driver's airbag.
Horn. 29. Cruise control / speed limiter controls.
30.
Switch panel (see previous page).31.Door mirror adjustment.32.
Lighting and direction indicator stalk33.
Instrument panel. 34.Seat belt and airbag warning lamps. 35.Cour tesy lamp. 36.Head-up display controls. 37.
Controls for cockpit glass roof blind. 38.CITROËN Localised Emergency Call - CITROËN Localised Assistance Call.

23Familiarisation

Starting - stopping the engine

Driving safely


Before starting
31
Starting




- The instrument panel and the Ready
lampcome on, confirmed by an audible signal.

- The dial in the centre console is in AUTO
mode.


- Place the
gear selector in position N.

- Inser t the electronic key in the reader or keep the electronic key inside the vehicle.- Press the brake pedal.
- Make single shor t press (about 1 second) on the START/STOP
button.



Moving off




- While maintaining pressure on the brakepedal, move the gear selector to position Ato go forwards or Rfor reverse.

- Ta k e your foot off the brake pedal, you can
then move off.

29Hybrid system
Main parts of the Hybrid4 system

The HDi Diesel engine - 1
, located at the front,
drives the front wheels and provides most of
the power needed to drive the vehicle.
It i
s fitted with the Stop & Start
system - 5which recharges the batteries and provides
additional power when needed (in 4x4 mode).

Th
e electric motor - 2
, located at the
rear, drives the rear wheels on its own, or
supplements the Diesel engine, according to
the hybrid mode selected.
It recovers energy and charges the batteries
during phases of deceleration of the vehicle
and is active up to 70 mph
(120 km/h).
A 200 V NI-MH hi
gh voltage battery - 3,provides a source of energy for the rear electric
motor.
Its charging rate is managed automatically by
the vehicle during phases of deceleration.It is located in a compar tment in the boot, access to which is restricted to trained servicetechnicians.
The batter
y state of charge
is indicated
by 8 horizontal or vertical bars (depending on
the screen).

Th
e conventional battery, located under the ybonnet, powers the vehicle's 12 V systems. It is recharged automatically by the high voltage
network.

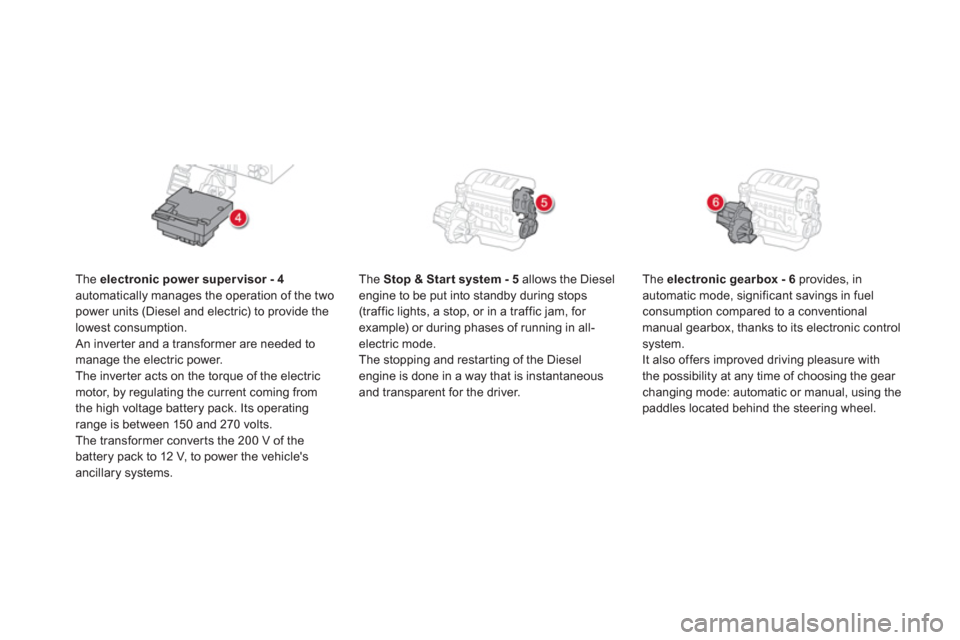

The electronic power super visor - 4automatically manages the operation of the twopower units (Diesel and electric) to provide the
lowest consumption.
An inverter and a transformer are needed to manage the electric power.
The inver ter acts on the torque of the electric
motor, by regulating the current coming from
the high voltage battery pack. Its operatingrange is between 150 and 270 volts.
The transformer converts the 200 V of thebattery pack to 12 V, to power the vehicle'sancillary systems.
The Stop & Start system - 5allows the Dieselengine to be put into standby during stops(traffic lights, a stop, or in a traffic jam, for example) or during phases of running in all-electric mode.
The stopping and restar ting of the Diesel engine is done in a way that is instantaneous
and transparent for the driver.
The electronic gearbox - 6
provides, in
automatic mode, significant savings in fuelconsumption compared to a conventional manual gearbox, thanks to its electronic control system.
It also offers improved driving pleasure with
the possibility at any time of choosing the gear changing mode: automatic or manual, using the paddles located behind the steering wheel.

31Hybrid system

Before starting




- Place the gear selector lever in position N.

- If your vehicle has Keyless Entry and Starting, simply having the key inside the
vehicle is sufficient.

- If not, place the electronic key in the reader.

- Press the brake
pedal.
- Make a single shor t press (about a second) on the START/STOP
button.
- The steering column locks (noticeable
noise and movement of the steeringwheel).
- Keep your foot on the brake pedal until theHybrid4 system starts up (the instrument panel and the Readylamp come on, confirmed by an audible signal).
Starting the Hybrid4 system















Starting - switching off the engine

The hybrid system determines whether it is
necessary to star t the Diesel engine.

Switching off the Hybrid4
s
ystem
- Before switching off the Hybrid4 system,place the gear selector in position N.
- Make a shor t press on the START/STOPbutton.
- The s
ystem shuts down and the steeringcolumn locks.

When your vehicle vehicle moves off in electric mode, it makes no noise. Be ver y careful of pedestrians as they will not hear you coming.
For more information, see the section on "Underbonnet precautions/warnings".
When stationary, switch off the ignitionand check that the Ready
lamp is off before leaving the vehicle, other wisethe hybrid system will still be active.

33Hybrid system











Anti-theft protection
Electronic engine immobiliser
The keys contain an electronic chip which hasa secret code. When the ignition is switched
on, this code must be recognised in order for
starting to be possible. This electronic engine immobiliser locks the
engine management system a few minutes after the ignition is switched off and prevents
starting of the engine by anyone who does not have the key.
In the event of a malfunction, you are informed
by a message in the instrument panel screen.
In this case, your vehicle does not start; contacta CITROËN dealer as soon as possible.
Ignition on without starting
the engine
(accessory position)

With the electronic key in the reader or the
Keyless Entry and Star ting key inside the
vehicle, pressing the "START/STOP" button,
with no action on the pedals, allows the ignition
to be switched on and so activate the ancillary equipment.
)
Press the "START/STOP" button,
the instrument panel comes on but the engine does not star t.) Press the button again to switch
off the ignition and so allow the
vehicle to be locked.
If you use the accessory position for toolong, the system automatically goes intoeconomy mode to avoid the risk of a flatbattery.

Back-up starting with the Keyless Entry and Starting
system
When the electronic key is in the defined zone and your vehicle does not star t after pressingthe "STA R T/STOP" button: )Inser t the electronic key in the reader. )Press the brake pedal. )Press the "STA R T/STOP" button.
The hybrid system is active.



Back-up switch- off

In the event of an emergency only, the enginecan be switched of without any conditions. To
do this, press and hold the "STA R T/STOP"button for about 3 seconds.
In this case the steering column locks as soon
as the vehicle stops.
Electronic key not recognised bythe "Keyless Entry and Starting"
system
If the electronic key is no longer in the defined
zone when driving or when you (later) request switching off of the hybrid system, a message
appears in the instrument panel.
)Press and hold the "STA R T/STOP" button for about 3 seconds if you want to forceswitching off of the hybrid system (note that restar ting will not be possible without theelectronic key in the defined zone).
The electronic ke
y must always remain inside
the vehicle when in use.
