2013 CITROEN C5 boot

86
C5_en_Chap03_ergonomie-et-confort_ed01-2016
Boot fittings (Saloon)
1. Boot floor (
storage for the spare wheel and the tools) 2. B
oot lamp
3. O pen storage or Closed storage well
F

or vehicles so equipped, this is the
location for the Hi-Fi amplifier.
Luggage securing rings
F Use the 4 securing rings on the boot floor to secure your luggage.
For safety reasons in the event of sharp
braking, you are advised to place heavy
objects as far for ward in the boot as
possible.
Ease of use and comfort

87
C5_en_Chap03_ergonomie-et-confort_ed01-2016
Boot fittings (Tourer)
1. Hook
F or shopping bags.
2.
T

o r c h
T

o recharge, return it to its housing.
3.
Sto

rage net 1. Lu
ggage
cover (
see details on following page)
2.
Lu

ggage securing rings
U

se the 4 securing rings provided on the
boot floor to secure your loads. 1. B
oot lamp
2. 1 2 V accessor y socket (100 W maximum)
C

igarette lighter type 12 volt socket. It is
located on the rear right-hand trim.
3.
L

oading height control
Y

ou can change the height of the vehicle to
make loading or unloading the boot easier.
4.
Hoo

k
F

or shopping bags.
5.
Sto

rage net or Closed storage well
F

or vehicles so equipped, this is the
location for the Hi-Fi amplifier.
As a safety measure in the event of
sharp braking, you are advised to
place heavy objects as far for wards as
possible.
3.
Hoo

ks
T

hese allow a high load net to be fitted
(see details on following page).
3
Ease of use and comfort

89
C5_en_Chap03_ergonomie-et-confort_ed01-2016
High load retaining net
(Tourer)
Hooked onto the special upper and lower
fixings, this permits use of the entire loading
volume up to the roof:
-
b
ehind the rear seats (row 2),
-

b
ehind the front seats (row 1) when the rear
seats are folded.
When positioning the net, check that the strap
loops are visible from the boot; this will make
slackening or tightening easier.
Installation
F Fold down the backrests of the rear seats.
F P osition the high load retaining net roller
above the two rails 1 located behind
the rear seats (2/3 bench seat). The
two
notches 2 must be placed above the
two
rails. F
S lide the two rails 1 into the notches 2 and
push the roller (lengthways) from right to
left to secure it.
F

R
eposition the rear seat backrests.
3
Ease of use and comfort

169
C5_en_Chap06_securite_ed01-2016
"ISOFIX" mountings
Your vehicle has been approved in accordance
with the latest ISOFIX regulations.
The outer rear seats are fitted with regulation
ISOFIX mountings.
There are three rings for each outer rear seat:
-

t
wo lower rings A, located between the
vehicle seat back and cushion, indicated by
a marking,
-

a
n upper ring B, called the TOP
TETHER ,
fixed to the rear shelf and
located under a cover behind the head
restraint behind the head restraint, for
fixing the upper strap.
I

t is indicated by a marking.There are three rings for each outer rear seat:
-

t
wo lower rings A, located between the
vehicle seat back and cushion, indicated by
a marking,
-

a
n upper ring C, called the TOP TETHER ,
fixed to the roof on the boot end and
located under a cover, for fixing the upper
strap.
I

t is indicated by a marking.SaloonTourer
6
Safety

201
C5_en_Chap07_info-pratiques_ed01-2016
Recommendations on storage
AdBlue® freezes at about -11°C and
deteriorates above 25°C. It is recommended
that bottles be stored in a cool area and
protected from direct sunlight.
Under these conditions, the fluid can be kept
for at least a year.
If the additive has frozen, it can be used once it
has completely thawed out.
Never store bottles of AdBlue
® in your
vehicle.
Procedure
Before starting the top-up procedure, ensure
that the vehicle is parked on a flat and level
sur face.
F

S
witch off the ignition and remove the key.
Access
F For access to the AdBlue® tank, raise the
boot carpet then, depending on equipment,
lift out the spare wheel and/or the storage
box.
Opening
F Without pressing, turn the black cap a quarter turn anti-clockwise and lift it off.
F

T
urn the blue cap a 6
th of a turn anti-
clockwise.
F

L

ift off the cap.
7
Practical information

202
C5_en_Chap07_info-pratiques_ed01-2016
Closing
F Refit the blue cap to the tank and turn it a 6th of a turn clockwise, to its stop.
F
R
efit the black cap and turn it a quarter of
a turn clockwise without pressing. Ensure
that the indicator on the cap lines up with
the indicator on the support.
F

D

epending on equipment, return the spare
wheel and/or the storage box to the bottom
of the boot.
F

R

efit the boot carpet and close the tailgate.
Important: in the event of a top-up
after a breakdown because of a lack
of AdBlue
®, signalled by the message
"Top up emissions additive: Starting
prevented", you must wait around
5

minutes before switching on the ignition,
without opening the driver's door,
locking the vehicle or introducing the
key into the ignition switch .
Switch on the ignition, then, after
10
seconds, start the engine.
Do not dispose of AdBlue
® bottles or
containers in the household waste.
Place them in a container provided for
this purpose or take them to your dealer.
If any fluid is split or splashed, wash
immediately with cold water or wipe with
a damp cloth.
If the fluid has crystallised, clean it off
using a sponge and hot water.
F

W

ipe away any spillage around the tank
filler using a damp cloth. Important
: if your vehicle's
AdBlue
® tank is completely empty -
w
hich is confirmed by the alert
messages and the impossibility of
starting the engine, you must add at
least 3.8 litres (so two 1.89 litre bottles).
Filling
F Pour the contents of the bottle into your vehicle's AdBlue® tank.
Practical information

204
C5_en_Chap08_en-cas-de-panne_ed01-2016

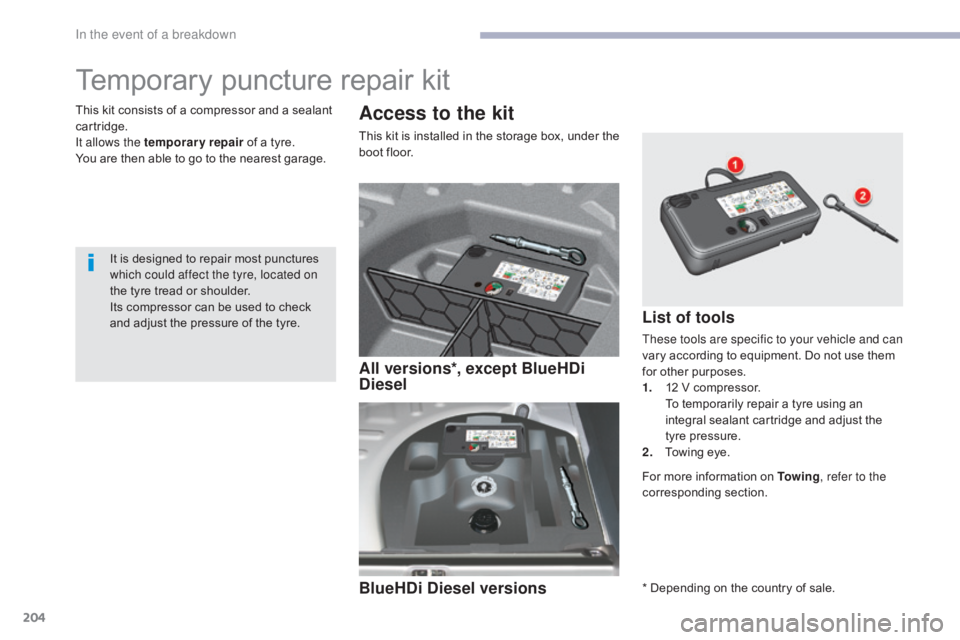

Temporary puncture repair kit
Access to the kit
This kit is installed in the storage box, under the
boot floor.
This kit consists of a compressor and a sealant
cartridge.
It allows the temporary repair
of a tyre.
You are then able to go to the nearest garage.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.
Its compressor can be used to check
and adjust the pressure of the tyre.
List of tools
These tools are specific to your vehicle and can
vary according to equipment. Do not use them
for other purposes.
1.
1
2 V compressor.
T

o temporarily repair a tyre using an
integral sealant cartridge and adjust the
tyre pressure.
2.
T

owing eye.
For more information on To w i n g , refer to the
corresponding section.
All versions*, except BlueHDi
Diesel
BlueHDi Diesel versions
* Depending on the country of sale.
In the event of a breakdown

212
C5_en_Chap08_en-cas-de-panne_ed01-2016
Access to the spare wheel
Removing the boot floor
F Saloon: raise the boot floor and fold in two.
F T ourer : raise the boot floor and hook it
using the retractable handle. Secure the
hook to the top part of the boot.
Removing the standard spare
wheel
F Detach the strap, then push the wheel for wards so as to be able to lift it.
Repositioning the standard spare
wheel
F Position the spare wheel flat in the boot, then pull it towards you.
F

N
ext place the toolbox inside the wheel,
then secure the assembly using the strap.
Removing the "space-saver"
spare wheel
F Unscrew the central nut.
F R emove the fixing parts (nut and bolt).
F

T
ake the spare wheel from the rear and lift
it towards you.
F

R
emove the wheel from the boot.
In the event of a breakdown
