7
Familiarisation
Exterior


Motorised tailgate

This system simplifies the opening and closing of the boot by means of motorisation of the
tailgate.
7
6
260 18
6
224

Te m p o r a ry puncture repair
kit
This kit is a complete system, consisting of acompressor and a sealant car tridge, for the
temporary repair of a tyre.

Under-inflation detection

This system continuously monitors thepressures in the tyres and aler ts you in theevent of an under-inflated tyre.


Blind spot sensors

In cer tain driving conditions, this system
detects the presence of vehicles in the blind
spots. You are aler ted by the illumination of a
warning lamp in the corresponding mirror.

8
Familiarisation
Access
Electronic key - Remote
control
A.
Unlocking the vehicle.B.Locking the vehicle.C.Unlocking of the vehicle and, depending
on version, release of or opening themotorised tailgate.
313
61

Keyless Entry and Starting


Unlocking - opening
With the electronic key on your person, in the defined zone A, pass a hand behind one of thefront door handles to unlock the vehicle, then
pull the door handle to open the door or press
the openin
g control on the tailgate.

Locking

With the electronic key in the defined zone A,
press with a finger or thumb on one of the
front door handles (at the markings) to lock the
vehicle or on the opening control on the tailgate.
6
4

Motorised tailgate
76
This system allows the tailgate to be opened
remotely using motorisation.
The motorisation o
f the tailgate can beactivated or deactivated.
Ensure that there is enough space behind the
vehicle for the movement of the tailgate.
Fuel tank

With the vehicle unlocked, press on the rear of
the filler flap to open it.
Tank capacity: around 57 litres
(petrol) or 55 litres (Diesel).

1
29
Monitoring
ButtonCorresponding functionComments
Vehicle settings Access to other functions with settings that can be adjusted. The functions are grouped
together under three tabs:
- " Driving assistance
"
●
"Automatic rear wiper in reverse" (Activation of rear wiper linked to reverse gear; see
the "Visibility" section),
●
"Auto mirror dipping in reverse" (automatic dipping of door mirrors in reverse; see the"Comfort" section).

-"Lighting"
●
"Guide-me-home lighting" (Automatic guide-me-home lighting; see the "Visibility" section),
●
"Welcome lighting" (Exterior welcome lighting; see the "Visibility" section),
●
"Adaptive lighting" (Cornering lighting / Directional lighting; see the "Visibility" section),
●
"Mood lighting" (mood lighting; see the "Visibility" section).

- " Vehicle access"
●
"Tailgate motorisation" (Automatic operation of the tailgate; see the Access section),
●
"Driver plip action" (Selective unlocking of the driver's door; see the Access section).

61
2
Access
Remote control


















Electronic key

System which permits remote locking or
unlocking of the vehicle as well as opening the
boot and, depending on version, operation of
the alarm.
It also allows the location and star ting of the
vehicle as well as providing protection against
theft.
The electronic key includes an integral back-up emergency key.
Unlocking the vehicle
)
Press this button.
Unlocking the vehicle and
openin
g the boot

The direction indicators flash for a few seconds. The door mirror spot lampscome on. Depending on version, the door mirrors unfold, the welcome lighting comes on, the alarm is deactivated.
)
Make a long press on thisbutton to unlock the vehicleand, depending on version,release the tailgate or open the
motorised tailgate.
) To unlock the other doors and the boot,
press this button again.

The settin
g of the selective unlocking is done in
the "Driving assistance" menu, then "Vehicle
settings".Complete unlocking is activated by default.
Complete unlocking
) To unlock only the driver's door,
press this button once.
Selective unlocking Settings for the motorised tailgate can be
adjusted in the "Driving assistance " menu,
then " Vehicle settings". Motorised operation is activated by default.

64
Access
System that allows the opening, closingand starting of the vehicle while keeping theelectronic key on your person.
For reasons of safety and theftprotection, do not leave your electronic key in the vehicle, even when you are close to it. It is recommended that you keep it on your person: in a pocket, bag, ...


The electronic key can also be used as a remote control; refer to the "Key / remote control" section.
























"Keyless Entry and Starting" system


Unlocking the vehicle


Complete unlocking
)
With the electronic key on your personand in the defined zone A, pass your handbehind the door handle of one of the front
doors to unlock the vehicle or press the
ta
ilgate opening control.
Pull the door handle to open the door.



Selective unlocking
)To unlock only the drivers door, with the electronic key on your person, pass your hand behind the driver's door handle. Pull
the door handle to open.)To unlock the complete vehicle, pass your hand behind one of the door handle of the front passenger door with the electronic
key close to the passenger door, or press the tailgate opening control with
the electronic key close to the rear of the
vehicle.

Activation or deactivation of the selectiveunlocking is done in the "Driving assistance"menu, then "Vehicle settings".
By default, complete unlocking is activated.


The direction indicators flash for a few seconds. Depending on version, the door mirrors
unfold, the welcome lighting comes on,the alarm is deactivated.

65
2
Access
Ensure that nothing could prevent the correct operation of the windows.Be aware of children when operating the windows.
Locking the vehicle
)With the electronic key in the defined
zone A , press with a finger or thumb on
one of the door handles (at the markings)or press the locking button on the tailgate.
Maintaining pressure allows the windows tobe raised to the desired position.
The direction indicators come on for afew seconds. Depending on your version, the door mirrors fold, the alarm is activated.
Normal locking

66
Access

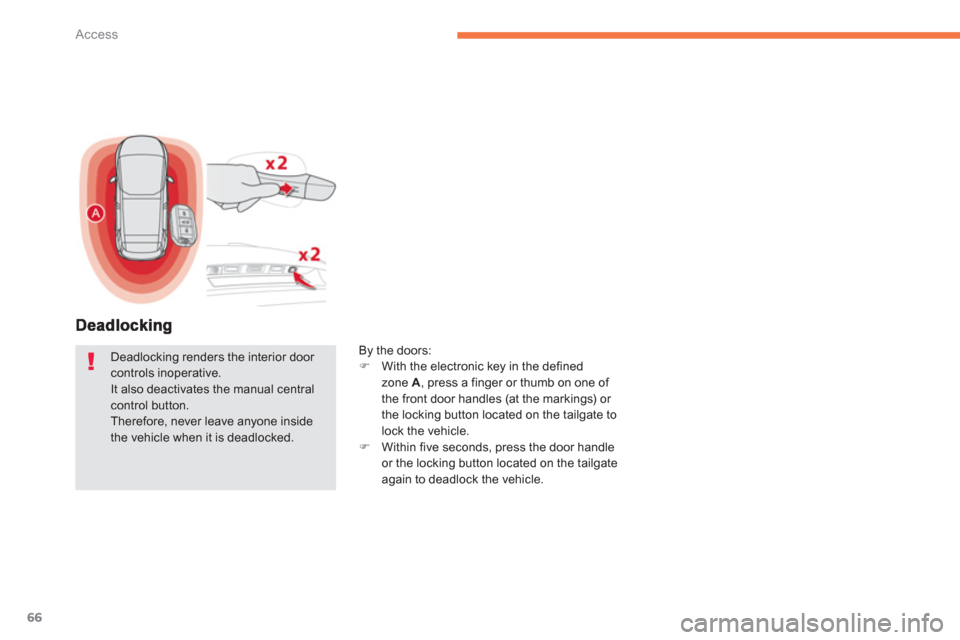

By the doors: )
With the electronic key in the defined
zone A, press a finger or thumb on one of
the front door handles (at the markings) or
the locking button located on the tailgate to lock the vehicle. ) Within five seconds, press the door handleor the locking button located on the tailgate
again to deadlock the vehicle.



Deadlocking renders the interior door controls inoperative.
It also deactivates the manual central control button.
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
