2013 Citroen C4 PICASSO RHD boot

133
3
Comfort

Stowing behind the 3 rd
row seats
To fold the 3rdrow seats with the roller
stowed at the rear, it is necessary to raise theconcertina boards in order to allow access to
the seat locking controls (red straps).
)Ensure that the 3rdrow seats are folded.)Fold the first two concertina boards.)Install the roller in the space above the armrest, one side after the other, inclining itslightly. )Slide the roller as far as it will go, up to thecut-outs provided at the back of the boot,
with the two flaps directed downwards.)Unfold the third row seats.
The folded concer tina boards can be positioned horizontally or ver tically.

134
Comfort
Torch
This is a removable lamp, fitted in the side of
the boot, which can be used to illuminate the
boot or as a torch.

Operation
This torch operates with NiMH typerechargeable batteries.
It has a battery life of approximately 45 minutes
and charges while you are driving.

Use
)Extract the torch from its location by pullingit from the front. )Press the switch, located on the back, to switch the torch on or off. )Unfold the suppor t, located on the back, toset down and raise the torch; for example,
when changing a wheel.



Storing
)Put the torch back in place in its location starting with the rear.
If you have forgotten to switch off the torch,
this switches it off automatically.

It the torch is not engaged correctly, itmay not charge and may not come onwhen the boot is opened.
Obser ve the polarities when fitting the batteries. Never replace the rechargeablebatteries with single-use batteries.

205
5
Visibility

Operation of the rear foglamps is inhibited with the tailgate open. Opening the boot when these lamps are on causes them and their indicator lamp in the instrument panel to go off. They do not come back onautomatically when the boot is closed: they must be switched on again using the control stalk.

In good or rainy weather, by both day and night, the front foglamps and therear foglamps are prohibited. In thesesituations, the power of their beams may dazzle other drivers. They should only be used in fog or falling snow.In these weather conditions, you shouldswitch on the foglamps and dippedbeam headlamps manually, as thesunshine sensor may detect sufficient light.Do not forget to switch off the front andrear foglamps when they are no longer necessary.


Switching off the lightingwhen switching off the ignition

When the ignition is switched off, all of thelamps switch off immediately, except for thedipped beam headlamps if automatic guide-me-home lighting is activated.


Switching on the lightingwhen switching on the ignition

To reactivate the lighting control stalk, turn the ring A
to position A"0"- lighting off, thento the position of your choice.
If the lighting is switched on manually after switching off the ignition, there is an audiblesignal when a front door is opened to warnthe driver that they have forgotten to switch
off the vehicle's lighting, with the ignition off.
They switch off automatically after a periodwhich depends on the state of charge of thebattery (entry to energy economy mode).

211
5
Visibility
To avoid causing a nuisance to other road
users, the headlamps should be adjustedaccording to the load in the vehicle.
0. 1 or 2 people in the front seats. -.
Intermediate setting. 1.
5 people + maximum authorised load. -.
Intermediate setting. 2.Driver + maximum authorised load. -.
Intermediate setting. 3.5 people + maximum load in the boot.









Manual adjustment
of headlamps

The initial setting is position "0".

232
Safety
2 nd row centre seat belt
The seat belt for the centre rear seat is built into the roof.
Fastening
)Pull the strap and inser t the tongue A
into
the right hand buckle.)Inser t tongue Binto the left hand buckle.)Check that each buckle is correctlyfastened by pulling on the belt webbing.



Unfastening
)
Press the red button in buckle B , then buckle A.)
Guide the seat belt as it reels in and place
the tongue Band then A on the magnet in
the roof anchorage point.


Before any operation of the rear seats,to avoid damage to the seat belts check that there is no slack in the outer belts and secure their tongues on the anchorage points. The centre seat beltmust be fully reeled in.



3rd row seat belts

Fastening
)Detach the seat belt strap from its retainingloop located on the side trim of the boot. )Pull on the strap and inser t the tongue into
the buckle. )Check that the buckle is correctly fastened
b
y pulling on the belt strap.

Unfastening and stowing
)Press the red button in buckle. )Guide the seat belt strap as it reels in.)Secure the strap, flat in the retaining loop.
Ensure that the the seat belts are secured when not in use.

260
Practical information
This kit is installed in the storage box, under theboot floor. Complete s
ystem consisting of a compressor and a sealant car tridge which permits
temporary repair of a tyre so that you can rdrive to the nearest garage.It is designed to repair most punctures which could affect the tyre, located on the tyre tread or shoulder.




















Temporary puncture repair kit


Access to the kit

Depending on version, the kit is stowed under
the front passenger's seat or in the storagebox under the second row footwell.

268
Practical information














Changing a wheel
The tools are installed in the boot under the
floor.
Remove the boot carpet for access to them.
Access to the tools

List of tools *



Procedure for changing a faulty wheel for the spare wheel using the tools provided with the vehicle.

*
According to equipment.
All of these tools are specific to your
vehicle and can vary according to the level
of equipment. Do not use them for other
purposes. 1. Wheelbrace.
For removing the wheel trim and removingthe wheel bolts. 2.Chocks for immobilising the vehicle (except
versions with manual gearbox). 3.Jack with integral handle.
For raising the vehicle.4. Wheel bolt cover removal tool.
For removing the finishers on the heads of
the wheel bolts on alloy wheels.
5. Socket for the security bolts (located in the glove box).
For adapting the wheelbrace to the special
"security" bolts.

269
7
Practical information

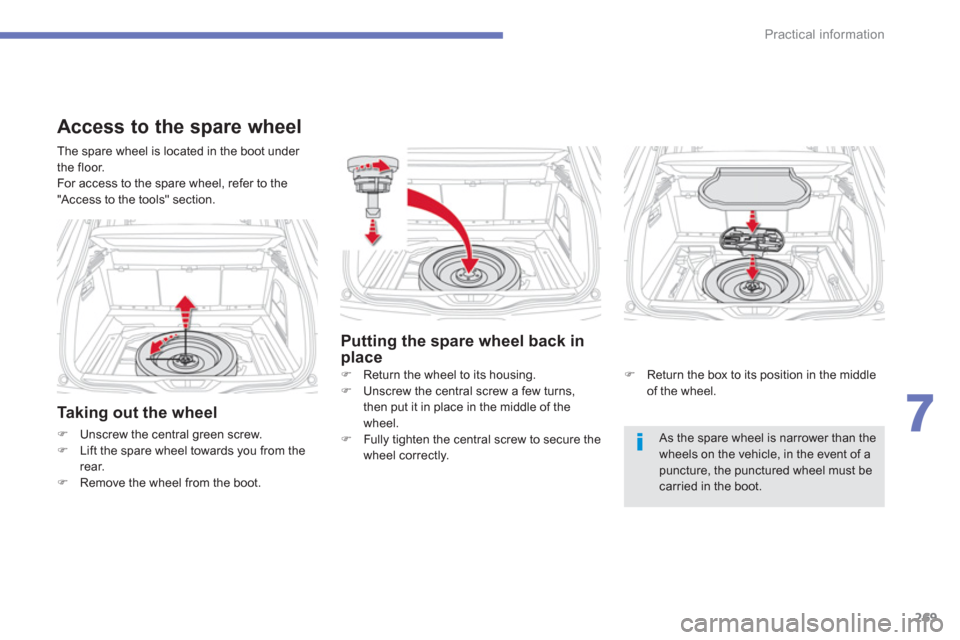

Ta k i ng out the wheel
)Unscrew the central green screw. )Lift the spare wheel towards you from therear. )Remove the wheel from the boot.


As the spare wheel is narrower than thewheels on the vehicle, in the event of a puncture, the punctured wheel must be carried in the boot.
The spare wheel is located in the boot under
th
e floor.
For access to the spare wheel, refer to the
"Access to the tools" section.











Access to the spare wheel
Putting the spare wheel back inplace
)
Return the wheel to its housing.)
Unscrew the central screw a few turns,
then put it in place in the middle of the
wheel.) Fully tighten the central screw to secure the
wheel correctly.
) Return the box to its position in the middle of the wheel.
