2013 Citroen C4 PICASSO bulb

285
7
Practical information
1. Direction indicator (PY21W amber).2. Sidelamp / foglamp (P21/5W).

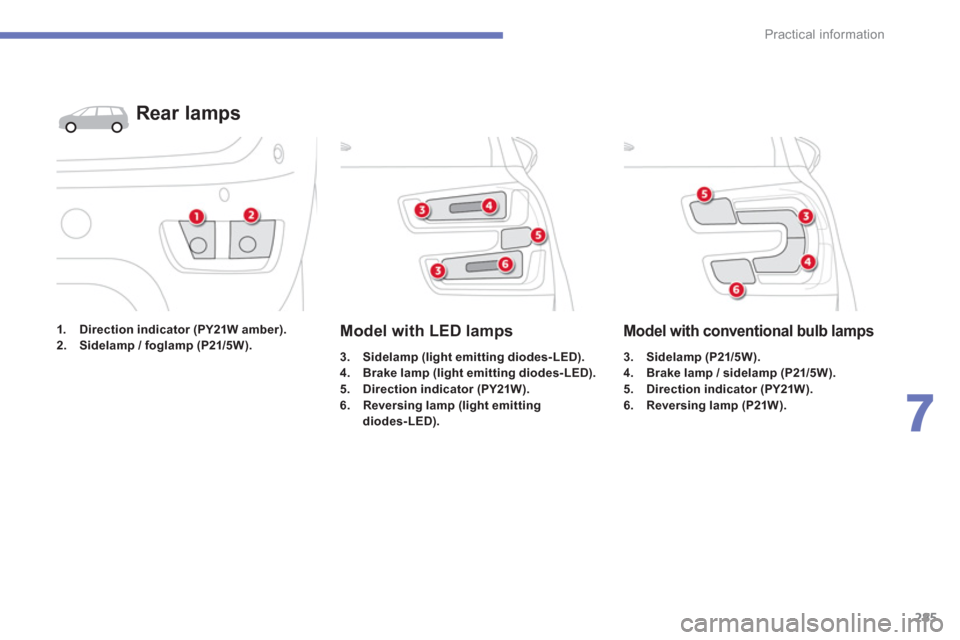

Rear lamps
3. Sidelamp (light emitting diodes-LED).4. Brake lamp (light emitting diodes-LED).5. Direction indicator (PY21W).6. Reversing lamp (light emitting
diodes-LED).
Model with LED lamps
3. Sidelamp (P21/5W).4. Brake lamp / sidelamp (P21/5W).5. Direction indicator (PY21W).6. Reversing lamp (P21W).
Model with conventional bulb lamps

286
Practical information
















Lamps on the tailgateModel with LED lamps
Model with conventional bulb lam
ps
Identify the failed bulb.)Open the boot.)Remove the access cover.
) Remove the three lamp fixing screws A.)
Disconnect the lamp connector. )
Carefully remove the lamp from its housing. )
Turn the bulb holder a quar ter of a turn
anti-clockwise and pull the bulb out.
) Change the bulb.
For reassembly, carry out these operations in reverse order.

287
7
Practical information
Direction indicator, sidelamp andfoglamp
Access is by passing a hand under the bumper. )Turn the bulb holder a quar ter of a turn andpull it out.)Change the bulb.
For reassembly carry out these operations in
reverse order.
You can also contact a CITRO

308
Practical information
The fitting of electrical equipment or accessories which are not recommended by CITROËN may resultin a failure of your vehicle's electronicsystem and excessive electricalconsumption.

Please note this precaution. You are advised to contact a CITROËNrepresentative to be shown the range of recommended equipment and accessories.
Installation of radiocommunicationtransmitters
Before installing any after-market radio communication transmitter, you cancontact a CITROËN dealer for thespecification of transmitters which canbe fitted (frequency, maximum power,aerial position, specific installation requirements), in line with the VehicleElectromagnetic Compatibility Directive(2004/104/EC).



Depending on the legislation in forcein the country, it may be compulsory to have a high visibility safety vest, warning triangle, breathalyzers and spare bulbs and fuses available in thevehicle.
"Multimedia":
Speakers, Hi-Fi module, Bluetooth hands-freesystem, head-up display screen, por tablesatellite navigation system, semi-integralsuppor t bracket for por table navigation system,
driving assistance systems, reversing camera, por table video screen, por table video carrier,
telephone carrier, two-screen video pack,
por table video player, CD player, solar USB charger, 230 V/50 Hz socket, 230 V/12 Vadaptor, iPhone/iPad charger, Wi-Fi on board...
B
y visiting a CITROËN dealer you can also
obtain cleaning and maintenance products (interior and exterior) - including ecologicalproducts in the "TECHNATURE" range, products for topping up (screenwash...), paint
touch-up pens and aerosols for the exact colour
of
your vehicle, refills (sealant car tridge for the
temporary puncture repair kit...), ...
