2013 CITROEN C4 DAG audio

11
PRACTICAL INFORMATION
221

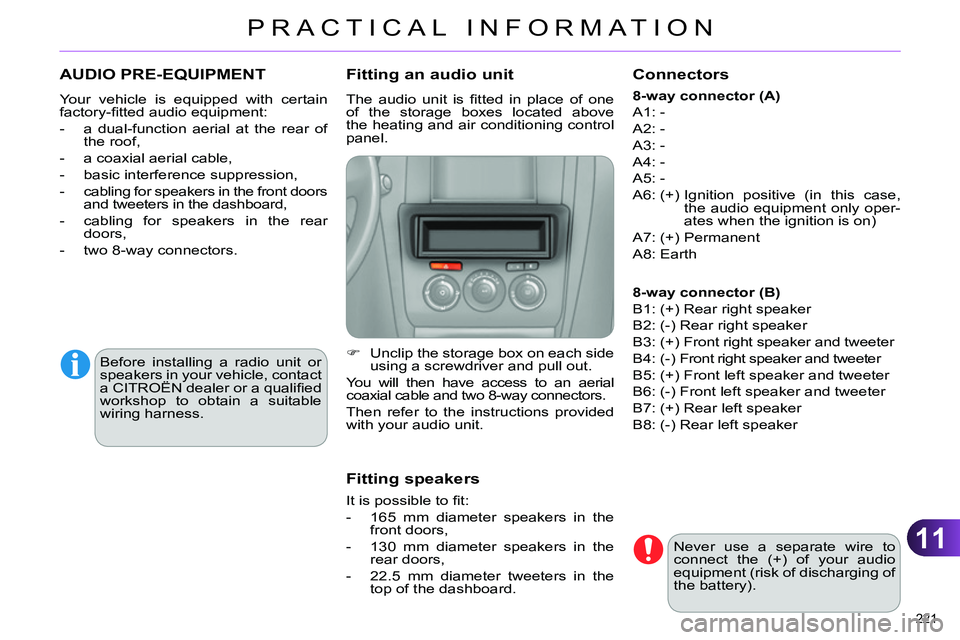

AUDIO PRE-EQUIPMENT

Your vehicle is equipped with certain
factory-fi tted audio equipment:


- a dual-function aerial at the rear of
the roof,

- a coaxial aerial cable,

- basic interference suppression,

- cabling for speakers in the front doors
and tweeters in the dashboard,

- cabling for speakers in the rear
doors,

- two 8-way connectors.
Before installing a radio unit or
speakers in your vehicle, contact
a CITROËN dealer or a qualifi ed
workshop to obtain a suitable
wiring harness.
Never use a separate wire to
connect the (+) of your audio
equipment (risk of discharging of
the battery).

Fitting an audio unit

The audio unit is fi tted in place of one
of the storage boxes located above
the heating and air conditioning control
panel.



Unclip the storage box on each side
using a screwdriver and pull out.
You will then have access to an aerial
coaxial cable and two 8-way connectors.
Then refer to the instructions provided
with your audio unit.













Fitting speakers

It is possible to fi t:


- 165 mm diameter speakers in the
front doors,

- 130 mm diameter speakers in the
rear doors,

- 22.5 mm diameter tweeters in the
top of the dashboard.


Connectors


8-way connector (A)

A1: -
A2: -
A3: -
A4: -
A5: -
A6: (+) Ignition positive (in this case,
the audio equipment only oper-
ates when the ignition is on)
A7: (+) Permanent
A8: Earth

8-way connector (B)

B1: (+) Rear right speaker
B2: (-) Rear right speaker
B3: (+) Front right speaker and tweeter
B4: (-) Front right speaker and tweeter
B5: (+) Front left speaker and tweeter
B6: (-) Front left speaker and tweeter
B7: (+) Rear left speaker
B8: (-) Rear left speaker

11
PRACTICAL INFORMATION
223

Installation of radio
communication transmitters
Before installing any after-market
radio communication transmit-
ter, you can contact a CITROËN
dealer for the specifi cation of
transmitters which can be fi tted
(frequency, maximum power, aer-
ial position, specifi c installation re-
quirements), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC).


Depending on the legislation in
force in the country, it may be
compulsory to have a high vis-
ibility safety vest, warning tri-
angle, breathalyzers and spare
bulbs and fuses available in the
vehicle.
The fi tting of electrical equip-
ment or accessories which are
not recommended by CITROËN
may result in a failure of your ve-
hicle's electronic system and ex-
cessive electrical consumption.
Please note this precaution.
You are advised to contact a
CITROËN representative to be
shown the range of recommend-
ed equipment and accessories.

"Multimedia":
audio systems, steering mounted au-
dio controls, speakers, Hi-Fi module,
Bluetooth hands-free system, port-
able satellite navigation system, semi-
integral support bracket for portable
navigation system, mapping update
CD, driving assistant, portable video
screen, portable video support bracket,
230 V/50 Hz socket, 230 V/50 Hz adap-
tor, iPhone
® compatible mobile phone
charger, mobile phone/smartphone
bracket, Wi-Fi on board...
By going to a CITROËN dealer, you
can also obtain cleaning and mainte-
nance products (interior and exterior) -
including ecological products in the
"TECHNATURE" range -, products for
topping up (screenwash...), touch-up
pens and paint aerosols for the exact
colour of your vehicle, recharges (car-
tridge for the temporary puncture repair
kit...), ...

235
The system is protected in such a way that it will only
operate in your vehicle.






eMyWay


01 First steps - Control panel


For safety reasons, the driver must only carry out
operations which require prolonged attention while the
vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.



CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Using the telephone

07 Radio

08 Music media players

09 Audio settings

10 Configuration

11 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
236
238
239
241
254
257
267
271
277
278
279
283

SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH
TELEPHONE AUDIO SYSTEM

01
236
FIRST STEPS


Access to the
" Navigation - guidance
"
menu and display the
recent destinations.

Rotary control knob:
Short press without the engine running: on / off.
Short press with the engine running: audio
source off / restore.
Rotation: volume adjustment (each source
is independent, including TA messages and
navigation instructions).
Continuous press:
reinitialisation of the system.

Short press: select pre-set
radio station.
Long press: pre-set the
current station.


MODE
button: Selection of the
type of permanent display.
Long press: black screen
(DARK).

Open the
" Telephone
" menu
and display the list of
recent calls or accept
an incoming call.
Open the
" Confi guration
" menu.
Long press: access
to the GPS coverage
and the navigation
demonstration mode.
Open the " Traffi c
information
" menu
and display the
current traffi c alerts.

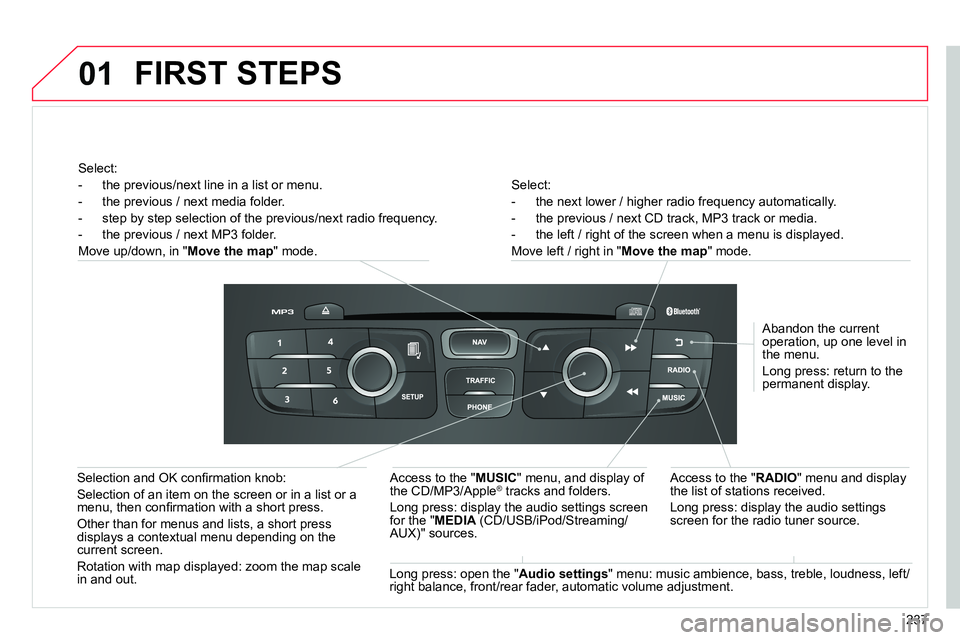

01
237
Select:


- the next lower / higher radio frequency automatically.

- the previous / next CD track, MP3 track or media.

- the left / right of the screen when a menu is displayed.
Move left / right in " Move the map
" mode.

Abandon the current
operation, up one level in
the menu.
Long press: return to the
permanent display.

Access to the " RADIO
" menu and display
the list of stations received.
Long press: display the audio settings
screen for the radio tuner source.

Long press: open the " Audio settings
" menu: music ambience, bass, treble, loudness, left/
right balance, front/rear fader, automatic volume adjustment.
Access to the " MUSIC
" menu, and display of
the CD/MP3/Apple
® tracks and folders.
Long press: display the audio settings screen
for the " MEDIA
(CD/USB/iPod/Streaming/
AUX)" sources.
Selection and OK confi rmation knob:
Selection of an item on the screen or in a list or a
menu, then confi rmation with a short press.
Other than for menus and lists, a short press
displays a contextual menu depending on the
current screen.
Rotation with map displayed: zoom the map scale
in and out.

Select:


- the previous/next line in a list or menu.

- the previous / next media folder.

- step by step selection of the previous/next radio frequency.

- the previous / next MP3 folder.
Move up/down, in " Move the map
" mode.

FIRST STEPS

02
238
STEERING MOUNTED CONTROLS




- Change the audio source.
Long press: mute.


- Volume increase.


- Volume decrease.


- Radio: display the list of stations.
Media: display the list of tracks.


- Rotation
Radio -automatic selection of next /
previous frequency.
Media: previous / next track.

- Press then rotation: access to
6 preset stations.


- TEL button:
Access to the telephone menu:
Call list / Contacts / Hands-free
mode / Answer / Hang up.
Accept an incoming call.
Long press: reject an incoming call
or end the current call.


- Move in the menus.
Zoom the map in and out
Press: confi rmation


- Abandon the current operation.

03
239
For the details of the menus, refer to the "Screen menu map"
section.

For cleaning the screen, the use of a soft, non-abrasive cloth
(spectacles cloth) is recommended, with no additional product.
" TRIP COMPUTER
"
(Permanent display)

" RADIO
"


SETUP
:
PARAMETERS



date and time, display
confi guration, sound, vehicle settings.
Changing the audio source:
RADIO
:
RADIO broadcasts.

MUSIC
: playing MUSIC.






Press the MODE
button several times in succession for access to the following displays:

GENERAL OPERATION


" FULL SCREEN MAP
"

" MAP IN WINDOW
"
(If navigation guidance in
progress)

04
243

Towards a recent destination

Press NAV
to display the
" Navigation - guidance
" menu.

Select the desired destination and
confi rm to start guidance.


Towards a contact in the contacts directory

Select " Select destination
" and
confi rm, then select " Directory
" and
confi rm.

Selection the desired destination from
your contacts and confi rm " OK
" to start
the guidance.

Press NAV
to display the
" Navigation - guidance
" menu.
Navigation towards a contact is only possible if it has an address
entered in the audio navigation system.


Delete recent destinations

Press NAV
to display the
" Navigation - guidance
" menu.

Select " Options
" and confi rm and then
" Delete recent destinations
" and
confi rm.


NAVIGATION - GUIDANCE
