MULTIFUNCTION SCREENS
53


Press the " 
" or " 
" buttons to set
the value required (15, 30 or 60 sec-
onds), then press the "OK"
button
to confi rm.

Press the " 
" or " 
" buttons,
then the "OK"
button to select the
"OK"
box and confi rm or press the
"Back"
button to cancel.
For example: setting of the duration of
the "follow-me-home" lighting



Press the " 
" or " 
" buttons, to select
the "Defi ne the vehicle parameters"
menu, then the " OK
" button.


Press the " 
" or " 
" buttons to
select the "Interior lighting" line,
then the "OK"
button; then follow
the same procedure to select the
"Follow-me-home headlamps" line.

- "Driving assistance":


●
"Parking brake automatic" (Auto-
matic electric parking brake; see
the "Driving" section),

●
"Rear wipe in reverse gear" (Rear
wiper coupled to reverse gear;
see the "Visibility" section),

●
"Speeds memorised" (Memoris-
ing speeds; see the "Driving" sec-
tion).



- "Vehicle lighting" (see the "Visibility"
section):


●
"Directional headlamps" (Main /
additional directional lighting),

●
"Daytime lights" (Daytime running
lamps).



- "Interior lighting" (see the "Visibility"
section:


●
"Follow-me-home headlamps"
(Automatic operation of head-
lamps after switching off the igni-
tion),

●
"Welcome lighting" (Exterior and
interior welcome lighting).

2

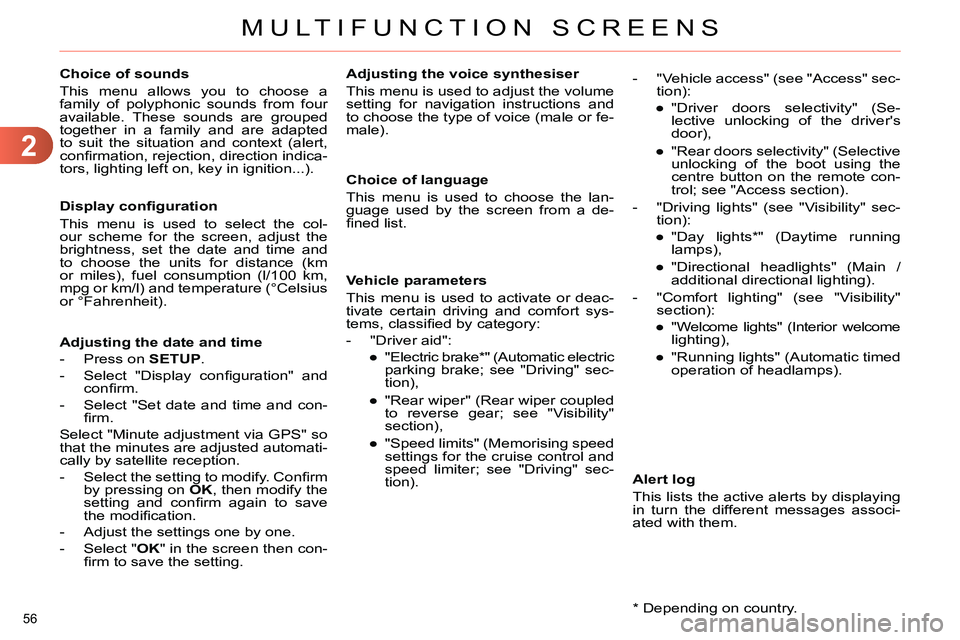

MULTIFUNCTION SCREENS
56

























Choice of sounds
This menu allows you to choose a
family of polyphonic sounds from four
available. These sounds are grouped
together in a family and are adapted
to suit the situation and context (alert,
confi rmation, rejection, direction indica-
tors, lighting left on, key in ignition...).

Display confi guration
This menu is used to select the col-
our scheme for the screen, adjust the
brightness, set the date and time and
to choose the units for distance (km
or miles), fuel consumption (l/100 km,
mpg or km/l) and temperature (°Celsius
or °Fahrenheit).
Adjusting the voice synthesiser
This menu is used to adjust the volume
setting for navigation instructions and
to choose the type of voice (male or fe-
male).

Adjusting the date and time



- Press on SETUP
.

- Select "Display confi guration" and
confi rm.

- Select "Set date and time and con-
fi rm.
Select "Minute adjustment via GPS" so
that the minutes are adjusted automati-
cally by satellite reception.


- Select the setting to modify. Confi rm
by pressing on OK
, then modify the
setting and confi rm again to save
the modifi cation.

- Adjust the settings one by one.

- Select " OK
" in the screen then con-
fi rm to save the setting.

Choice of language
This menu is used to choose the lan-
guage used by the screen from a de-
fi ned list.

Vehicle parameters
This menu is used to activate or deac-
tivate certain driving and comfort sys-
tems, classifi ed by category:


- "Driver aid":


●
"Electric brake * " (Automatic electric
parking brake; see "Driving" sec-
tion),

●
"Rear wiper" (Rear wiper coupled
to reverse gear; see "Visibility"
section),

●
"Speed limits" (Memorising speed
settings for the cruise control and
speed limiter; see "Driving" sec-
tion).

Alert log
This lists the active alerts by displaying
in turn the different messages associ-
ated with them.


- "Vehicle access" (see "Access" sec-
tion):


●
"Driver doors selectivity" (Se-
lective unlocking of the driver's
door),

●
"Rear doors selectivity" (Selective
unlocking of the boot using the
centre button on the remote con-
trol; see "Access section).



- "Driving lights" (see "Visibility" sec-
tion):


●
"Day lights * " (Daytime running
lamps),

●
"Directional headlights" (Main /
additional directional lighting).



- "Comfort lighting" (see "Visibility"
section):


●
"Welcome lights" (Interior welcome
lighting),

●
"Running lights" (Automatic timed
operation of headlamps).



*
Depending on country.

3
COMFORT
78







Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle,
this system automatically and progres-
sively changes between the day and
night uses.

In order to ensure optimum vis-
ibility during your manoeuvres,
the mirror lightens automatically
when reverse gear is engaged.









STEERING WHEEL ADJUSTMENT





When stationary
, pull the control
lever to release the adjustment
mechanism.


Adjust the height and reach to suit
your driving position.


Push the control lever to lock the
adjustment mechanism.

As a safety precaution, these opera-
tions should only be carried out while
the vehicle is stationary.






Rear view mirror

Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass and re-
duces the nuisance to the driver caused
by the sun, headlamps from other vehi-
cles...


Manual day/night model

Adjustment



Adjust the mirror so that the glass is
directed correctly in the "day" position.


Day/night position



Pull the lever to change to the
"night" anti-dazzle position.


Push the lever to change to the
normal "day" position.


As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".

5
VISIBILITY
98














LIGHTING CONTROLS

System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.

Main lighting

The various front and rear lamps of the
vehicle are designed to adapt the driver's
visibility progressively according to the
climatic conditions:


- sidelamps, to be seen,

- dipped beam headlamps to see
without dazzling other drivers,

- main beam headlamps to see clear-
ly when the road is clear.



Additional lighting

Other lamps are provided to meet the
requirements of particular driving con-
ditions:


- rear foglamps,

- front foglamps with cornering lighting,

- directional headlamps for improved
visibility when cornering,

- daytime running lamps to be more
visible during the day,

- guide-me-home and welcome light-
ing to facilitate access to the vehicle,

- parking lamps as vehicle position
markers.



Programming

The setting of some functions can be
adjusted:


- daytime running lamps,

- automatic illumination of headlamps,

- guide-me-home lighting,

- welcome lighting,

- directional lighting.

In some weather conditions (e.g.
low temperature or humidity), the
presence of misting on the inter-
nal surface of the glass of the
headlamps and rear lamps is nor-
mal; it disappears after the lamps
have been on for a few minutes.

5
VISIBILITY
99


Model without AUTO lighting



Model with AUTO lighting

A.
Main lighting mode selection ring:
turn it to position the symbol re-
quired facing the mark.

Manual controls

The lighting is controlled directly by the
driver by means of the ring A
and the
stalk B
.

Lighting off / daytime running lamps.






Automatic illumination of head-
lamps.

B.
Stalk for switching headlamps: pull
the stalk towards you to switch the
lighting between dipped and main
beam headlamps.
In the lamps off and sidelamps modes,
the driver can switch on the main beam
headlamps temporarily ("headlamp
fl ash") by maintaining a pull on the stalk. Sidelamps.
Dipped headlamps or main
beam headlamps.

Displays

Illumination of the corresponding indica-
tor lamp in the instrument panel confi rms
that the lighting selected is on.







Daytime running lamps

Daytime lighting, compulsory in certain
countries, which comes on automati-
cally when the engine is started making
the vehicle more visible to other users.

This function is assured:


- in countries where it is imposed by
regulations,
by illumination of the dipped beam
headlamps with the sidelamps and
number plate lamps; this function
cannot be deactivated.

- for other countries where it is pro-
vided,
by the use of dedicated lamps; this
function can be activated or deac-
tivated via the vehicle confi guration
menu.


The instruments and controls (instru-
ment panel, multifunction screen, air
conditioning control panel, ...) are not
illuminated, except in night mode with
manual or automatic illumination of
headlamps.

5
VISIBILITY
100









C.
Foglamp selection ring.
The foglamps operate with the dipped
and main beam headlamps.
They operates with the dipped beam
headlamps and main beam headlamps.



To switch on the rear foglamps, turn
the ring C
forwards.



To switch off the rear foglamps, turn
the ring C
rearwards.

When automatic illumination of headlamps
is on (with AUTO model), the dipped beam
headlamps and sidelamps remain on while
the rear foglamps are on.




Model with rear foglamps only
rear foglamps
Rotate and release the ring C
:



forwards a fi rst time to switch on the
front foglamps,


forwards a second time to switch on
the rear foglamps,


rearwards a fi rst time to switch off
the rear foglamps,


rearwards a second time to switch
of the front fog lamps.

Model with front and
rear foglamps
front and rear foglamps
When the headlamps switch off with
automatic illumination of headlamps
(AUTO model) or when the dipped
beam headlamps are switched off
manually, the foglamps and sidelamps
remain on.



Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.

In good or rainy weather, by both
day and night, the front foglamps
and the rear foglamps are pro-
hibited. In these situations, the
power of their beams may dazzle
other drivers. They should only
be used in fog or falling snow.
In these weather conditions, you
should switch on the foglamps
and dipped beam headlamps
manually, as the sunshine sen-
sor may detect suffi cient light.
Do not forget to switch off the
front and rear foglamps when
they are no longer necessary.

5
VISIBILITY
101


















Parking lamps

Side markers for the vehicle by illumi-
nation of the sidelamps on the traffi c
side only.



Within one minute of switching off
the ignition, operate the lighting con-
trol stalk up or down depending on
the traffi c side (for example: when
parking on the left; lighting control
stalk upwards; the right hand side-
lamps are on).
This is confi rmed by an audible signal
and illumination of the corresponding
direction indicator warning lamp in the
instrument panel.
To switch off the parking lamps, return
the lighting control stalk to the central
position.
Switching off the lighting when
switching off the ignition
When the ignition is switched off,
all of the lamps switch off immedi-
ately, except for the dipped beam
headlamps if automatic guide-
me-home lighting is activated.







Manual guide-me-home lighting

The temporary illumination of the dipped
beam headlamps after the vehicle's ignition
has been switched off makes the driver's
exit easier when the light is poor.

Switching on



With the ignition off, "fl ash" the
headlamps using the lighting stalk.


A further "headlamp fl ash" switches
the function off.


Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.

Switching on the lighting
when switching on the ignition
To reactivate the lighting control stalk, turn the ring A
to position "0"
- lighting off, then to the position of
your choice.
If the lighting is switched on manu-
ally after switching off the ignition,
there is an audible signal when a
front door is opened to warn the
driver that they have forgotten to
switch off the vehicle's lighting, with
the ignition off.
They switch off automatically after a
period which depends on the state
of charge of the battery (entry to en-
ergy economy mode).

5
VISIBILITY
102









Automatic illumination of
headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.

Activation



Turn ring A
to the "AUTO"
position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage in the screen.


Deactivation



Turn ring A
to a position other
than "AUTO"
. Deactivation is ac-
companied by a message in the
screen.

Coupling with the automatic "Guide-
me-home" lighting
Association with the automatic illumi-
nation of headlamps provides "guide-
me-home" lighting with the following
additional options:


- selection of the lighting duration to
15, 30 or 60 seconds in the settings
in the vehicle confi guration menu
(except in the case of the mono-
chrome screen A, for which the
duration is set: 60 seconds),

- automatic activation of "guide-me-
home" lighting when automatic illumi-
nation of headlamps is in operation.


In the event of a fault with the
sunshine sensor, the lighting
come on, this warning lamp is
displayed on the instrument panel and/or a
message appears in the screen, accompa-
nied by an audible signal.
Contact a CITROËN or a qualifi ed work-
shop workshop.

Operating fault
In fog or snow, the sunshine
sensor may detect suffi cient
light. Therefore, the lighting will
not come on automatically.
Do not cover the sunshine sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the rear view
mirror; the associated functions
would no longer be controlled.
