2013 Citroen C3 CD player

Multifunction screens
46










Monochrome screen C
This displays the following information:
- time,
- date,
- ambient temperature (this flashes if there isa risk of ice),
- status of doors and boot,
- audio sources (radio, CD, USB por t / auxiliary socket etc.),
- trip computer (refer to the "Instruments andcontrols" section).
Warning messages (E.g. "Emissions controlsystem faulty") or information messages (E.g.: Automatic headlamps active") may appear temporarily. These can be cleared bypressing the "Back"
button.


Controls

From your Audio system control panel, you can: )
press the "MENU"
button to gain access to
the main menu,)
press the " " or " " buttons to scroll
through the items in the screen,
) press the "MODE"button to change the
permanent application (trip computer, audiosource...), ) press the "
" or "
" buttons to change a setting value, )
press the "OK"button to confirm,
or ) press the "Back"button to abandon theoperation in progress.

Main menu
)
Press the "MENU"button to gain access to
the main menu
:


- audio functions,

- the trip computer,

- personalisation-confi
guration,

- telephone (hands-free kit). )
Press the "  " or " " buttons to select the
menu required, then confirm by pressingthe "OK"button.



"Au d i o f u n c t i o n s"
menu

With the Audio system switched on, once this menu has been selected you can activateor deactivate the functions linked with use
of the radio (RDS, REG, RadioText), the CD (introscan, shuffle, CD repeat) or the MP3 player (USB por t / auxiliary socket).
For more information on the "Audio functions"
application, refer to the Audio system part of
the "Audio and Telematics" section.
Displays in the screen

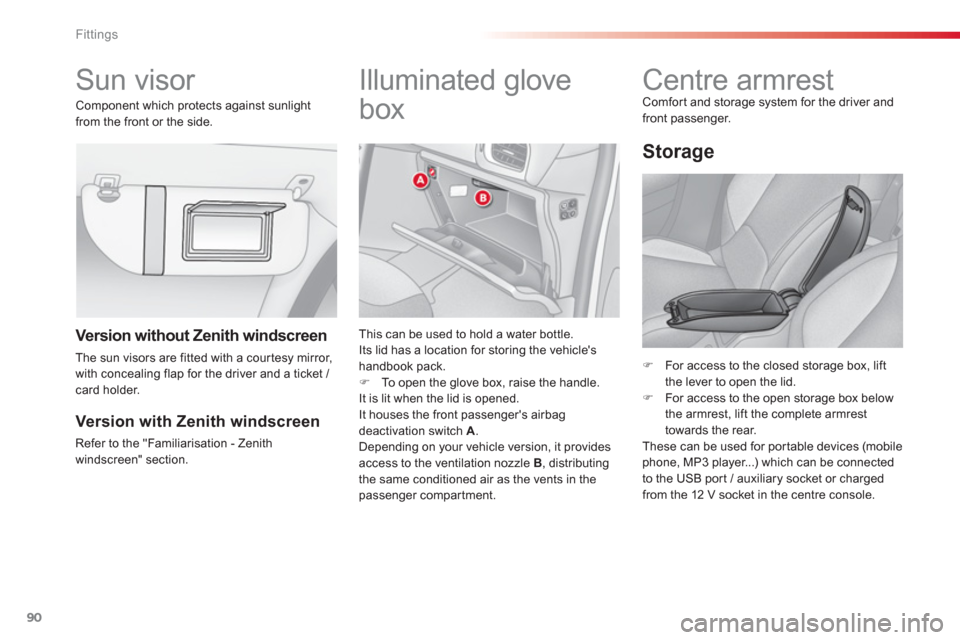

Fittings
90








Sun visor









Illuminated glove
box

This can be used to hold a water bottle.
Its lid has a location for storing the vehicle's
handbook pack.
) To open the glove box, raise the handle.
It is lit when the lid is opened.
It houses the front passenger's airbag deactivation switch A
.
Depending on your vehicle version, it providesaccess to the ventilation nozzle B, distributingthe same conditioned air as the vents in thepassenger compartment.









Centre armrest Comfor t and storage system for the driver and
front passenger.
)For access to the closed storage box, lift
the lever to open the lid.)For access to the open storage box below
the armrest, lift the complete armrest
t
owards the rear.
These can be used for por table devices (mobile phone, MP3 player...) which can be connected
to the USB por t / auxiliary socket or chargedfrom the 12 V socket in the centre console.
Version with Zenith windscreen
Refer to the "Familiarisation - Zenith
windscreen" section.

Version without Zenith windscreen
The sun visors are fitted with a cour tesy mirror,
with concealing flap for the driver and a ticket / card holder. Component which protects a
gainst sunlight
from the front or the side.


Storage

6
Fittings
91














USB Player
The USB por t is located in the "AU X "box on
the centre console.
It permits the connection of a por table device,
such as a di
gital audio player of the iPod®
generation 5 and later type or USB memory
stick type.
It reads the audio file formats (mp3, ogg, wma, wav...) which are transmitted to your audio equipment and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio equipmentcontrol panel and display them on the
multifunction screen.
F
or more information on the use of thisequipment, refer to the Audio system part of the "Audio and Te l ematics" section.






12 V accessory
socket
) To connect a 12 V accessory (max power:
120 W), lift the cover and connect asuitable adaptor.






Auxiliary socket


The auxiliary socket is located in the " AUX
" boxon the centre console.
It permits the connection of a por table device,
such as a digital audio player of the iPod ®type,
to listen to your music files using the vehicle'sspeakers.

F
or more information on the use of this equipment, refer to the Audio system or eMyWay par t of the "Audio and Telematics" section.

The management of the files is doneusing your por table device.
When it is in use, the por table devicecharges automatically.

11
Practical information
183
"Multimedia":Bluetooth®hands-free kit, suppor t for Bluetooth®hands-free kit, audio systems withsteering controls interface, por table satellite
navigation system, semi-integral por table navigation system carrier, mapping updates
for integral navigation system, DVD player,
auxiliary cable for connecting a por table MP3player, USB Box, Hi-Fi module, speakers, Wi-Fi
on board, rear multimedia support, telephone/smartphone support, 230 V socket, telephonecharge compatible with iPhone...
Installation of radiocommunicationtransmitters
Before installing any after-market radiocommunication transmitter, you cancontact a CITROËN dealer for thespecification of transmitters which can be fitted (frequency, maximum power,aerial position, specific installation requirements), in line with the Vehicle Electromagnetic Compatibility Directive (2004/104/EC).

Depending on the legislation in forcein the country, it may be compulsory to have a high visibility safety vest,warning triangle and spare bulbs andfuses available in the vehicle.
By going to a CITROËN dealer, you can also
obtain cleanin
g and maintenance products (interior and exterior) - including ecological products in the "TECHNATURE" range - products for topping up (screenwash fluid...),
touch up pens and paint aerosols for the exact
colour of your vehicle, recharges (cartridge for
the temporary puncture repair kit...), ...
The fitting of electrical equipment or accessories which are not recommended by CITROËN may resultin a failure of your vehicle's electronicsystem and excessive electrical consumption. Please note this precaution. Youare advised to contact a CITROËNrepresentative to be shown the range of recommended equipment and accessories.

03
202
A press on the dial gives access to short-cut menus according to thedisplay in the screen.

GENERAL OPERATION
DISPLAY ACCORDING TO CONTEXT
RADIO:

Activate / Deactivate TA


Activate / Deactivate RDS


MUSIC MEDIA PLAYERS,
CD or USB
(according to
media):
Play modes:

Normal

Random

Random on all media

Repetition
TELEPHONE
(call in progress):


Private mode


FULL SCREEN MAP OR IN
A NEW WINDOW:

Stop / Restore guidance Select destination
Enter an address
Directory
GPS coordinates
Divert route
Move the map
Info. on location
Select as destination
Select as sta
ge
Save this place (contacts)
Quit map mode

Guidance criteria

Put call on hold
DTMF ring tones

Hang up
1
1
1
1
1
1
1
1
2
2
2
2
2
1
2
2
2
1
1
1
1
1
1
Change waveband

F
M
AM
2
2
1
TA 1

08 MUSIC MEDIA PLAYERS
Access to the "MUSIC MEDIA PLAYER" menu
""""""""MEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIAMEDIA""""""""

Go from the list to the menu (left/right).
or

Press MUSIC.

08MUSIC MEDIA PLAYERS

CD, MP3 CD / USB PLAYER


The audio equipment will only play audio fi les with ".wma, .aac, .fl ac, .ogg and .mp3" fi le extensions and with a bit rate of between 32 Kbps
and 320 Kbps.
It also supports VBR
(Variable Bit Rate) mode.
No other t
ype of fi le (.mp4, .m3u...) can be played.
WMA
fi les must be of the standard wma 9 type.
The samplin
g rates supported are 11, 22, 44 and 48 KHz.

It is advisable to restrict fi le names to 20 characters, without usin
g of special characters (e.g.: " " ? ; ù) to avoid any playing and displayingproblems.

In order to be able to pla
y a recorded CDR or CDRW, when recording
it is preferable to select the ISO 9660 level 1, 2 or Joliet standard.
If the disc is recorded in another format it ma
y not be played correctly.
It is recommended that the same recordin
g standard is always used
for an individual disc, with as low a speed as possible (4x maximum)for optimum sound quality.
In the particular case o
f a multi-session CD, the Joliet standard isrecommended.
INFORMATION AND ADVICE
The s
ystem supports USB mass storage or iPod
devices via the USB port (suitable cable not supplied).
I
f a partitioned USB memory key is connected to the system, only the fi rst partition is recognised.

Control of the peripheral device is with the audiosystem controls.
The number of tracks is limited to 2000 maximum,
999 tracks per folder.
I
f the current consumption at the USB port exceeds 500 mA, the system goes into protection mode and
deactivates the port.

Other peripherals, not recognised on connection, must
be connected to the auxiliary socket using a Jack cable (not supplied).
In order to be read, a USB memor
y stick must be formatted FAT 16 or 32.
The s
ystem does not support the operation of an Apple Æplayer and
a USB memory stick connected at the same time.
It is recommended that o
ffi cial Apple Æ USB cables are used to ensure Æ
correct operation.

08
234
MUSIC MEDIA PLAYERS

Insert the CD in the player, insert the USBmemory stick in the USB player or connect theUSB peripheral to the USB port using a suitablecable (not supplied)

The system builds playlists (in temporarymemory), an operation which can take froma few seconds to several minutes at the fi rstconnection.
R
educe the number of non-music fi les and the number of folders to reduce the waiting time.
The pla
ylists are updated every time the ignition
is switched off or connection of a USB memory stick. However, the system memorises these
lists and if they are not modifi ed, the loadingtime will be shorter.
Pla
y starts automatically after a period which
depends on the capacity of the USB memory stick. SELECTION OF SOURCE
Th
e SOURCE
button on the steering mounted controls allows adirect change to the next media source.
" CD / CD MP
3
"
"
USB, iPod"
"AUX
" "
STREAMING
" "RADIO
"
Pr
ess MUSICto display the "MEDIA
" menu.

Select "Following media source " and confi rm.

Repeat the operation as many times as necessary to obtain the
desired media source (except for radio which is accessible either
with SOURCE
or RADIO). SOURCES
