Removing the cartridge
)Stow the black pipe.)Detach the angled base from the white pipe.)Suppor t the compressor ver tically.)Unscrew the car tridge from the bottom.



Checking tyre pressures /
inflatin
g accessories
You can also use the compressor, without
injecting any product, to:


- check or ad
just the pressure of your tyres,

- inflate other accessories (balls, bicycle
tyres...).

)
Turn the selector A
to the "Air"
position.
) Uncoil the black pipe H
fully.)
Connect the black pipe to the
valve of the wheel or accessory.
If necessary, fit one of the adaptorssupplied with the kit first.
)Connect the compressor's electrical connector to the vehicle's 12 V socket.)Star t the vehicle and let the engine run.)Adjust the pressure using the compressor (to inflate: switch B in position "I" ; to deflate: switch B
in position "O"and press button C), according to the vehicle's tyrepressure label or the accessory's pressure
label. )Remove the kit then stow it.

Beware of discharges of fluid.
The expiry date of the fluid is indicated on the car tridge.
The sealant car tridge is designed for single use; even if only par tly used, itmust be replaced. After use, do not discard the car tridge into the environment, take it to anauthorised waste disposal site or aCITRO

Practical information
166
Fuse N°RatingFunctions
F8
20 A
Multifunction screen, audio system, navigation and audio system, instrument panel with clock, alarm control unit, alarm siren, audio system (after-market), 12 V socket, portable
navigation carrier power supply.
F
930 A Multifunction screen, audio s
ystem, navigation and audio system, instrument panel with clock, alarm control unit, alarm siren, audio system (after-market), 12 V socket, portable
navigation carrier power supply, locking.
F1
015 A Steering mounted controls.
F1
115 A
Ignition, diagnostic socket, automatic gearbox control unit.
F12 15 A
Rain
/ sunshine sensor, trailer relay unit, driving school module.
F13 5
A Main stop switch, engine relay unit, gear lever for electronicgearbox.
F1415 A Parking sensors control unit, airbag control unit, instrument
panel, digital air conditioning, USB Box, HiFi amplifier,
reversing camera.
F1
530 A Locking.
F1
6- Not used.
F17
40 A Rear screen and door mirrors demisting/defrosting.
S
H- PA RC shunt.

11
Practical information
167

Engine compartment
fusebox

The fusebox is located in the enginecompartment near the battery (left-hand side).
Access to the fuses
)
Unclip the cover. )
Change the fuse (see correspondingparagraph). )
When you have finished, close the cover carefully to ensure correct sealing of the
fusebox.
All work on the fuses in the fusebox
located on the battery must be carriedout by a CITRO

Practical information
168
Fuse table
Fuse N°RatingFunctions
F120 AEngine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump (Diesel).
F
215 AHorn.
F
310 AFront / rear wash-wipe.
F420 ADaytime running lamps, LED daytime running lamps.
F
515 ADiesel heater (Diesel), par ticle filter additive pump (Diesel), air
flow sensor (Diesel), fuel pump (1.1i and 1.4i), blow-by heater and electrovalves (VTi).
F
610 A ABS/ESP control unit, secondary brake lamp switch.
F710 AElectric power steering, automatic gearbox.
F
825 AStarter motor control.
F9
10 ASwitching and protection unit (Diesel).
F10
30 AFuel heater (Diesel), blow-by heater (1.1i, 1.4i and Diesel),fuel pump (VTi), injectors and ignition coils (petrol), electronic
thermostat and canister purge electrovalve (1.1i and 1.4i).
F1
140 AHeater blower.

Practical information
172

Starting using another
batter
y

Charging the battery using
a battery charger
When the battery on your vehicle is discharged,
the engine can be star ted using a slave battery (external or on another vehicle) and jump leads.
)Follow the instructions for use provided by
the manufacturer of the charger.
First check that the slave battery has a nominalvoltage of 12 V and a capacity at least equal to
that of the discharged battery.
Do not try to star t the engine by connecting a
batter
y charger.
Do not disconnect the (+) terminal when the engine is running.
)Connect the red cable to the positive
terminal (+) of the flat battery A , then to the positive terminal (+) of the slave battery B.)Connect one end of the green or blackcable to the negative terminal (-) of the
slave battery B(or ear th point on the other
vehicle).)Connect the other end of the green or black cable to the negative terminal C (or
the engine mounting) of the broken-down
vehicle.)Star t the engine of the other vehicle and
allow it to run for a few minutes.
Do not disconnect the battery to charge it.
)
Operate the star ter of the broken-down
vehicle and let the engine run.
If the engine does not star t immediately,switch off the ignition and wait a few
moments before trying again.) Wait until the engine returns to idle, then
disconnect the jump leads in reverse order.


Batteries contain harmful substances such as sulphuric acid and lead. They must bedisposed of in accordance with regulations and must not, in any circumstances, be discarded with household waste.
Take used remote control batteries andvehicle batteries to a special collection
point.

11
Practical information
173

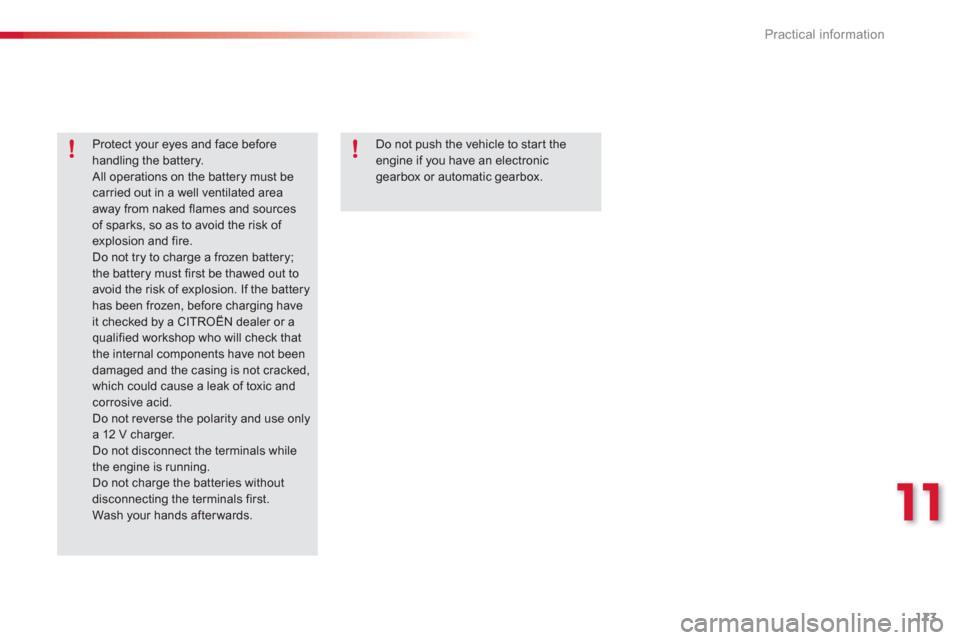

Protect your eyes and face before
handling the battery. All operations on the battery must becarried out in a well ventilated areaaway from naked flames and sourcesof sparks, so as to avoid the risk of explosion and fire.
Do not try to charge a frozen battery; the battery must first be thawed out to avoid the risk of explosion. If the batteryhas been frozen, before charging have it checked by a CITROËN dealer or aqualified workshop who will check that the internal components have not beendamaged and the casing is not cracked,which could cause a leak of toxic and corrosive acid.
Do not reverse the polarity and use only a 12 V charger.
Do not disconnect the terminals whilethe engine is running. Do not charge the batteries withoutdisconnecting the terminals first.
Wash your hands afterwards.

Do not push the vehicle to star t the
engine if you have an electronic gearbox or automatic gearbox.

Practical information
174








Energy economy mode


Exiting economy mode

These functions are reactivated automaticallythe next time the vehicle is driven. )In order to resume the use of these
functions immediately, star t the engine and
let it run for a few minutes.
The time available to you will then be double
the period for which the engine is left running. However, this period will always be betweenfive and thir ty minutes.

Switching to economy mode
Once this period has elapsed, a message
appears on the multifunction screen indicating
that the vehicle has switched to economy mode
and the active functions are put on standby.
A flat battery prevents the engine from starting (refer to the corresponding paragraph).
If the telephone is being used at the same time on the eMyWay audionavigation system, it will be interrupted after 10 minutes. S
ystem which manages the period of use of certain functions to conserve a sufficient level
of charge in the battery.
After the engine has stopped, you canstill use functions such as the audio equipment, windscreen wipers, dippedbeam headlamps, cour tesy lamps, etc. for a
maximum combined period of thirty minutes. S
ystem which manages the use of cer tain
functions according to the level of chargeremaining in the battery.
When the vehicle is being driven, the loadreduction function temporarily deactivates certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated automatically as soon as conditions permit.








Load reduction mode
This period may be greatly reduced if the battery is not fully charged.

Practical information
176





Towing the vehicle
Access to the tools
The towing eye is installed in the boot under
the floor.
To gain access to it:)open the boot, )raise the floor,)remove the polystyrene storage box,)remove the towing eye from the holder. Procedure for havin
g your vehicle towed or for towing another vehicle using a removable towing eye.
General recommendations
Obser ve the legislation in force in your country. Ensure that the weight of the towing vehicle is higher than that of the towed vehicle. The person at the wheel of the towed vehicle must have a valid driving licence.When towing a vehicle with all four wheels on the ground, always use an approved towing bar; rope and straps are prohibited. When towing a vehicle with the engine off, there is no longer any power assistance for braking or steering. In the following cases, you must always call on a professional recovery service: - vehicle broken down on a motor way or fast road, - 4 wheel drive vehicle, - when it is not possible to put the gearbox into neutral, unlock the steering, or release theparking brake, - towing with only two wheels on the ground, - where there is no approved towing bar available...
