2013 CADILLAC XTS rear

Black plate (24,1)Cadillac XTS Owner Manual - 2013 - 1st - 4/13/12
2-24 Keys, Doors, and Windows
Attach it to the hooks at the top of
the window.
To close the sunshade, use the
handle to release it from the hooks
and roll it down.
Roof
Sunroof
For vehicles equipped with a
sunroof, the ignition must be in ON/
RUN or ACC/ACCESSORY, or in
Retained Accessory Power (RAP) to
operate the sunroof and power
sunshade. SeeIgnition Positions on
page 9‑15 andRetained Accessory
Power (RAP) on page 9‑19.
1. Sunroof Switch
2. Sunshade Switch Sunroof Switch
Vent Feature:
Press and hold the
front of
~to vent the sunroof. The
sunshade will automatically open
approximately 38 cm (15 in). Press
and hold the rear of
~to close
the vent.
Comfort Stop Feature: The
sunroof has a comfort stop feature
that stops the sunroof from opening
fully. Press and release the rear of
~to open the sunroof to the
comfort open position. Pressing the
rear of
~again will open the
sunroof fully. If the sunshade is not
fully open when the comfort feature
is pressed the second time, the
sunshade will open fully.
Express Close: Press and release
the front of
~to express close the
sunroof.

Black plate (25,1)Cadillac XTS Owner Manual - 2013 - 1st - 4/13/12
Keys, Doors, and Windows 2-25
Sunshade Switch
Open/Close:Press and hold the
front or rear of
Qto open or close
the sunshade to the desired
position.
Express Open/Express Close:
Press and release the rear or front
of
Qto express open or express
close the sunshade. If the sunroof is
opened, the sunshade will express
close within a few inches of the
opened sunroof.
Anti-Pinch Feature
If an object is in the path of the
sunroof/sunshade when it is closing,
the anti-pinch feature will detect the
object and stop the sunroof/
sunshade from closing at the point
of the obstruction. The sunroof/
sunshade will then return to the
full-open position. To close the
sunroof/sunshade, see “Express
Open/Express Close” earlier in this
section.
Dirt and debris may collect on the
sunroof seal or in the track. This
could cause an issue with sunroof
operation or noise. It could also plug
the water drainage system.
Periodically open the sunroof and
remove any obstacles or loose
debris. Wipe the sunroof seal and
roof sealing area using a clean
cloth, mild soap, and water. Do not
remove grease from the sunroof.

Black plate (1,1)Cadillac XTS Owner Manual - 2013 - 1st - 4/13/12
Seats and Restraints 3-1
Seats and
Restraints
Head Restraints
Head Restraints . . . . . . . . . . . . . . . 3-2
Front Seats
Power Seat Adjustment . . . . . . . 3-4
Lumbar Adjustment . . . . . . . . . . . 3-5
Thigh Support Adjustment . . . . 3-5
Reclining Seatbacks . . . . . . . . . . 3-6
Memory Seats . . . . . . . . . . . . . . . . 3-7
Heated and Ventilated FrontSeats . . . . . . . . . . . . . . . . . . . . . . . . 3-9
Rear Seats
Rear Seats . . . . . . . . . . . . . . . . . . 3-11
Heated Rear Seats . . . . . . . . . . 3-12
Rear SeatPass-Through Door . . . . . . . . 3-13
Safety Belts
Safety Belts . . . . . . . . . . . . . . . . . . 3-14
How to Wear Safety BeltsProperly . . . . . . . . . . . . . . . . . . . . 3-15
Lap-Shoulder Belt . . . . . . . . . . . 3-16 Safety Belt Use During
Pregnancy . . . . . . . . . . . . . . . . . . 3-20
Safety Belt Extender . . . . . . . . . 3-20
Safety System Check . . . . . . . . 3-21
Safety Belt Care . . . . . . . . . . . . . 3-21
Replacing Safety Belt System Parts after a Crash . . . . . . . . . 3-21
Airbag System
Airbag System (Sedan) . . . . . . 3-22
Airbag System (ProfessionalVehicle) . . . . . . . . . . . . . . . . . . . . 3-24
Where Are the Airbags? (Sedan) . . . . . . . . . . . . . . . . . . . . 3-26
Where Are the Airbags? (Professional Vehicle) . . . . . . 3-28
When Should an Airbag
Inflate? (Sedan) . . . . . . . . . . . . 3-30
When Should an Airbag Inflate? (Professional
Vehicle) . . . . . . . . . . . . . . . . . . . . 3-31
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . 3-32
How Does an Airbag Restrain? . . . . . . . . . . . . . . . . . . . 3-32
What Will You See after an Airbag Inflates? . . . . . . . . . . . . 3-32 Passenger Sensing
System . . . . . . . . . . . . . . . . . . . . . 3-34
Servicing the Airbag-Equipped Vehicle . . . . . . . . . . . . . . . . . . . . . 3-38
Adding Equipment to the
Airbag-Equipped Vehicle . . . 3-39
Airbag System Check . . . . . . . . 3-40
Replacing Airbag System Parts after a Crash . . . . . . . . . 3-40Child Restraints
Older Children . . . . . . . . . . . . . . . 3-41
Infants and YoungChildren . . . . . . . . . . . . . . . . . . . . 3-43
Child Restraint Systems . . . . . 3-45
Where to Put the Restraint . . . 3-47
Lower Anchors and Tethers for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . 3-48
Replacing LATCH System Parts After a Crash . . . . . . . . . 3-54
Securing Child Restraints (Rear Seat) . . . . . . . . . . . . . . . . . 3-54
Securing Child Restraints (Front Passenger Seat) . . . . 3-57

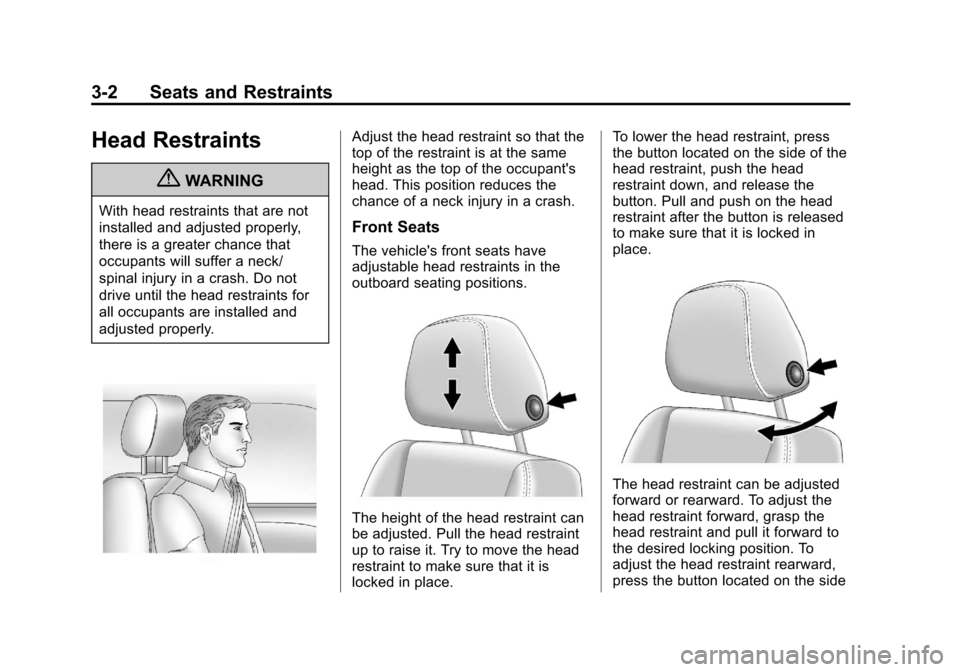

Black plate (2,1)Cadillac XTS Owner Manual - 2013 - 1st - 4/13/12
3-2 Seats and Restraints
Head Restraints
{WARNING
With head restraints that are not
installed and adjusted properly,
there is a greater chance that
occupants will suffer a neck/
spinal injury in a crash. Do not
drive until the head restraints for
all occupants are installed and
adjusted properly.
Adjust the head restraint so that the
top of the restraint is at the same
height as the top of the occupant's
head. This position reduces the
chance of a neck injury in a crash.
Front Seats
The vehicle's front seats have
adjustable head restraints in the
outboard seating positions.
The height of the head restraint can
be adjusted. Pull the head restraint
up to raise it. Try to move the head
restraint to make sure that it is
locked in place.To lower the head restraint, press
the button located on the side of the
head restraint, push the head
restraint down, and release the
button. Pull and push on the head
restraint after the button is released
to make sure that it is locked in
place.
The head restraint can be adjusted
forward or rearward. To adjust the
head restraint forward, grasp the
head restraint and pull it forward to
the desired locking position. To
adjust the head restraint rearward,
press the button located on the side

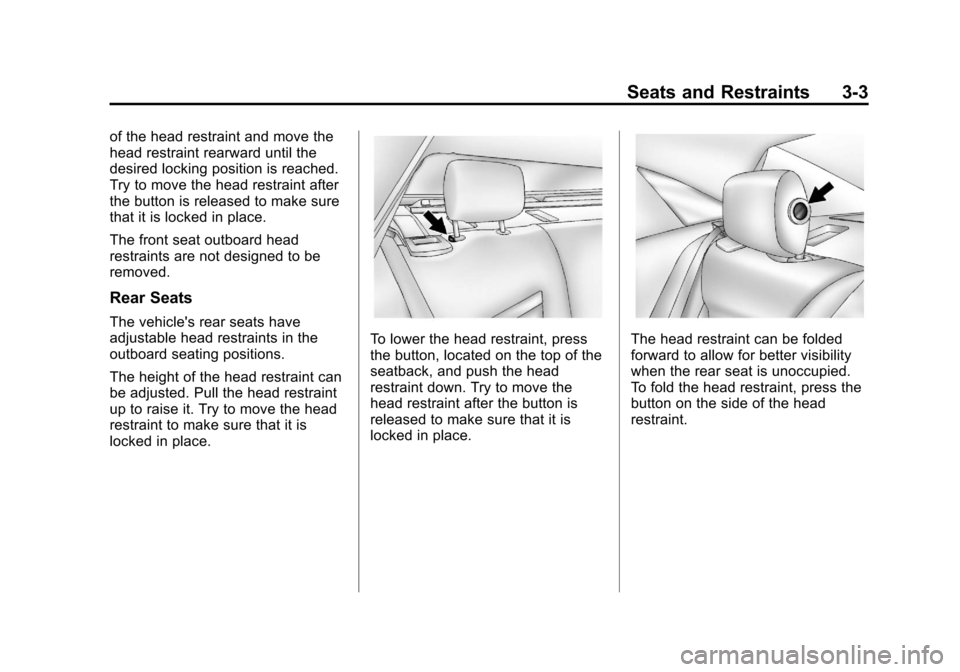

Black plate (3,1)Cadillac XTS Owner Manual - 2013 - 1st - 4/13/12
Seats and Restraints 3-3
of the head restraint and move the
head restraint rearward until the
desired locking position is reached.
Try to move the head restraint after
the button is released to make sure
that it is locked in place.
The front seat outboard head
restraints are not designed to be
removed.
Rear Seats
The vehicle's rear seats have
adjustable head restraints in the
outboard seating positions.
The height of the head restraint can
be adjusted. Pull the head restraint
up to raise it. Try to move the head
restraint to make sure that it is
locked in place.
To lower the head restraint, press
the button, located on the top of the
seatback, and push the head
restraint down. Try to move the
head restraint after the button is
released to make sure that it is
locked in place.The head restraint can be folded
forward to allow for better visibility
when the rear seat is unoccupied.
To fold the head restraint, press the
button on the side of the head
restraint.

Black plate (4,1)Cadillac XTS Owner Manual - 2013 - 1st - 4/13/12
3-4 Seats and Restraints
The head restraint will fold forward
automatically.
When an occupant or child restraint
is in the seat, always return the
head restraint to the upright
position. Pull the head restraint up
and push it rearward until it locks
into place. Push and pull on the
head restraint to make sure that it is
locked.Always adjust the head restraint so
that the top of the restraint is at the
same height as the top of the
occupant's head.
Rear outboard head restraints are
not designed to be removed.
Front Seats
Power Seat Adjustment
{WARNING
You can lose control of the
vehicle if you try to adjust a driver
seat while the vehicle is moving.
Adjust the driver seat only when
the vehicle is not moving.

Black plate (5,1)Cadillac XTS Owner Manual - 2013 - 1st - 4/13/12
Seats and Restraints 3-5
To adjust the seat:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.Raise or lower the front part of
the seat cushion by moving the
front of the control up or down.
.Raise or lower the seat by
moving the rear of the control up
or down.
To adjust the seatback, see
Reclining Seatbacks on page 3‑6.
To adjust the lumbar support, see
Lumbar Adjustment on page 3‑5.
Some vehicles are equipped with a
feature that activates a vibration in
the driver seat to help the driver
avoid crashes. See Driver
Assistance Systems on page 9‑42.
Lumbar Adjustment
To adjust the lumbar support:
.Press and hold the control
forward to increase or rearward
to decrease lumbar support.
.Press and hold the control
upward to raise or downward to
lower the height of the lumbar
support.
Thigh Support
Adjustment
If available, adjust the manual leg
extension by pulling up on the lever,
and then pulling or pushing on the
support to lengthen or shorten it.
Release the lever to lock it in place.

Black plate (6,1)Cadillac XTS Owner Manual - 2013 - 1st - 4/13/12
3-6 Seats and Restraints
Reclining Seatbacks
To adjust the seatback:
.Tilt the top of the control
rearward to recline.
.Tilt the top of the control forward
to raise.
{WARNING
Sitting in a reclined position when
the vehicle is in motion can be
dangerous. Even when buckled
up, the safety belts cannot do
their job.
The shoulder belt will not be
against your body. Instead, it will
be in front of you. In a crash, you
could go into it, receiving neck or
other injuries.
The lap belt could go up over
your abdomen. The belt forces
would be there, not at your pelvic
bones. This could cause serious
internal injuries.
For proper protection when the
vehicle is in motion, have the
seatback upright. Then sit well
back in the seat and wear the
safety belt properly.
Do not have a seatback reclined if
the vehicle is moving.
