2013 BMW ACTIVEHYBRID5 remote control

rearview mirror. The required distance de‐
pends on the manual transmitter.4.Simultaneously press and hold the button of
the desired function on the hand-held trans‐
mitter and the button to be programmed on
the interior rearview mirror. The LED on the
interior rearview mirror will begin flashing
slowly.5.Release both buttons as soon as the LED
flashes more rapidly. When the LED is flash‐
ing faster, this indicates that the button on
the interior rearview mirror has been pro‐
grammed.
If the LED does not flash faster after at least
60 seconds, change the distance between
the interior rearview mirror and the hand-
held transmitter and repeat the step. Several
more attempts at different distances may be
necessary. Wait at least 15 seconds be‐
tween attempts.
Canada: if programming with the hand-held
transmitter was interrupted, hold down the
interior rearview mirror button and repeat‐
edly press and release the hand-held trans‐
mitter button for 2 seconds.6.To program other functions on other but‐
tons, repeat steps 3 to 5.
The systems can be controlled using the interior
rearview mirror buttons.
Special feature of the alternating-code
wireless system
If you are unable to operate the system after re‐
peated programming, please check if the sys‐
tem to be controlled features an alternating-
code system.
Read the system's operating manual, or press
the programmed button on the interior rearview
mirror longer. If the LED on the interior rearview
mirror starts flashing rapidly and then stays lit
constantly for 2 seconds, the system features
an alternating-code system. Flashing and con‐
tinuous illumination of the LED will repeat for
approximately 20 seconds.
For systems with an alternating-code system,
the integrated universal remote control and the
system also have to be synchronized.
Please read the operating manual of the system
being set up for information on how to syn‐
chronize the system.
Synchronizing is easier with the aid of a second
person.
To synchronize:1.Park the vehicle within range of the remote-
controlled system.2.Program the relevant button on the interior
rearview mirror as described.3.Locate and press the synchronizing button
on the system being programmed. You have
approx. 30 seconds for the next step.4.Hold down the programmed button on the
interior rearview mirror for approximately
3 seconds and then release it. If necessary,
repeat this work step up to three times in or‐
der to finish synchronization. Once synchro‐
nization is complete, the programmed func‐
tion will be carried out.
Reprogramming individual buttons
1.Switch on the ignition.2.Press and hold the interior rearview mirror
button to be programmed.3.As soon as the interior rearview mirror LED
starts flashing slowly, hold the hand-held
transmitter for the system to be controlled
approx. 1 to 3 in/2.5 to 8 cm away from the
buttons on the interior rearview mirror. The
required distance depends on the manual
transmitter.4.Likewise, press and hold the button of the
desired function on the hand-held transmit‐
ter.5.Release both buttons as soon as the interior
rearview mirror LED flashes more rapidly.
When the LED is flashing faster, this indi‐
cates that the button on the interior rearview
mirror has been programmed. The systemSeite 147Interior equipmentControls147
Online Edition for Part no. 01 40 2 917 574 - II/13

can then be controlled by the button on the
interior rearview mirror.
If the LED does not flash faster after at least
60 seconds, change the distance and repeat
the step. Several more attempts at different
distances may be necessary. Wait at least
15 seconds between attempts.
Canada: if programming with the hand-held
transmitter was interrupted, hold down the
interior rearview mirror button and repeat‐
edly press and release the hand-held trans‐
mitter button for 2 seconds.
Controls
Before operation
Before operating a system using the
integrated universal remote control, ensure that
there are no people, animals, or objects within
the range of movement of the remote-controlled
system; otherwise, there is a risk of injury or
damage.
Also follow the safety instructions of the hand-
held transmitter.◀
The system, such as the garage door, can be
operated using the button on the interior rear‐
view mirror while the engine is running or when
the ignition is started. To do this, hold down the
button within receiving range of the system until
the function is activated. The interior rearview
mirror LED stays lit while the wireless signal is
being transmitted.
Deleting stored functions
Press and hold the left and right button on the
interior rearview mirror simultaneously for ap‐
proximately 20 seconds until the LED flashes
rapidly. All stored functions are deleted. The
functions cannot be deleted individually.
Ashtray/cigarette lighter
Automatic transmission: Front
Opening
Press on the cover.
Emptying
Take out the insert.
Lighter
Press on the cover. Push in the lighter.
The lighter can be removed as
soon as it pops back out.
Danger of burns
Only hold the hot lighter by its knob; oth‐
erwise, there is the danger of getting burned.
Switch off the ignition and take the remote con‐
trol with you when leaving the vehicle so that
children cannot use the lighter and burn them‐
selves.◀
Seite 148ControlsInterior equipment148
Online Edition for Part no. 01 40 2 917 574 - II/13

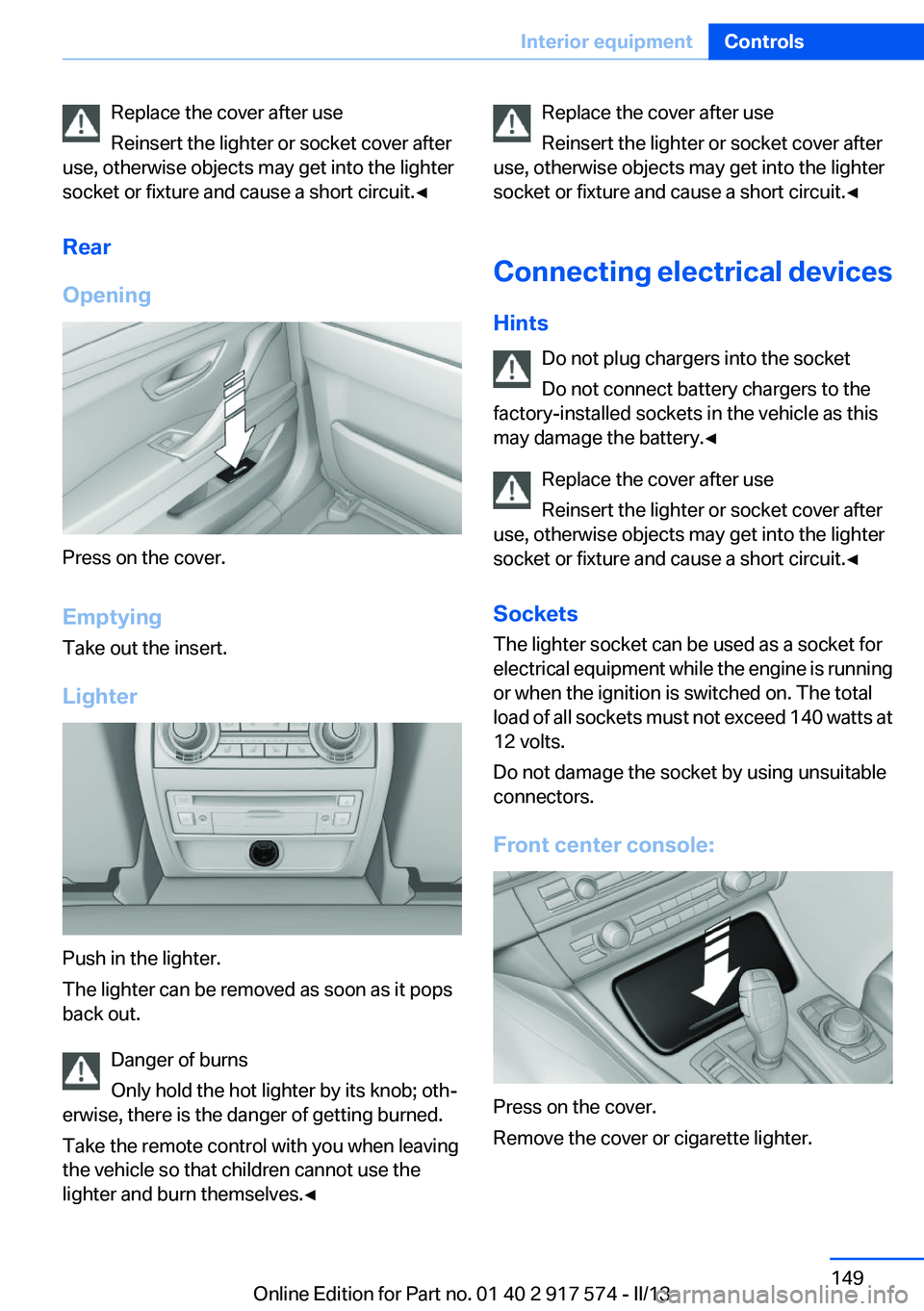

Replace the cover after use
Reinsert the lighter or socket cover after
use, otherwise objects may get into the lighter
socket or fixture and cause a short circuit.◀
Rear
Opening
Press on the cover.
Emptying
Take out the insert.
Lighter
Push in the lighter.
The lighter can be removed as soon as it pops
back out.
Danger of burns
Only hold the hot lighter by its knob; oth‐
erwise, there is the danger of getting burned.
Take the remote control with you when leaving
the vehicle so that children cannot use the
lighter and burn themselves.◀
Replace the cover after use
Reinsert the lighter or socket cover after
use, otherwise objects may get into the lighter
socket or fixture and cause a short circuit.◀
Connecting electrical devices
Hints Do not plug chargers into the socket
Do not connect battery chargers to the
factory-installed sockets in the vehicle as this
may damage the battery.◀
Replace the cover after use
Reinsert the lighter or socket cover after
use, otherwise objects may get into the lighter
socket or fixture and cause a short circuit.◀
Sockets
The lighter socket can be used as a socket for
electrical equipment while the engine is running
or when the ignition is switched on. The total
load of all sockets must not exceed 140 watts at
12 volts.
Do not damage the socket by using unsuitable
connectors.
Front center console:
Press on the cover.
Remove the cover or cigarette lighter.
Seite 149Interior equipmentControls149
Online Edition for Part no. 01 40 2 917 574 - II/13

Storage compartmentsVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipment
is also described that is not available in a vehicle,
e. g., because of the selected optional equip‐
ment or country variant. This also applies for
safety-related functions and systems.
Notes No loose objects in the passenger com‐
partment
Do not stow any objects in the passenger com‐
partment without securing them; otherwise,
they may present a danger to occupants for in‐
stance during braking and avoidance maneu‐
vers.◀
Do not place anti-slip mats on the dash‐
board
Do not place anti-slip mats on the dashboard.
The mat materials could damage the dash‐
board.◀
Storage compartments
The following storage compartments are avail‐
able in the vehicle interior:▷Glove compartment on the driver's and front
passenger side, refer to page 152.▷Storage compartment, refer to page 154, in
the center console for remote control: auto‐
matic transmission.▷Storage compartment in the center armrest,
refer to page 153, in the front and rear.▷Compartments in the doors.▷Pockets on the backrests of the front seats.▷Net in the front passenger footwell.Glove compartment
Front passenger side
Opening
Pull the handle.
The light in the glove compartment switches on.
Close the glove compartment again im‐
mediately
Close the glove compartment immediately after
use while driving; otherwise, injury may occur
during accidents.◀
Closing
Fold up the cover.
Driver's side
Opening
Pull the handle.
Seite 152ControlsStorage compartments152
Online Edition for Part no. 01 40 2 917 574 - II/13

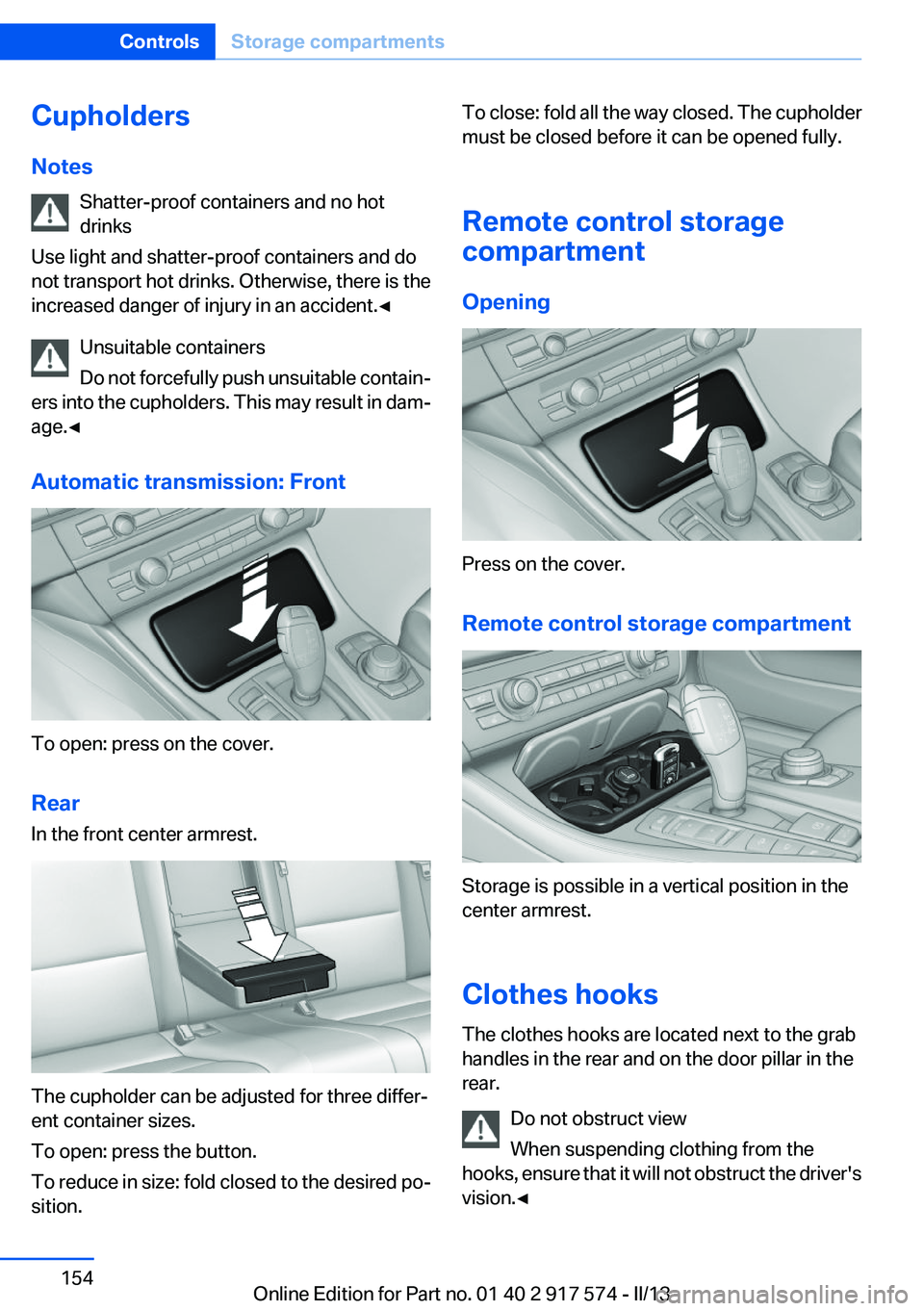

Cupholders
Notes Shatter-proof containers and no hot
drinks
Use light and shatter-proof containers and do
not transport hot drinks. Otherwise, there is the
increased danger of injury in an accident.◀
Unsuitable containers
Do not forcefully push unsuitable contain‐
ers into the cupholders. This may result in dam‐
age.◀
Automatic transmission: Front
To open: press on the cover.
Rear
In the front center armrest.
The cupholder can be adjusted for three differ‐
ent container sizes.
To open: press the button.
To reduce in size: fold closed to the desired po‐
sition.
To close: fold all the way closed. The cupholder
must be closed before it can be opened fully.
Remote control storage
compartment
Opening
Press on the cover.
Remote control storage compartment
Storage is possible in a vertical position in the
center armrest.
Clothes hooks
The clothes hooks are located next to the grab
handles in the rear and on the door pillar in the
rear.
Do not obstruct view
When suspending clothing from the
hooks, ensure that it will not obstruct the driver's
vision.◀
Seite 154ControlsStorage compartments154
Online Edition for Part no. 01 40 2 917 574 - II/13

MaintenanceVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipment
is also described that is not available in a vehicle,
e. g., because of the selected optional equip‐
ment or country variant. This also applies for
safety-related functions and systems.
BMW Maintenance System
The maintenance system directs you to re‐
quired maintenance measures and thereby sup‐
ports you in maintaining road safety and the op‐
erational reliability of the vehicle.
Condition Based Service CBS
Sensors and special algorithms take into ac‐
count the driving conditions of your vehicle.
Based on this, Condition Based Service deter‐
mines the maintenance requirements.
The system makes it possible to adapt the
amount of maintenance you need to your user
profile.
Details on the service requirements, refer to
page 86, can be displayed on the Control Dis‐
play.
Service data in the remote control
Information on the required maintenance is con‐
tinuously stored in the remote control. Your
service center will read out this data and suggest
the right array of service procedures for your ve‐
hicle.
Therefore, hand your service specialist the re‐
mote control that you used most recently.Storage periods
Storage periods during which the vehicle bat‐
tery was disconnected are not taken into ac‐
count.
If this occurs, have a service center update the
time-dependent maintenance procedures,
such as checking brake fluid and, if necessary,
changing the engine oil and the microfilter/acti‐
vated-charcoal filter.
Service and Warranty
Information Booklet for US
models and Warranty and
Service Guide Booklet for
Canadian models
Please consult your Service and Warranty Infor‐
mation Booklet for US models and Warranty and
Service Guide Booklet for Canadian models for
additional information on service requirements.
Maintenance and repair should be performed by
your service center. Make sure to have regular
maintenance procedures recorded in the vehi‐
cle's Service and Warranty Information Booklet
for US models, and in the Warranty and Service
Guide Booklet for Canadian models. These en‐
tries are proof of regular maintenance.Seite 188MobilityMaintenance188
Online Edition for Part no. 01 40 2 917 574 - II/13

Everything from A to Z
IndexA
ABS, Antilock Brake Sys‐ tem 117
Activated-charcoal filter 141
Activate drive readiness 67
Active Blind Spot Detec‐ tion 113
ActiveHybrid, system 29
Active Protection 115
Active seat, front 53
Active seat ventilation, front 54
Adaptive brake lights, refer to Brake force display 115
Adaptive light control 96
Additives, oil 185
Adjustments, seats/head re‐ straints 51
After washing vehicle 205
Airbags 99
Airbags, indicator/warning light 100
Air circulation, refer to Recir‐ culated-air mode 140
Air, dehumidifying, refer to Cooling function 140
Air distribution, manual 139
Air flow, automatic climate control 139
Air pressure, tires 175
Air vents, refer to Ventila‐ tion 141
Alarm system 46
Alarm, unintentional 47
All around the center con‐ sole 16
All around the headliner 17
All around the steering wheel 14 ALL program, automatic cli‐
mate control 140
All-season tires, refer to Win‐ ter tires 180
Alternating-code hand-held transmitter 147
Alternative oil types 185
Ambient light 98
Antifreeze, washer fluid 75
Antilock Brake System, ABS 117
Anti-slip control, refer to DSC 117
Approved axle load 211
Approved engine oils 185
Armrest, refer to Center arm‐ rest 153
Arrival time 90
Ashtray 148
Ashtray, front 148
Ashtray, rear 149
Assistance for the combustion engine 70
Assistance, Roadside Assis‐ tance 199
Assistance when driving off 117
ASSIST, Hybrid system 70
AUTO H button, refer to Auto‐ matic Hold 71
AUTO intensity 139
Automatic car wash 204
Automatic climate con‐ trol 138
Automatic Curb Monitor 60
Automatic deactivation, front passenger airbags 101
Automatic deactivation of the hybrid system 203
Automatic engine start-stop function 68 Automatic headlamp con‐
trol 95
Automatic Hold 71
Automatic locking 41
Automatic recirculated-air control 140
Automatic Soft Closing, doors 41
Automatic tailgate 42
Automatic transmission with Steptronic 76
AUTO program, automatic cli‐ mate control 139
AUTO program, intensity 139
Auxiliary air conditioning 144
Average fuel consumption 89
Average speed 89
Axle loads, weights 211
B
Backrest curvature, refer to Lumbar support 53
Backup camera 126
Band-aids, refer to First aid kit 199
Bar for tow-starting/tow‐ ing 201
Battery replacement, vehicle battery 196
Battery replacement, vehicle remote control 35
Battery, vehicle 196
Belts, safety belts 55
Beverage holder, cu‐ pholder 154
Blinds, sun protection 48
BMW ActiveHybrid 29
BMW Assist, see user's manual for Navigation, Enter‐Seite 214ReferenceEverything from A to Z214
Online Edition for Part no. 01 40 2 917 574 - II/13

tainment and Communica‐
tion
BMW Homepage 6
BMW Internet page 6
BMW maintenance sys‐ tem 188
Bonus range, ECO PRO 168
Bottle holder, refer to Cu‐ pholder 154
Brake assistant 117
Brake discs, breaking in 158
Brake force display 115
Brake lamps, brake force dis‐ play 115
Brake lamps, bulb replace‐ ment 195
Brake lights, adaptive 115
Brake pads, breaking in 158
Braking, notes 161
Breakdown assis‐ tance 198, 199
Breaking in 158
Brightness of Control Dis‐ play 92
Bulb replacement 190
Bulb replacement, front 191
Bulb replacement, rear 194
Bulbs and lamps 190
Button assignment for remote control 34
Button, Start/Stop 66
Bypassing, refer to Jump- starting 199
C
California Proposition 65 Warning 7
Camera, backup camera 127
Camera, care 207
Camera, Side View 131
Camera, Top View 129
Can holder, refer to Cu‐ pholder 154
Car battery 196
Car care products 205 Care, displays 207
Care, vehicle 205
Cargo 163
Cargo area lid 41
Cargo area, storage compart‐ ments 155
Cargo straps, securing cargo 164
Car key, refer to Remote con‐ trol 34
Carpet, care 206
Car wash 204
Catalytic converter, refer to Hot exhaust system 160
CBS Condition Based Serv‐ ice 188
CD/Multimedia, see user's manual for Navigation, Enter‐
tainment and Communica‐
tion
Center armrest 153
Center console 16
Central locking system 38
Central screen, refer to Control Display 18
Changes, technical, refer to Safety 7
Changing parts 190
Changing wheels 196
Changing wheels/tires 179
CHARGE, energy recovery 70
Charge indicator, high-voltage battery 84
Check Control 80
Children, seating position 62
Children, transporting safely 62
Child restraint fixing sys‐ tem 62
Child restraint fixing system LATCH 63
Child restraint fixing systems, mounting 62
Child safety locks 65
Child seat, mounting 62
Child seats 62 Chrome parts, care 206
Cigarette lighter 148
Cleaning, displays 207
Climate control 138
Climate control wind‐ shield 160
Clock 83
Closing/opening from in‐ side 41
Closing/opening via door lock 40
Closing/opening with remote control 38
Clothes hooks 154
Coasting 69
Collision warning 107
Combination switch, refer to Turn signals 72
Combination switch, refer to Wiper system 73
Combustion engine, start‐ ing 68
COMFORT+ program, Driving Dynamics Control 120
Comfort Access 44
COMFORT program, Driving Dynamics Control 120
Computer 89
Condensation on win‐ dows 139
Condensation under the vehi‐ cle 162
Condition Based Service CBS 188
Confirmation signal 39
ConnectedDrive, see user's manual for Navigation, Enter‐
tainment and Communica‐
tion
Contact with water, hybrid system 203
Control Display 18
Control Display, settings 91
Controller 18
Control systems, driving sta‐ bility 117 Seite 215Everything from A to ZReference215
Online Edition for Part no. 01 40 2 917 574 - II/13
