2013 BMW 128I COUPE service reset

14
At a glanceDashboard
Instrument cluster
1Speedometer
135i: with fuel gauge
2 Indicator lamps for turn signals
3 Indicator and warning lamps 15
4 Tachometer 76
5 Fuel gauge 76
135i: engine oil temperature 76
6 Display for
>Clock 75
> Outside temperature 75
> Indicator and warning lamps 847
Display for
>Position of automatic transmission 64
> Gear indicator of 7-gear Sport automatic
transmission with double clutch 66
> Computer 77
> Date of next scheduled service, and
remaining distance to be driven 80
> Odometer and trip odometer 75
> High-beam Assistant 102
> Checking the oil level 233
> Settings and information 79
8 Resetting the trip odometer 75

00320051004F004C00510048000300280047004C0057004C005200510003

99
Technology for driving comfort and safety
Controls
Convertible: rollover
protection system
The rollover protection
system is activated
automatically in the event of an accident of suf-
ficient severity or an extreme tilt in the car's lon-
gitudinal axis. The protection bars behind the
rear head restraints depl oy within fractions of a
second.
As a supplementary system to the reinforced
windshield frame, the rollover protection
system increases the safety of the vehicle
occupants.
Always keep the area of movement of the
rollover protection system clear.
In minor accidents, you are protected by the
fastened safety belt and, depending on acci-
dent severity, by the sa fety belt tensioner and
multi-phase airbag retention system. <
Resetting
If the rollover protection system was not
impacted after being automatically activated, it
can be reset by lowering the protection bars to
their original positions. This does not require
tools.
1. Push the locking lever to one side and hold
it there.
2. Push the protection bar halfway down from
above.
3. Release the locking lever. 4.
Push the protection bar down until it snaps
into place.
5. Repeat the procedure for the other protec-
tion bar.
Have the rollover protection system checked
after an unexpected activation.
If the rollover protective system is
extended, do not operate the convertible
top.
Do not make any modifica tions to the individual
components of the rollover protection system
or its cabling.
Work on the rollover protection system should
be performed only by your BMW center.
Faulty repair may lead to the failure of the sys-
tem or malfunctions.
To check the system and ensure flawless long-
term operation, always observe the service
intervals, refer to page 80.<

00320051004F004C00510048000300280047004C0057004C005200510003

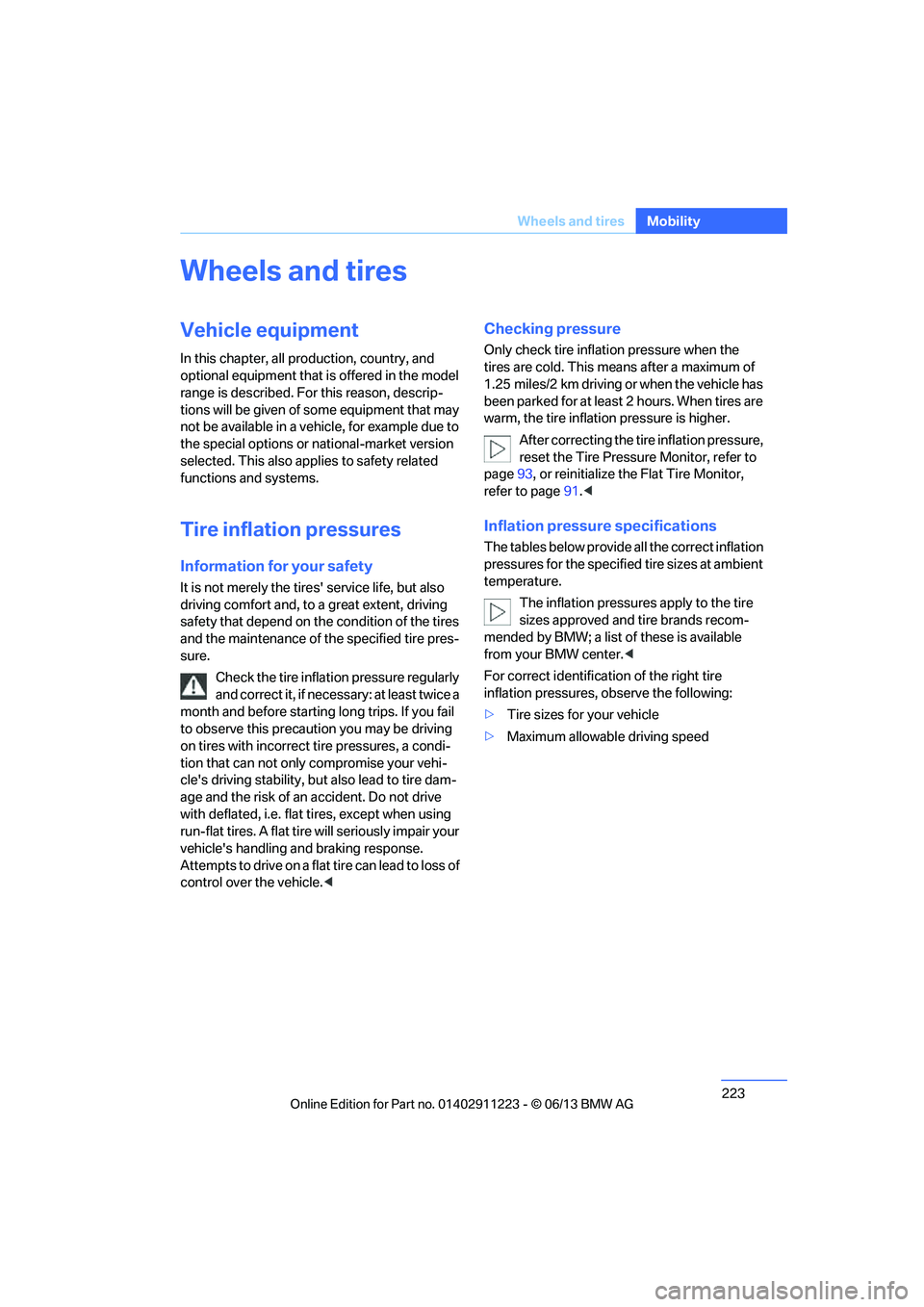

223
Wheels and tires
Mobility
Wheels and tires
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. For this reason, descrip-
tions will be given of some equipment that may
not be available in a vehi
cle, for example due to
the special options or national-market version
selected. This also app lies to safety related
functions and systems.
Tire inflation pressures
Information for your safety
It is not merely the tire s' service life, but also
driving comfort and, to a great extent, driving
safety that depend on th e condition of the tires
and the maintenance of th e specified tire pres-
sure.
Check the tire inflation pressure regularly
and correct it, if nece ssary: at least twice a
month and before starting long trips. If you fail
to observe this precaution you may be driving
on tires with incorrect tire pressures, a condi-
tion that can not only compromise your vehi-
cle's driving stability, but also lead to tire dam-
age and the risk of an accident. Do not drive
with deflated, i.e. flat tires, except when using
run-flat tires. A flat tire will seriously impair your
vehicle's handling and braking response.
Attempts to drive on a flat tire can lead to loss of
control over the vehicle. <
Checking pressure
Only check tire inflation pressure when the
tires are cold. This means after a maximum of
1.25 miles/2 km driving or when the vehicle has
been parked for at least 2 hours. When tires are
warm, the tire inflation pressure is higher.
After correcting the tire inflation pressure,
reset the Tire Pressure Monitor, refer to
page 93, or reinitialize the Flat Tire Monitor,
refer to page 91.<
Inflation pressure specifications
The tables below provide all the correct inflation
pressures for the specified tire sizes at ambient
temperature.
The inflation pressure s apply to the tire
sizes approved and tire brands recom-
mended by BMW; a list of these is available
from your BMW center. <
For correct identificati on of the right tire
inflation pressures, observe the following:
> Tire sizes for your vehicle
> Maximum allowable driving speed

00320051004F004C00510048000300280047004C0057004C005200510003

277
Everything from A to Z
Reference
Park Distance Control PDC
88
Parked car ventilation 110
– preselecting switch-on times 110
– switching on and off
directly 110
Parking
– vehicle 63
Parking aid, refer to Park Distance Control PDC 88
Parking brake 63
– indicator lamp 63
Parking lamps/low beams 100
– replacing bulbs 245
Parts and accessories, refer to Vehicle equipment 5
Passenger side mirror tilt function 56
Pathway lighting 101
Personal information, refer to Office 201
Personal Profile 32
Phone numbers
– dialing 194
Phone reception level, refer to
Status information 23
Pinch protection system
– glass roof, electric 44
– windows 43
Playing music 174
Polish 241
Pollen, refer to Microfilter/ activated-charcoal filter 109
Power windows 42
Power windows, refer to Windows 42
Pressure, tires 223
Pressure monitoring of tires, refer to Flat Tire Monitor 91
Pressure monitoring of tires,
refer to Tire Pressure
Monitor TPM 92
Programmable buttons on the
steering wheel 13 Programmable memory
keys 25
Protection function, refer to Pinch protection system
– glass roof, electric 44
– windows 43
Providing medical assistance, refer to First aid pouch 251
Puncture
– flat tire monitor 91
R
Radio
– controls154
– HD radio 159
– satellite radio 161
– selecting waveband 157
– storing stations 158
– switching on/off 154
– tone control 155
– volume 155
Radio position, refer to Radio readiness 61
Radio readiness 61
– switched off 62
– switched on 61
Rain sensor 72
Random sequence
– CD player 167
– external devices 180
– music collection 175
Reading aloud 209
Reading lamps 105
Rear lamps, refer to Tail lamps 246
Rear seats
– adjusting head restraints 52
– folding down backrests 117
Rearview mirror, refer to
Mirrors 55
Rear window defroster 109
Reception
– quality 158
– radio station 158 Recirculated air mode
108
Recirculation of air, refer to
Recirculated air mode 108
Redialing 196
Reflectors, refer to Tail
lamps 246
Refueling 220
Releasing
– hood 233
Remaining distance, refer to Computer 78
Remaining distance, refer to Cruising range 77
Reminders 208
Remote control 32
– battery renewal 41
– comfort access 40
– garage door opener 111
– malfunctions 35,41
– removing from the ignition lock 61
– service data 237
– trunk lid 35
Remote control key, refer to Integrated key/remote
control 32
Re plac

ement fuses, refer to
Fuses 249
Replacement remote control 32
Replacing bulbs, refer to
Lamps and bulbs 243
Replacing tires, refer to New wheels and tires 230
Reporting safety defects 7
Reserve warning, refer to Fuel gauge 76
Reservoir for washer systems 73
Reset, refer to Resetting tone
settings 156
Restraint systems, refer to Safety belts 54
Restraint systems for children 58

00320051004F004C00510048000300280047004C0057004C005200510003

278
ReferenceEverything from A to Z
Retreaded tires 230
Reverse
– CD player 168
Reverse gear 67
– automatic transmission with
Steptronic 65
– manual transmission 64
Road map 145
Roadside Assistance 213,251
Roadside parking lamps 102
– replacing bulbs 245
Roadworthiness test, refer to Service requirements 80
Rollover protection system, Convertible 99
– resetting 99
Roof load capacity 259
Roof-mounted luggage
rack 129
Rope, refer to Tow-starting, towing away 254
Rotary/pushbutton control, refer to Controller 20
Route 143,144
– bypassing sections 144
– changing 143,144
– changing criteria 143
– displaying streets or towns/ cities 144
– map view 145
– selecting 143
Route instructions, refer to Destination guidance
through voice
instructions 145
Route map, refer to Map
view 145
Route section, changing 144
Route selection 143
RSC Runflat System Component, refer to
Run-flat tires 231
Runflat System Component RSC, refer to Run-flat
tires 231 Run-flat tires
231
– flat tire 92
– inflation pressure 223
– new tires 230
– remaining driving distance,
refer to Indication of a flat
tire 92
– tire replacement 230
– winter tires 231
Runflat tyres, refer to Run-flat tires 231
S
Safety-belt height
adjustment 55
Safety belts 54
– damage 55
– indicator lamp 55
– reminder 55
– sitting safely 49
Safety systems
– airbags 97
– antilock brake system ABS 89
– dynamic stability control DSC 89
– rollover protection system,
Convertible 99
– safety belts 54
Safety tires, re fer to Run-flat
tires 231
Satellite radio 161
– activating or deactivating
channels 161
– favorites 163
– selecting channels 162
– storing channels 162
– time shift 163
– traffic jump 165
Saving fuel 124
Screen, refer to iDrive 20
Screw thread for tow
fitting 253
SDARS, refer to satellite radio 161 Seat and mirror memory
54
Seat belt reminder, refer to
"Fasten safety belts"
reminder 55
Seats 50
– heating 54
– sitting safely 49
Securing cargo 119,120
Selecting a station
– radio 157
Selecting new scale for
navigation 146
Selector lever, automatic transmission with
Steptronic 64
Selector lever positions 67
Service, refer to Roadside Assistance 251
Service car, refer to Roadside
Assistance 251
Service data in remote control 237
Service Interval Display, refer to Condition Based Service
CBS 237
Service Request 215
Service requirements 80
Service status 216
Settings
– clock,

12h/24h format 83
– date format 84
– DVD 169
– language 87
Settings for the map view 146
Setting times, refer to Preselecting switch-on
times 110
Setting tone during audio operation, refer to Tone
control 155
Shifting 68
– 7-gear Sport automatic transmission with double
clutch 68

00320051004F004C00510048000300280047004C0057004C005200510003

280
ReferenceEverything from A to Z
Switching the air conditioning
on and off 109
Switching the entertainment audio output on/off 154
Switch-on times of parked car
ventilation, preselecting 110
Symbols 4
– status information 23
T
Tachometer76
Tailgate, refer to Trunk lid 37
Tail lamp, refer to Tail
lamps 246
– replacing bulb 247
Tail lamps 246
– replacing bulb 247
Tank contents, refer to
Capacities 259
Tasks 207
Technical data 258
– dimensions 258
Technical modifications 5
Telephone 188
– hands-free system 197
– phone book 195
– received calls 196
– redialing 196
– voice commands 197
Telephone, installation
location, refer to Center
armrest 115
TeleService 213
Teleservice Diagnosis 214
Temperature display
– outside temperature 75
– outside temperature warning 75
– setting the units 80
Tempomat, refer to Cruise control 73
Text message 205
Thigh support 50
Third brake lamp, refer to Center brake lamp 247Three-point safety belt
54
Through-loading system 117
Tilt alarm sensor 39
Tilt function, passenger side mirror 56
Timer, refer to Preselecting switch-on times 110
Tire inflation pressure 223
– loss 92,93
Tire pressure monitoring, refer to Flat Tire Monitor 91
Tire Pressure Monitor TPM 92
– resetting the system 93
– system limitations 93
– warning lamp 94
Tire puncture, refer to Flat Tire Monitor 92
Tire Quality Grading 228
Tires
– age 228,230
– air loss 94
– bre a

king in 124
– changing, refer to Changing wheels 248
– condition 229
– damage 229
– inflation pressure 223
– labels 228
– minimum tread depth 229
– new tires 230
– pressure monitoring, refer to Flat Tire Monitor 91
– pressure monitoring, refer to
Tire Pressure Monitor
TPM 92
– puncture 92
– retreaded 230
– run-flat tires 231
– size 228
– wear indicators, refer to Minimum tread depth 229
– winter tires 231
TMC station, refer to Traffic bulletins 147 Tone
– control
155
– middle setting 156
Tools, refer to Onboard vehicle tool kit 243
Top 50 in music collection 175
Tow bar 253
Tow fitting 252
Tow fittings for tow-starting and towing away 252
Towing 252
– car with automatic transmission 252
– methods 253
– with 7-gear Sport automatic
transmission with double
clutch 253
Towing and tow-starting 252
Town/city, for navigation 134
Tow rope 254
Tow-starting 252
TPM, refer to Tire Pressure Monitor 92
Track
– selecting on CD 166
Traction control, refer to Dynamic Stability Control
DSC 89
Traffic bulletins
– categories 149
Traffic bulletins, filtering 149
Traffic bulletins for navigation 147
– during destination guidance 149
Traffic bulletins in navigation
– screen display in the map view 148
Traf fic co

ngestion
– displaying traffic bulletins 147
– refer to Route, bypassing
segments 144

00320051004F004C00510048000300280047004C0057004C005200510003
