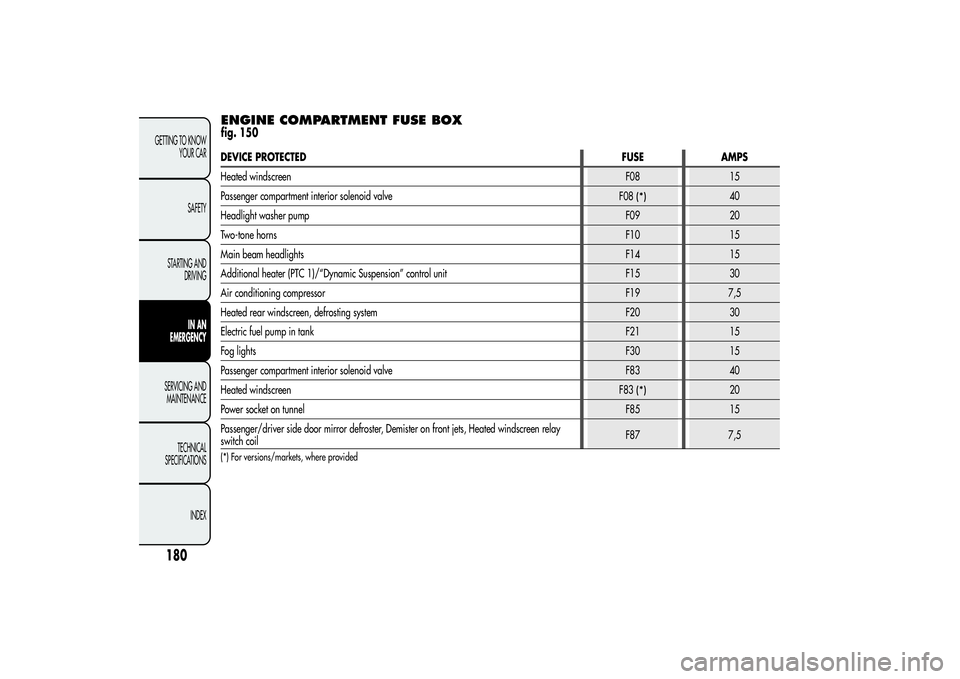

ENGINE COMPARTMENT FUSE BOXfig. 150
180GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DEVICE PROTECTEDFUSE AMPS
Heated windscreenF08 15
Passenger compartment interior solenoid valve
F08
(*)
40
Headlight washer pumpF09 20
Two-tone hornsF10 15
Main beam headlightsF14 15
Additional heater (PTC 1)/“Dynamic Suspension” control unit F15 30
Air conditioning compressorF19 7,5
Heated rear windscreen, defrosting system F20 30
Electric fuel pump in tankF21 15
Fog lightsF30 15
Passenger compartment interior solenoid valve F83 40
Heated windscreen
F83
(*)
20
Power socket on tunnelF85 15
Passenger/driver side door mirror defroster, Demister on front jets, Heated windscreen relay
switch coilF87 7,5
(*) For versions/markets, where provided

INSTRUMENT PANEL FUSE BOXfig. 152DEVICE PROTECTEDFUSE AMPS
Right dipped beam headlight
F12
(*)
7,5
Headlight gas discharge system (right side)
F12
(*)
15
Left dipped beam headlightF13
7,5/5
(*)
Headlight gas discharge system (left side) F13
15/5
(*)
Headlight alignment adjustment system F13 7,5
INT/A key exhaust relay switch coils on engine fuse box F31 5
Front roof light, Luggage compartment roof light, Sun visor courtesy light, Door puddle lights,
Glove compartment lightF32
(*)
5
Radio,Blue&Me
™
control unit, Climate control management control unit, Alarm siren control
unit, Volumetric system control unit, EOBD external diagnosis socket, Tyre pressure monitoring
control unitF36 10
Instrument panel, Brake light switch, Gas discharge headlights management system F37 5
Door lock motor on doors, Safe Lock motor on doors, Tailgate unlocking motor F38 15
Windscreen/rear window washer pump F43 20
Electric window motor complete with control unit (driver side door) F47 20
Electric window motor complete with control unit (passenger side door) F48 20
(*) For versions/markets, where provided
181GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

DEVICE PROTECTEDFUSE AMPS
Parking sensor control unit, Tyre pressure monitoring control unit, Rain/dusk sensor on interior
rear view mirror, Electrochromic sensor on interior rear view mirror, Seat belts fastened warning
light display on interior rear view mirror, Control panel lighting (central control panel, driver
side control panel, control panel on steering wheel,Blue&Me
™
control panel), Heater pad
activation switches on front seats, Alarm system volumetric sensor control unit, Electric sun roof
control unit, Navigation system socket on dashboardF49 5
Clutch activation switch, Brake light switch, Relay switch coils on engine fuse box control unit,
Control system on internal climate control/heater unit,Blue&Me™
control unit, Radio setup,
Flow meter, Water in diesel sensorF51 5
Instrument panelF53 5
