2013 Alfa Romeo MiTo fuse box

GETTING TO KNOW YOUR CAR
DASHBOARDThe presence and position of the controls, instruments and indicators may vary according to the different versions.1. Diffuser for directing air to the side windows 2. Adjustable air vent 3. Exterior light control lever 4. Instrument panel 5. Windscreen wiper/rear
window wiper/trip computer control lever 6. Car radio (for versions/markets, where provided) 7. Adjustable air diffusers 8. Hazard warning lights,
door locking/unlocking button 9. Passenger front airbag 10. Glove compartment 11. Heating/ventilation/climate control system controls 12. Gear
lever 13. "Alfa DNA" system 14. Ignition device 15. Driver side front knee bag (for versions/markets, where provided) 16. Driver front airbag
17. Cruise Control lever (for versions/markets, where provided) 18. Fuse box access flap 19. Panel with various controls.
fig. 1
A0J0330
3GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

REPLACING FUSESGENERAL INFORMATIONFuses protect the electrical system: they intervene (blow) in the event of
a failure or improper intervention on the system.
When a device does not work, check the condition of its protective
fuse: the conductor element A fig. 148 must be intact.
If it is not, replace the blown fuse with another with the same
amperage (same colour).
B = undamaged fuse.
C = fuse with damaged filament.
Contact Alfa Romeo Authorized Services should the
fuse blow again.
Never replace a fuse with metal wires or anything else.Never replace a fuse with another with a higher amp
rating; DANGER OF FIRE.If a general protection fuse (MAXI-FUSE, MEGA-FUSE,
MIDI-FUSE) blows, contact Alfa Romeo Authorized
Services.Remove the key from the ignition switch and switch off
all loads before replacing a fuse.Contact Alfa Romeo Authorized Services if a safety
system (air bags, brakes), engine system (engine,
gearbox) or steering system general protection fuse
blows.
fig. 148
A0J0048
176GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

FUSE LOCATIONFuses are grouped together in three fuse boxes located in the engine
compartment, dashboard and luggage compartment.
Engine compartment fuse box
This is located next to the battery: to access the fuses fig. 150, undo
screws A fig. 149 and remove cover B.
The number identifying the electrical component corresponding to each
fuse is on the back of the cover.
After replacing the fuse, make sure you close cover B on the fuse box.
If you have to wash the engine compartment, take care not
to aim the jet of water directly at the fuse box or
windscreen wiper motors.
fig. 149
A0J0126
fig. 150
A0J0127
177GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Dashboard fuse box
To access the fuses fig. 152, lower lid A fig. 151, grip cover B with one
hand in the area shown in the figure and remove it in the direction
shown by the arrow, in order to release first the inner retainers C and
then the tabs D.
fig. 151
A0J0334
fig. 152
A0J0205
178GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

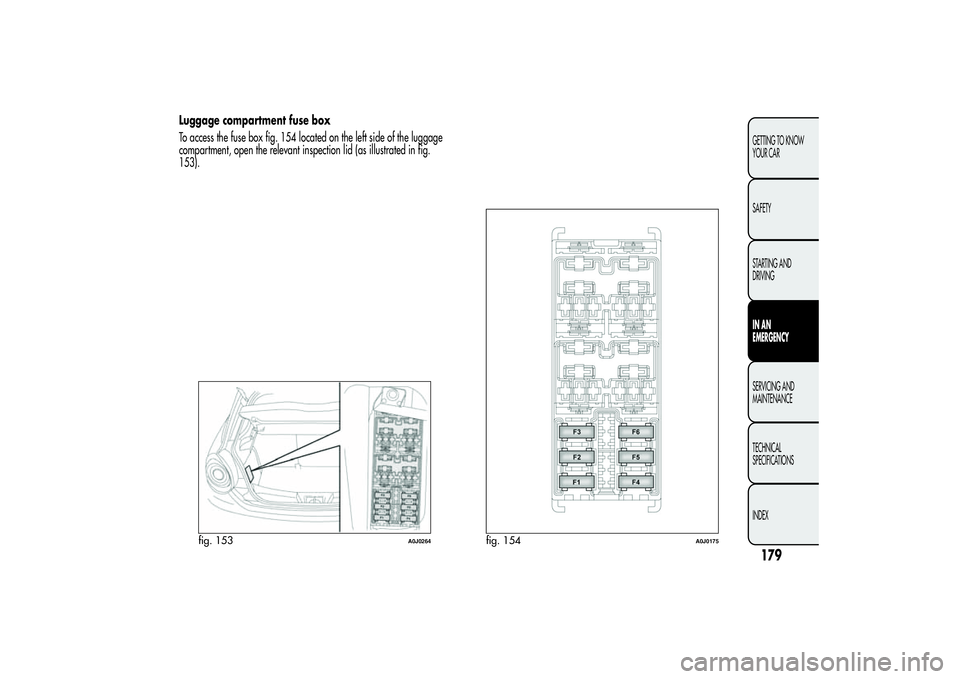

Luggage compartment fuse box
To access the fuse box fig. 154 located on the left side of the luggage
compartment, open the relevant inspection lid (as illustrated in fig.
153).
fig. 153
A0J0264
fig. 154
A0J0175
179GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

ENGINE COMPARTMENT FUSE BOXfig. 150
180GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DEVICE PROTECTEDFUSE AMPS
Heated windscreenF08 15
Passenger compartment interior solenoid valve
F08
(*)
40
Headlight washer pumpF09 20
Two-tone hornsF10 15
Main beam headlightsF14 15
Additional heater (PTC 1)/“Dynamic Suspension” control unit F15 30
Air conditioning compressorF19 7,5
Heated rear windscreen, defrosting system F20 30
Electric fuel pump in tankF21 15
Fog lightsF30 15
Passenger compartment interior solenoid valve F83 40
Heated windscreen
F83
(*)
20
Power socket on tunnelF85 15
Passenger/driver side door mirror defroster, Demister on front jets, Heated windscreen relay
switch coilF87 7,5
(*) For versions/markets, where provided

INSTRUMENT PANEL FUSE BOXfig. 152DEVICE PROTECTEDFUSE AMPS
Right dipped beam headlight
F12
(*)
7,5
Headlight gas discharge system (right side)
F12
(*)
15
Left dipped beam headlightF13
7,5/5
(*)
Headlight gas discharge system (left side) F13
15/5
(*)
Headlight alignment adjustment system F13 7,5
INT/A key exhaust relay switch coils on engine fuse box F31 5
Front roof light, Luggage compartment roof light, Sun visor courtesy light, Door puddle lights,
Glove compartment lightF32
(*)
5
Radio,Blue&Me
™
control unit, Climate control management control unit, Alarm siren control
unit, Volumetric system control unit, EOBD external diagnosis socket, Tyre pressure monitoring
control unitF36 10
Instrument panel, Brake light switch, Gas discharge headlights management system F37 5
Door lock motor on doors, Safe Lock motor on doors, Tailgate unlocking motor F38 15
Windscreen/rear window washer pump F43 20
Electric window motor complete with control unit (driver side door) F47 20
Electric window motor complete with control unit (passenger side door) F48 20
(*) For versions/markets, where provided
181GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

DEVICE PROTECTEDFUSE AMPS
Parking sensor control unit, Tyre pressure monitoring control unit, Rain/dusk sensor on interior
rear view mirror, Electrochromic sensor on interior rear view mirror, Seat belts fastened warning
light display on interior rear view mirror, Control panel lighting (central control panel, driver
side control panel, control panel on steering wheel,Blue&Me
™
control panel), Heater pad
activation switches on front seats, Alarm system volumetric sensor control unit, Electric sun roof
control unit, Navigation system socket on dashboardF49 5
Clutch activation switch, Brake light switch, Relay switch coils on engine fuse box control unit,
Control system on internal climate control/heater unit,Blue&Me™
control unit, Radio setup,
Flow meter, Water in diesel sensorF51 5
Instrument panelF53 5
