DIPPED HEADLIGHTSWith incandescent bulbs
To change the bulb, proceed as follows:
❒remove cover B fig. 131;
❒remove cover A fig. 133 protecting the bulb;
❒extract the bulb and replace it;
❒refit the bulb holder, making sure it is correctly secured;
❒refit cover B fig. 131.
With gas discharge bulbs (Bixenon)
(for versions/markets, where provided)
Contact Alfa Romeo Authorized Services to have these
bulbs replaced.
DIRECTION INDICATORSFront
To replace the bulb, take wrench A fig. 134 (located in the document
holder), insert it in housing B and turn the bulb holder anticlockwise.
Extract the bulb and replace it.
fig. 133
A0J0040
fig. 134
A0J0018
170GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

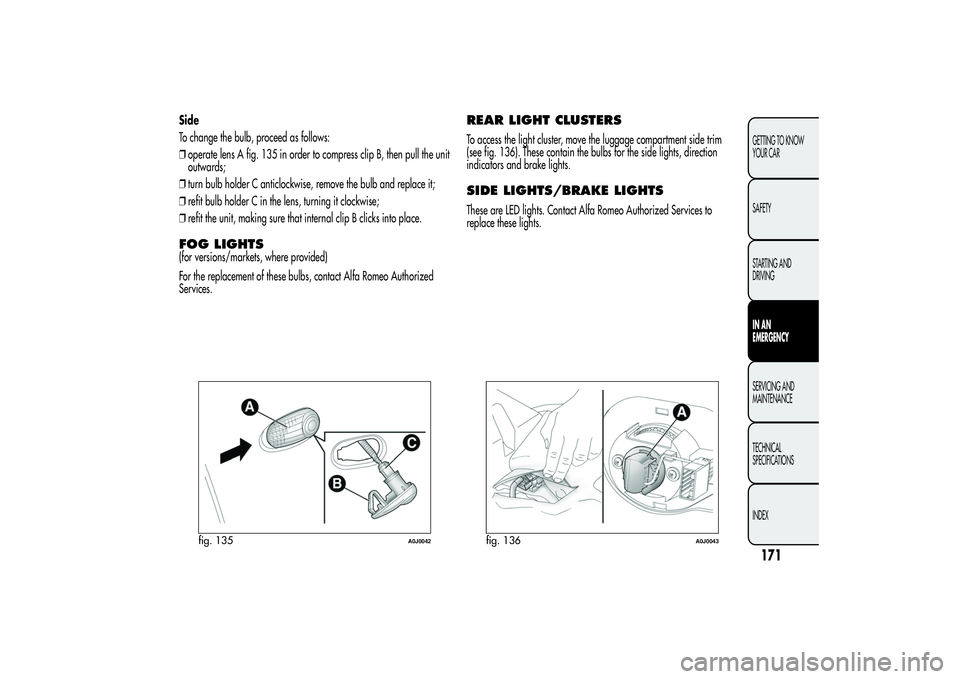

Side
To change the bulb, proceed as follows:
❒operate lens A fig. 135 in order to compress clip B, then pull the unit
outwards;
❒turn bulb holder C anticlockwise, remove the bulb and replace it;
❒refit bulb holder C in the lens, turning it clockwise;
❒refit the unit, making sure that internal clip B clicks into place.FOG LIGHTS(for versions/markets, where provided)
For the replacement of these bulbs, contact Alfa Romeo Authorized
Services.
REAR LIGHT CLUSTERSTo access the light cluster, move the luggage compartment side trim
(see fig. 136). These contain the bulbs for the side lights, direction
indicators and brake lights.SIDE LIGHTS/BRAKE LIGHTSThese are LED lights. Contact Alfa Romeo Authorized Services to
replace these lights.
fig. 135
A0J0042
fig. 136
A0J0043
171GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

REAR FOG LIGHT/REVERSING LIGHTTo replace the rear fog light A fig. 137 or reversing light B fig. 137
bulbs, contact Alfa Romeo Authorized Services.3rd
BRAKE LIGHTS
These are located in the tailgate and are LED bulbs. For replacement,
contact Alfa Romeo Authorized Services.NUMBER PLATE LIGHTSTo replace the bulbs proceed as follows:
❒remove the number plate light units fig. 138;
❒turn the bulb holder B fig. 139 anticlockwise, extract the bulb C and
replace it;
fig. 137
A0J0044
fig. 138
A0J0046
fig. 139
A0J0045
172GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

REPLACING INTERIOR BULBSFRONT ROOF LIGHTTo change the bulb, proceed as follows:
❒remove the roof light A fig. 140 working at the points indicated by
the arrows;
❒open the flap B fig. 141 and replace the bulbs C releasing them
from the side contacts. Make sure that the new bulbs are correctly
secured between the contacts;
❒reclose the flap B fig. 141 and fix the roof light A fig. 140 in its
housing making sure that it is locked.LUGGAGE COMPARTMENT ROOF
LIGHTTo change the bulb, proceed as follows:
❒open the luggage compartment and extract the roof light A fig. 142
working in the point shown by the arrow;❒open the protection B fig. 143 and replace the bulb;
❒re-close the protection B on the lens;
❒refit the roof light A fig. 142 by inserting it in its correct position
firstly on one side and then pressing on the other until it clicks into
place.
fig. 140
A0J0120
fig. 141
A0J0121
fig. 142
A0J0119
173GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

GLOVE COMPARTMENT LIGHTTo change the bulb, proceed as follows:
❒open the glove compartment and extract the light A fig. 144;
❒replace bulb B, releasing it from the side contacts and making sure
the new bulb is correctly fastened between the contacts.
COURTESY LIGHT(for versions/markets, where provided)
To change the bulb, proceed as follows:
❒lower the sun visor and remove courtesy light A fig. 145, applying
leverage at the point indicated by the arrow;
❒remove protection B, releasing it from tabs C, then replace bulb D
fig. 146 by pulling it outwards and releasing it from the side
contacts;
❒insert the new bulb, making sure that it is positioned correctly and is
secured between the contacts;
❒refit protection B fig. 145, inserting it correctly between tabs C;
❒refit the roof light, inserting it first from side E fig. 146, then press on
the other side until you hear tab F click into place.
fig. 143
A0J0118
fig. 144
A0J0122
fig. 145
A0J0123
174GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

PUDDLE LIGHTTo change the bulb, proceed as follows:
❒open the door and remove the roof light by pushing on clip A fig.
147 with a screwdriver;❒press the sides of protection B fig. 147 near the two fixing pins and
replace bulb C;
❒refit the protection, locking the two fixing pins;
❒refit the roof light, inserting it first from side D and then pressing on
the other side until you hear the clip click into place.
fig. 146
A0J0124
fig. 147
A0J0125
175GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVINGIN AN
EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

REPLACING FUSESGENERAL INFORMATIONFuses protect the electrical system: they intervene (blow) in the event of
a failure or improper intervention on the system.
When a device does not work, check the condition of its protective
fuse: the conductor element A fig. 148 must be intact.
If it is not, replace the blown fuse with another with the same
amperage (same colour).
B = undamaged fuse.
C = fuse with damaged filament.
Contact Alfa Romeo Authorized Services should the
fuse blow again.
Never replace a fuse with metal wires or anything else.Never replace a fuse with another with a higher amp
rating; DANGER OF FIRE.If a general protection fuse (MAXI-FUSE, MEGA-FUSE,
MIDI-FUSE) blows, contact Alfa Romeo Authorized
Services.Remove the key from the ignition switch and switch off
all loads before replacing a fuse.Contact Alfa Romeo Authorized Services if a safety
system (air bags, brakes), engine system (engine,
gearbox) or steering system general protection fuse
blows.
fig. 148
A0J0048
176GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

FUSE LOCATIONFuses are grouped together in three fuse boxes located in the engine
compartment, dashboard and luggage compartment.
Engine compartment fuse box
This is located next to the battery: to access the fuses fig. 150, undo
screws A fig. 149 and remove cover B.
The number identifying the electrical component corresponding to each
fuse is on the back of the cover.
After replacing the fuse, make sure you close cover B on the fuse box.
If you have to wash the engine compartment, take care not
to aim the jet of water directly at the fuse box or
windscreen wiper motors.
fig. 149
A0J0126
fig. 150
A0J0127
